WH132 Chain WH132 Welded Steel Mill Chain

WH132 Chain WH132 Welded Steel Mill Chain

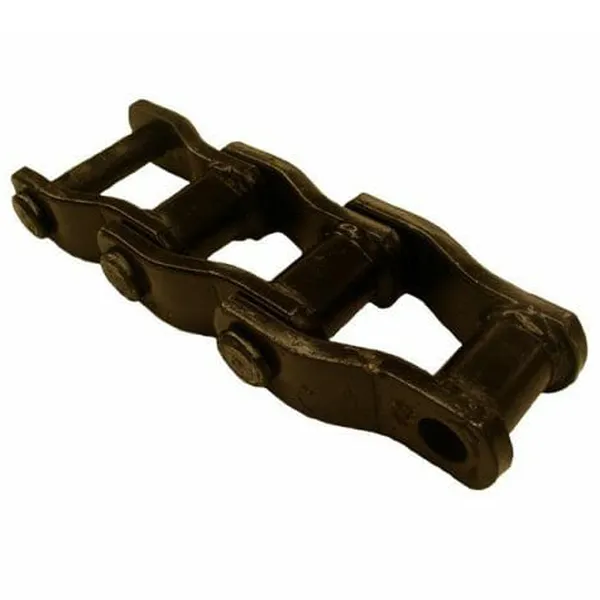

The WH132 welded steel mill chain is a high-strength, rollerless chain that is designed for use in demanding applications. It is made of high-grade steel and has a precision-strengthened weld around the outside diameter of the barrel connecting the two sidebars together. The pin is also full 360° heat-treated for optimal wear life. The sidebars are heat-treated and have a distinctive offset style.WH132 welded steel mill chains are commonly used in the pulp and paper, sugar, and grain handling industries, as well as in forestry applications and other heavy-duty conveyance sectors. They are also suitable for use in elevating and conveying applications. The WH132 steel chain will run on the same sprockets as its cast counterpart H132 chain, which makes making the switch to a welded steel chain seamless.

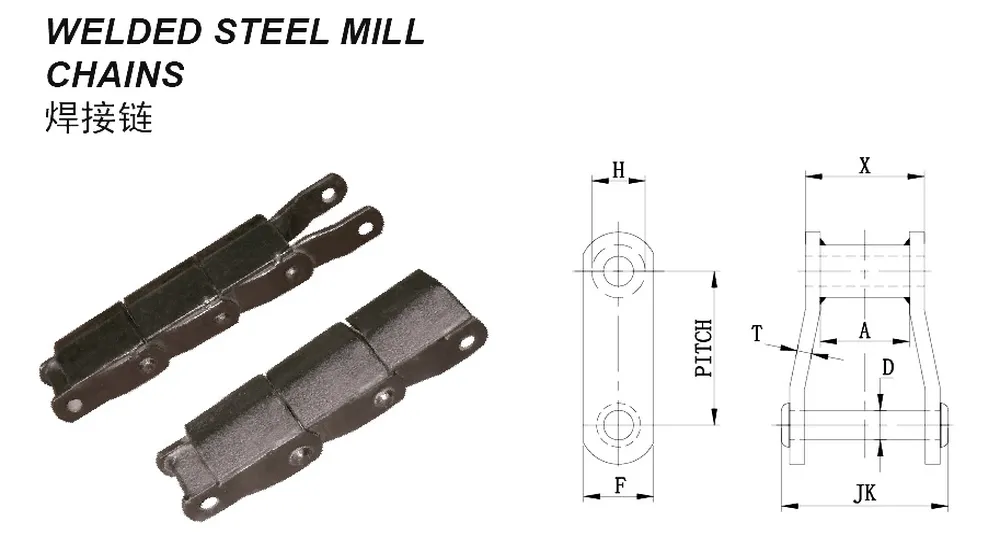

▍WH132 Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH132 Chain	6.050	115000	15300	20	14.2	4.38	1.00	0.50	2.00	1.62	2.88

▍WH132 Welded Steel Chain Construction:

Welded steel chains got their name from their construction. A welded steel chain is manufactured with a precision-strengthened weld around the outside diameter of the barrel connecting the two sidebars. Within the barrel is the pin, which on a WH132 chain the pin is full 360° heat-treated for optimal wear life. Then housing it, all are the heat-treated distinctive offset-style sidebars. Please note that standardly we supply the WH132 chain as a riveted construction, but WH132 welded steel chain is also available from stock.Here are the key components of a WH132 welded steel chain:

• Barrel:?The barrel is the central part of the link that holds the pin and sidebars in place. It is made of high-grade steel and is heat-treated for strength and durability.
• Pin: The pin is the part of the link that connects the two sidebars together. It is made of high-grade steel and is fully 360° heat-treated for optimal wear life.
• Sidebars:?The sidebars are the two side pieces of the link that connect to the barrel and pin. They are made of high-grade steel and are heat-treated for strength and durability.
• Weld:?The weld is the connection between the two sidebars. It is precision-strengthened to ensure a strong and durable bond.

The WH132 welded steel chain is a reliable and durable option for use in demanding applications. It offers a high level of performance and can withstand the rigors of heavy-duty use.

▍WH132 Chain Attachments:

WH132 chain attachments can be supplied onto the WH132 chain in any spacing/ configuration needed.

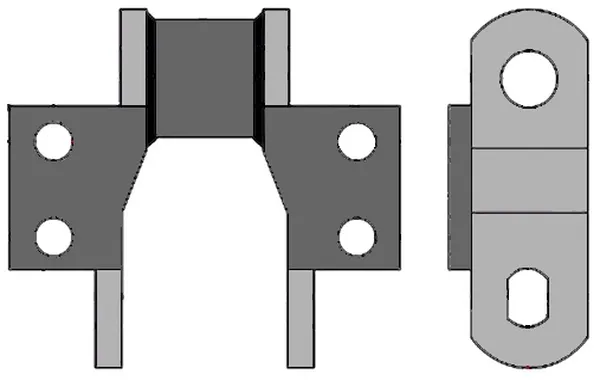

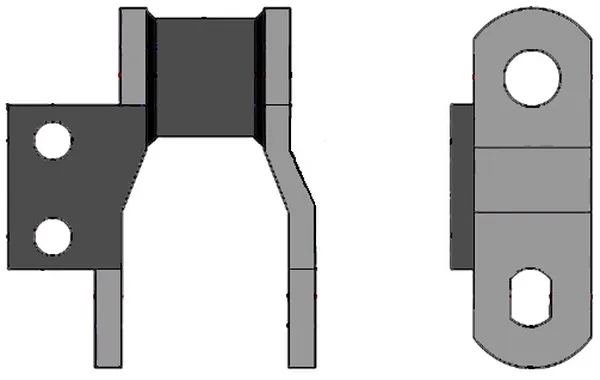

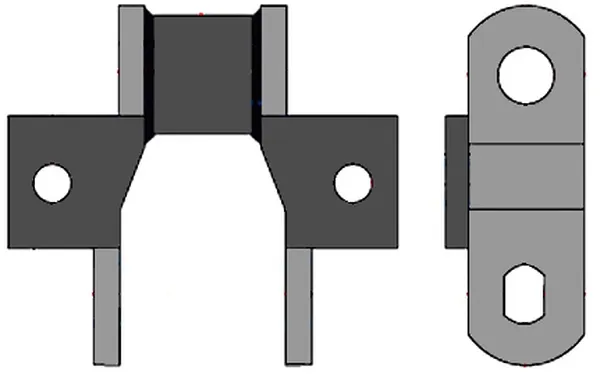

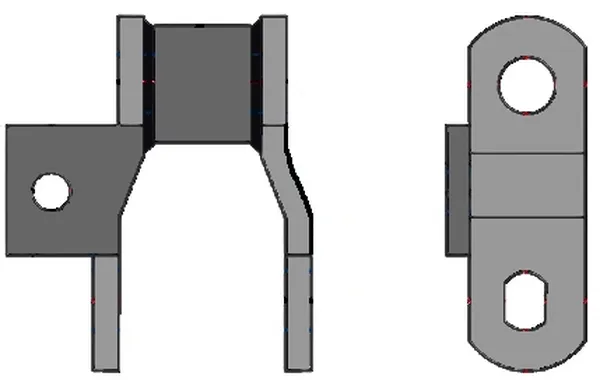

WH132 Chain A1 Attachment	WH132 Chain A2 Attachment	WH132 Chain K1 Attachment	WH132 Chain K2 Attachment

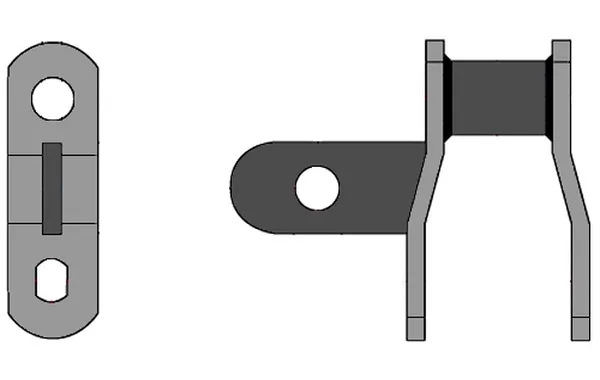

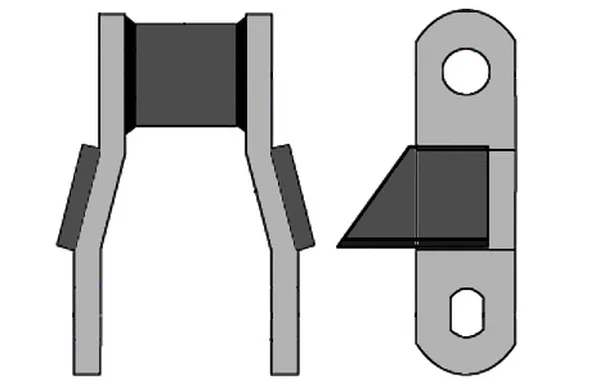

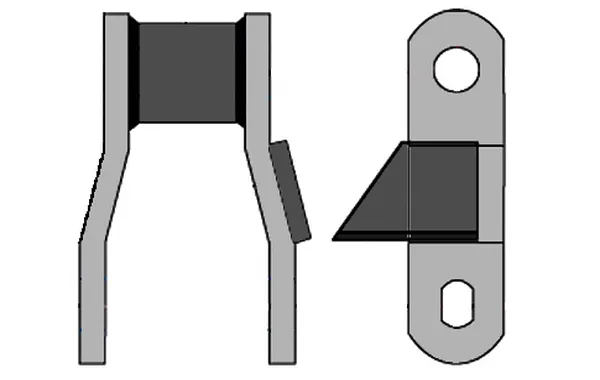

WH132 Chain A22 Attachment	WH132 Chain A22 Slotted Attachment	WH132 Chain R2 Attachment	WH132 Chain RR2 Attachment

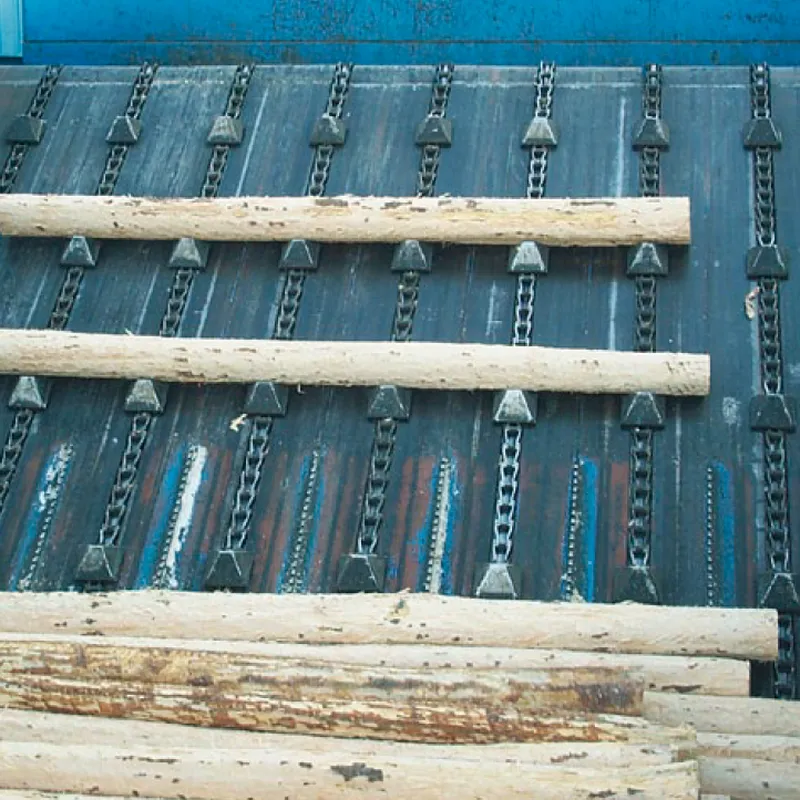

▍WH132 Chain Application Examples:

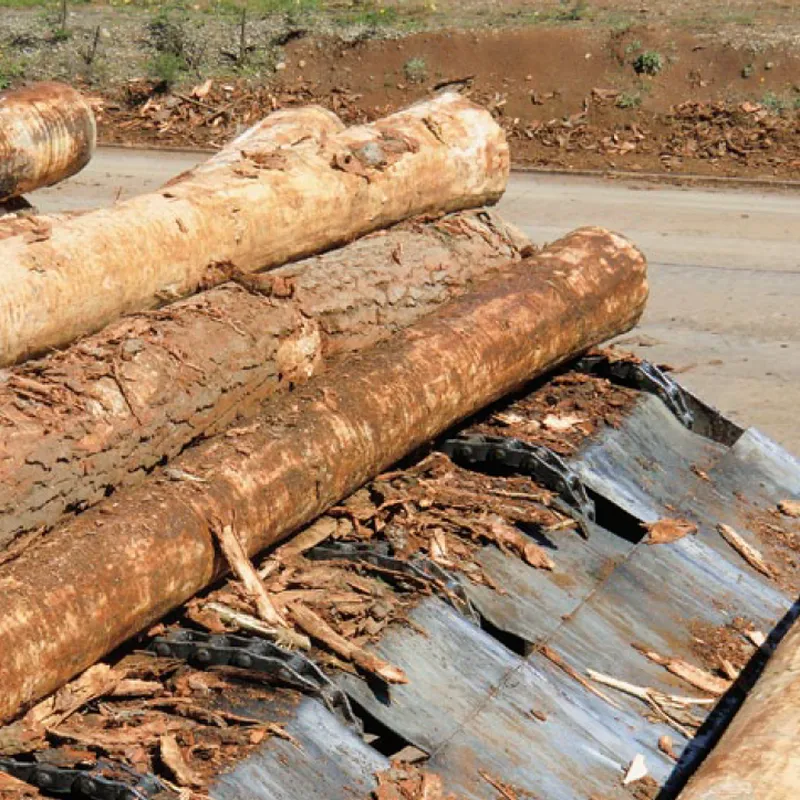

WH132 welded steel chain is a high-strength, heavy-duty chain that is used in a variety of applications. Some of the most common applications for the WH132 chain include the following:(1) Heavy-duty conveyors: WH132 chain is often used in conveyors that transport materials such as grain, coal, ore, and other heavy loads. The high strength of the WH132 chain makes it ideal for these applications, as it can withstand the high loads and wear that are common in conveyors.(2) Forestry: WH132 chain is also used in forestry applications, such as logging and sawmilling. The strength and durability of the WH132 chain make it ideal for these applications, as it can withstand harsh conditions and heavy loads that are common in forestry.(3) Grain Handling: WH132 chain is also used in grain handling applications, such as grain elevators and feed mills. The strength and wear resistance of the WH132 chain makes it ideal for these applications, as it can withstand the abrasive nature of grain and other materials that are handled in grain handling facilities.(4) Pulp, paper, and sugar processing: WH132 chain is also used in pulp, paper, and sugar processing applications. The strength and corrosion resistance of the WH132 welded steel mill chain?makes it ideal for these applications, as it can withstand the harsh conditions and chemicals that are common in these industries.

▍WH132 Chain Sprockets and WH132 Welded Steel Chain

WH132 chain sprockets and WH132 welded steel chains are commonly used in heavy-duty conveying, driving, and elevating applications. WH132 chain is a high-strength steel rollerless chain that is heat-treated for maximum performance. It is designed for rugged, abrasive, and demanding environments. WH132 chain sprockets are made from high-quality steel and are designed to withstand the rigors of these applications.Here are some of the benefits of using WH132 chain sprockets and WH132 welded steel chains:

• High strength and durability
• Resistance to wear and tear
• Ability to operate in harsh environments
• Low maintenance requirements
• Long service life

Additionally, we offer a full line of high-quality sprockets that range in tooth size, bore size, and hub configuration and are manufactured specifically for the WH132 chain. We can even supply Made To Order (MTO) and custom WH132 chain sprockets to meet your exact application needs.

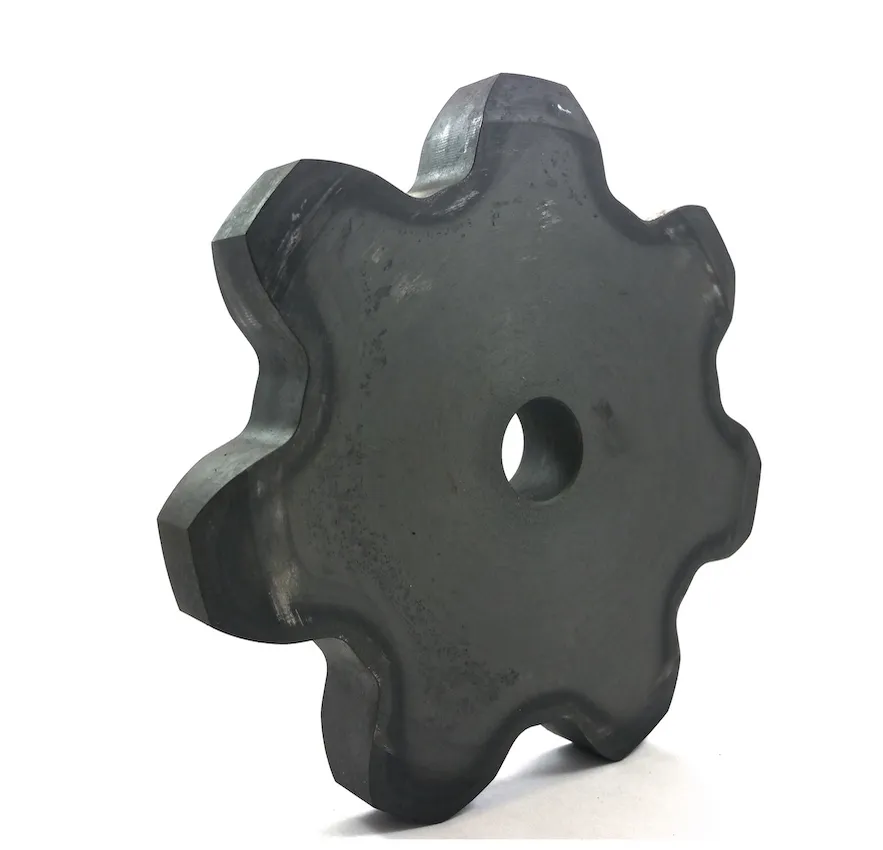

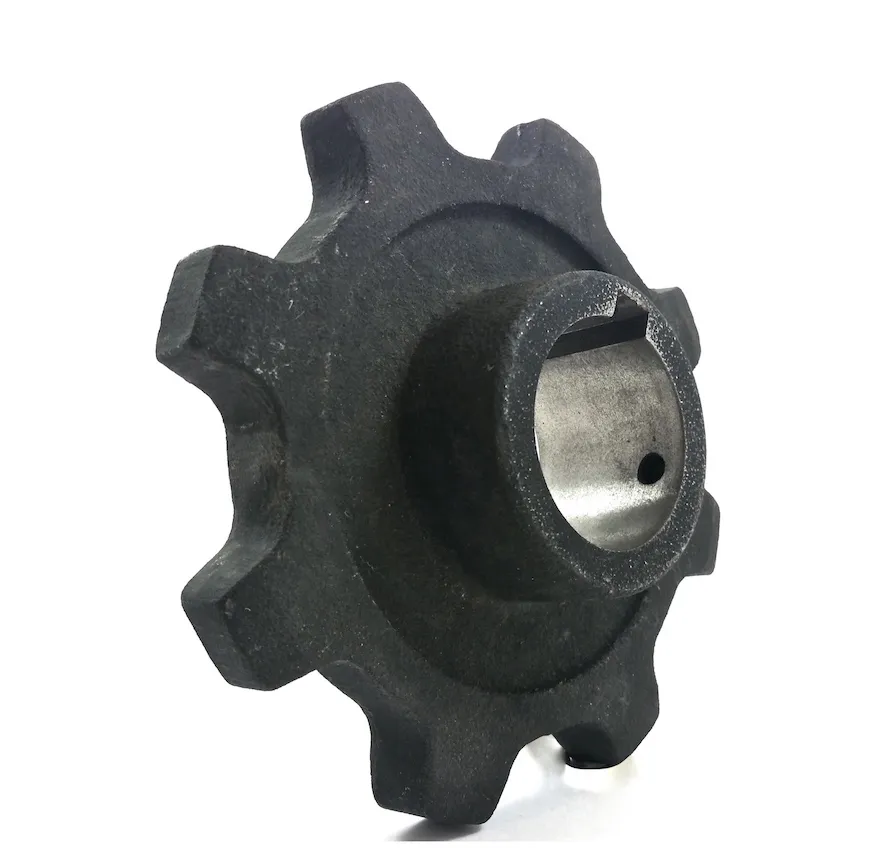

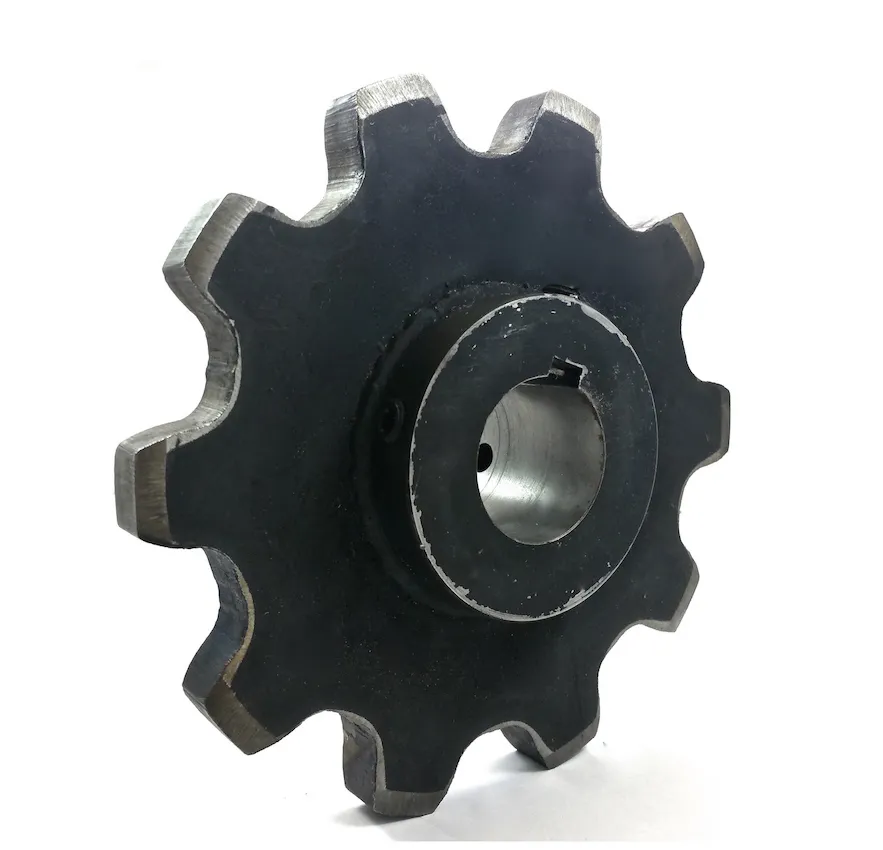

A-Plate WH132 Chain Sprockets	B-Hub WH132 Chain Sprockets	C-Hub WH132 Chain Sprockets
