Wheel Drive Planetary Gearbox For Forklift Material Handling Vehicles

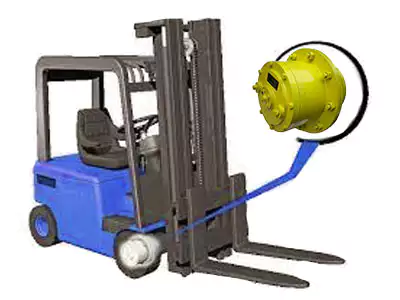

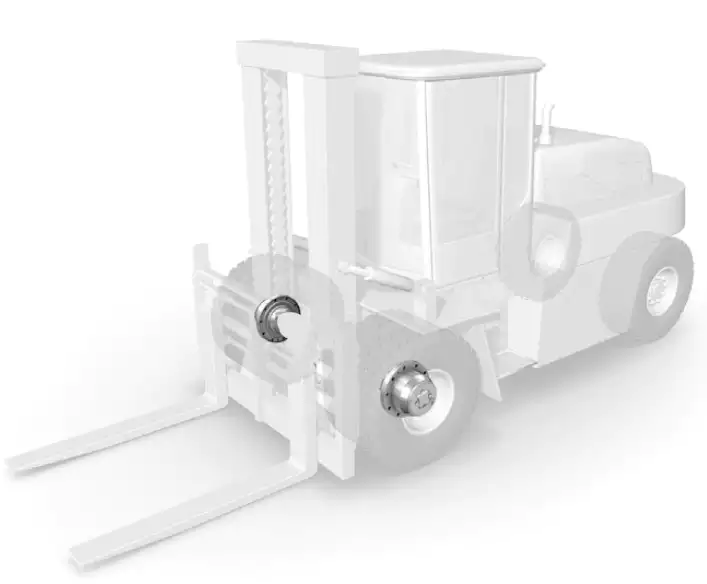

Where is the Wheel Drive installed on Forklift?

The location where the Wheel Drive is installed on the forklift (Forklift) depends on the drive type of the forklift. Generally speaking, forklifts can be front-wheel drive, rear-wheel drive, or four-wheel drive. Specifically:

• Rear-Wheel Drive: In this configuration, the wheel drive device is usually installed at the rear of the forklift and directly drives the rear wheels to rotate. This design makes the forklift more stable when carrying heavy loads because the drive wheels are behind the vehicle's center of gravity, providing good traction.
• Front-Wheel Drive: Although it is not common on forklifts, if the forklift adopts front-wheel drive, the wheel drive device will be installed on the front wheels and is responsible for pushing the vehicle forward. This approach may be used to improve maneuverability in certain designs.
• Four-Wheel Drive (4WD): On a four-wheel drive forklift, the wheel drive device is connected to all four wheels to ensure optimal traction and passing ability on complex or uneven surfaces. . This usually involves a more complex drivetrain, which may include differentials and driveshafts to distribute power to all wheels.

The main function of the Wheel Drive is to convert the power from the engine or electric motor into the rotational motion of the wheels, thereby pushing the forklift forward or backward. It includes components such as gearboxes, drive shafts, final drives, etc. These components work together to efficiently transmit torque, allowing the forklift to operate in various working conditions, including carrying heavy objects, climbing slopes, and operating in various situations. Drive on flat ground. By precisely controlling the rotation of the wheels, the wheel drive system is critical to the operating performance, efficiency and safety of the forklift.

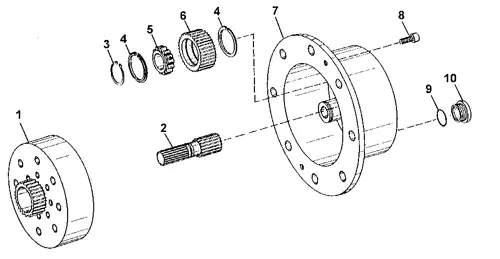

Structure of Wheel Drive

1.Ring Gear  2.Pinion Shaft  3.Snap Ring  4.Snap Ring  5.Cylindrical Roller Bearing  6.Planet Pinion  7.Planet Pinion Carrier  8.Screw  9.O-Ring  10.Drain Plug

The importance of wheel drive planetary gearbox for forklifts

Forklifts use planetary gearboxes based on the following necessities and advantages:

1. Space efficiency: Planetary gearboxes are known for their compact design, which enables high transmission ratios in limited space. This is particularly important for equipment such as forklifts, which need to maintain strong driving force while maintaining compactness and flexibility to operate in narrow warehouse aisles and stacking areas.
2. High torque transmission: The planetary gearbox is able to withstand high loads and transmit large torque, which is crucial for the instantaneous high torque output required by forklifts when lifting heavy objects. Maintains strong driving force even at low speeds.
3. Smooth operation: Planetary gearboxes provide smoother and quieter operation due to their multi-tooth contact nature. This is particularly important to improve operational precision and reduce noise pollution, especially when working in indoor warehouse environments.
4. Reliability and Durability: Planetary gearboxes are typically manufactured with high precision and durability to withstand the frequent starts, stops and reverse operations that are common requirements in the daily work of forklifts.
5. Easy maintenance and installation: Although the planetary gearbox has a complex structure, its modular design makes replacement and maintenance relatively simple. This is very beneficial for reducing forklift downtime and maintenance costs.
6. Wide range of speed ratio options: The planetary gearbox can provide a wide range of transmission ratio options. Through different gear combinations, the output of the forklift motor can be accurately matched with actual operating needs, optimizing energy efficiency and performance.

To sum up, the application of planetary gearboxes in forklifts not only improves the overall performance, but also ensures efficient, safe and economical operations. It is one of the key technologies to meet the needs of modern material handling.

What performance does wheel drive need to have to adapt to forklift?

Forklifts (Forklifts) have some special performance requirements for the wheel drive planetary gearbox equipped to meet their needs for efficient and safe work in various industrial and warehousing environments. These special performance requirements mainly include:

• High load-bearing capacity: Forklifts often need to carry heavy objects, so their wheel drive planetary gearbox must be designed with high load-bearing capacity and high torque output to ensure smooth acceleration, driving and climbing even when fully loaded.
• Durability and reliability: Considering that forklifts are used in continuous high-intensity operations and harsh environments, the gearbox needs to have a high degree of wear resistance, impact resistance and long life to reduce failure rates and extend maintenance cycles.
• Compact design: The working space of a forklift is often limited, so its wheel drive system requires a compact design. The planetary gearbox is particularly suitable due to its compact structure and small size, which helps optimize the overall layout and maneuverability of the forklift.
• Low-noise operation: To reduce the impact on the working environment, especially in indoor warehouse applications, planetary gearboxes should be designed for low-noise operation, reducing noise levels through precision gear machining and lubrication systems.
• Efficient thermal management: Forklifts tend to generate a lot of heat during continuous operation. The gearbox must have good heat dissipation performance to ensure stable operation in high temperature environments and avoid performance degradation or damage caused by overheating.
• Flexible speed ratio selection: According to the different application scenarios of the forklift, such as rapid handling or fine positioning, the planetary gearbox of the wheel drive system should provide a variety of speed ratio choices to optimize power output and work efficiency.
• Ease of maintenance: Considering maintenance efficiency, the gearbox should be designed to facilitate inspection and quick replacement of worn parts to reduce downtime.
• Environmental adaptability: For forklifts working outdoors or in special environments, their wheel drive planetary gearboxes also need to be dustproof, waterproof and even anti-corrosion to cope with harsh weather and chemical corrosion.

We can provide customization to fit different models of forklift

Our high-performance gearbox series, with its exquisite engineering design and wide compatibility, can adapt to most forklift brands and models on the market, whether it is mainstream Toyota, Linde, Ningbo, Jungheinrich or other international and domestic brands famous brand. We are well aware of the uniqueness of each forklift in terms of load capacity, power requirements, and space layout. Therefore, our gearbox not only follows industry standard dimensions and interface protocols, but also places special emphasis on flexibility and customized services.For forklifts with special specifications or special operating environment requirements, such as food-grade hygiene requirements, extreme temperature conditions or special material handling, we provide one-on-one customized services. From material selection, gear ratio adjustment to shell protection level customization, each step strives to be accurately matched to ensure that the gearbox can operate stably for a long time under various harsh conditions.We promise that through our advanced manufacturing technology, strict quality control and thoughtful after-sales service, whether it is standard products or customized solutions, we can help your forklifts improve their performance and extend their service life, providing you with the best solutions for your logistics and material handling operations. Strong support. When you choose our gearbox, you choose a reliable, efficient, and adaptable power transmission partner.
