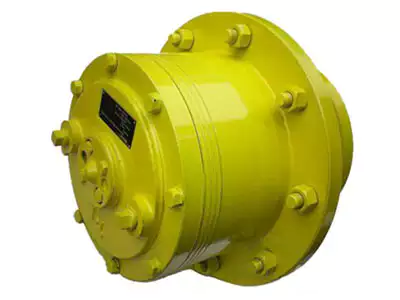

Wheel Drive Planetary Gearbox For Wheel Loader

Wheel Drive For Wheel Loader

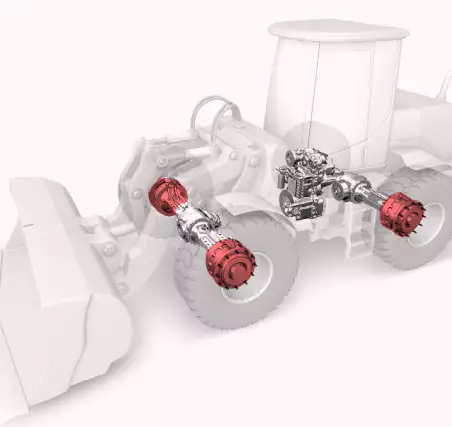

The Wheel Drive is installed near the driving wheel of the Wheel Loader (wheel loader). Specifically, it is usually integrated in the loader's transmission system, close to the final drive part of the wheel. This part of the transmission system is responsible for transmitting the power output from the engine to the drive wheels through a series of transmission components (such as gearboxes and drive shafts), so that the loader can move.

Wheel Drive Plays Key Roles in Wheel Loader

1. Power transmission: Efficiently converts and transmits the power generated by the engine to the wheels, giving the loader enough driving power to complete a variety of work tasks, including driving on uneven ground, slopes, or muddy conditions.
2. Torque amplification: Through the principle of gear reduction and torque increase, Wheel Drive can greatly increase the torque output by the engine, which is crucial for the loader to start, climb and push materials under heavy load conditions.
3. Four-wheel drive (if equipped): In wheel loaders equipped with four-wheel drive, the Wheel Drive system ensures that all drive wheels receive power, improving the machine's traction and off-road performance, especially in slippery or unstable conditions under ground conditions.
4. Steering assistance: In some advanced wheel loader designs, the Wheel Drive system can also work with the hydraulic steering system to achieve more flexible in-situ steering or maneuvering in a tight space by independently controlling the speed difference between the left and right drive wheels. operate.
5. Operational flexibility and efficiency: By precisely controlling the power output of each drive wheel, Wheel Drive helps improve the loader's operational flexibility, allowing the driver to control the machine more precisely, improving operating efficiency and safety.

Features of Wheel Drive For Wheel Loader

Design Features

• Compact design: The planetary gearbox utilizes its unique concentric stacked gear structure to achieve high torque transmission in a smaller space, which makes the overall layout of the loader more compact and helps improve the vehicle's stability and passability.
• High torque density: The planetary gear meshes with the sun gear and ring gear at the same time through multiple planetary gears, which can effectively amplify the input torque, which is crucial for Wheel Loader that needs to work under heavy load conditions to ensure strong traction and Digging power.
• Load balancing: The symmetrical arrangement of planetary gears allows the load to be evenly distributed on multiple gears, reducing wear on individual gears and improving overall life and reliability.

Advantage

• High efficiency: The high-efficiency transmission design of planetary gears reduces power loss, improves overall operating efficiency, and saves energy consumption.
• Strong reliability: Due to load dispersion and the use of durable materials, planetary gearboxes are able to withstand extreme working conditions, extending the working life of the equipment.
• Smooth operation: Precise gear meshing and power distribution make the loader run more smoothly under various working conditions, improving operating comfort and precise control capabilities.
• Strong adaptability: A wide range of applications and speed ratio options enable the same Wheel Loader to adapt to more diverse operating environments and task requirements.
• Low maintenance costs: Over the long term, lower downtime and repair costs are reduced, lowering total cost of ownership due to its high durability and maintenance-friendly design.

The importance of Wheel Drive to Wheel Loader

The importance of Wheel Drive to Wheel Loader is reflected in the following core aspects:

• Power transmission and efficiency: The Wheel Drive system is the terminal executor of the wheel loader power transmission chain. It directly converts the power generated by the engine or electric motor into the driving force of the wheels, ensuring efficient and smooth transmission of energy to the ground to drive the machine. Forward, backward and steering are the basis for loader operation.
• Traction and stability: By properly adjusting the torque distribution of each drive wheel, especially on four-wheel drive loaders, Wheel Drive can significantly enhance the machine's performance on complex terrain (such as soft soil, slopes, slippery or uneven roads). Traction and stability ensure that the loader can maintain good operating performance even under heavy load conditions.
• Operation adaptability and flexibility: In a changing operating environment, Wheel Drive not only provides the necessary power output, but also supports the loader to perform fast and precise operations through its flexibility, such as turning in place, moving in compact spaces, and Quickly respond to operating instructions, improving operating efficiency and flexibility.
• Durability and reliability: The high-quality Wheel Drive system is designed to be sturdy and durable, able to withstand the test of heavy loads, continuous operation and harsh working conditions, reducing maintenance needs and downtime, ensuring long-term stable operation and low life cycle of the loader cost.
• Energy efficiency: Modern wheel drive designs tend to focus on energy efficiency, helping to reduce fuel consumption or electricity usage through optimized gear ratios, reduced internal friction and intelligent control systems, thereby reducing operating costs and reducing environmental impact.
• Operation comfort and safety: Smooth power transmission and precise control response improve driving comfort and reduce operator fatigue; at the same time, a reliable drive system is also an important factor in ensuring operational safety, ensuring that the loader can operate under various operating conditions. All are stable and controllable.

Compatible Advantages

Our professional-grade Wheel Drive Planetary Gearbox, with its exquisite design and excellent manufacturing technology, is perfectly suitable for most Wheel Loader models on the market, showing unparalleled versatility and compatibility advantages. From industry giants to emerging brands, whether in standard operating environments or extreme working conditions, our gearbox is the ideal choice to improve loader performance, efficiency and reliability.

• Caterpillar 950M / 966K XE
• Komatsu WA320-8 / WA475-10
• Volvo L60H / L90H
• Liebherr L 550 / L 580 XPower
• John Deere 624K / 724K
• Case Construction WX180 / WX210
• JCB 427ZX / 457ZX
• Doosan DL200-5 / DL250-5
