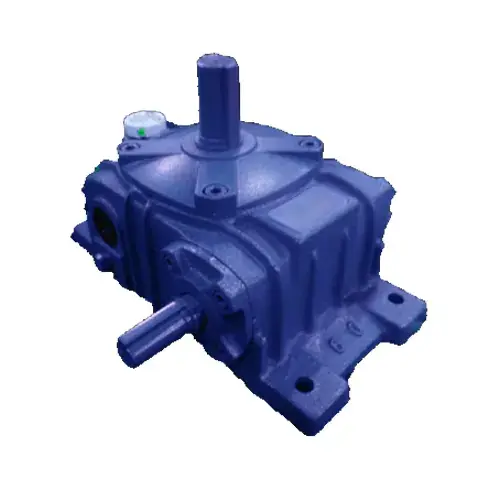

Worm Gearbox-Replacement of Chenta ESS Worm Gear Reducer (Output Upward)

Product Introduction

Our company offers the Worm Gearbox, also known as Worm Gearmoto, Worm Speed Reducer, and Worm Drive, as a replacement for the Chenta ESS Worm Gear Reducer. Our products are of high quality and offered at competitive prices. It is important to note that our products are replacement parts and not original equipment manufacturer (OEM) parts. If you require OEM parts, please contact the original supplier for purchase.

Product Structure

The Worm Gearbox consists of the following components:

• High-quality dual-lip oil seals
• Medium carbon steel worm, hardened, heat-treated, and thread ground
• Chromium molybdenum alloy steel worm, high-frequency heat-treated and thread ground, suitable for larger box sizes
• Aluminum-bronze sand casting wheel, durable
• Durable housing made of gray cast iron and ductile iron, suitable for larger box sizes
• Detachable base for universal gearbox installation

Product Features

• Compatible with IEC and NEMA motors
• Ratio range from 1/5 to 1/3600
• Horsepower range from 1/4HP to 100HP
• Utilizes high-quality dual-lip oil seals
• Medium carbon steel worm, hardened, heat-treated, and thread ground
• Chromium molybdenum alloy steel worm, high-frequency heat-treated and thread ground, suitable for box sizes of 300 and above
• Aluminum-bronze sand casting wheel, durable
• Durable housing made of gray cast iron and ductile iron, suitable for box sizes of 300 and above
• Detachable base for universal gearbox installation

Application

The Worm Gearbox is suitable for various applications, including:

• Equipment industry
• Food industry
• Car washing industry
• Packaging industry
• Transmission industry
• Automation industry
• Solar energy industry

Chenta Worm Gear Reducer Replacement

Our company provides several advantages in replacing the Chenta Worm Gear Reducer:

• High-quality products
• Competitive prices
• Replacement parts, not original equipment manufacturer (OEM) parts

If you require OEM parts, please contact the original supplier for purchase.We welcome customers to provide drawings or samples for customized orders.

Installation Steps

1. Connect the input shaft directly to the motor using a flexible coupler.
2. Connect the output shaft to the machine, preferably using a gear coupling.
3. Install the gearbox on a stable foundation, considering good ventilation and convenient oil filling/drainage.
4. Align the input shaft of the reducer with the motor shaft, ensuring tolerance compliance.
5. After installation, manually check the smooth operation of the input shaft and the rotation of the nut.
6. Perform a no-load test run before operation, and immediately rectify any abnormalities.

Lubrication and Maintenance of Worm Gearbox

1. Replace the gearbox after 300 hours of operation, and then every 2500 hours. Regularly check and replace the lubricating oil.
2. Use the same specification oil for replacement, and do not mix with oil of other brands.
3. Prior to oil replacement, clean and drain the gearbox internally, and then refill with new oil.
4. If the temperature exceeds 80??C or any abnormal noise occurs during operation, immediately stop the gearbox and perform an inspection before resuming operation.
5. Regular maintenance is required, and corrective measures should be taken if any wear is found. Replacement parts should have the same precision as the original standard and undergo a no-load test run in advance.

Motors for Worm Gear Reducers

Worm Gear Reducers and motors are complementary to each other and play a vital role in various industries. Our company also offers a wide range of electric motors for sale.

About Raydafon

We are a comprehensive transmission equipment manufacturer with over 20 years of experience in the design, production, manufacture, and sales of speed reducers. Our company serves customers in Europe, America, Africa, Asia, and other regions, and has gained a reputable reputation in the market.At Raydafon, we are committed to providing the best services, highest product quality, and competitive prices. We have introduced advanced production and testing equipment and employed industry professionals and technicians for innovative research, development, and manufacturing. Our production processes follow strict standards to ensure the delivery of high-quality, energy-efficient, and reliable gearboxes.Our gearboxes are widely used in various industries, including the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more. We welcome customers to explore our products and contact us for purchasing.

Q&A

Q: Can the Worm Gearbox be used with both IEC and NEMA motors?

A: Yes, the Worm Gearbox is compatible with both IEC and NEMA motors.

Q: What is the horsepower range of the Worm Gearbox?

A: The Worm Gearbox has a horsepower range from 1/4HP to 100HP.

Q: How often should the lubricating oil be replaced in the Worm Gearbox?

A: The lubricating oil in the Worm Gearbox should be replaced after 300 hours of operation, and then every 2500 hours.
