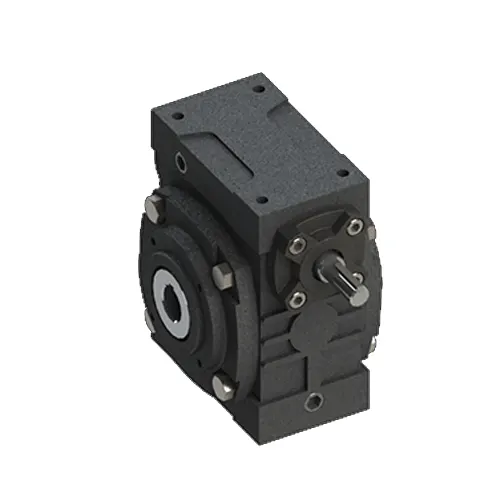

Worm Gearbox-Replacement of Chenta UCS Worm Gear Reducer (Universal Mounting)

Product Introduction

Our company provides high-quality replacement worm gearboxes for the Chenta UCS Worm Gear Reducer (Universal Mounting). These gearboxes are reliable and competitively priced. It is important to note that our products are replacement parts, not original equipment manufacturer (OEM) parts. If you require OEM parts, please contact the original supplier for purchasing.

Product Structure

The worm gear reducer consists of the following components:

1. Worm Gear: Transmits power between the input and output shafts.
2. Worm Shaft: Rotates the worm gear.
3. Housing: Provides protection and support for the internal components.
4. Bearing: Reduces friction and supports the rotating parts.
5. Seal: Prevents lubricant leakage and keeps contaminants out.

Product Features

The Worm Gearbox offers the following features:

• Compatible with IEC and NEMA motors.
• Ratio range from 1/5 to 1/3600.
• Power range from 1/4HP to 100HP.
• Equipped with high-quality double-lip oil seals.
• Worm gear made from medium carbon steel, hardened and thread-ground.
• Worm shaft made from chromium molybdenum alloy steel, heat-treated and thread-ground; suitable for larger housing sizes above 300.
• Durable aluminum bronze worm wheel.
• Sturdy housing made from gray cast iron and ductile iron; suitable for larger housing sizes above 300.
• Detachable base for universal mounting.

Applications

The Worm Gearbox is suitable for various applications, including but not limited to:

• Industrial equipment.
• Food processing industry.
• Car wash systems.
• Packaging machinery.
• Conveyor systems.
• Automation equipment.
• Solar energy systems.

Chenta Worm Gear Reducer Replacement

Our company offers several advantages when it comes to replacing Chenta Worm Gear Reducers:

• High-quality replacement parts at competitive prices.
• Comparable performance to the original Chenta Worm Gear Reducers.
• Expertise in providing replacement parts for various gearboxes.
• Assurance of product quality and reliability.
• Customer satisfaction guaranteed.

We emphasize that our products are replacement parts, not original equipment manufacturer (OEM) parts. If you require OEM parts, please contact the original supplier for purchasing.We also welcome custom orders based on specific requirements. Please feel free to provide drawings or samples for customization.

Installation

To install the Worm Gearbox, please follow these steps:

1. Connect the input shaft to the motor using a flexible coupling.
2. Connect the output shaft to the machine, preferably using a gear coupling.
3. Ensure a stable foundation for the gearbox installation, considering proper ventilation and easy access for lubrication and oil drainage.
4. Align the input shaft of the reducer with the motor shaft, and ensure the tolerances are within acceptable limits.
5. After installation, manually check the smooth rotation of the input shaft and ensure the nut is properly secured.
6. Before starting the operation, perform a no-load test run and immediately address any abnormalities.

Lubrication and Maintenance

To maintain optimal performance of the Worm Gearbox, follow these guidelines:

1. Replace the gearbox after 300 hours of operation and every 2500 hours thereafter. Regularly check and change the lubricating oil.
2. Use oil of the same specification; do not mix with oils from other brands.
3. Prior to oil replacement, flush and drain the gearbox to remove any residual oil, then refill with fresh oil.
4. If the temperature exceeds 80??C or any abnormal noise occurs during operation, immediately shut down the gearbox for inspection and resolve the issue before restarting.
5. Regularly maintain and address any signs of wear by replacing parts with precision and conducting a no-load test run in advance.

Motors for Worm Gear Reducers

Worm gear reducers and electric motors complement each other and are essential components in various applications. Our company not only provides high-quality worm gear reducers but also offers a wide range of electric motors. These motors are designed to work seamlessly with our gearboxes, ensuring efficient and reliable operation.The combination of a reliable worm gear reducer and a suitable electric motor enhances the performance and precision of mechanical systems. Our electric motors are specifically designed to meet the demanding requirements of various industries, providing reliable power transmission and precise control.

About Raydafon

We are a comprehensive transmission equipment manufacturer with over 20 years of experience in research, development, manufacturing, and sales of speed reducers. Our company has gained a reputation for providing high-quality products and services to customers in Europe, America, Africa, Asia, and other regions.We take pride in our production capabilities and employ industry professionals and technicians to continuously innovate and improve our products. With advanced production and testing equipment, we strictly control every aspect of the production process to ensure the highest quality and energy efficiency of our reducers.Our gearboxes are widely used in various industries, including equipment manufacturing, food processing, car wash systems, packaging machinery, transmission systems, automation equipment, solar energy, and more. We welcome customers to explore our products and contact us for purchases.

Q&A

Q: Can I use the Worm Gearbox with a non-IEC or NEMA motor?

A: Yes, the Worm Gearbox can be used with motors that are not IEC or NEMA compliant. However, compatibility may vary, and additional modifications might be required for proper integration.

Q: Can I use a higher ratio for the Worm Gearbox?

A: The Worm Gearbox offers a ratio range from 1/5 to 1/3600. Higher ratios can be achieved by combining multiple gear stages or using a different gearbox model with a higher ratio range.

Q: Can I use the Worm Gearbox for high-speed applications?

A: The Worm Gearbox is primarily designed for low to medium-speed applications. For high-speed applications, alternative gearbox models with suitable gear designs and materials are recommended.
