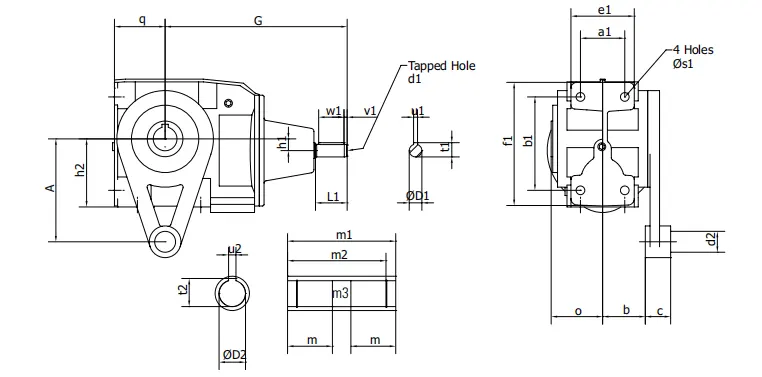

Worm Reducer-Replacement of Fenner Series C Helical Worm Gearbox Shaft Mounted Reducer-with Torque Arm Double/Triple Reduction 870

Raydafon Group presents the Worm Reducer-Replacement of Fenner Series C Helical Worm Gearbox Shaft Mounted Reducer-with Torque Arm Double/Triple Reduction 870, a robust and reliable solution for industrial applications requiring precise motion control. Engineered with durable materials and advanced helical worm technology, this gearbox ensures efficient power transmission and extended service life, making it ideal for engineers and technicians in manufacturing, packaging, and automation settings. It solves alignment and installation challenges while offering superior torque capacity compared to standard reducers. Experience seamless operation and enhanced productivity—upgrade your machinery today with Raydafon Group's trusted innovation.

Send Inquiry

Product Description

Introduction

The Worm Reducer-Replacement of Fenner Series C Helical Worm Gearbox Shaft Mounted Reducer-with Torque Arm Double/Triple Reduction 870 is a highly efficient and energy-saving gearbox. It offers multiple installation options and a wide range of ready-made gear ratios, ranging from 8:1 to 16,000:1. The gearbox is dimensionally interchangeable with leading market competitors and is compatible with standard IEC motors without any modifications needed. The modern design technology and high-quality components make the C series helical worm gearboxes superior in terms of cost-effectiveness compared to any other gearbox. The C series right-angle gearboxes provide a highly efficient and compact solution that meets most requirements.

Features

Wide range of gear ratios from 8:1 to 16,000:1, with a maximum torque of 10,000Nm
Available in 8 different specifications
Aperture range from 20mm to 90mm
Highly efficient and energy-saving right-angle drive
Efficient gear transmission for energy and operational cost savings
Interchangeable in size with other manufacturers' products
Innovative motor adapter with standard IEC interface
No oil leakage during motor disassembly due to oil-sealed reducer
Multiple installation options: base, flange, or shaft mounting

Applications

Conveyor systems
Mixers and agitators
Material handling equipment
Packaging machinery
Industrial automation
Food processing
Crushers and grinders
Textile machinery

Components of Worm Reducer

Housing: Provides protection and support for the internal components
Worm Shaft: Transmits torque from the motor to the worm gear
Worm Gear: Transfers motion from the worm shaft to the output shaft
Output Shaft: Delivers power to the driven equipment
Bearing: Supports the rotating components and reduces friction
Seal: Prevents oil leakage and protects against contaminants

Fenner Helical Worm Gearbox Replacement

Our company specializes in providing high-quality replacements for Fenner brand helical worm gearboxes at competitive prices. We emphasize that our products are replacement parts and not original equipment. For the purchase of original equipment, please contact the original supplier. Our Fenner brand replacements offer the same excellent quality and favorable pricing. We also welcome custom orders based on specific requirements.

Installation

The performance of the worm reducer depends on correct installation, lubrication, and maintenance. There are two common mounting methods:

Shaft Mounting

Ensure that the shaft and the gear unit hole for mounting the gear unit are clean and free from burrs. Apply a sufficient amount of lubricating oil to the shaft and hole to aid assembly and prevent friction corrosion. Slide the unit onto the drive shaft and secure with a key.

Foot Mounting

Mount the unit securely on a sturdy structure. Install an output shaft extension if required. The connection between shafts should use an elastic coupling, ensuring that the shaft misalignment is within the coupling's tolerance. When mounting pulleys or sprockets on two shafts, place them as close as possible to the gearbox. Do not strike the shafts when installing or removing the transmission components, as this may damage the bearings.

Lubrication and Maintenance

Lubrication:

Oil Change: Gearboxes of size 870 and 871 are lubricated for life unless operating in explosive environments. All other sizes of gearboxes require oil change based on the equipment's operating temperature. For new gearboxes, replace half of the oil after 1000 hours of operation, one year, or when the recommended service life expires.

Maintenance:

Regularly inspect and clean the gear unit to remove debris and ensure proper lubrication.
Check for any abnormal noise, vibration, or leaks during operation.
Replace worn or damaged components promptly to avoid further damage.
Follow the recommended maintenance schedule provided in the user manual.

Common Problems and Solutions

Problem	Cause	Solution
Excessive noise	Misalignment, worn gears, lack of lubrication	Align the unit properly, replace worn gears, ensure proper lubrication
Overheating	Insufficient lubrication, excessive load	Ensure proper lubrication, reduce the load
Leakage	Worn seals, damaged housing	Replace worn seals, repair or replace the housing
Low efficiency	Incorrect gear ratio, worn gears	Adjust the gear ratio, replace worn gears
Abnormal vibration	Misalignment, unbalanced load	Align the unit properly, balance the load
Failure to start	Faulty motor, electrical issue	Check the motor and electrical connections
Excessive backlash	Worn gears, improper assembly	Replace worn gears, ensure proper assembly
Gear slipping	Insufficient torque, worn gears
