ZJY Series Shaft Mounted Gearbox Reducer
  • ZJY Series Shaft Mounted Gearbox ReducerZJY Series Shaft Mounted Gearbox Reducer

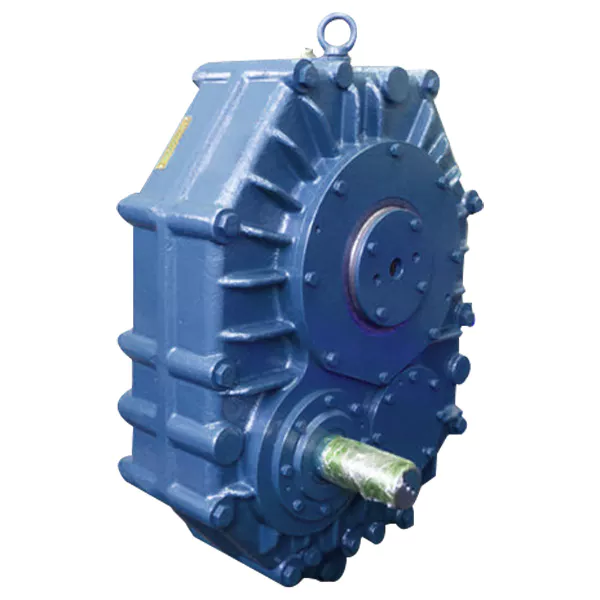

ZJY Series Shaft Mounted Gearbox Reducer

Experience the power of precision with the Raydafon Group ZJY Series Shaft Mounted Gearbox Reducer, engineered for industrial durability and seamless integration. This robust reducer optimizes torque transmission in machinery, featuring advanced materials and a compact design that ensures reliable performance in harsh environments. Ideal for construction, manufacturing, and automation sectors, it reduces downtime and boosts efficiency, solving critical power transmission challenges. Unlike competitors, it offers enhanced load capacity and easy maintenance, delivering peace of mind and operational excellence. Contact Raydafon Group today to elevate your equipment with this industry-leading solution.
ZJY series shaft-mounted reducer adopts the installation mode of directly hanging on the power input shaft of the supporting host, omitting the connection accessories and reducer installation platform between them, and is suitable for bucket elevators, belt conveyors, scraper conveyors, and other equipment.

Features of ZJY Series Shaft Mounted Gearbox Reducer

1. The gearbox, gear, and shaft are solid and durable2. The output shaft can rotate in both directions (clockwise or counterclockwise). One-way rotation (if equipped with stop) to prevent reverse drive3. Widely used in conveyors
HousingCast Iron Gearbox
GearsHardened Helical Gears, Carburizing, Quenching, Grinding
Gears Accuracy6 Class
ShaftsHigh Quality Alloy Steel
 Input ConfigurationsKeyed Solid Shaft Input
Output ConfigurationsKeyed Hollow Shaft Output
Spare PartsTorque arm, Backstop
ApplicationsBelt Conveyors, Scraper Conveyors, Bucket Elevators
InstallationHanging Shaft MountedEquipped With Pulley
LubricationOil-bath and Splash Lubrication
CoolingNatural Cooling

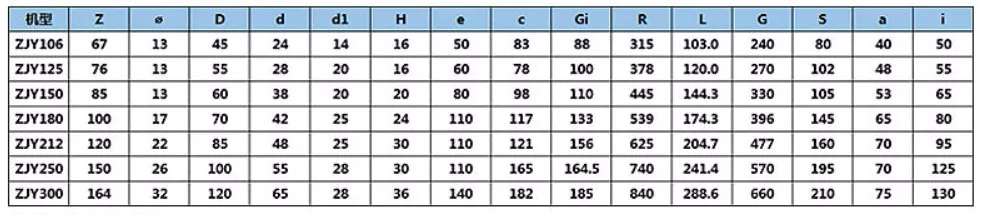

ZJY Series Shaft Mounted Gearbox Reducer
ModelsOutput Shaft BoreInput PowerMax. TorqueRatioWeight
ZJY10645mm2.3kW~12kW750N.m10, 11.2, 12.5, 14, 16, 18, 20, 22.4, 2527kg
ZJY12555mm3.8kW~19kW1250N.m40kg
ZJY15060mm7.1kW~33kW2120N.m67kg
ZJY18070mm11kW~56kW3550N.m110kg
ZJY21285mm19kW~92kW6000N.m173kg
ZJY250100mm32kW~157kW10000N.m250kg
ZJY300120mm46kW~225kW14720N.m380kg
ZJY Series Shaft Mounted Gearbox ReducerZJY Series Shaft Mounted Gearbox Reducer
Hot Tags: ZJY Series Gearbox Reducer, Shaft Mounted Reducer Supplier, Custom Gearbox Reducer
