Raydafton Group presents the WPWDKO Series Universal Speed Worm Gearboxes, engineered for precise motion control in industrial machinery. With durable construction, high efficiency, and versatile application, these gearboxes excel in manufacturing, automation, and more. They deliver reliable performance, reducing downtime and enhancing productivity. Experience smooth operation and energy savings—trust Raydafton Group for superior gear solutions that power your success.
WPWDKO worm gear reducer is composed of the worm gear and worm, compact transmission structure, and large transmission ratio; it is one of the most commonly used reducers of slight vibration, low noise, and less energy consumption. WPWDKO series reducer is suitable for various fields and is widely used in gold, mining, chemical, printing, food, medical, textile, ceramics, and other aspects.

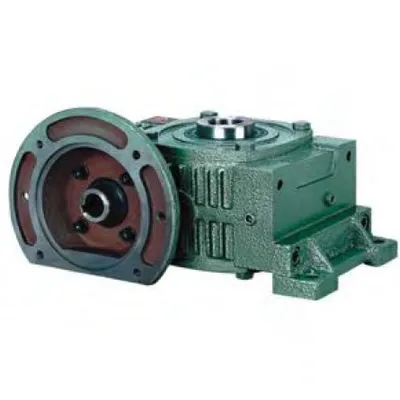

WPWDKO Industrial Gearbox
Worm Gear Reducer
Product name
WPWDKO speed worm gear reducer
Good after-sales service is the root of enterprise survival. Win-Win cooperation
Rated power
5.5KW-7.5KW
Material
Cast iron
Gear material
Brass
Applicable
Electric Motor

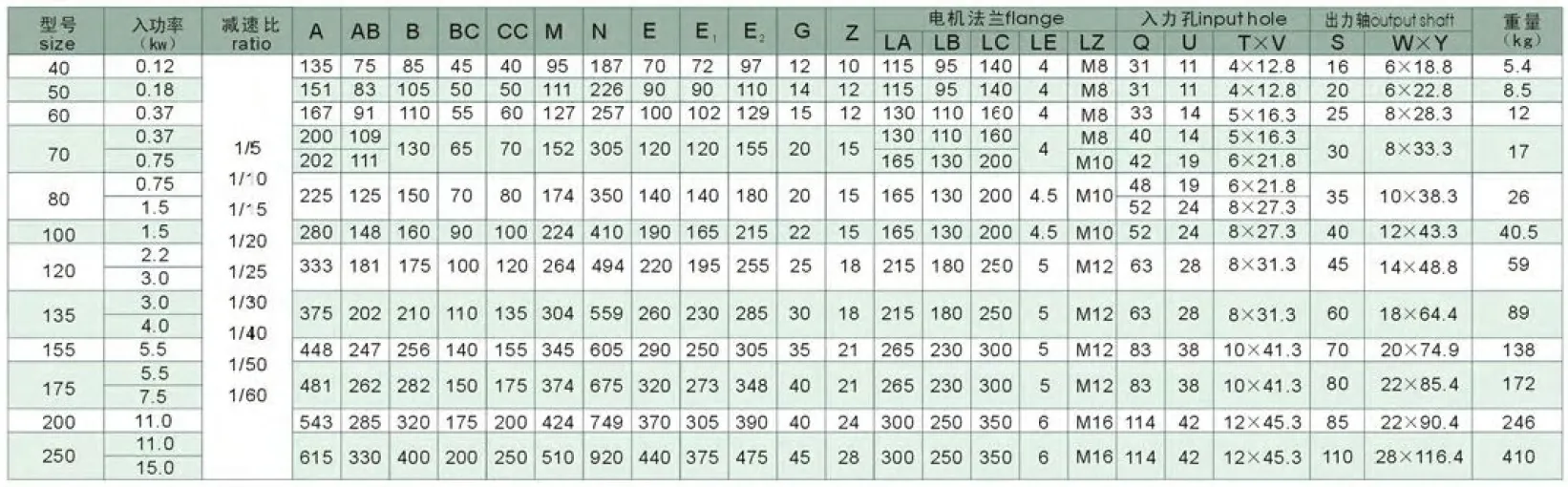

Model:
WP 40-250
Ratio:
1:10,15,20,30,40,50,60
Color:
Blue/Silver Or On Customer Request
Material:
Housing: Die-Cast Iron cast
Worm Gear-Copper-9-4#
Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.

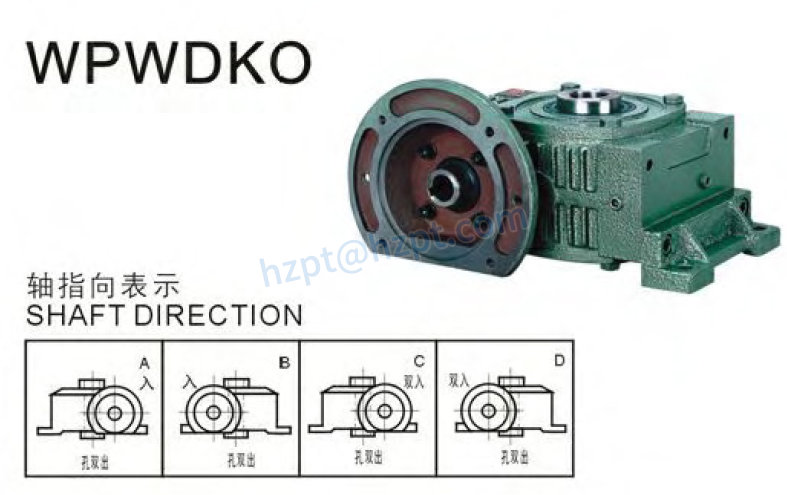

1. Different variants, both input and output shafts, can be mounted horizontally or vertically2. Compact structure3. Direct drive or indirect drive available4. Output could be a solid shaft or hollow hole
Common Faults and Causes of Worm Gear Reducer
1. Heat and oil leak of reducer. To improve efficiency, the worm gear reducer generally uses non-ferrous metal as worm gear, and the worm uses hard steel. Due to the sliding friction drive, more heat will be generated during operation, which makes the thermal expansion difference between the parts of the reducer and the seals, form a gap in the mating surface, and the lubricating oil becomes thinner due to the force—temperature rise, easy to cause leakage. There are four main reasons for this situation. First, the collocation of materials is not reasonable; Second, the quality of meshing friction surface is poor; 3. Incorrect selection of lubricating oil addition quantity;2. Worm gear wear. The worm gear is generally made of tin bronze. The matching worm material is hardened to HRC4555 with 45 steel or HRC5055 with 40Cr and then ground to a roughness of Ra0.8μm with a worm grinder. Reducers wear slowly in regular operation; some reducers can be used for more than ten years. If the wear rate is fast, it is necessary to consider whether the selection is correct, whether the overload and the material, assembly quality, or use environment of the worm gear.3. Worm-bearing damage. In case of failure, even if the gearbox is well sealed, it is often found that the gear oil in the gearbox is emulsified, and the bearing is rusted, corroded, and damaged. This is because after the reducer runs for some time, the gear oil temperature rises, and the condensate generated after cooling is mixed with water. Of course, it is also closely related to bearing quality and the assembly process.

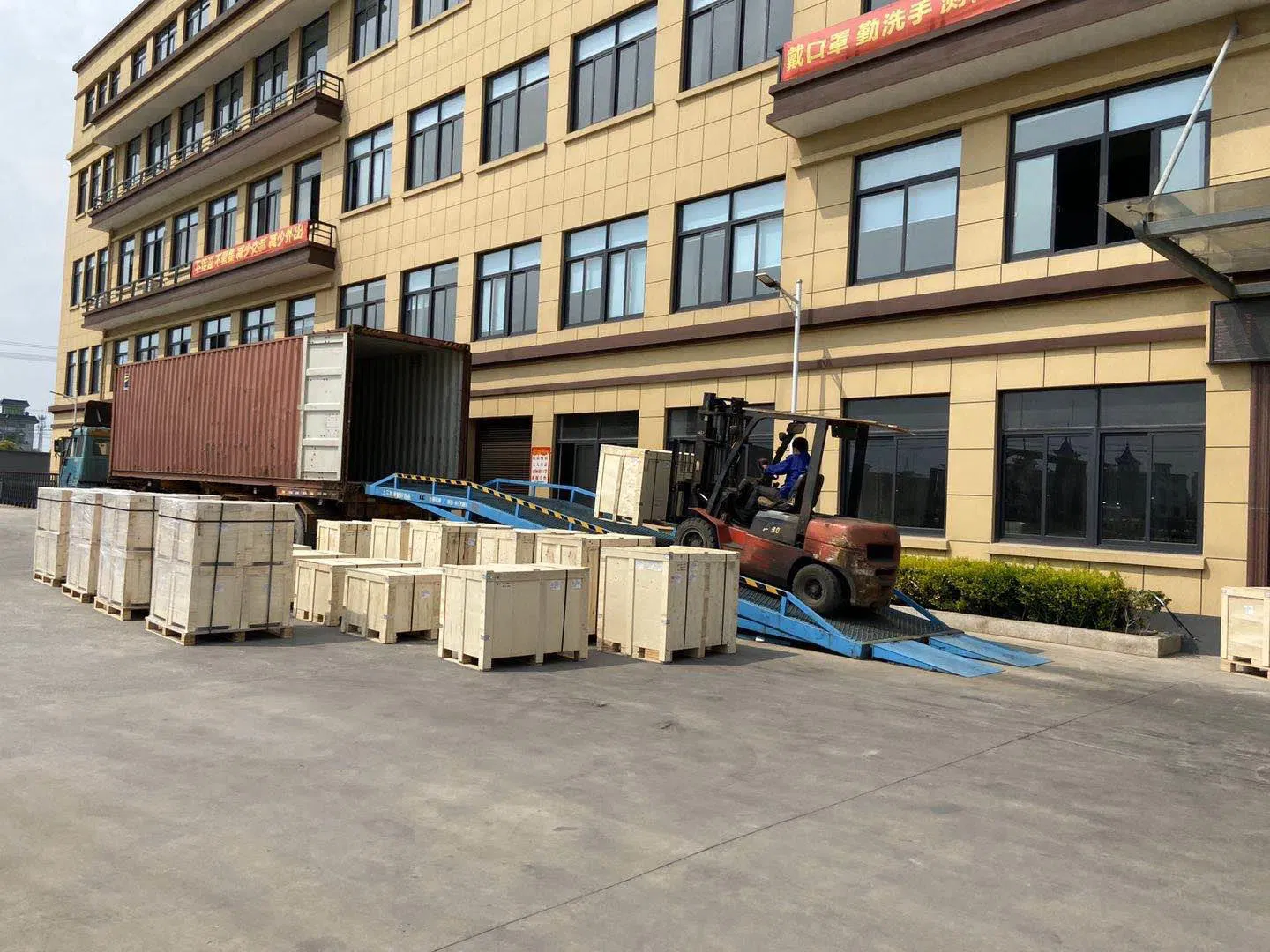

Packing and Transportation

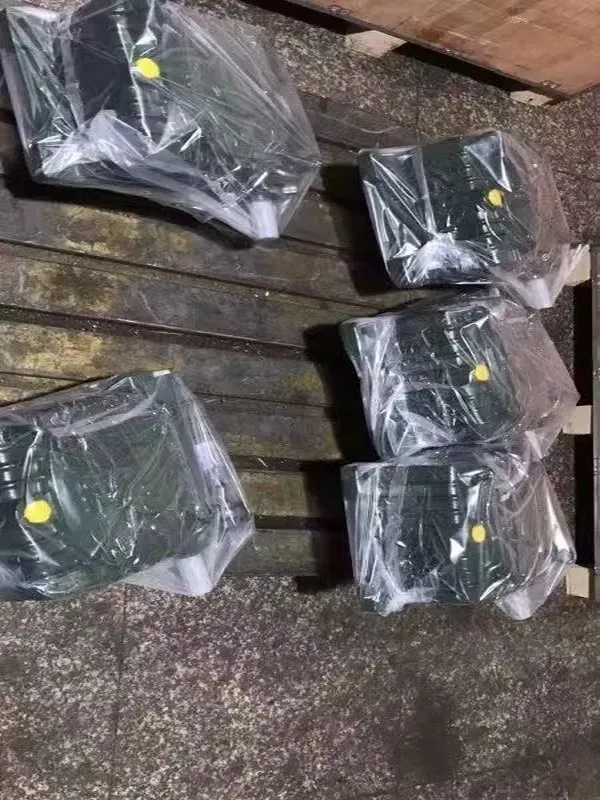

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
Company Profile
Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.
Our Advantages:
1. Reasonable price with excellent quality2. Each one tests carefully3. Clear nameplate4. Reliable package5. High efficiency, smooth running, and low noise6. Best materials make the best performance
