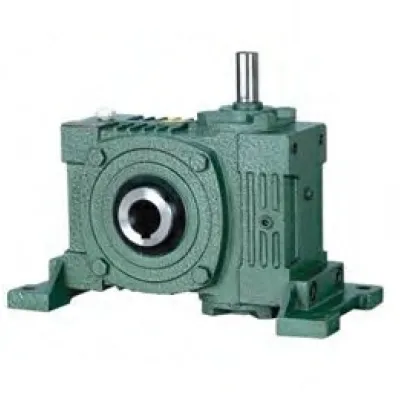

WPWKT Series Universal Speed Worm Gearboxes

Raydafon Group's WPWKT Series Universal Speed Worm Gearboxes set a new standard in efficiency and precision, delivering unmatched torque and durability for a wide range of industrial applications. Engineered with robust materials and innovative design, these gearboxes offer smooth operation and extended lifespan, ideal for manufacturers seeking reliable performance. Experience reduced downtime and enhanced productivity, addressing your complex motion control challenges with ease. Stand out with Raydafon's superior craftsmanship and competitive edge.

Send Inquiry

Product Description

WPWKT Series Universal Speed Worm Gearboxes

The self-locking function of the worm gear drive is handy in mechanical applications, such as hoists, conveying equipment, etc. In the transmission mode of the worm gearboxes, the worm gear transmission has the characteristics that other gear transmissions do not have; that is, the worm can easily rotate the worm gear, but the worm gear cannot rotate the worm. This is because the structure and transmission of worm gears are achieved through friction. However, because of the worm gear's friction transmission mode, the worm gear's transmission efficiency is much lower than the gear transmission.Not all worm gear reducers have a good self-locking function, and the self-locking part of the worm gear can only be realized if it reaches a certain speed ratio. This is related to the lead angle; that is, the self-locking function of the worm gear with a small speed ratio is not ideal.

WPWKT Worm Reducer

Model NO.	WPWKT40-250
Application	Industry
Hardness	Hardened
Type	Worm and Worm wheel
Frame Size	WPWKT 40-250
Input Power	0.12~15kw
Output Speed	25~300rpm
Output Torque	17~3000n, M
Gear Arrangement	Worm
Input Speed	1500rpm
Color	Green, Grey.Blue, and so on
Package Details	Wooden Case/ Carton/ Pallet
Weight	5~500 Kgs
Manufacturing Method	Rolling Gear
Toothed Portion Shape	Bevel Wheel
Material	Cast AND Aluminum
Trademark	EPT
Specification	ISO9001
Origin	Zhejiang

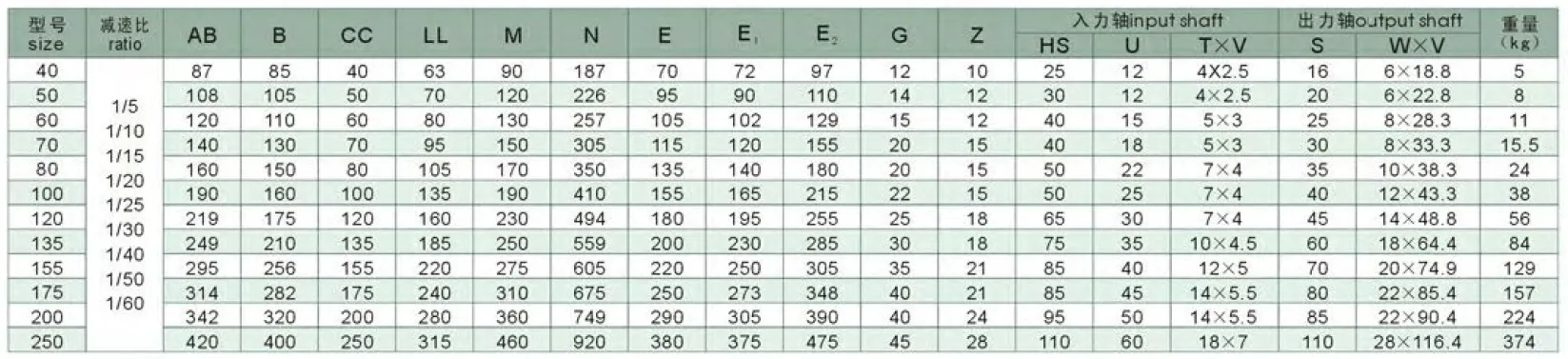

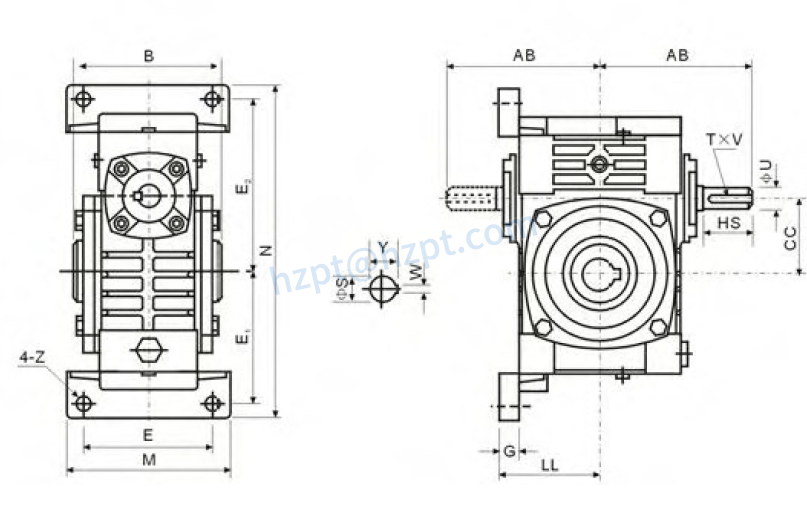

Specifications Parameter

WPWKT Reducer Model No. Meaning: WPWKT50-15

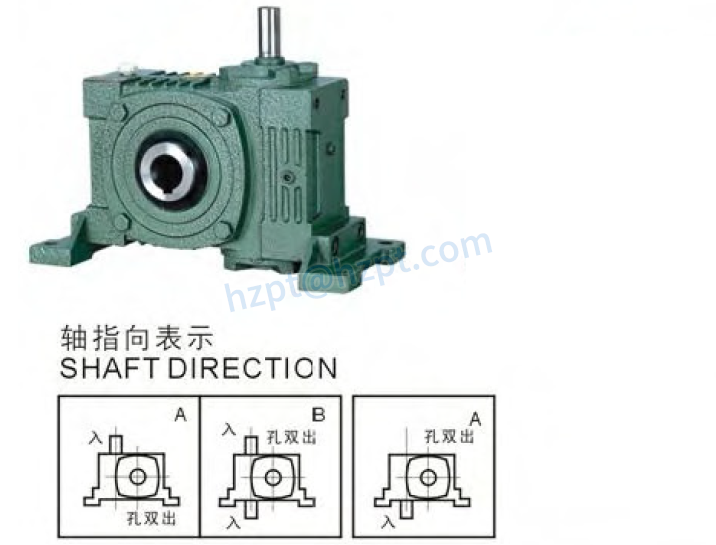

W worm gear worm reducer;P box structure (P whole /D split);W universal type (no code base type);K output shaft structure (K hollow output shaft/no code base type);T output, input shaft type (A into the lower axis /S into the upper axis /O out of the axis up /X out of the axis down /T into the axis up /V into the axis down, no primary code type);50 center distance;15 transmission ratio;

WP Series Worm Gearboxes Introduction:

1. Single-stage reducers are WPA, WPS, WPX, WPO, WPDA, WPDS, WPDX, WPDO, WPKA, WPKS, WPDKA, and WPDKS.2. Universal reducers are, respectively, WPW, WPWA, WPWS, WPWX, WPWO, WPWV, WPWT, WPWD, WPWDA, WPWDS, WPWDX, WPWDO, WPWDT, WPWDV, WPWK, WPWKA, WPWKS, WPWKO, WPWKT and WPWKV, WPWDK, WPWDKA, WPWDKS, WPDZ, WPDKZ, WPWDKO, WPWDKT, WPWDKV.3. Double-stage reducers include WPEA, WPES, WPEX, WPEO, WPWE, WPWED, WPEDA, WPEDS, WPEDX, WPEDO, WPWEKO, WPWEDK, WPWEK, WPEKA, WPEKS, WPEEA, WPEEDO, WPEDKA, and WPE DKS, WPWEDKO. WPWKT Series Universal Speed Worm Gearboxes

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. WPWKT Series Universal Speed Worm Gearboxes

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry. WPWKT Series Universal Speed Worm Gearboxes

Our Service

(1) With excellent quality and a reasonable price(2) Promise to deliver on time(3) Safe, reliable, economical, and durable(4) Stable transmission, quiet operation(5) High heat-radiating efficiency, high carrying ability(6) Every product must be tested before sending

FAQ

Q: Are you a trading company or manufacturer?A: We are a manufacturer.Q: How long is your delivery time?A: Generally, it is 5-7 days after the goods are produced. Or it is 10-15 days if the goods are large in quantity.Q: Do you provide samples?A: Yes, we could offer the sample if you order more than 50 sets, but we don't pay for the freight. And the fee will be returned after the transaction's finished.Q: What information shall we give before placing a purchase order?A: You need to offer the size of the dimensions of the worm shaft and the ratio.
