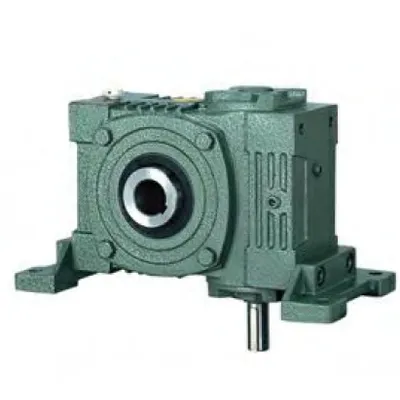

WPWKV Series Universal Speed Worm Gearboxes

WPWKV Series Universal Speed Worm Gearboxes

WPWKV series worm gearboxes are composed of a pair of meshing worm gears, worms, etc., and are out in a rigid, sealed housing. It is commonly used as a deceleration transmission between the prime mover and the work machine. It is a separate component in the device.WPWKV worm gear reducer is a cast iron with a strong hardness housing. It has the advantages of compact structure, stable transmission, slight vibration, small shock and low noise, sizeable reduction ratio, and wide versatility that can be used with various mechanical equipmens. The housing form has primary type(input shaft in below, input shaft on upper, output shaft on the upper, output shaft is on below and universal type(housing is a rectangular parallelepiped, and multi-face is provided with fixing screws, with various structural forms such as without foot plate or additional foot plate).This WPWKV series worm reducer is widely used in Metallurgy, Mining, Transporation, Water conservancy, the Chemical industry, Food, Beverage, and Textile.

WPWKV Worm Gearboxes

Model NO.	WPWKV40-250
Application	Industry
Hardness	Hardened
Type	Worm and Worm wheel
Frame Size	WPWKV 40-250
Input Power	0.12~15kw
Output Speed	25~300rpm
Output Torque	17~3000n, M
Gear Arrangement	Worm
Input Speed	1500rpm
Color	Green, Grey.Blue, and so on
Package Details	Wooden Case/ Carton/ Pallet
Weight	5~500 Kgs
Manufacturing Method	Rolling Gear
Toothed Portion Shape	Bevel Wheel
Material	Cast AND Aluminum
Specification	ISO9001
Origin	Zhejiang

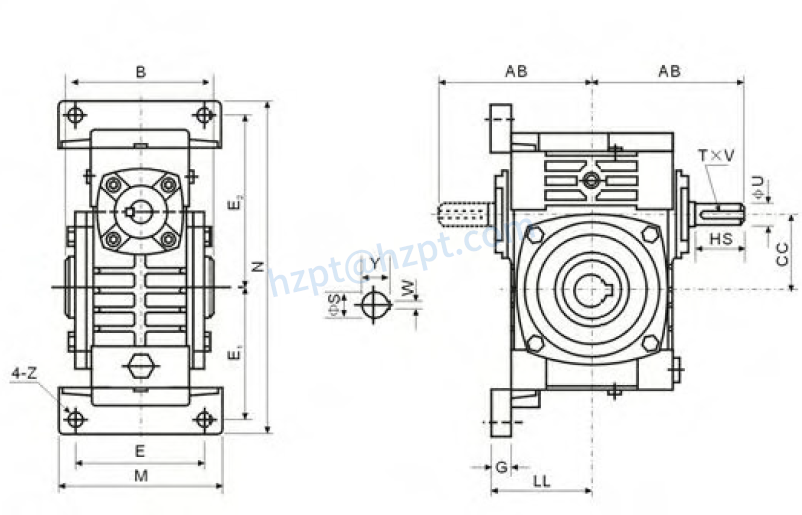

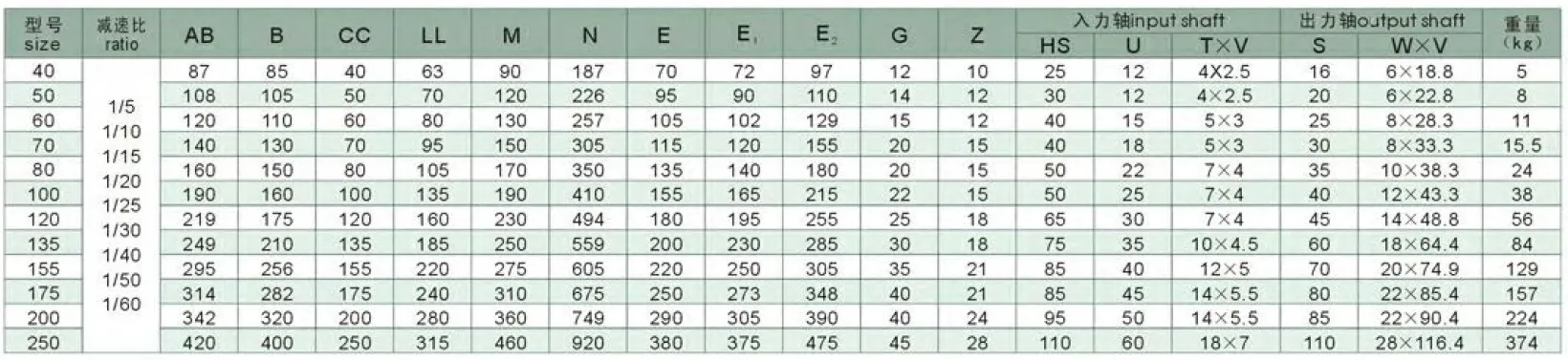

Product Specifications

Company Profile

As a professional manufacturer of worm gearboxes and worm gear reducers in China, we mainly produce reduction gearboxes, aluminum case worm gearboxes, arc gear cylindrical worm gearboxes, worm gear reducers, in-line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, reliable quality, etc. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.We have 600 workers in our factory, which covers 70,000 square meters in Ningbo. We have been making 2,500 units of reducers every day since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the world. Our customers come from Italy, Germany, the USA, Canada, Spain, the UK, Mexico, Brazil, Argentina, Turkey, Singapore, and other leading industrial countries worldwide. 30% of them are OEM-made for direct manufacturers of other products.We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are confident that you will have confidence in our products after visiting our facility. We have the latest automatic equipment and experienced workers to ensure stable quality and large output. We have the most sophisticated technology and engineering team to support the most demanding requirements on standard and OEM products.

FAQ

Q: Are you a trading company or manufacturer?A: We are a factory.Q: How long is your delivery time?A: Generally, it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.Q: Can we buy one pc of each item for quality testing?A: We are glad to accept a trial order for quality testing.Q: How to choose a gearbox that meets your requirement?A: You can refer to our catalog to choose the gearbox, or we can help to decide when you providethe technical information of required output torque, speed, and motor parameters.Q: What information shall we give before placing a purchase order?A: a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information.b) Housing color.c) Purchase quantity.d) Other special requirements.
