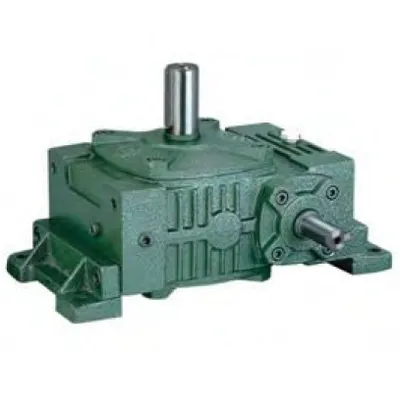

WPWO Series Universal Speed Worm Gearboxes
  • WPWO Series Universal Speed Worm GearboxesWPWO Series Universal Speed Worm Gearboxes

WPWO Series Universal Speed Worm Gearboxes

Raydafon Group's WPWO Series Universal Speed Worm Gearboxes deliver reliable, precise motion control for industrial and automation applications, featuring durable construction and energy-efficient design. Ideal for engineers and manufacturers, these gearboxes enhance operational efficiency and reduce downtime, offering superior durability and quiet performance compared to standard models. Experience seamless power transmission and long-term value with Raydafon Group's trusted solutions.

WPWO Series Universal Speed Worm Gearboxes

The primary function of the worm gear is to transmit motion and power between two staggered shafts, while the immediate process of bearings and shafts is to transmit power, run and improve efficiency. The basic structure of the worm gear reducer is mainly composed of transmission parts, worm gear, shaft, bearing, box, and accessories. It can be divided into three essential structures: box, worm gear, bearing, and shaft combination. The casing is all the accessories in the worm gear reducer. It is an essential accessory for supporting and fixing the shafting components, ensuring the transmission accessories' correct relative position, and supporting the reducer's load.
WPWO Series Universal Speed Worm GearboxesWPWO Series Universal Speed Worm Gearboxes

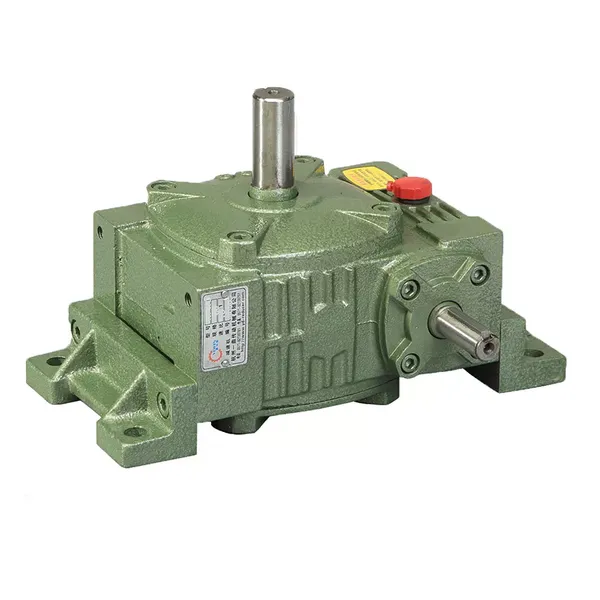

WPWO Worm Gearbox Reducer

Gearing ArrangementWorm
Output Torque19-2745N.m
Rated Power0.12-33.2kw
Input Speed1400RPM
Output Speed19-186.7RPM
Place of OriginZhejiang, China
Model NumberWPWO
Brand NameEPT
ItemHigh-quality WPWO reduction gearbox reducer
The manufacturing method of gearCast gear
keywordWPWO speed reducer
ColorGreen, blue gray red golden, and so on
TypeWorm gearbox reducer
ModelWPWO
Ratio1:5,10,15,20,25,30,40,50,60
ColorBlue/Red Or On Customer Request
MaterialHousing: Die-Cast Iron cast
Worm Gear-Copper-10-3#
Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC
Shaft-chromium steel-45#
PackingCarton and Wooden Case
Warranty1 Year
UsagesIndustrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing,Woodworking, Glass.
IEC Flange56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
LubricantSynthetic&Mineral

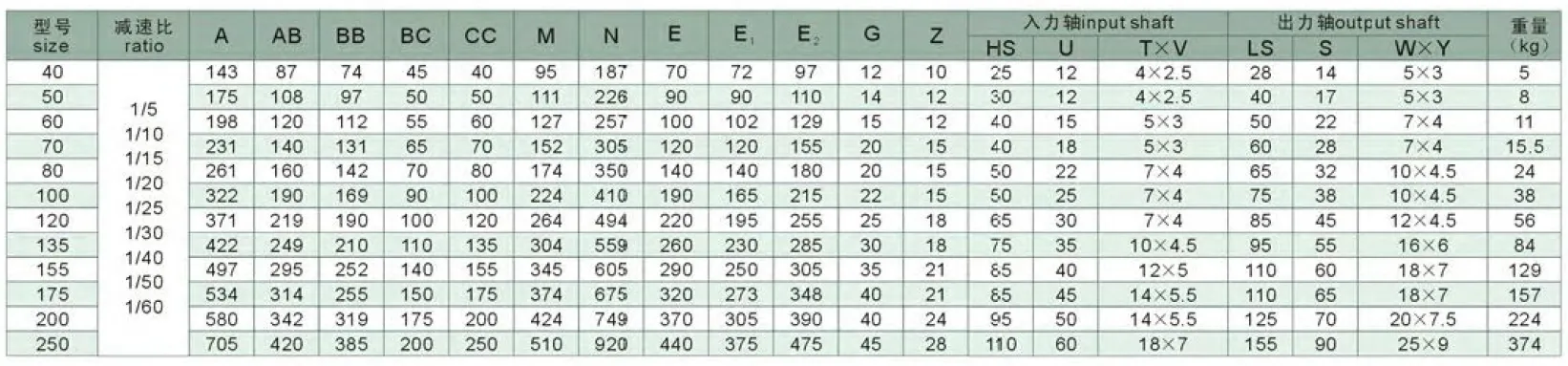

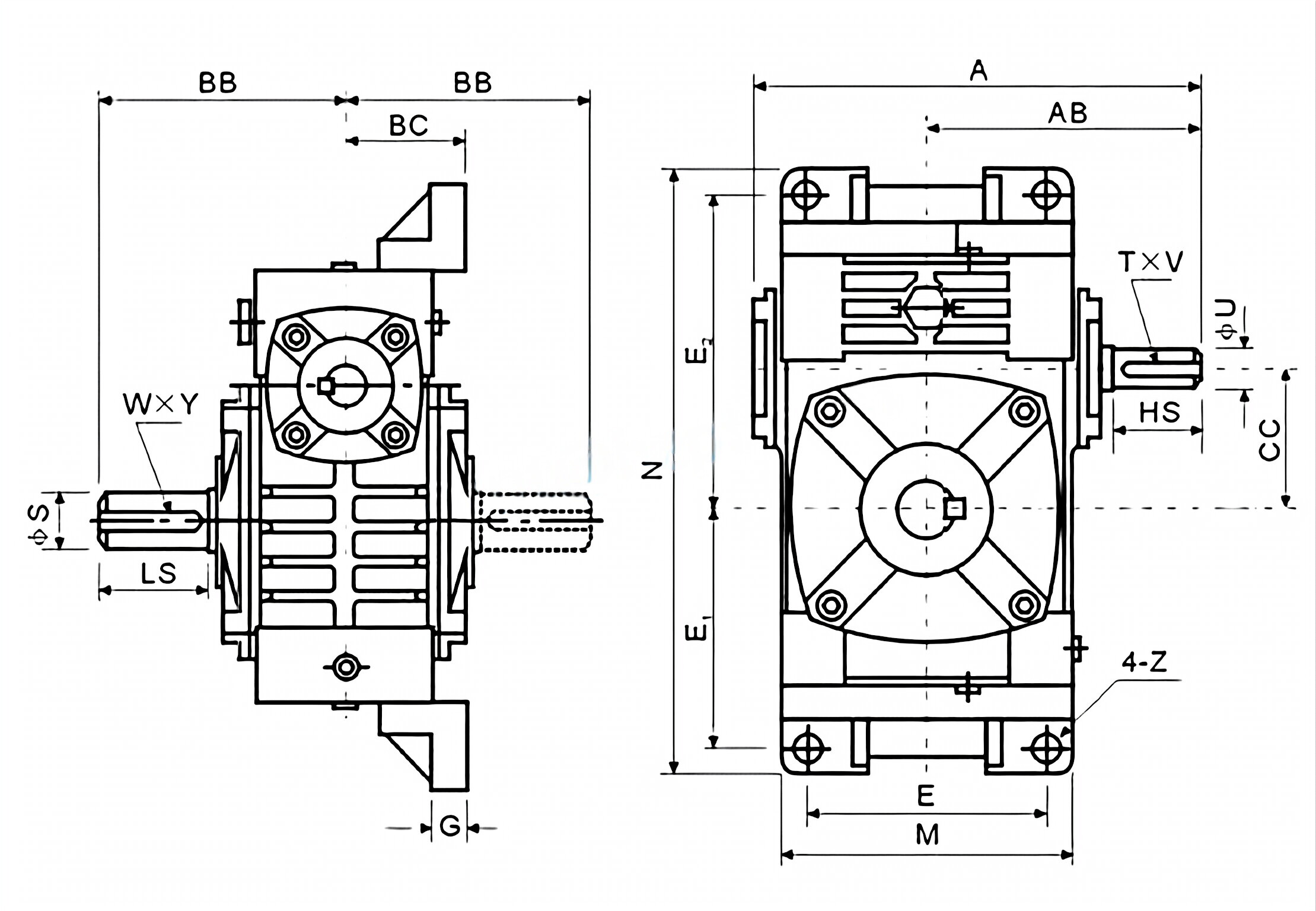

Product Specifications

WPWO Series Universal Speed Worm Gearboxes

Product Description

1. Housing: iron cast2. Low noise: <50DB3. Efficient and safe operating4. Certification: ISO90015. Without vent and high precision.6. all structure is compact, and the weight is higher.7. Widely used in turbines, shaft liners, and axletrees, with good resistance to wearing, high precision in dimensions, lower noise, and advanced center running castings.
WPWO Series Universal Speed Worm GearboxesWPWO Series Universal Speed Worm Gearboxes

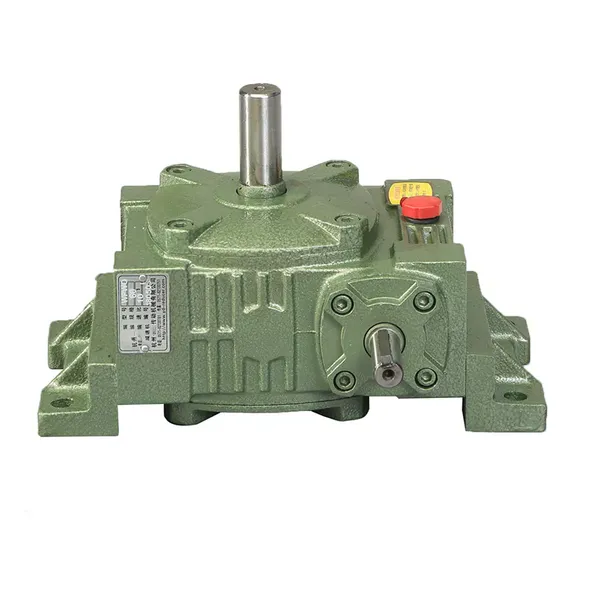

Application of WPWO Series Worm Gearbox

It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc.
WPWO Series Universal Speed Worm GearboxesWPWO Series Universal Speed Worm GearboxesWPWO Series Universal Speed Worm Gearboxes

Notices of Usage

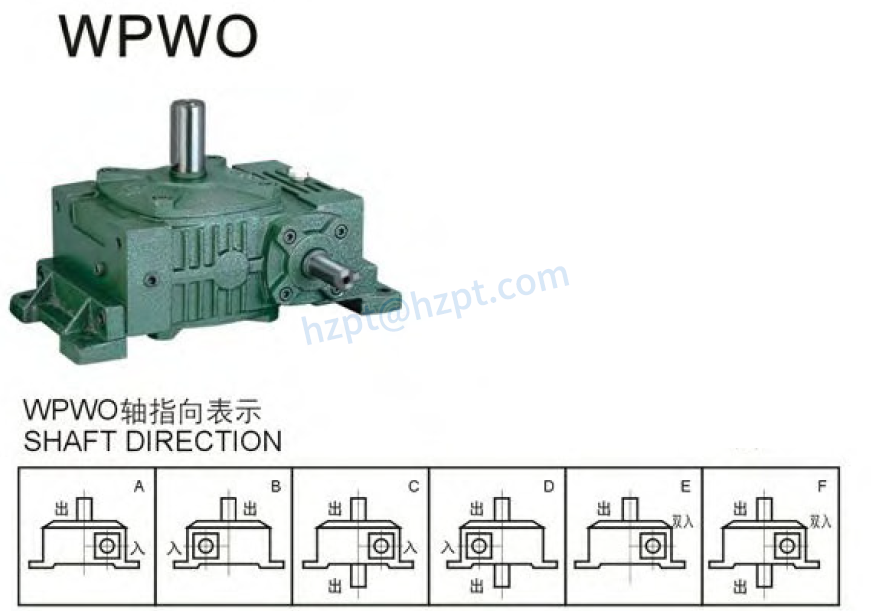

1. Before using, please check carefully whether the gearbox model, distance, ratio, input connecting method, output shaft structure, information and output shaft direction, and revolving direction accord with the requirement2. According to the requirement of selecting lubricant oil in the product manual, please fill proper category and brand lubricant. And then, screw on the vent plug; Unlock the small cone plug of the vent plug. Only after doing this reducer is it already starting up and running. The proper brand and adequate lubricant oil are required; replacing oil in time conforming to the request of the product manual is also necessary, especially after using the first 100 hours; it is needed to refill new oil3. When abnormal circumstances occur, please stop and check the reducer per solutions and reasons for faults of reducer (allowable highest oil temperature is 95, under this temperature limit, if the oil temperature no more goes up, please let the reducer continue running)

Solutions and Reasons for the General Faults

WPWO Series Universal Speed Worm GearboxesWPWO Series Universal Speed Worm Gearboxes

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.WPWO Series Universal Speed Worm Gearboxes

Company Profile

Our company was founded in 2011 with more than ten years of manufacturing gearboxes, gears, shafts, and spare parts. Our products are widely used in metallurgical, steel, mining, pulp and paper, sugar and alcohol market, and various other types of machines with a strong presence in the international market. We can offer the proper solution for uncountable applications.Our company has become a reliable supplier, supplying high-quality gearboxes. With ten years of experience, we assure you of the utmost reliability and security for our products and services.Our Services(1) With excellent quality and a Reasonable price

(2) Promise to deliver on time

(3) Safe, reliable, economical, and durable

(4) Stable transmission, quiet operation

(5) High heat-radiating efficiency, high carrying ability

(6) Every product must be tested before sending
