WR150/WH150 Welded Steel Chain C-Hub Sprockets

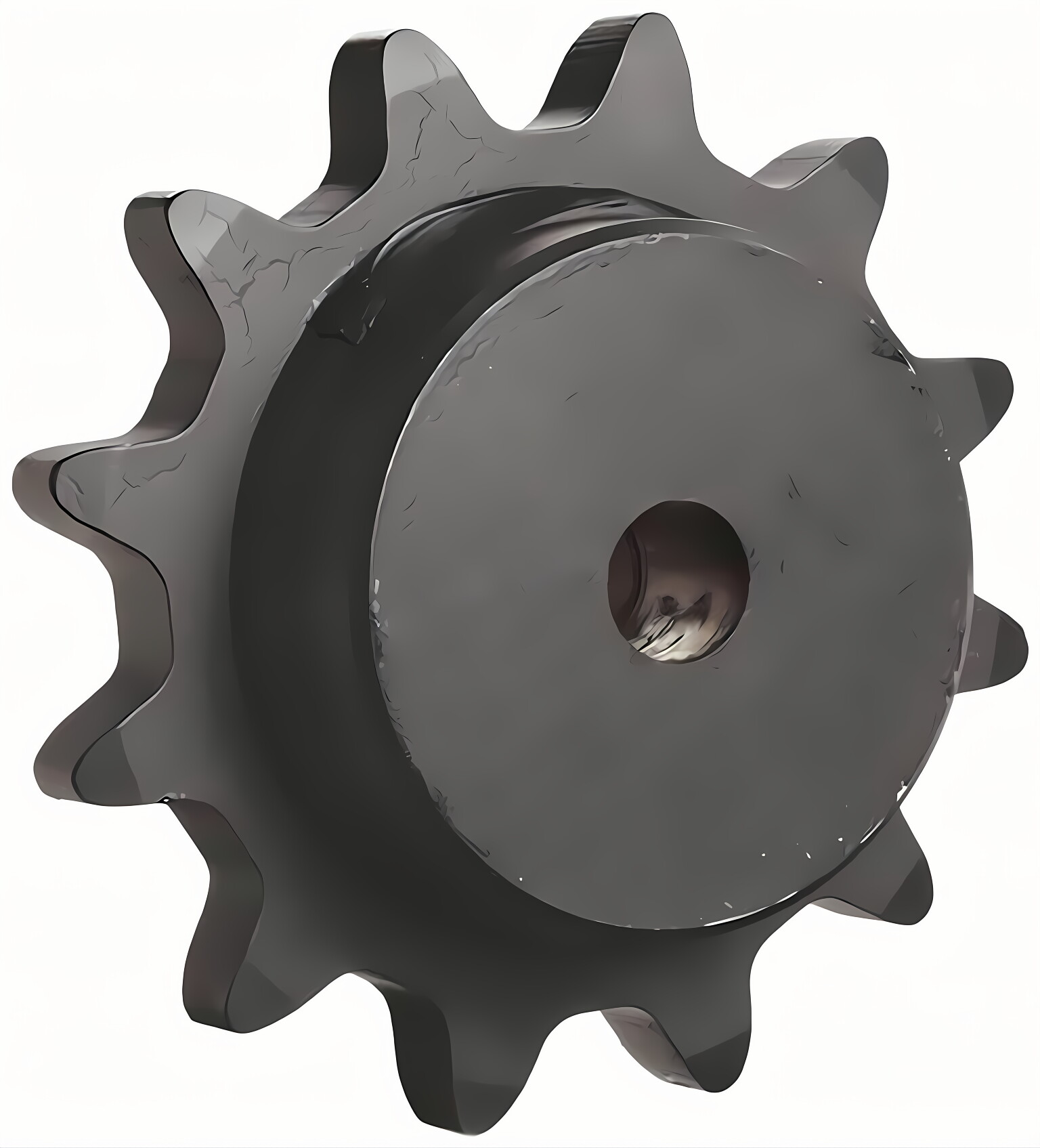

WH150-C Sprocket

This WH150 sprocket will work with both WR150 welded steel chain and WH150 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings.

• Will Work With WR150 Chain & WH150 Chain
• Premium Quality Chain Sprocket
• Wide Range Of Options Available
• Best Pricing From USA Roller Chain & Sprockets



Sprocket Number	Number Of Teeth	Pitch	Pitch Diameter	Style	Shroud Diameter	Barrel Diameter	Tooth Face	Maximum Bore
WH150-C8	8	6.050"	15.810"	C-Hub	12.108"	1.750"	2.750"	5.9375"
WH150-C9	9	6.050"	17.690"	C-Hub	14.128"	1.750"	2.750"	6.9375"
WH150-C10	10	6.050"	19.580"	C-Hub	16.120"	1.750"	2.750"	6.9375"
WH150-C11	11	6.050"	21.470"	C-Hub	18.068"	1.750"	2.750"	6.9375"
WH150-C12	12	6.050"	23.380"	C-Hub	20.086"	1.750"	2.750"	6.9375"
WH150-C12	13	6.050"	25.280"	C-Hub	22.086"	1.750"	2.750"	6.9375"
WH150-C14	14	6.050"	27.190"	C-Hub	24.010"	1.750"	2.750"	6.9375"
WH150-C15	15	6.050"	29.100"	C-Hub	26.960"	1.750"	2.750"	6.9375"

 We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
