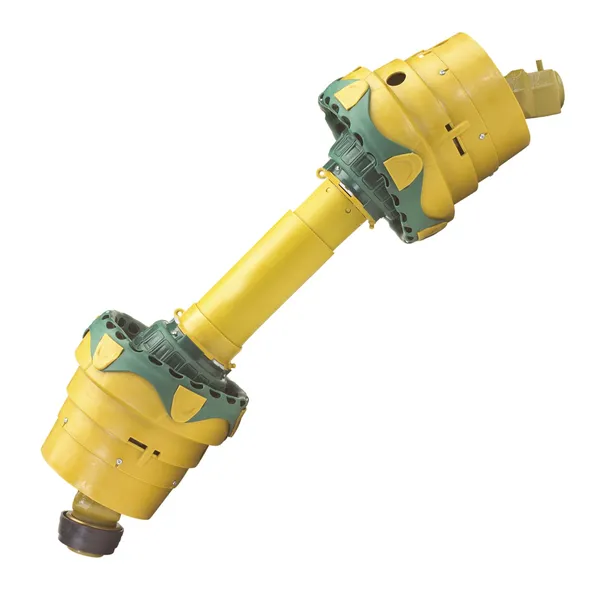

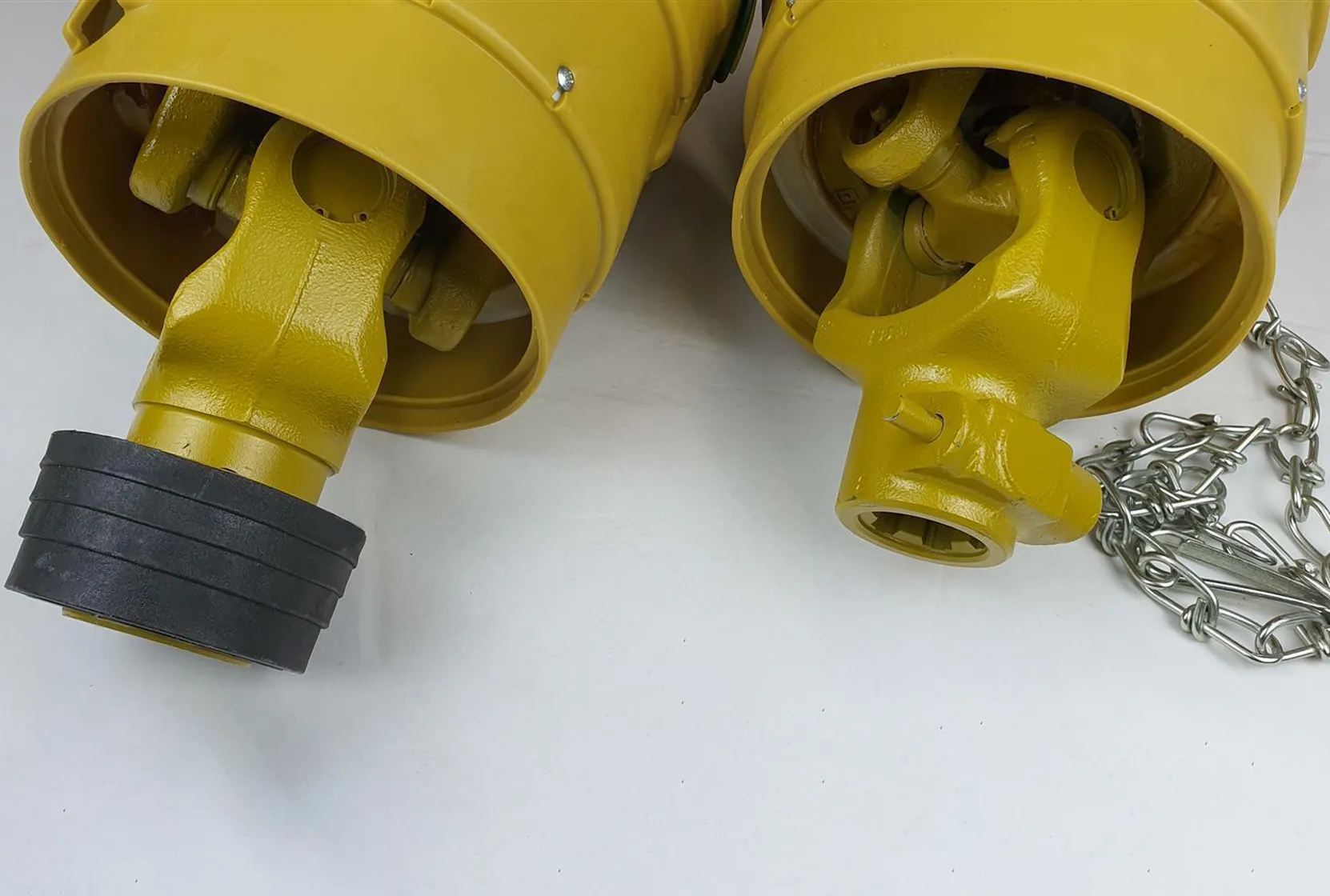

WWZ2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

WWZ2380 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The WWZ2380 series PTO shaft is a high-quality, heavy-duty PTO shaft. It is designed for use with tractors and other agricultural machinery and is capable of handling up to 2380 horsepower. The WWZ2380 series PTO shaft features a wide-angle joint on both ends, which allows it to operate at a maximum angle of 80°. This makes it ideal for use in non-axis-parallel applications, such as when the tractor is turning or when the PTO shaft is being used to drive a remote implement.The WWZ2380 series PTO shaft is also equipped with a safety guard, which helps to protect the operator from injury in the event of a failure. The PTO shaft is made from high-quality materials and is built to last. It is a reliable and durable choice for any application that requires a high-performance PTO shaft. If you are looking for a high-quality, heavy-duty PTO shaft that can handle demanding applications, the WWZ2380 series PTO shaft is a great option. It is a reliable and durable choice that will provide you with years of service.

WWZ2380 Series PTO Shaft Specifications

Product Name	WWZ2380 Series PTO Shaft
Long description	Wide-angle CV PTO drive shafts complete 80° series WWZ 2380 / 80°
Application range	Slurry tank Crop sprayers Fertiliser spreader Hay press
Properties	Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Wide angle pto-shaft, 2-sided, with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	WWZ 2380
Length	1210 mm
Power 540 rpm	28 kW
Power 1000 rpm	44 kW
Cross joint bush diameter by tractor side - longer part	24 mm
Cross joint bush diameter by tractor side	27 mm
Cross joint length by tractor side - longer part	91 mm
Cross joint length by tractor side	75 mm
Cross joint bush diameter by machine side - longer part	24 mm
Cross joint bush diameter by machine side	27 mm
Cross joint length by machine side - longer part	91 mm
Cross joint length by machine side	75 mm
Clutch type	n/a
Outer tube profile	1G
Outer tube wall thickness	2.7 mm
Outer tube large outside diameter	48 mm
Inner tube profile	OvGA
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	2500 N·m
Protection type	ST15
Original number equivalent	1800118
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver.

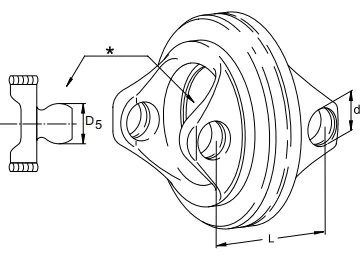

WWZ2380 Series PTO Shaft Size Chart

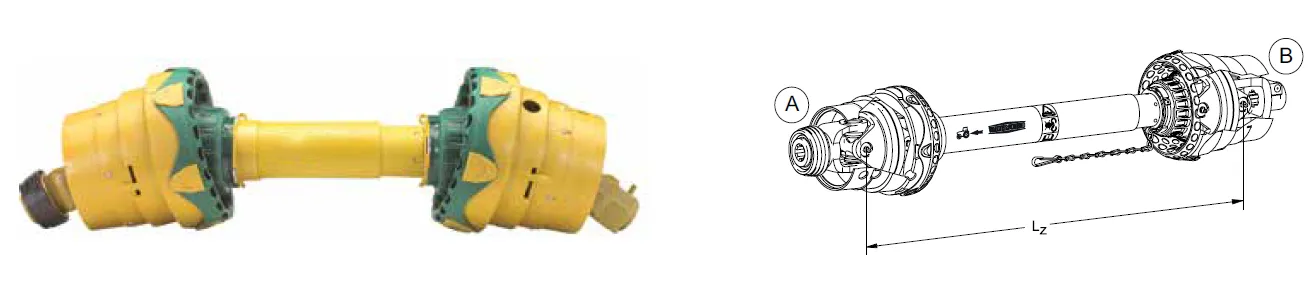

1. WWZ2380 Series PTO Drive Shaft

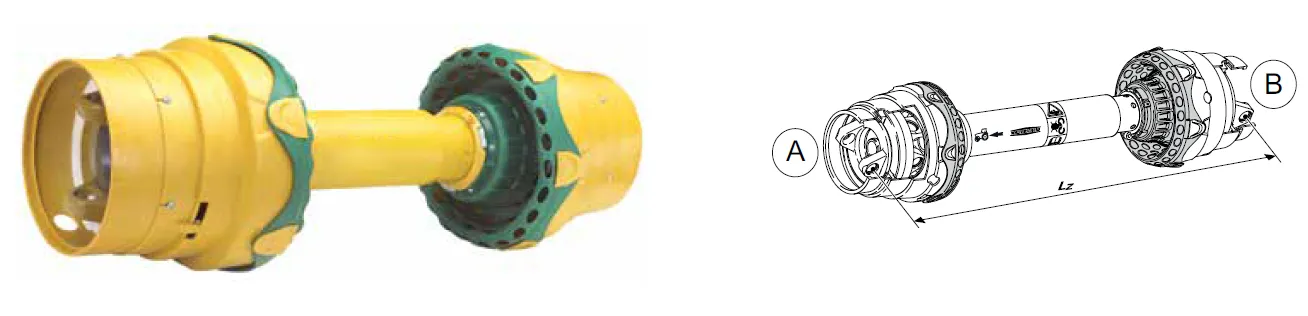

2. WWZ2380 Series PTO Drive Shaft with Wide Angle Joints on Both Sides

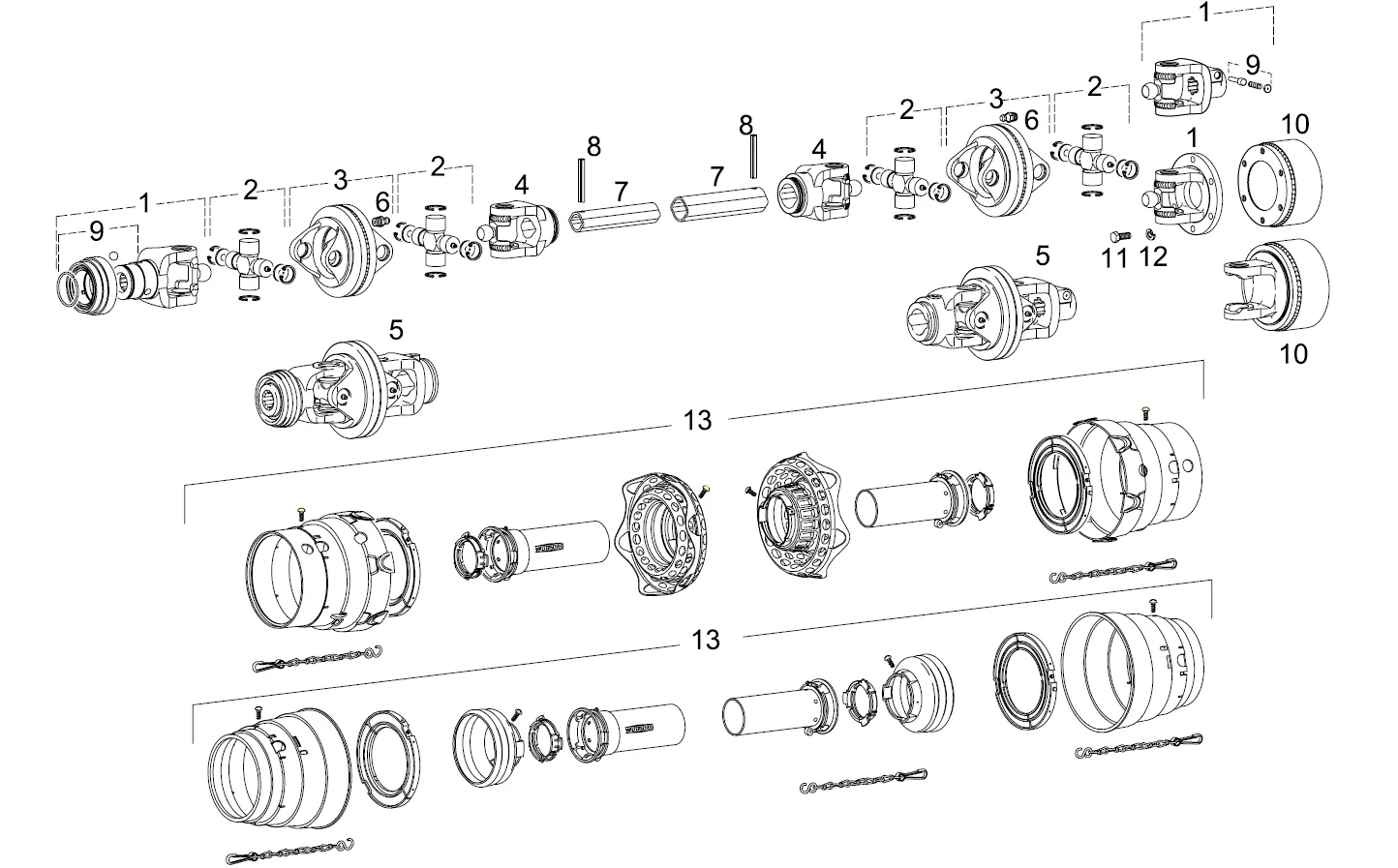

WWZ2380 Series PTO Shaft Parts Diagram

The WWZ2380 series PTO shaft is a complex assembly consisting of several parts that work together to transfer power from the tractor to the attached equipment. Here are the main parts of the WWZ2380 series PTO shaft:

Number	Parts Name	Number	Parts Name
1	Tractor Yoke	8	Roll pin
2	Cross & Bearing Kit	9	Closures for yoke & couplings
3	Double Yoke	10	Slip clutch
4	Inner Profile Yoke	11	Hexagon head screw
5	Yoke	12	Spring washers
6	Outer Profile Yoke	13	PTO shaft guard
7	Inner Tube

PTO Shaft Tube - The PTO shaft tube is a cylindrical metal tube that connects the tractor's PTO output shaft to the equipment's input shaft. It is typically made of high-strength steel to withstand the stress and torque of heavy-duty applications.Universal Joints - The PTO shaft universal joints on both ends allow for flexibility and smooth power transfer between the tractor and the attached equipment. The universal joints consist of two yokes and a cross-shaped member that rotates inside them. They are typically made of hardened steel and are designed to provide long-lasting performance.Splined Shaft - The splined shaft is a male shaft with splines that connect the PTO shaft to the tractor's PTO output shaft. The splines ensure a secure fit that can withstand the stress and torque of heavy-duty applications.Safety Guard - The PTO shaft safety guard is a protective shield that covers the PTO shaft to prevent contact with moving parts. It is typically made of metal mesh or plastic and is designed to prevent entanglement and protect the operator from injury.Bearing Support - The PTO shaft bearing support is a metal bracket that supports the universal joint and helps to distribute the load evenly across the PTO shaft. It is typically bolted to the tractor and is designed to provide a stable and secure mounting point for the PTO shaft.Grease Fittings - The PTO shaft grease fittings are small ports that allow lubricant to be injected into the universal joints and other moving parts of the PTO shaft. They are typically located at the ends of the universal joints and are designed to ensure that all moving parts are properly lubricated.Overall, the WWZ2380 series PTO shaft is a complex assembly that consists of several parts that work together to provide reliable and safe power transfer between the tractor and the attached equipment.

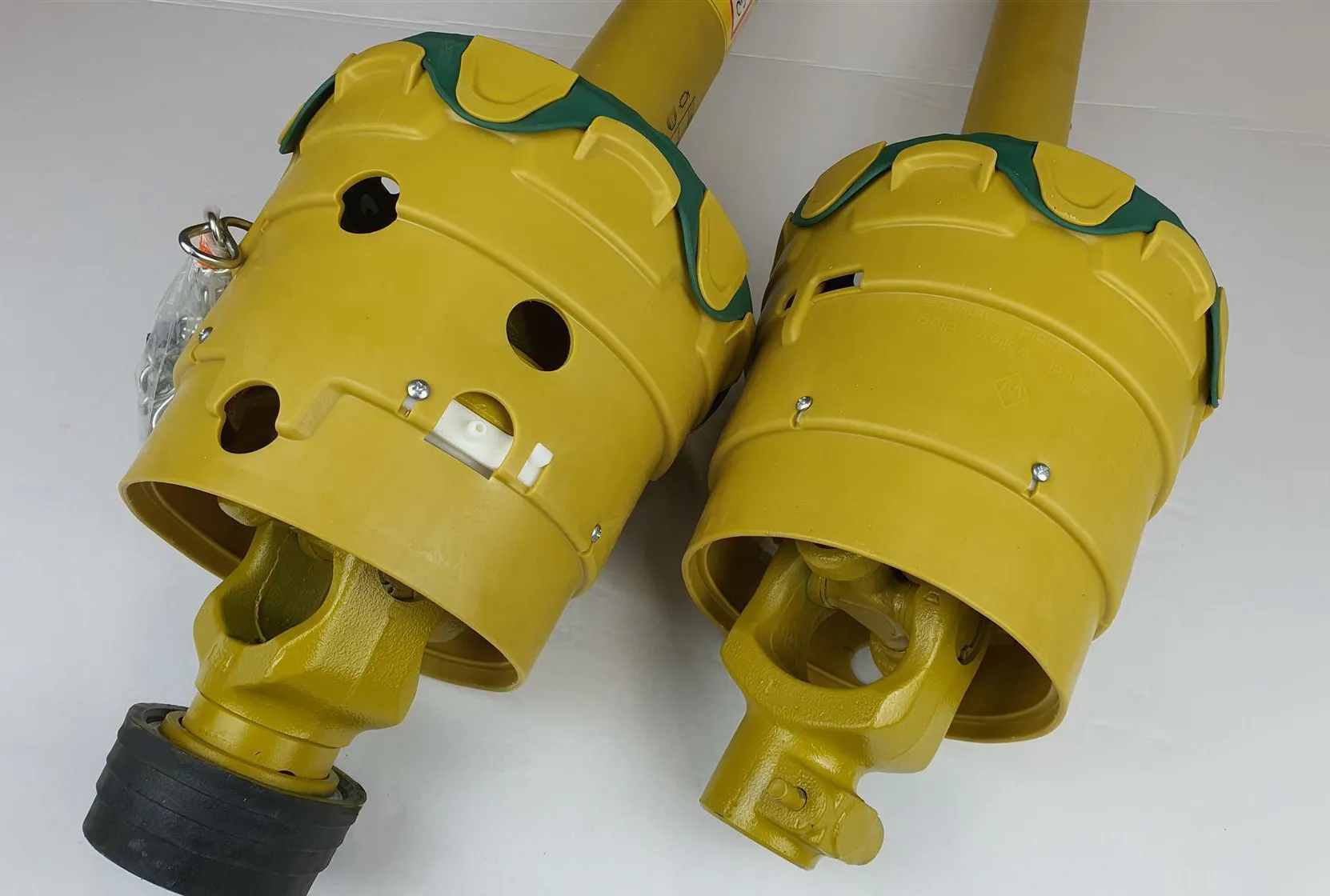

Features of WWZ2380 Series PTO Shaft

The WWZ2380 series PTO shaft is a powerful and reliable component that provides many advantages for agricultural equipment and machinery. Here are some of the advantages of the WWZ2380 series PTO shaft:1. High Strength and Durability: The WWZ2380 series PTO shaft is made of high-strength steel material that is designed to withstand the stress and torque of heavy-duty applications. This makes it a durable and long-lasting component that can withstand the demands of agricultural work.2. Smooth Power Transfer: The WWZ2380 series PTO shaft has universal joints on both ends, which allow for flexibility and smooth power transfer between the tractor and the attached equipment. The universal joints are typically made of hardened steel and are designed to provide long-lasting performance, ensuring that power is transferred smoothly and efficiently.3. Dynamic Balancing: The WWZ2380 series PTO shaft is dynamically balanced to reduce vibration and ensure smooth operation. This feature helps to reduce wear and tear on the PTO shaft and the attached equipment, leading to longer equipment life and reduced maintenance costs.4. Safety Features: The WWZ2380 series PTO shaft is designed with safety features such as a safety guard to protect against entanglement and shielding to prevent contact with moving parts. These safety features help to reduce the risk of injury to the operator and prevent damage to the equipment.5. Easy Lubrication: The WWZ2380 series PTO shaft has grease fittings for easy lubrication of universal joints and other moving parts. This feature helps to ensure that all moving parts are properly lubricated, reducing wear and tear and extending the life of the PTO shaft.6. Secure Attachment: The WWZ2380 series PTO shaft has a splined shaft end for secure attachment to the tractor's PTO output shaft. The splines ensure a secure fit that can withstand the stress and torque of heavy-duty applications.

How to Choose the Right WWZ2380 Series PTO Shaft?

Choosing the right WWZ2380 series PTO shaft for your agricultural application is essential for ensuring that your equipment operates correctly and safely. Here are some factors to consider when selecting a PTO shaft:Power rating: The WWZ2380 series PTO shaft has a maximum power rating of 80 horsepower (60 kW). Be sure to choose a PTO shaft that can handle the power requirements of your equipment.Length: The length of the PTO shaft should be appropriate for the distance between the tractor PTO and the equipment input shaft. A PTO shaft that is too long or too short can cause problems with power transfer and safety.Safety: Choose a PTO shaft that meets safety standards and has features such as shields, guards, and locking mechanisms to prevent accidents and protect the operator.Compatibility: Ensure that the PTO shaft is compatible with the tractor and equipment you are using. Check the spline size, the number of splines, and the shaft diameter to ensure a proper fit.Maintenance: Choose a PTO shaft that is easy to maintain and repair. Look for features such as grease fittings, easy-to-replace parts, and clear maintenance instructions.Overall, choosing the right WWZ2380 series PTO shaft requires careful consideration of factors such as power rating, length, safety features, compatibility, maintenance, brand, and quality. It's essential to consult with a knowledgeable supplier or manufacturer to ensure that you select the right PTO shaft for your specific agricultural application.

Agricultural Gearbox for WWZ2380 Series PTO Shaft

An agricultural gearbox is a mechanical component that helps to transmit power from the tractor engine to farming equipment, such as a plow or cultivator. These agricultural gearboxes are designed to meet the specific demands of agricultural applications, including high torque requirements and harsh operating conditions.The WWZ2380 series PTO shaft is a type of power take-off (PTO) shaft that is commonly used in agricultural applications. PTO shafts are used to transfer power from the tractor to the attached farming equipment, such as a rotary cutter or hay baler. The WWZ2380 series PTO shaft is designed to handle high torque loads and is suitable for use with larger farming equipment.In general, agricultural g
