XTH35 Weld-On Hubs

XTH35 Weld-On Hubs

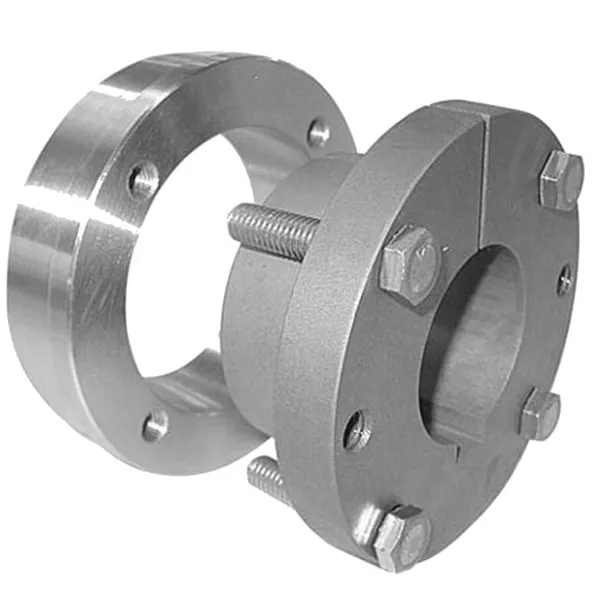

The XTH35 weld-on hubs are a specific type of hub designed to be welded onto a shaft or axle. They are typically used in conjunction with XTB35 bushings.XTB35 bushings are a type of tapered bushing that provides a secure and adjustable mounting point for rotating components. The bushing is inserted into the hub and tightened using a locking mechanism, such as set screws or a keyway. This allows for easy installation and removal of the bushing as well as precise positioning of the rotating part on the shaft or axle.The XTH35 weld-on hubs are specifically designed to be welded onto a shaft or axle, providing a secure and permanent attachment point. They are typically made of steel and have a tapered bore that matches the taper of the XTB35 bushing. This ensures a precise fit and allows for easy installation and removal of the bushing.Overall, the XTH35 weld-on hubs and XTB35 bushings are components commonly used in mechanical systems to provide a reliable and adjustable mounting solution for rotating parts.

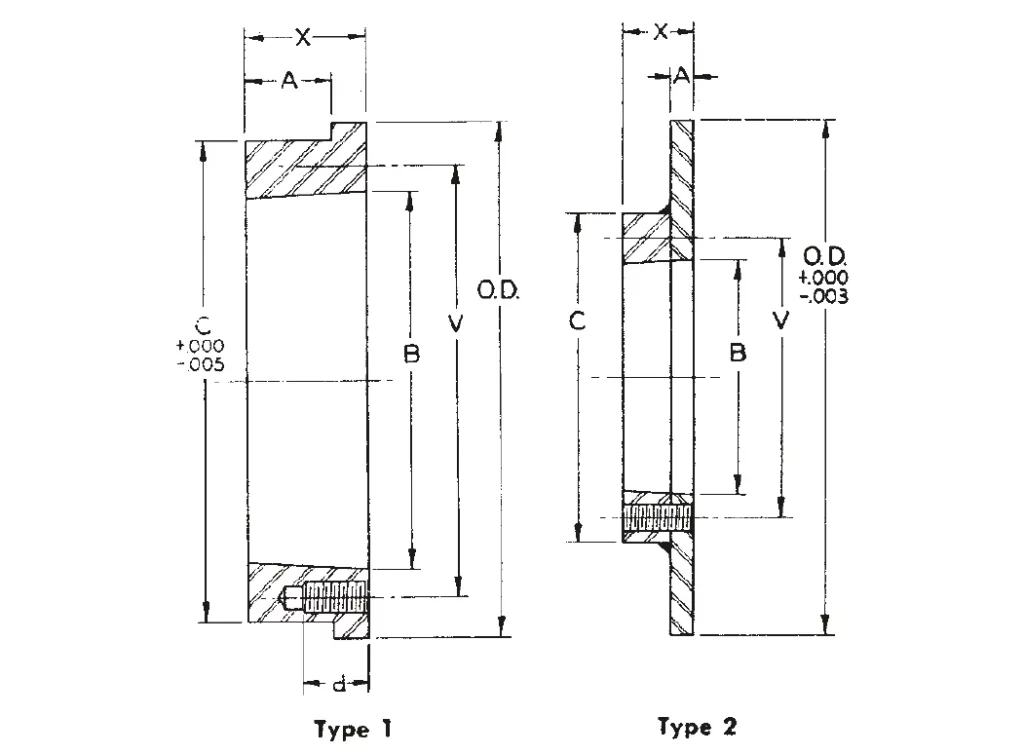

XTH35 Weld-On Hubs Dimensions:

Part No.		XTH35 Hubs  (Type 1 Hubs)
For Bushing		XTB35 Bushings
Dimensions	O.D.	6 5/8"
	A	1 1/16"
	B	4.688"
	C	6.345"
	V	5 7/16"
	X	1 1/2"
	d	1 1/4"
	No.	4
	Size	1/2" - 13UNC
Wt lbs.		6.5

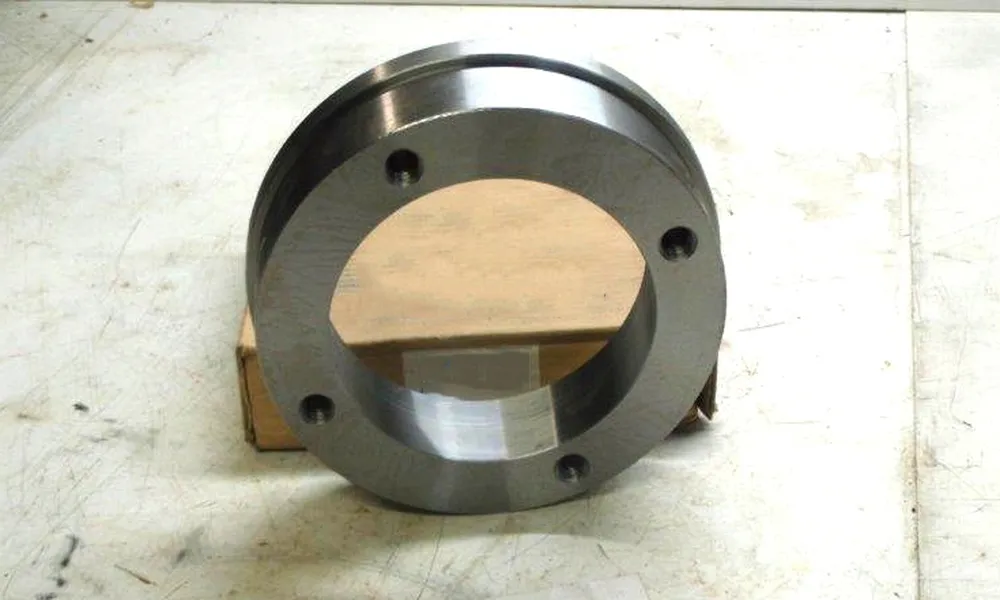

Benefits of Using the XTH35 Weld-On Hubs:

The XTH35 weld-on hubs offer several benefits when used in mechanical systems:1. Secure Attachment: Welding the XTH35 hub directly onto the shaft or axle provides a strong and permanent attachment. This ensures that the hub remains securely in place, even under high loads or vibrations.2. Precise Positioning: The XTH35 weld-on hubs are designed with a tapered bore that matches the taper of the XTB35 bushing. This allows for precise positioning of the rotating part on the shaft or axle, ensuring accurate alignment and reducing the risk of misalignment or wobbling.3. Easy Installation and Removal: When combined with XTB35 bushings, the XTH35 weld-on hubs allow for easy installation and removal of the rotating part. The bushings can be quickly inserted and locked into the hub, providing a convenient and adjustable mounting solution.4. Flexibility: The XTH35 weld-on hubs accommodate the use of XTB35 bushings, which come in various sizes and configurations. This provides flexibility in terms of shaft or axle diameter compatibility, allowing for the use of different bushings to suit specific requirements.5. Durability: The XTH35 weld-on hubs are typically made of durable materials such as steel, which ensures long-lasting performance and resistance to wear and tear. This makes them suitable for demanding applications and environments.6. Cost-Effective: By offering a secure and adjustable mounting solution, the XTH35 weld-on hubs help minimize the need for expensive machining or specialized shaft configurations. This can result in cost savings during installation and maintenance.

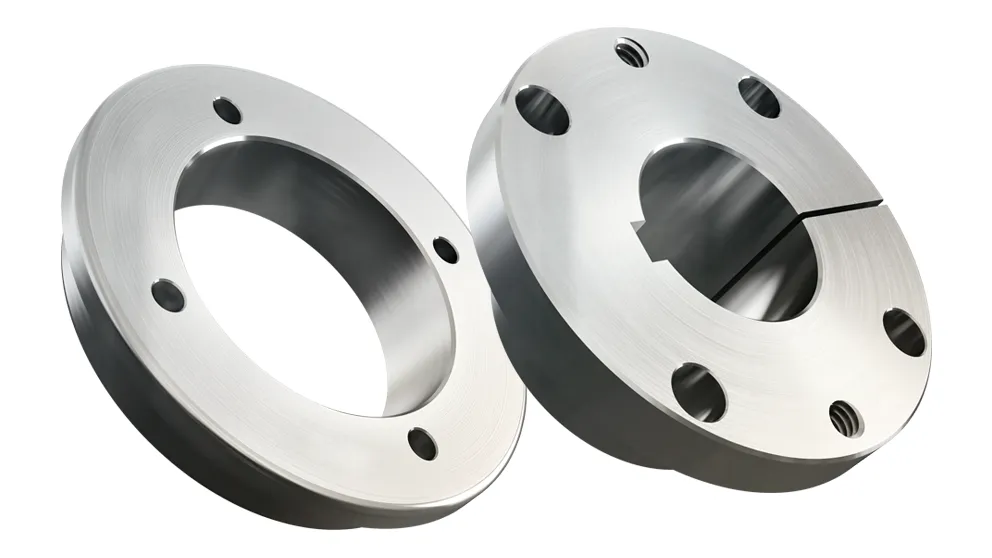

XTH35 Weld-On Hubs Maintainance:

The maintenance of XTH35 weld-on hubs typically includes the following considerations:(1) Regular Inspection: Perform routine visual inspections of the XTH35 weld-on hubs to check for any signs of damage, wear, or misalignment. Look for cracks, deformations, or signs of excessive stress around the weld joint.(2) Lubrication: If the XTH35 weld-on hubs are equipped with bearings or rotating components, ensure proper lubrication according to the manufacturer's recommendations. Lubrication helps reduce friction, heat, and wear, extending the lifespan of the hub and associated components.(3) Cleaning: Keep the XTH35 weld-on hubs clean and free from contaminants. Remove dirt, debris, and any buildup that may accumulate on the hub's surface, as it can affect the performance and proper functioning of the hub.(4) Bushing Inspection: If the XTH35 weld-on hubs are used in conjunction with XTB35 bushings, inspect the bushings for wear or damage. Replace any worn-out or damaged bushings promptly to ensure optimal performance and alignment.(5) Environmental Considerations: Consider the operating environment of the XTH35 weld-on hubs. If they are exposed to harsh conditions, such as extreme temperatures, corrosive substances, or excessive vibrations, take appropriate measures to protect the hubs or consider using specialized coatings or materials to enhance their durability.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
