XTH15 Weld-On Hubs

XTH15 Weld-On Hubs

XTH15 weld-on hubs are a type of mechanical component used in power transmission systems to connect shafts to other components such as sprockets, gears, or pulleys. Specifically, XTH15 weld-on hubs are designed to be used with a bushing to create a secure and easily removable connection.The "XTH15" designation typically refers to the specific model or size of the bushing hub. These weld-on hubs are often made of high-strength steel and feature a cylindrical shape with a bored hole through the center to accommodate a bushing. The bushing is typically inserted into the hub's bore and then secured in place with set screws or other fasteners.The advantage of using an XTH15 bushing hub is that it allows for easy removal and replacement of the connected component without having to remove the entire hub from the shaft. This can be particularly useful in applications where components may need to be changed out frequently or where maintenance or repairs are required.XTH15 weld-on hubs are commonly used in applications where high torque or high speed is involved, such as in heavy machinery, agricultural equipment, or industrial systems. They are also frequently used in conjunction with other power transmission components such as couplings, bearings, and shafts to create a complete system for transmitting power and motion.

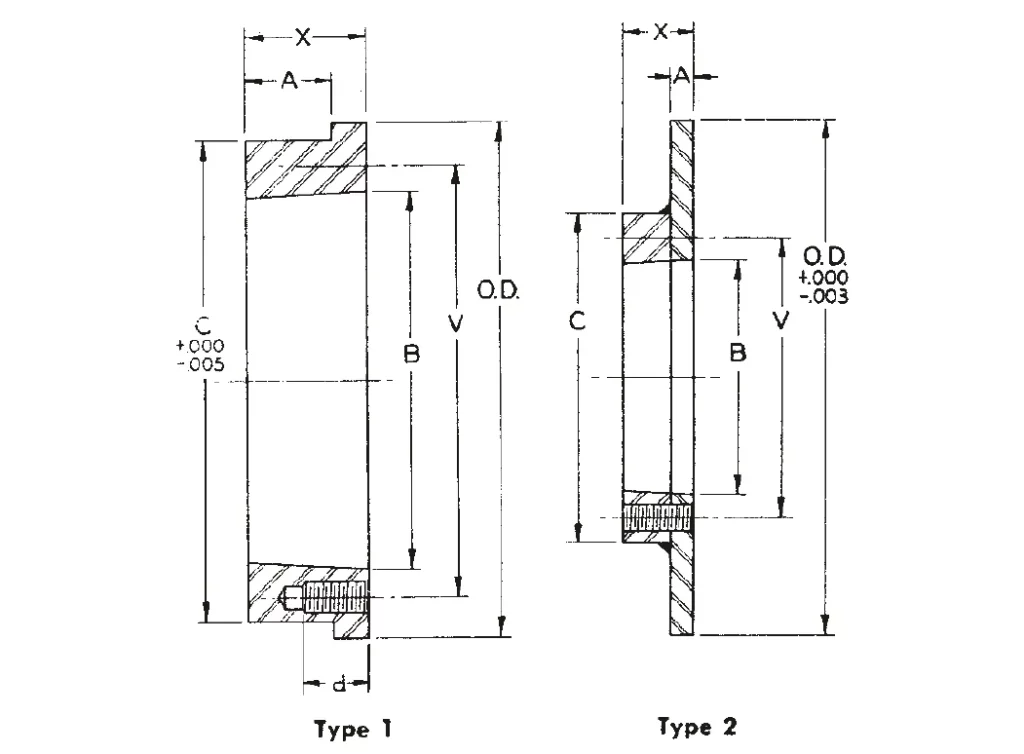

XTH15 Weld-On Hubs Dimensions:

Part No.		XTH15 Hubs
For Bushing		XTB15 Bushings
Dimensions	O.D.	3 1/4"
	A	7/16"
	B	2.000"
	C	2 7/8"
	V	2 7/16"
	X	5/8"
	d	5/8"
	No.	4
	Size	1/4" -20UNC
Wt lbs.		3

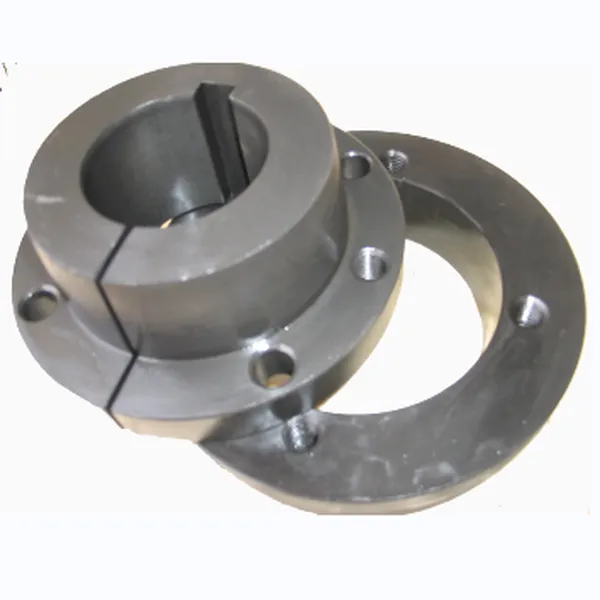

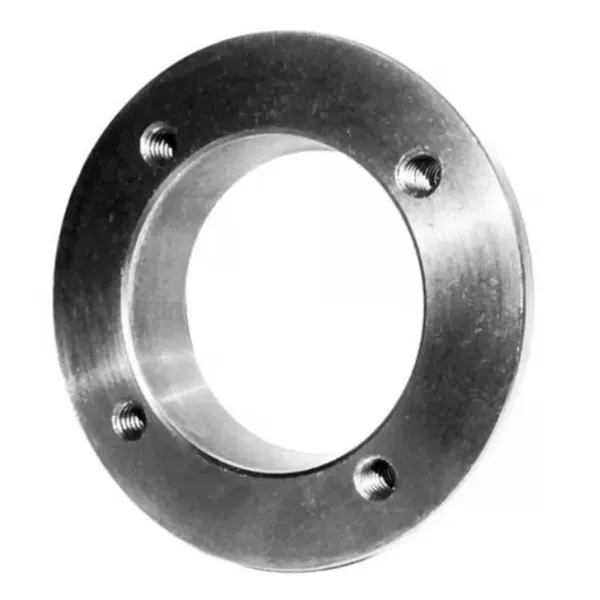

XTH15 Weld-On Hubs Design Features:

XTH15 weld-on hubs are designed for high torque and high-speed applications, where a secure and permanent connection between a shaft and another power transmission component is required. Here are some of the key design features of XTH15 weld-on hubs:1. Material: XTH15 weld-on hubs are typically made from high-strength steel, such as 1045 carbon steel, to provide a durable and long-lasting connection.2. Cylindrical shape: The XTH15 weld-on hubs have a cylindrical shape with a bored hole through the center to accommodate a shaft. The outside diameter of the hub is typically larger than the diameter of the shaft to provide a secure fit.3. Weld-on design: XTH15 weld-on hubs are designed to be welded directly onto a shaft, providing a secure and permanent connection. The hub is typically welded using a MIG or TIG welding process.4. Keyway or set screws: To further secure the connection between the hub and the shaft, XTH15 weld-on hubs may feature a keyway or set screws. The keyway allows for the hub to be keyed to the shaft, preventing any rotational movement. Set screws can be used to secure the hub onto the shaft, providing additional holding power.5. Size and capacity: XTH15 weld-on hubs come in various sizes and capacities to accommodate different shaft diameters and torque requirements.Overall, the design features of XTH15 weld-on hubs allow for a strong and reliable connection between a shaft and power transmission component, making them ideal for use in heavy-duty industrial applications.

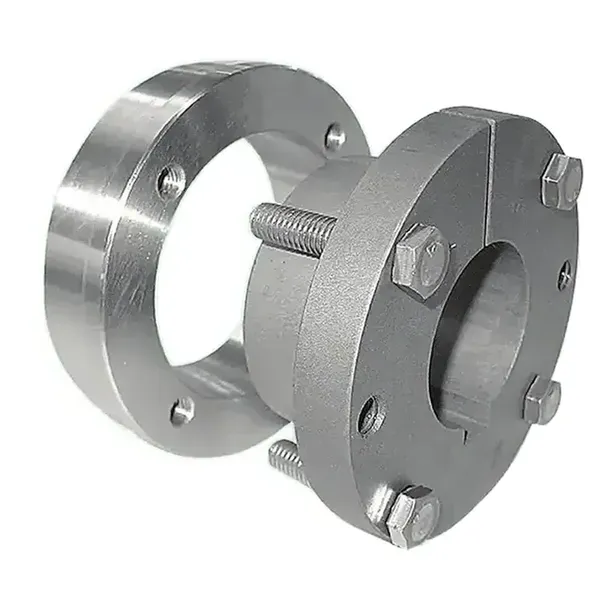

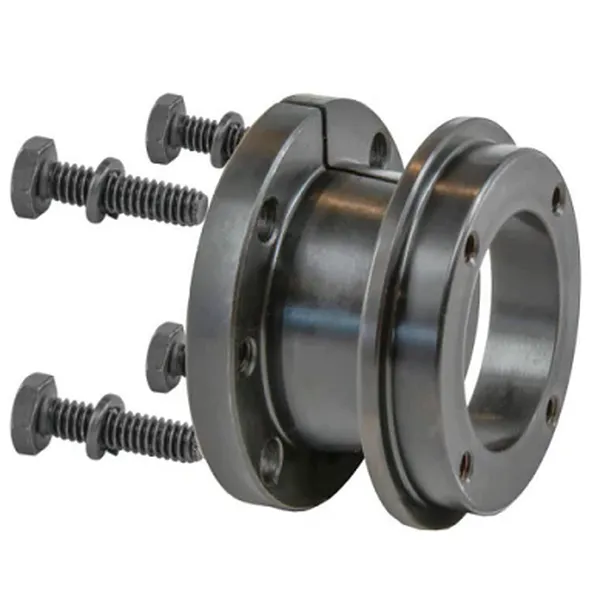

XTH15 Weld-On Hubs for XTB15 Bushings:

XTH15 weld-on hubs and XTB15 bushings are mechanical components used in power transmission systems. The XTH15 weld-on hub is a type of hub that is welded onto a shaft to provide a mounting point for a sprocket, pulley, or other power transmission component. The XTB15 bushing is a split bushing that is designed to fit inside the bore of a sprocket or pulley and grip the shaft tightly when the two halves of the bushing are tightened together.The XTH15 weld-on hub and XTB15 bushing are often used together in power transmission systems to provide a secure and accurate method of mounting sprockets and pulleys onto shafts. The weld-on hub is typically welded onto the shaft at the desired location, while the bushing is inserted into the bore of the sprocket or pulley and tightened down onto the shaft using bolts or screws.When selecting XTH15 weld-on hubs and XTB15 bushings, it is important to consider factors such as the size and type of shaft, the power requirements of the transmission system, and the operating conditions (such as temperature and environment) to ensure that the components are compatible and will perform reliably over time.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
