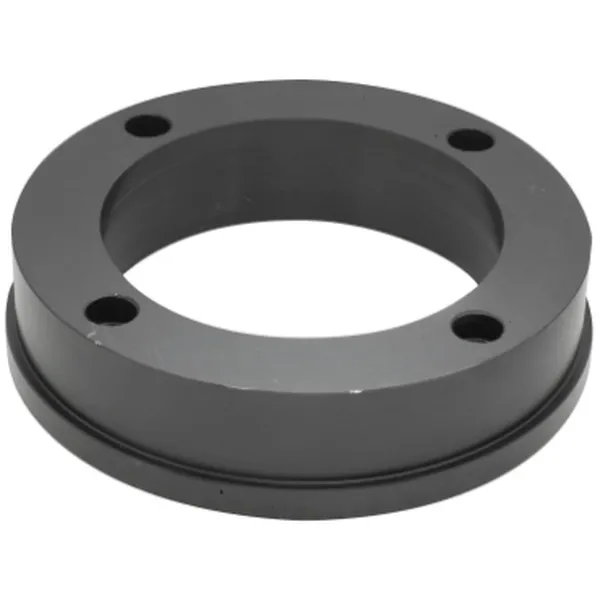

XTH30 Weld-On Hubs

XTH30 Weld-On Hubs

The XTH30 weld-on hubs are designed to work in conjunction with XTB30 bushings to provide a secure and reliable connection in various mechanical applications. Weld-on hubs are commonly used in situations where a shaft or component needs to be attached to a hub or flange.The XTH30 weld-on hubs are typically made from high-quality steel or other durable materials to ensure strength and integrity. They are designed with precision to match the specifications of the XTB30 bushings, allowing for a precise fit and optimal performance.To use the XTH30 weld-on hubs, you would first need to prepare the shaft or component that you want to attach. This may involve cleaning and preparing the surface to ensure a strong weld. Once the preparation is complete, you will weld the XTH30 hub onto the shaft or component using appropriate welding techniques and equipment.The XTB30 bushings, specifically designed to fit the XTH30 weld-on hubs, would then be inserted into the hub. These bushings help to align and support the shaft or component, reducing friction and wear.Overall, the XTH30 weld-on hubs and XTB30 bushings combination provide a reliable and efficient solution for connecting shafts or components in various mechanical systems. It is important to follow the manufacturer's instructions and guidelines for proper installation and maintenance to ensure optimal performance and longevity.

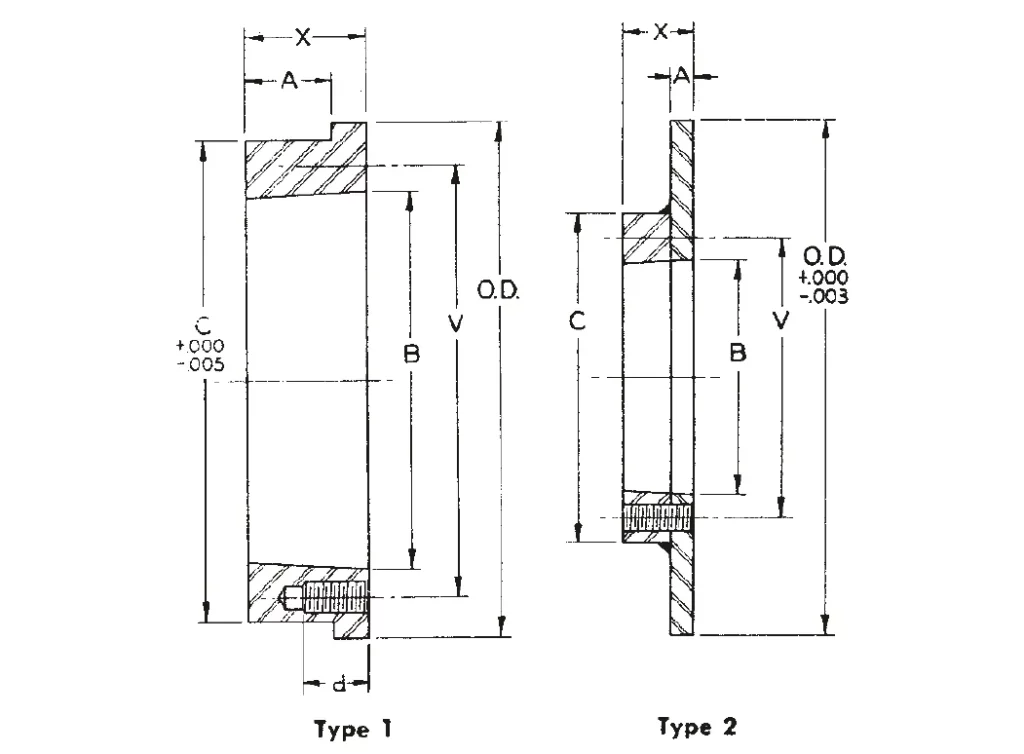

XTH30 Weld-On Hubs Dimensions:

Part No.		XTH30 Hubs  (Type 1 Hubs)
For Bushing		XTB30 Bushings
Dimensions	O.D.	6"
	A	7/8"
	B	3.875"
	C	5 3/4"
	V	4 9/16"
	X	1 1/4"
	d	1 1/16"
	No.	4
	Size	7/16" - 14UNC
Wt lbs.		4.3

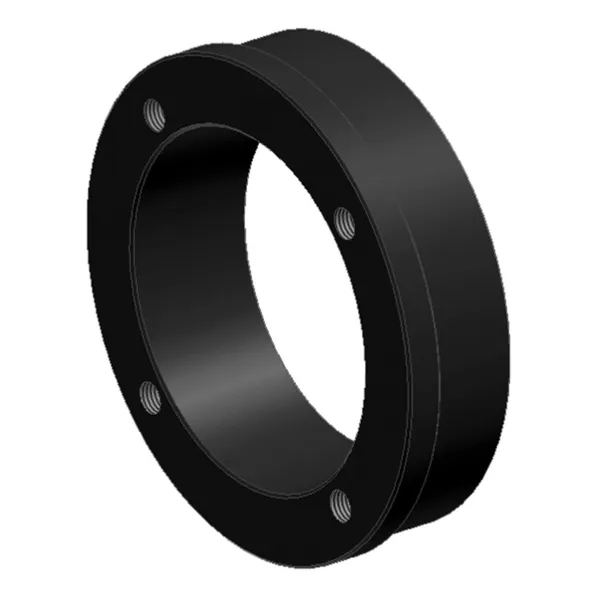

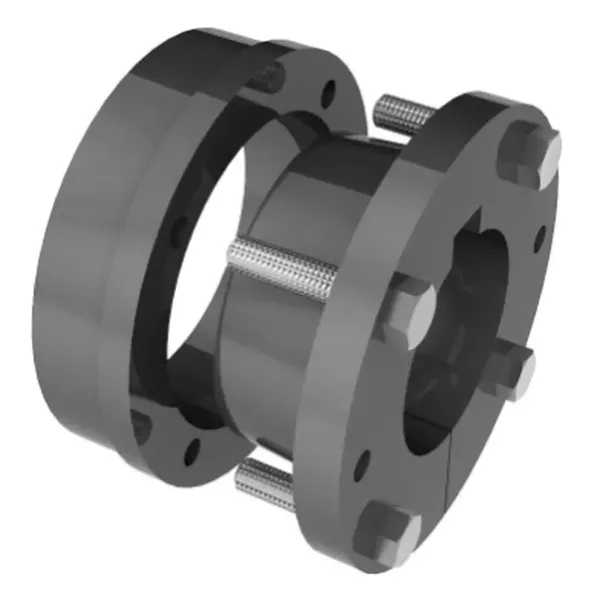

Features of XTH30 Weld-On Hubs:

The XTH30 weld-on hubs typically possess a range of features that make them suitable for various mechanical applications. While specific features may vary depending on the manufacturer and design, here are some common features you can expect from XTH30 weld-on hubs:1. Material: XTH30 weld-on hubs are typically constructed from high-quality steel or other robust materials known for their durability and strength. The specific material composition may be chosen to withstand high loads, resist corrosion, or meet specific industry requirements.2. Precision Design: These XTH30 weld-on hubs are engineered with precision to ensure a proper fit and alignment with the corresponding XTB30 bushings. The accurate dimensions and tolerances provide a secure connection and reduce the risk of misalignment or excessive play.3. Welding Compatibility: XTH30 weld-on hubs are designed for welding onto shafts or components. They have features that facilitate the welding process, such as weld-preparation surfaces, chamfers, or bevels, which help achieve a strong and reliable weld joint.4. Versatility: These XTH30 weld-on hubs are typically versatile and compatible with a wide range of applications and industries. They can be used in various mechanical systems, such as power transmission, conveyors, industrial machinery, and more.5. Load Capacity: XTH30 weld-on hubs are engineered to handle significant loads and provide reliable performance under demanding conditions. The material strength and design factors ensure that they can withstand the forces and stresses experienced in the application.6. Corrosion Resistance: Depending on the specific application requirements, XTH30 weld-on hubs may feature protective coatings or materials that provide resistance against corrosion. This helps to extend their lifespan and maintain their performance even in harsh environments.7. Easy Installation: These XTH30 weld-on hubs are designed for straightforward installation, with features such as standardized mounting holes, keyways, or set screw holes that facilitate the attachment of the hub to the shaft or component.8. Compatibility with XTB30 Bushings: XTH30 weld-on hubs are specifically designed to work in conjunction with XTB30 bushings. The hub and bushing combination ensures proper alignment, reduces friction, and allows for easy replacement or interchangeability.

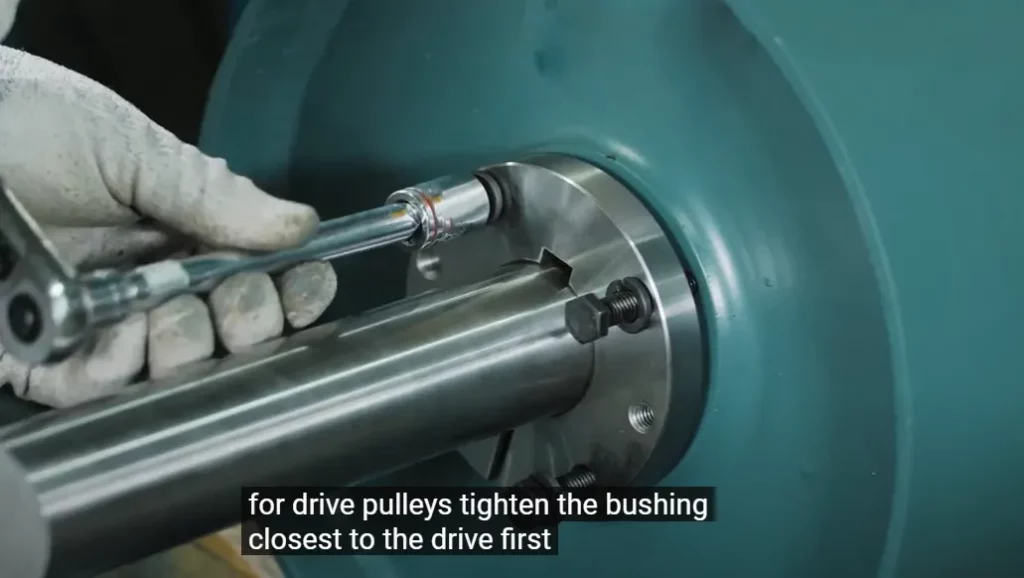

Installing the XTH30 Weld-On Hubs onto XTB30 Bushings:

To install the XTH30 weld-on hubs onto XTB30 Bushings, you can follow these general steps:1. Ensure that you have the necessary tools and equipment for the installation, including a wrench or socket set suitable for the hub bolts.2. Place the XTB30 bushings in the desired location on your equipment or machinery. Make sure they are properly aligned and seated securely.3. Take the XTH30 weld-on hubs and align them with the XTB30 bushing. The hub should fit snugly onto the bushing.4. Insert the hub bolts through the mounting holes on the XTH30 weld-on hubs and thread them into the corresponding holes on the XTB30 bushing.5. Use a wrench or socket set to tighten the XTH30 weld-on hub bolts securely. Be careful not to over-tighten the bolts, as this could damage the equipment or bushing.6. Repeat the process for each XTH30 weld-on hub bolt, ensuring that all bolts are tightened evenly.7. Once all the hub bolts are properly tightened, double-check the alignment and fit of the XTH30 weld-on hubs. Make sure they are securely attached to the XTB30 bushings.8. Test the equipment or machinery to ensure that the installation is successful and that the XTH30 weld-on hubs are functioning as intended.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
