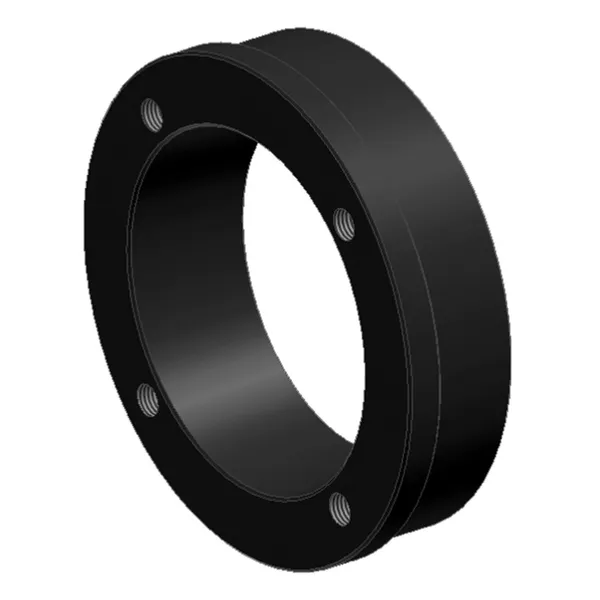

XTH20 Weld-On Hubs

XTH20 Weld-On Hubs

XTH20 weld-on hubs are a type of mechanical coupling component used in power transmission and motion control systems. Like the XTH15 weld-on hubs, XTH20 hubs are designed to be welded onto a shaft, and they are used to connect two shafts or to connect a shaft to a flange or pulley.XTH20 weld-on hubs are made of high-quality steel and are designed to be durable and long-lasting. They are available in various sizes and bore diameters to accommodate different shaft sizes and applications. The XTH20 hubs have a tapered bore that allows them to fit securely onto a shaft, and they also have a set screw that can be tightened to hold them in place.One of the key advantages of XTH20 weld-on hubs is their ease of installation. They can be quickly and easily welded onto a shaft using standard welding equipment, and they can be used with a variety of coupling components, such as bushings, to create a complete coupling assembly.Overall, XTH20 weld-on hubs are a reliable and cost-effective choice for many industrial applications, where a strong and secure connection between two shafts is required.

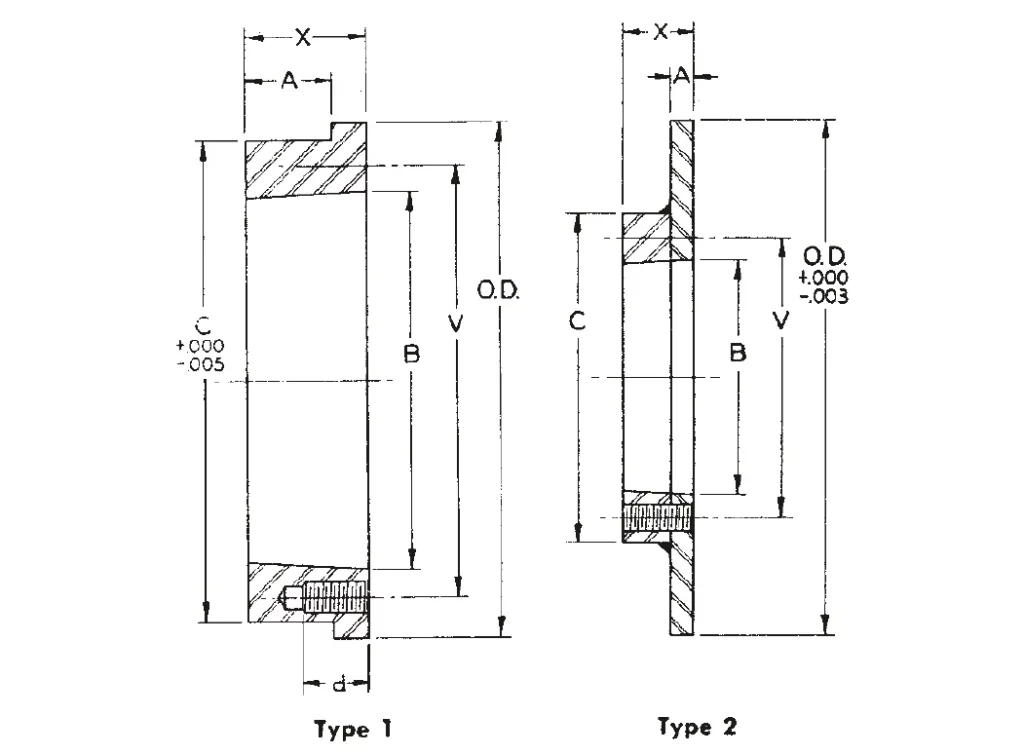

XTH20 Weld-On Hubs Dimensions:

Part No.		XTH20 Hubs
For Bushing		XTB20 Bushings
Dimensions	O.D.	4 1/8"
	A	9/16"
	B	2.688"
	C	3 13/16"
	V	3 3/16"
	X	13/16"
	d	13/16"
	No.	4
	Size	5/16" - 18UNC
Wt lbs.		1.5

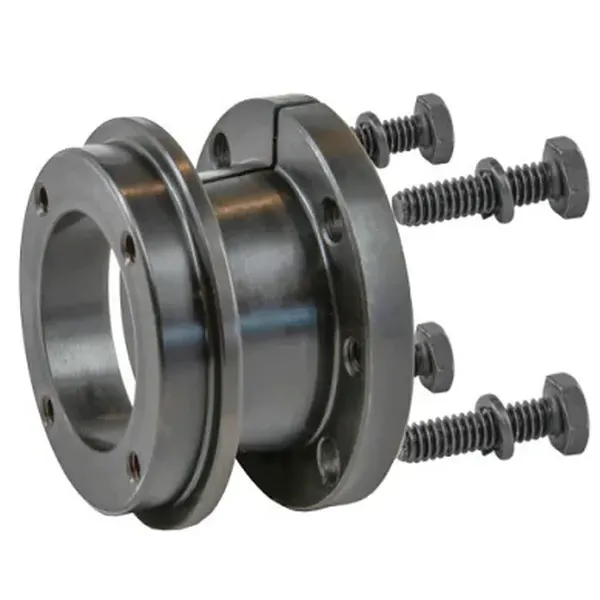

XTH20 Weld-On Hubs Advantages:

XTH20 weld-on hubs offer several advantages that make them a popular choice in power transmission and motion control systems. Here are some of the main advantages:1. High strength: XTH20 weld-on hubs are made of high-quality steel and are designed to be durable and long-lasting. They provide a strong and reliable connection between two shafts, which is essential for many industrial applications.2. Easy installation: XTH20 weld-on hubs are designed to be easy to install. They can be quickly and easily welded onto a shaft using standard welding equipment, which saves time and reduces labor costs.3. Versatility: XTH20 weld-on hubs are available in various sizes and bore diameters to accommodate different shaft sizes and applications. They can be used with a variety of coupling components, such as bushings, to create a complete coupling assembly.4. Secure connection: XTH20 weld-on hubs have a tapered bore that allows them to fit securely onto a shaft, and they also have a set screw that can be tightened to hold them in place. This ensures a secure and accurate connection between the two shafts.5. Cost-effective: XTH20 weld-on hubs are a cost-effective choice for many industrial applications. They are durable and long-lasting, which reduces the need for frequent replacement, and they are easy to install, which reduces labor costs.

XT Bushing Hubs Vs QD-Type Weld-On Hubs:

XT bushing hubs and QD-type weld-on hubs are two types of mechanical coupling components used in power transmission and motion control systems. While both types of hubs are designed to connect two shafts or to connect a shaft to a flange or pulley, there are some differences between the two.Here are some of the main differences between XT bushing hubs and QD-type weld-on hubs:(1) Installation: XT bushing hubs require a bushing to be mounted on the shaft before the hub can be attached to the bushing. QD-type weld-on hubs, on the other hand, do not require a bushing and can be directly welded onto the shaft.(2) Reusability: XT bushing hubs are reusable because the bushing can be replaced when necessary. QD-type weld-on hubs are not reusable because they are welded directly onto the shaft.(3) Precision: XT bushing hubs provide a more precise fit than QD-type weld-on hubs because they utilize a bushing that can be machined to exact specifications. QD-type weld-on hubs are welded onto the shaft, which may not provide as precise a fit.(4) Maintenance: XT bushing hubs require periodic maintenance to ensure that the bushing is properly lubricated and that the hub is securely fastened to the bushing. QD-type weld-on hubs do not require as much maintenance because they are welded directly onto the shaft.(5) Availability: XT bushing hubs are available in a wider range of sizes and configurations than QD-type weld-on hubs.Overall, both XT bushing hubs and QD-type weld-on hubs have their advantages and disadvantages, and the choice between the two depends on the specific requirements of the application. XT bushing hubs may be preferred for applications that require a more precise fit, while QD-type weld-on hubs may be preferred for applications where ease of installation and lower maintenance requirements are important.

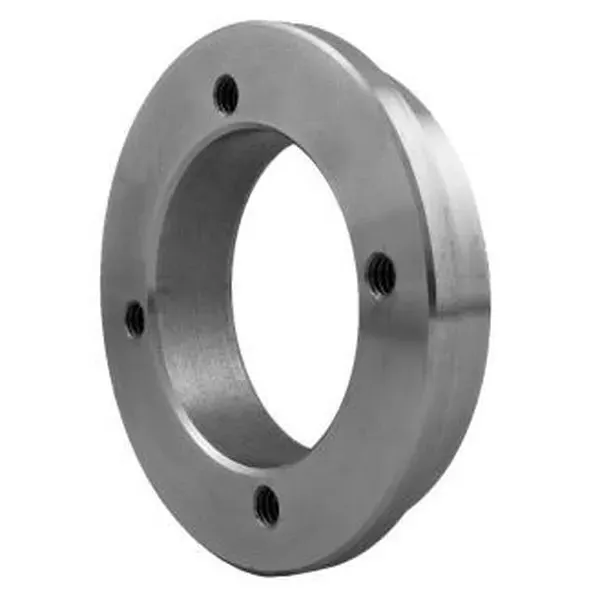

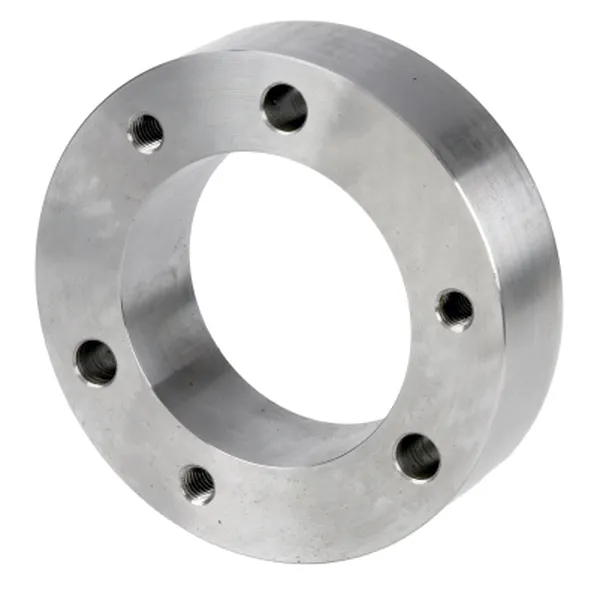

XT Bushing Hubs	QD-Type Weld-On Hubs

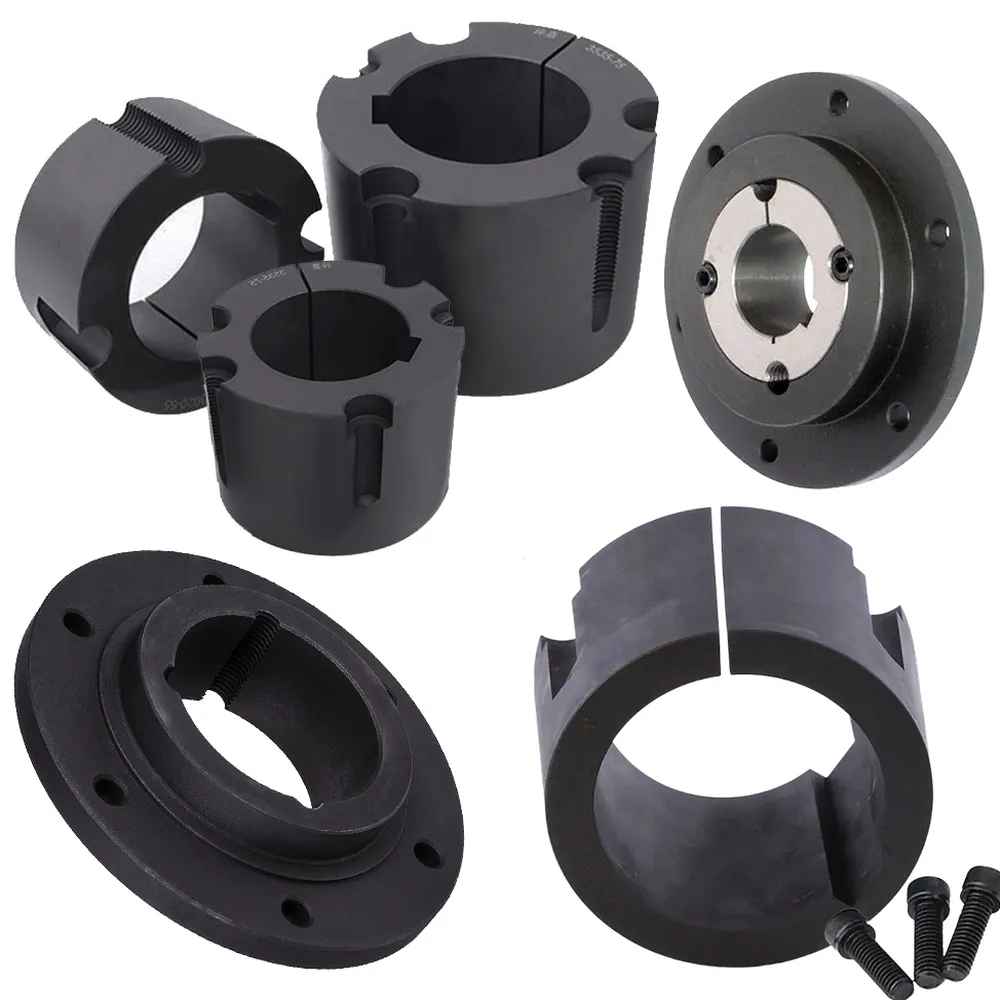

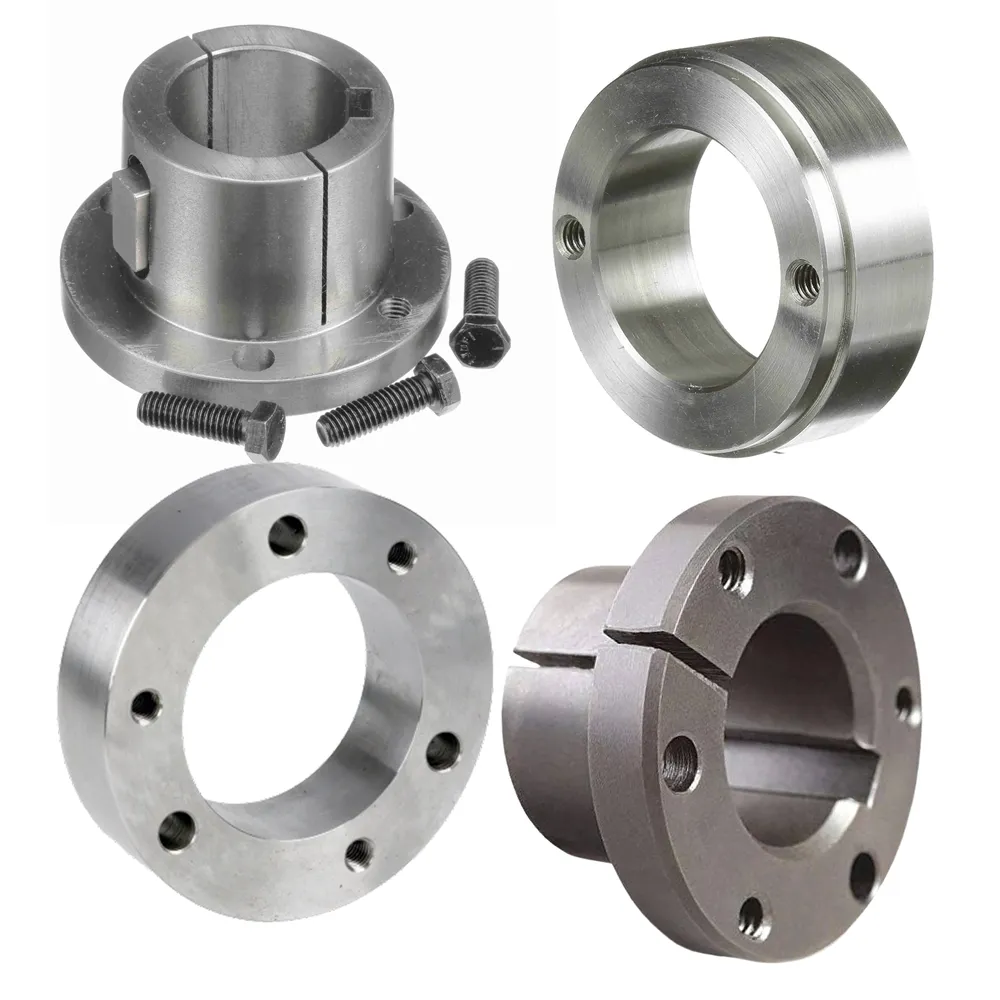

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
