XTH45 Weld-On Hubs

XTH45 Weld-On Hubs

The XTH45 weld-on hubs are designed to provide a secure and reliable connection between a shaft and a bushing, specifically the XTB45 bushing. These hubs are commonly used in various industrial applications where a reliable torque transmission is required.The XTH45 weld-on hubs are manufactured using high-quality materials to ensure durability and strength. They feature a robust design that allows for easy installation and a firm weld connection. The hubs are engineered to accommodate the XTB45 bushing, which is designed to fit precisely onto the hub and provide a tight fit with the shaft.One of the key advantages of the XTH45 weld-on hubs is their ability to handle high torque loads. They are built to withstand heavy-duty applications and provide a reliable connection that can transmit power efficiently. This makes them suitable for use in demanding environments where machinery and equipment operate under significant stress and load.In addition to their strength and durability, the XTH45 weld-on hubs offer versatility. They can be used in a wide range of industrial applications, including power transmission systems, conveyor systems, and various types of machinery.

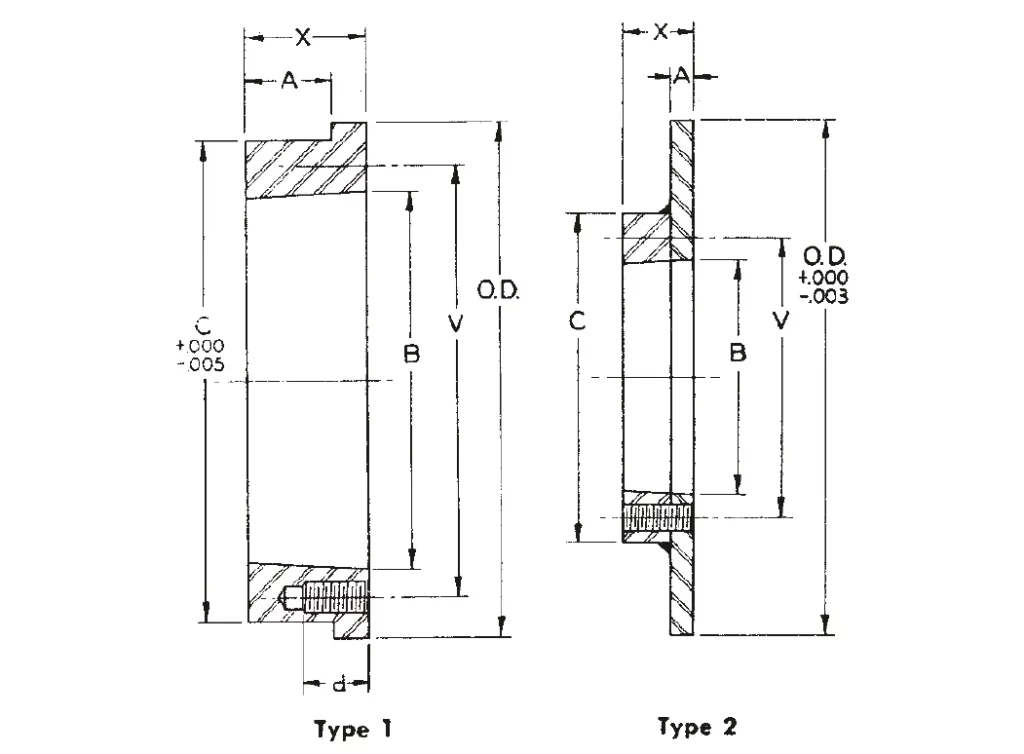

XTH45 Weld-On Hubs Dimensions:

Part No.		XTH45 Hubs (Type 1 Hubs)
For Bushing		XTB45 Bushings
Dimensions	O.D.	8 3/8"
	A	1 1/2"
	B	5.938"
	C	8"
	V	6 7/8"
	X	2 1/8"
	d	1 9/16"
	No.	4
	Size	5/8" - 11UNC
Wt lbs.		19.4

XTH45 Weld-On Hubs Design Features:

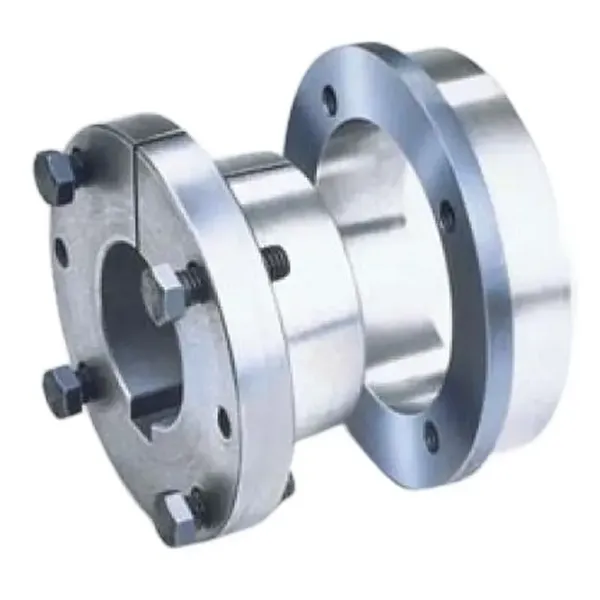

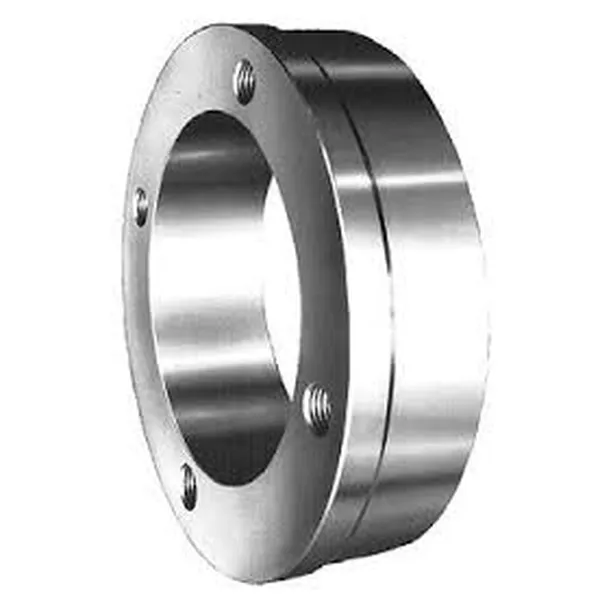

The XTH45 weld-on hubs are designed with several key features that contribute to their functionality and reliability. Here are some of the design features of the XTH45 weld-on hubs:1. Robust Construction: The XTH45 weld-on hubs are constructed using high-quality materials, such as steel or other strong alloys, to provide excellent durability and strength. This ensures that the hubs can withstand heavy loads and harsh operating conditions.2. Weld-On Design: The XTH45 weld-on hubs are specifically designed to be welded onto a shaft, providing a strong and permanent connection. The weld-on design ensures a secure attachment that can withstand high torque and rotational forces.3. Precision Fit: The XTH45 weld-on hubs are engineered to provide a precise fit with the XTB45 bushing. The dimensions and tolerances are carefully designed to ensure a tight and accurate connection between the hub and the bushing, minimizing any potential movement or misalignment.4. Keyway or Splined Options: Depending on the specific application requirements, the XTH45 weld-on hubs may feature a keyway or splined design. A keyway allows for additional torque transmission and prevents rotational slippage, while splines provide a more precise and rigid connection.5. Corrosion Resistance: The XTH45 weld-on hubs are often coated or treated with corrosion-resistant materials to enhance their longevity and protect them from environmental factors. This corrosion resistance feature ensures that the hubs can withstand exposure to moisture, chemicals, and other corrosive elements.6. Easy Installation: The design of the XTH45 weld-on hubs typically incorporates features that facilitate easy and efficient installation. This includes clear identification markings, such as part numbers and alignment indicators, to assist with proper alignment and orientation during the installation process.7. Compatibility: The XTH45 weld-on hubs are designed to be compatible with the XTB45 bushing. This ensures that the hubs and the bushing can work together seamlessly, providing a reliable and efficient power transmission system.

XTH45 Weld-On Hubs Application Scenarios:

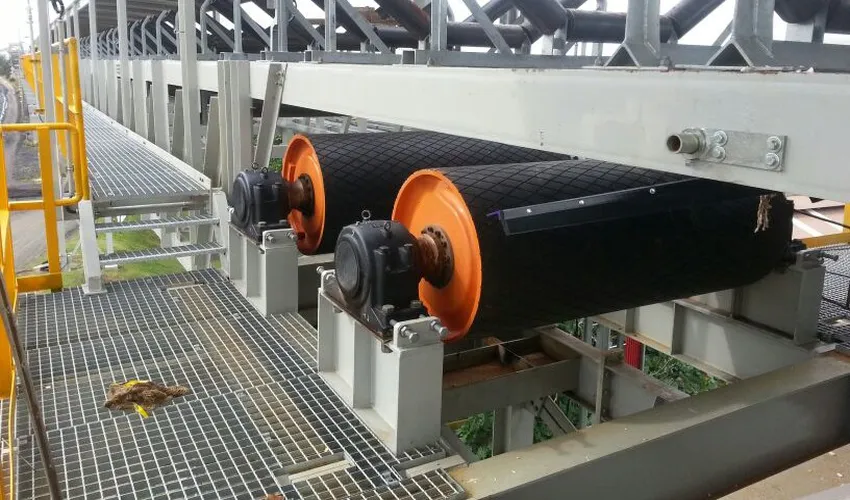

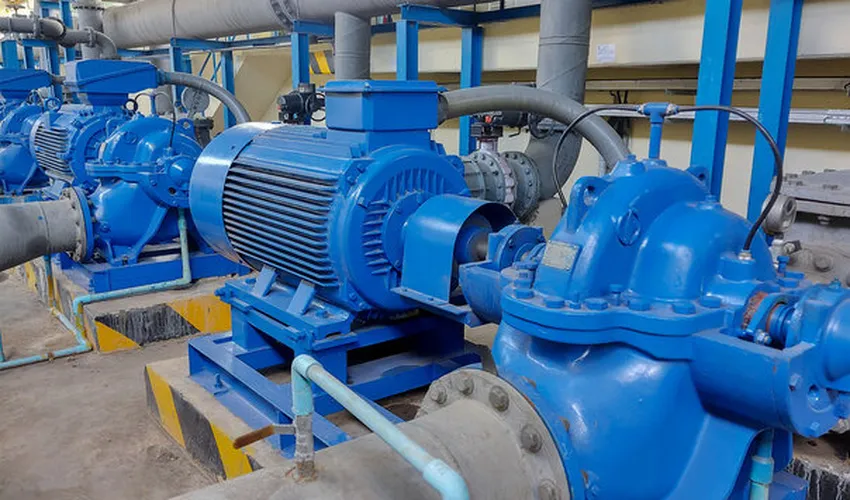

The XTH45 weld-on hubs are versatile components that can be used in various industrial applications where a secure and reliable connection between a shaft and a bushing is required. Some common application scenarios for XTH45 weld-on hubs include:(1) Power Transmission Systems: The XTH45 weld-on hubs are widely used in power transmission systems, such as conveyor systems, gearboxes, and drive assemblies. They provide a sturdy connection between the shaft and the bushing, allowing for efficient torque transmission and reliable power transfer.(2) Industrial Machinery: The XTH45 weld-on hubs find application in a range of industrial machinery, including pumps, compressors, mixers, and agitators. These machines often require a strong and durable connection to ensure smooth operation and minimize downtime.(3) Construction Equipment: XTH45 weld-on hubs are suitable for use in construction equipment, such as cranes, excavators, and loaders. They help transmit power from the engine or motor to various moving parts, enabling the equipment to perform heavy-duty tasks reliably.(4) Agricultural Machinery: Farm equipment, such as tractors, harvesters, and irrigation systems, often rely on XTH45 weld-on hubs to provide a secure connection between the rotating shafts and the bushings. This ensures efficient power transmission and reliable operation in demanding agricultural environments.(5) Material Handling Systems: XTH45 weld-on hubs are utilized in material handling systems, such as conveyors, lifts, and automated sorting systems. These hubs help transfer power from the motor or drive unit to the moving components, facilitating the smooth and efficient movement of materials.(6) Mining and Extraction Equipment: In mining and extraction operations, heavy machinery is used to extract and transport minerals and resources. XTH45 weld-on hubs are commonly employed in equipment like crushers, mills, and conveyor systems to provide a robust connection and ensure the reliable transfer of power.(7) Manufacturing Machinery: Various types of manufacturing machinery, including presses, lathes, and extruders, require a secure connection between the rotating shafts and bushings. XTH45 weld-on hubs offer a reliable solution for efficient power transmission in these manufacturing processes.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
