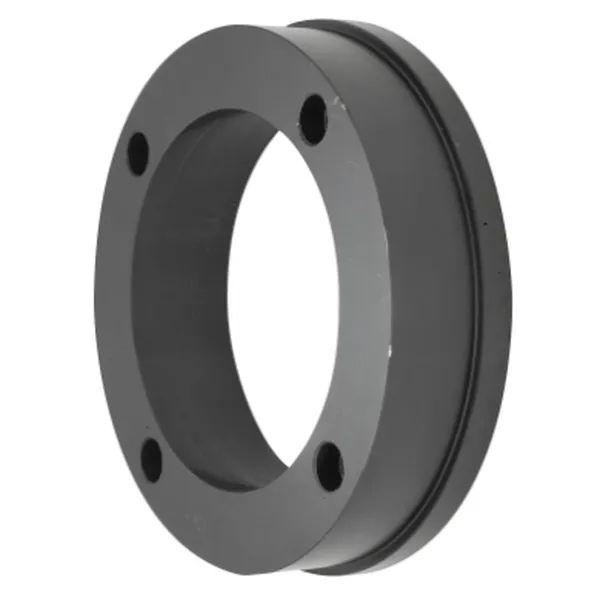

XTH25 Weld-On Hubs

XTH25 Weld-On Hubs

The XTH25 weld-on hubs are designed to be used with XTB25 bushings. XTH25 weld-on hubs are used to provide a secure and stable connection between a shaft and a mounted component, such as a sprocket or a pulley. XTB25 bushings are a type of bushing that allows for easy installation and removal without the need for any special tools.The XTH25 weld-on hubs are typically made from high-strength materials such as steel or stainless steel to ensure durability and resistance to wear and tear. They are designed with precision to match the dimensions and specifications of the XTB25 bushings.When installing the XTH25 weld-on hubs, it is important to follow the manufacturer's instructions and guidelines to ensure proper alignment and welding techniques. This will help maintain the integrity of the connection and ensure optimal performance of the bushing system.

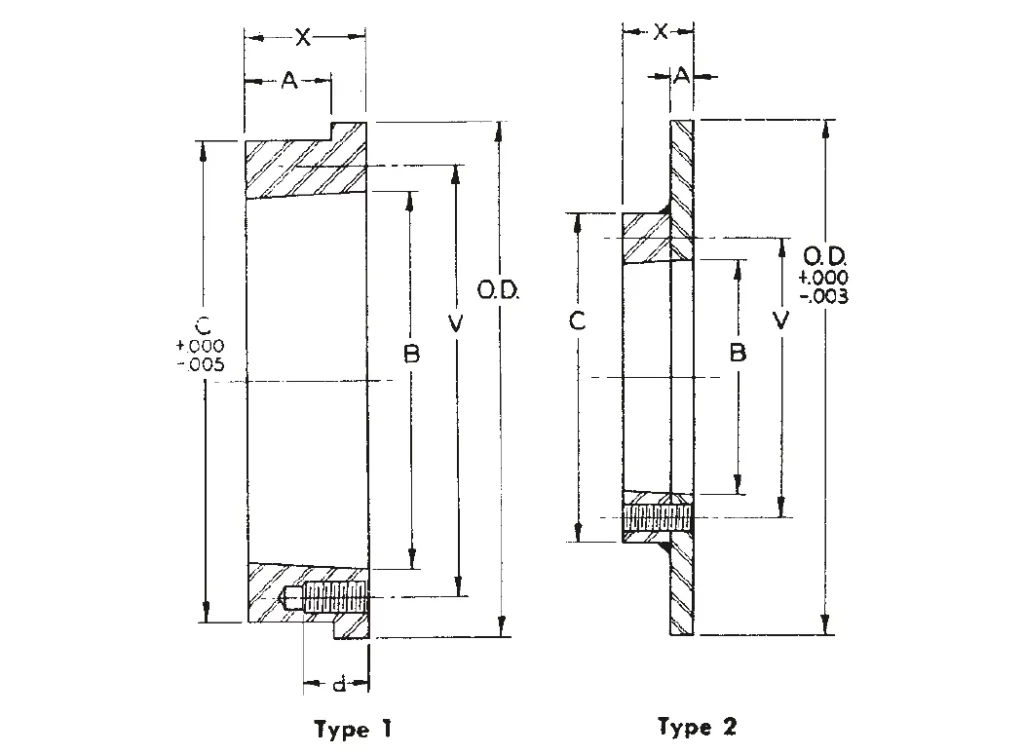

XTH25 Weld-On Hubs Dimensions:

Part No.		XTH25 Hubs  (Type 1 Hubs)
For Bushing		XTB25 Bushings
Dimensions	O.D.	4 3/4"
	A	13/16"
	B	3.188"
	C	4 3/8"
	V	3 3/4"
	X	1 1/8"
	d	1 1/8"
	No.	4
	Size	3/8" - 16UNC
Wt lbs.		2.5

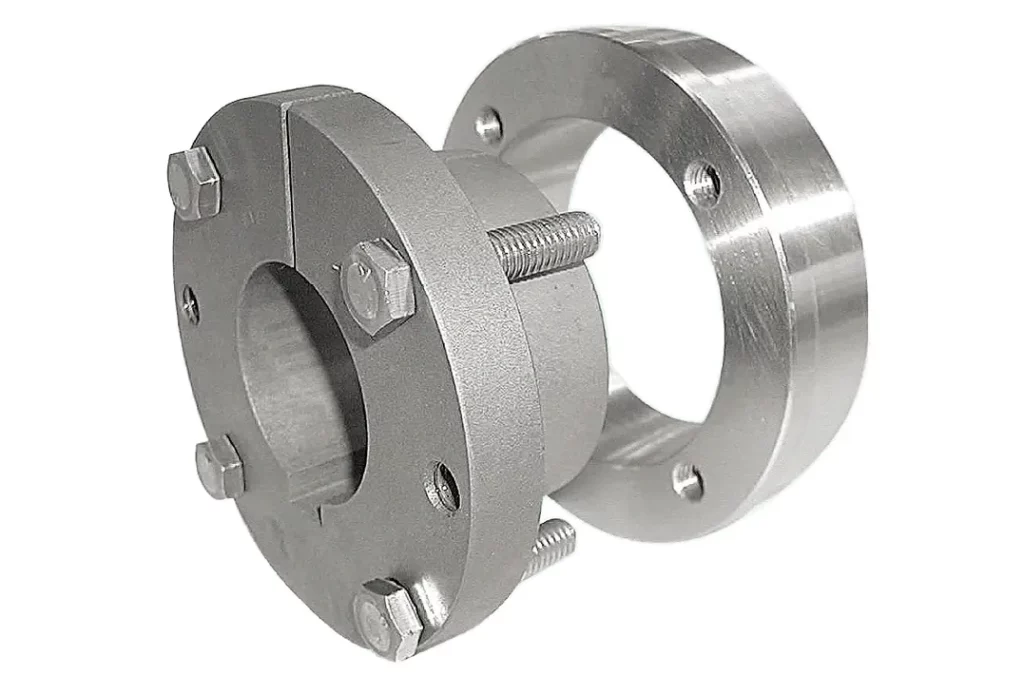

Advantages of XTH25 Weld-On Hubs:

The XTH25 weld-on hubs offer several advantages for various applications. Here are some of the key advantages of using XTH25 Weld-On Hubs:1. Strength and Durability: XTH25 weld-on hubs are constructed using high-quality materials such as steel or other robust alloys. This ensures excellent strength and durability, making them suitable for heavy-duty applications. They can withstand high loads, torque, and extreme conditions.2. Easy Installation: The weld-on design of XTH25 hubs allows for easy and secure installation. They can be welded directly onto the shaft, ensuring a strong and reliable connection. This design eliminates the need for additional fasteners or keyways, simplifying the installation process.3. Customizable: XTH25 weld-on hubs are available in various sizes and configurations, allowing for customization based on specific requirements. They can be machined or modified to accommodate different shaft diameters or keyway dimensions.4. Space-Saving: XTH25 weld-on hubs have a compact design that minimizes the space required for installation. This makes them suitable for applications with limited space, where a traditional hub with set screws or keyways may not be feasible.5. Improved Torque Transmission: The XTH25 hub weld-on connection provides a rigid and robust connection between the hub and the shaft, ensuring efficient torque transmission. This is particularly beneficial in applications that require high torque or involve heavy machinery.6. Versatility: XTH25 weld-on hubs are versatile and can be used in various industrial applications such as power transmission systems, conveyor systems, pumps, compressors, and other equipment that require reliable and secure shaft connections.7. Cost-Effective: XTH25 weld-on hubs are generally more cost-effective compared to other types of hubs or couplings. They eliminate the need for additional components like set screws, keys, or keyways, reducing overall material and assembly costs.

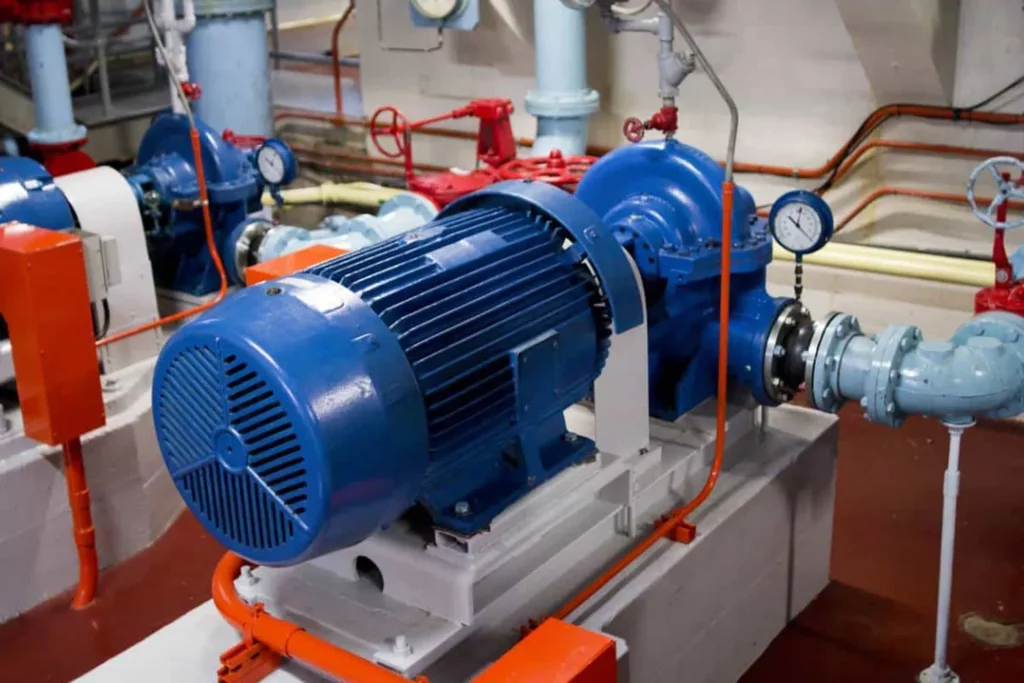

Applications of XTH25 Weld-On Hubs:

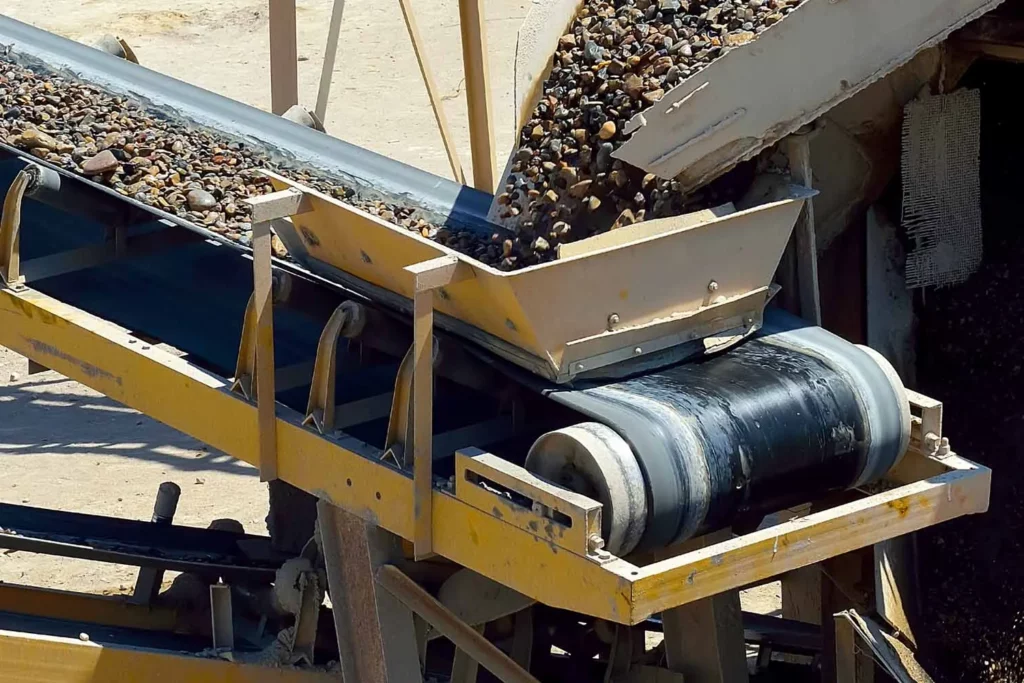

The XTH25 weld-on hubs are typically used in mechanical power transmission systems to connect various components such as gears, sprockets, pulleys, and wheels to shafts. These hubs provide a secure and reliable connection between the shaft and the component, allowing for efficient power transfer. Here are some common applications of XTH25 weld-on hubs:1. Gearboxes and Power Transmission Systems: XTH25 weld-on hubs are frequently used in gearboxes to connect gears to shafts. They provide a rigid and durable connection, ensuring efficient power transmission from the input shaft to the output shaft.2. Conveyor Systems: Conveyor systems often require the use of hubs to connect pulleys or sprockets to drive shafts. The XTH25 weld-on hubs offer a robust connection that can handle the torque and load requirements of conveyor systems.3. Industrial Machinery: XTH25 weld-on hubs find applications in various industrial machinery where components need to be securely attached to shafts. This includes equipment such as mixers, pumps, compressors, and rotary actuators.4. Material Handling Equipment: XTH25 weld-on hubs are employed in material handling equipment such as forklifts, cranes, and hoists. They are used to connect wheels or pulleys to drive shafts, enabling the movement of heavy loads with precision.5. Agricultural Machinery: Farming equipment often relies on XTH25 weld-on hubs to join components like pulleys, sprockets, and wheels to shafts. This includes applications such as tractors, harvesters, and irrigation systems.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
