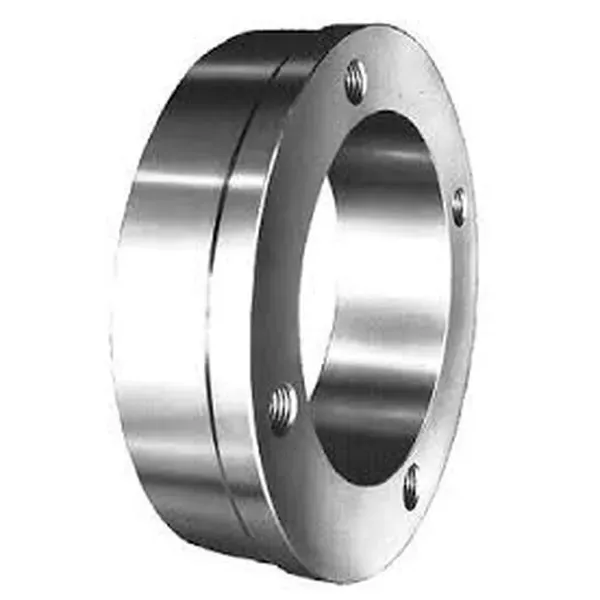

XTH50 Weld-On Hubs

XTH50 Weld-On Hubs

The XTH50 weld-on hubs are a type of hub designed for use with XTB50 bushings. These hubs are commonly used in mechanical power transmission systems, particularly in applications where secure and reliable shaft connections are required.The XTH50 weld-on hubs are manufactured with high-quality materials, ensuring durability and strength. They are designed to be welded directly onto a shaft, providing a secure and rigid connection. The weld-on hubs feature a precision machined bore that matches the dimensions of the XTB50 bushings.The XTB50 bushings are a type of mechanical device used to mount components onto a shaft. They provide a means of securing components such as pulleys, sprockets, or gears to the hub. The XTB50 bushings are typically designed with a split design, allowing them to be easily installed and removed without the need for disassembling the entire system.When the XTH50 weld-on hubs are properly welded to a shaft, they create a robust connection that eliminates the need for additional fasteners or couplings. This type of connection is particularly advantageous in applications where high torque or heavy loads are present.Overall, the XTH50 weld-on hubs and XTB50 bushings combination provide a reliable and efficient solution for shaft connections in mechanical power transmission systems. They offer ease of installation, secure attachment, and excellent performance, making them suitable for a wide range of industrial applications.

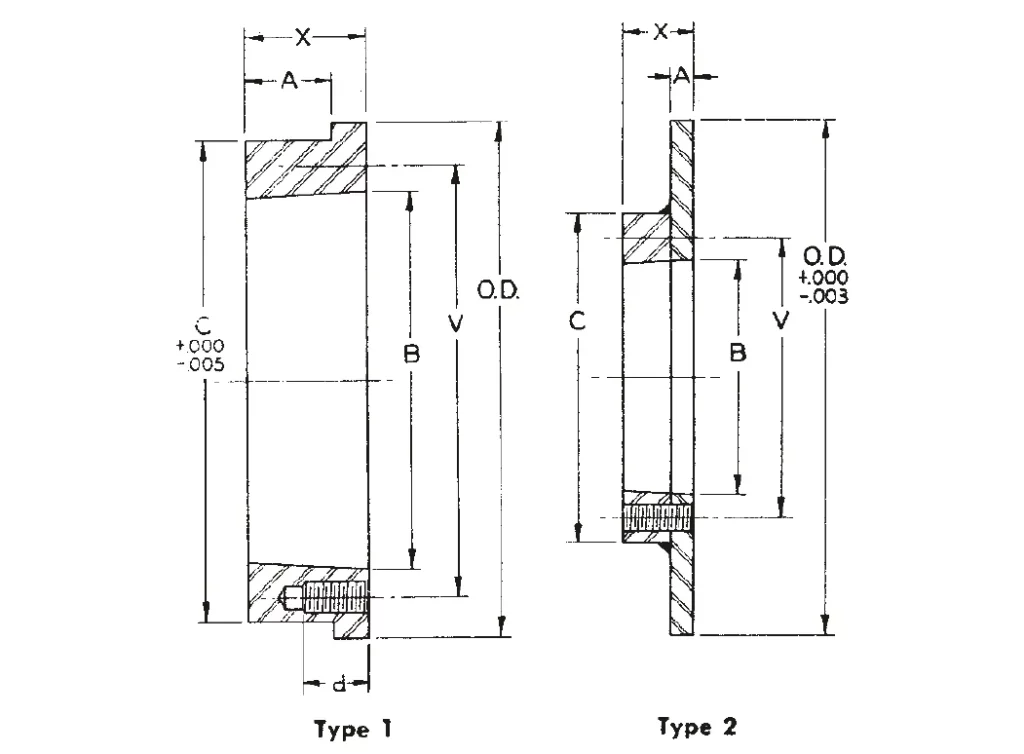

XTH50 Weld-On Hubs Dimensions:

Part No.		XTH50 Hubs (Type 1 Hubs)
For Bushing		XTB50 Bushings
Dimensions	O.D.	8 3/8"
	A	1 1/2"
	B	5.938"
	C	8"
	V	6 7/8"
	X	2 1/8"
	d	1 9/16"
	No.	4
	Size	5/8" - 11UNC
Wt lbs.		19.4

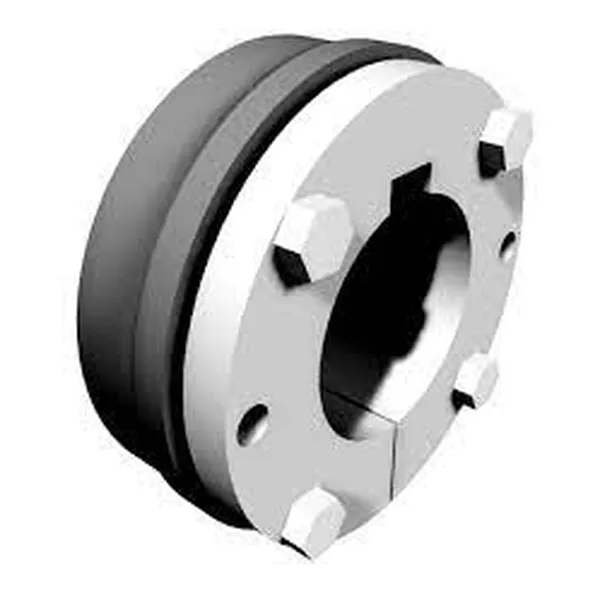

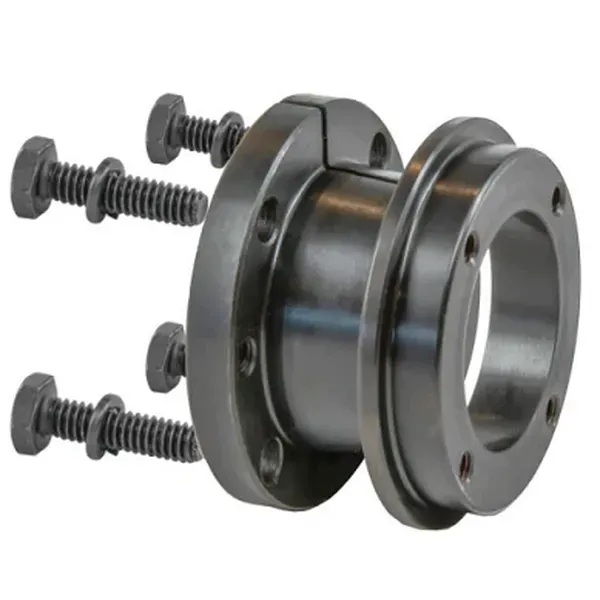

XTH50 Weld-On Hubs Design Advantages:

The XTH50 weld-on hubs, when used in conjunction with XTB50 bushings, offer several advantages that make them a reliable and efficient solution for shaft connections. Here are some key advantages of the XTH50 weld-on hubs for XTB50 bushings:1. Secure and Rigid Connection: The weld-on design of the XTH50 hubs ensures a secure and rigid connection between the hub and the shaft. The welding process creates a strong bond, eliminating the risk of slippage or loosening, even under heavy loads or high torque conditions. This enhances the overall stability and performance of the system.2. Versatile Compatibility: The XTH50 weld-on hubs are specifically designed to be used with XTB50 bushings. This compatibility allows for easy and precise mounting of components such as pulleys, sprockets, or gears onto the hub. The XTB50 bushings are designed with a split design, making them easy to install and remove without disassembling the entire system.3. Efficient Power Transmission: The XTH50 weld-on hubs, when combined with XTB50 bushings, provide efficient power transmission capabilities. The precisely machined bore of the hub matches the dimensions of the bushing, ensuring a tight fit. This minimizes any power loss or backlash, resulting in improved power transmission efficiency and enhanced system performance.4. Space Optimization: XTH50 weld-on hubs offer a space-efficient solution for shaft connections. Unlike bolt-on hubs or couplings that require additional space for fasteners or couplings, weld-on hubs eliminate the need for such components. This allows for a more compact and streamlined machinery design, making them suitable for applications with limited space.5. Durability and Longevity: The XTH50 weld-on hubs are manufactured using high-quality materials, ensuring durability and long service life. The robust construction and weld-on design eliminates the risk of component failure or damage, even in demanding operating conditions. This enhances the overall reliability and longevity of the system.6. Simplified Installation and Maintenance: XTH50 weld-on hubs for XTB50 bushings offer simplified installation and maintenance procedures. Once the hub is welded to the shaft, it becomes a permanent part of the system, reducing the need for frequent inspections or adjustments. This saves time and effort during initial setup and throughout the lifespan of the equipment.
