ZC Series Hollow Pin Conveyor Chains ZC21 ZC40 ZC60 ZC150 ZC300 Chain for Food Processing and Packaging

Raydafon Group presents the ZC Series Hollow Pin Conveyor Chains (ZC21, ZC40, ZC60, ZC150, ZC300) – engineered for seamless food processing and packaging. These chains boast durable stainless steel construction, smooth operation, and easy cleaning, ideal for manufacturers seeking efficiency and hygiene. Perfect for conveying tasks in food production lines, they ensure reliability and reduced downtime, offering a superior, long-lasting solution that outperforms standard chains. Elevate your operations with Raydafon Group's trusted quality today!

Send Inquiry

Product Description

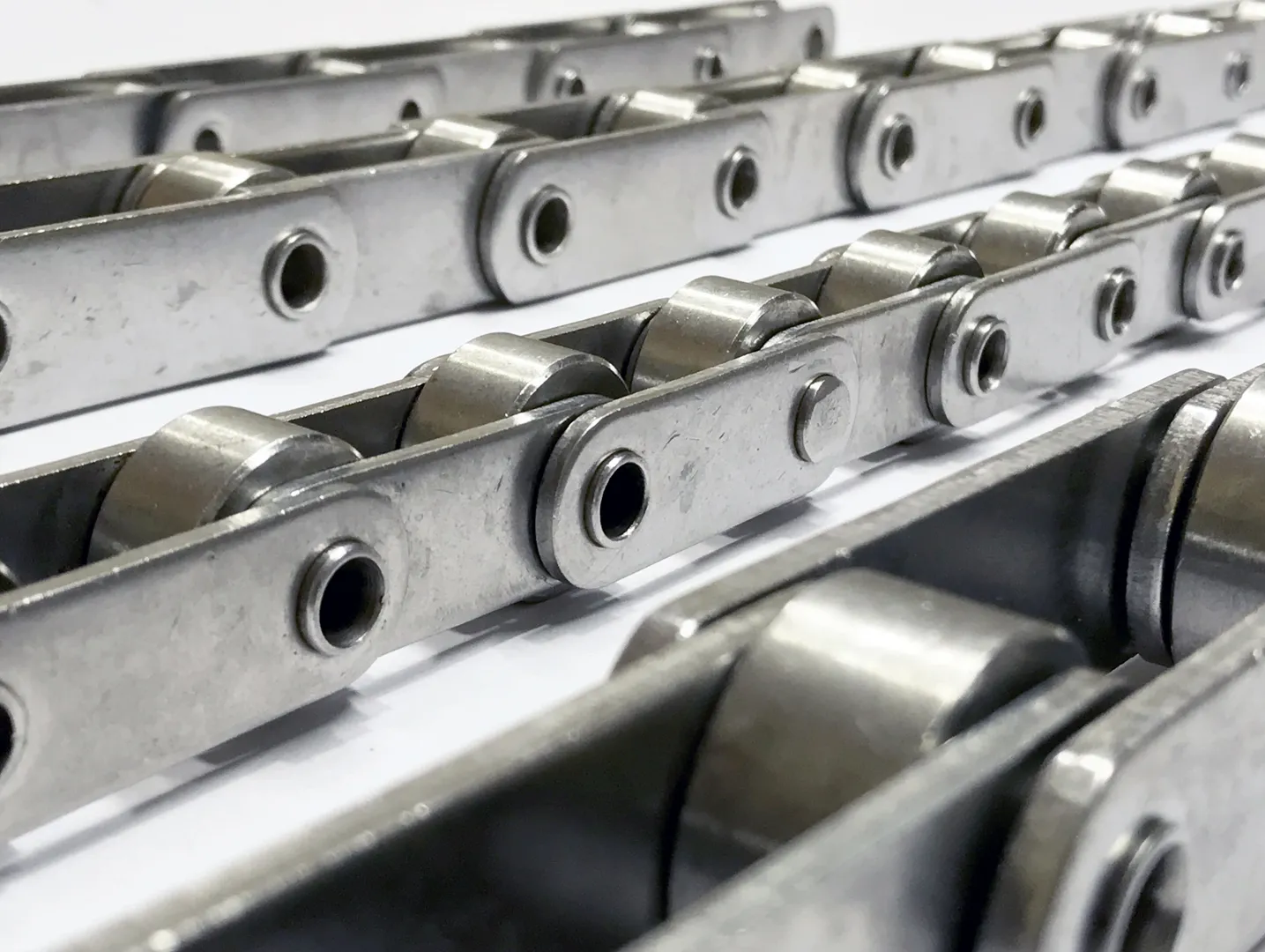

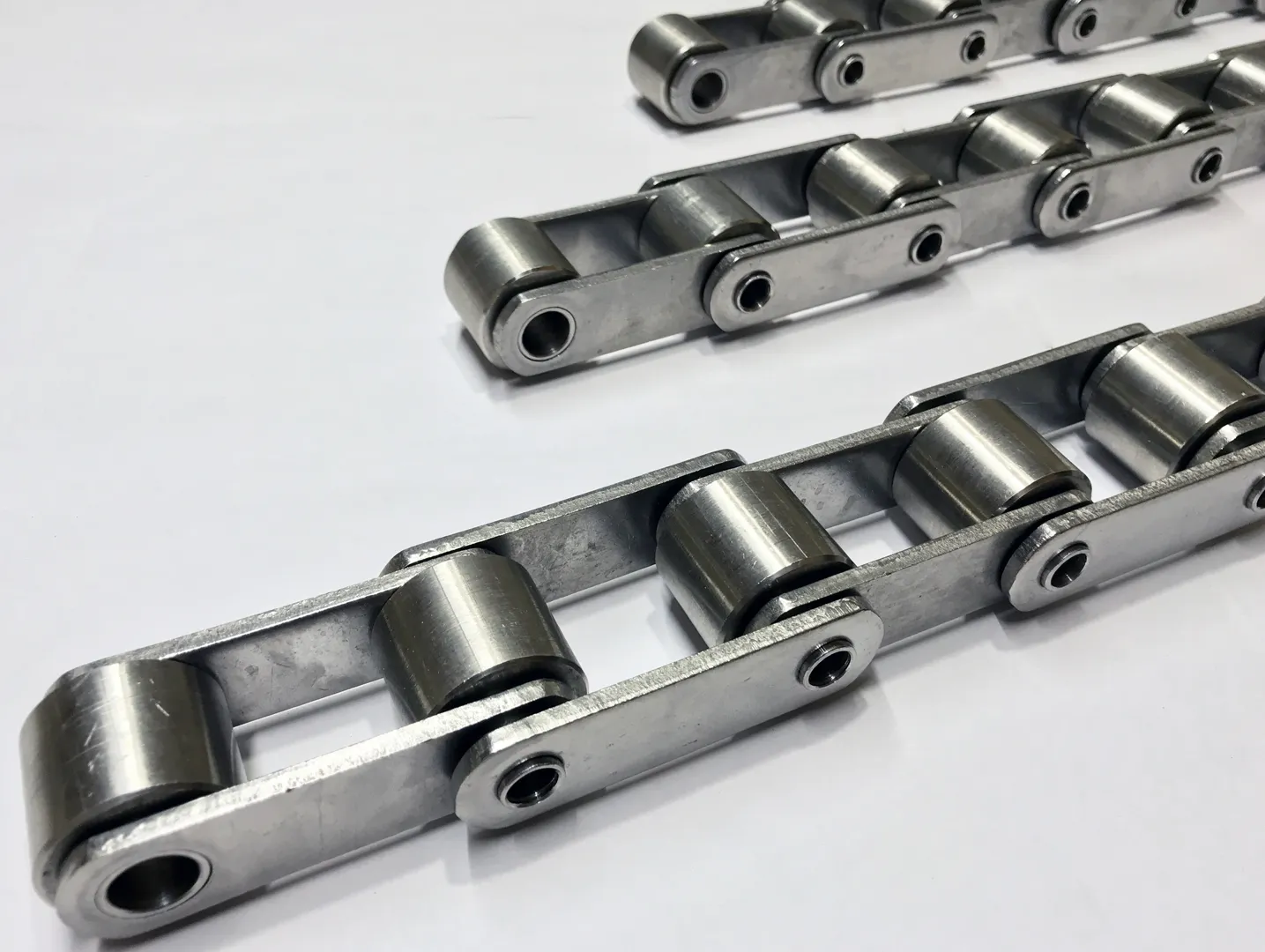

ZC Series Hollow Pin Conveyor Chains ZC21 ZC40 ZC60 ZC150 ZC300 Chain for Food Processing and Packaging

The ZC series hollow pin conveyor chain is a type of conveyor chain used in various industrial applications. It is characterized by its hollow pins, which allow for the attachment of various types of attachments, such as flights, pushers, and rollers. The hollow pin conveyor chain is made up of a series of interconnected links, with each link consisting of a pin and a plate. The pins are hollow, which reduces the weight of the chain and allows for the attachment of various types of accessories. The plates are typically made of high-quality steel, which provides strength and durability.The ZC series hollow pin conveyor chain is commonly used in applications such as food processing, packaging, and material handling. It is designed to operate in harsh environments and can withstand high temperatures, corrosive materials, and heavy loads. Overall, the ZC series hollow pin conveyor chain is a versatile and reliable conveyor chain that is well-suited for a wide range of industrial applications. If you are looking for a high-performance conveyor chain that can meet the demands of your application, then the ZC series hollow pin conveyor chains are a great option.

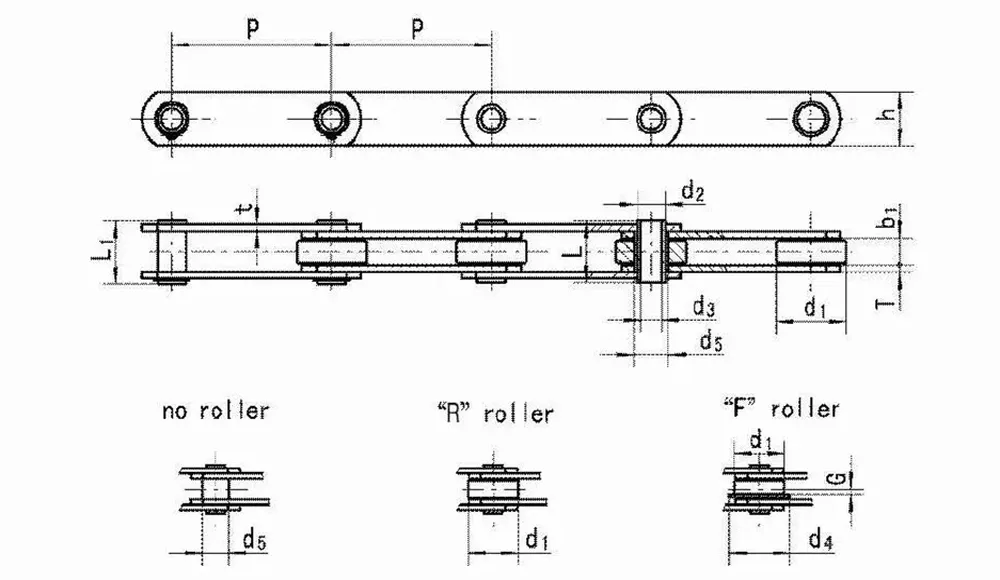

▍ZC Series Hollow Pin Conveyor Chain Dimensions

▍ZC Series Hollow Pin Conveyor Chain Sizes Chart

Chain No	Roller Diameter	d2	Pin			Ultimate Tensile Strength
	d2 max	d2	d3	L	L3	Q min	*Q min
	mm	mm	mm	mm	mm	KN	KN
ZC21 Chain	11	9	6.5	26	27.5	21	27
ZC40 Chain	17	14	10.2	36.4	37.7	40	50
ZC60 Chain	23	19	13.2	45	46.5	60	120
ZC150 Chain	33	26.9	20.2	58	60.5	150	190
ZC300 Chain	38	32	22.5	83	85	300	380

Chain No	Pitch (mm)							Width between inner plates b1 (mm)	Roller D (mm)			Plate
Chain No	Pitch (mm)							Width between inner plates b1 (mm)	d1 (mm)	d4 (mm)	G (mm)	h (mm)	t/T (mm)
ZC21 Chain	38.1	50.8	63.5	76.2	-	-	-	12.7	25.4	-	-	18	2.5
ZC40 Chain	50.8	63.5	76.2	88.9	101.6	127	152.4	15	31.75	40	2.5	25	4
ZC60 Chain	76.2	88.9	101.6	127	152.4	177.8	203.2	19	47.5	60	3.5	40	4/5
ZC150 Chain	101.6	127	152.4	177.8	203.2	228.6	254	26	66.7	82	4	5	5//7
ZC300 Chain	152.4	177.8	203.2	254	304.8	-	-	38	88.9	114	8.5	60	8/10

Note: *Q: Higher breaking load with hardened plates

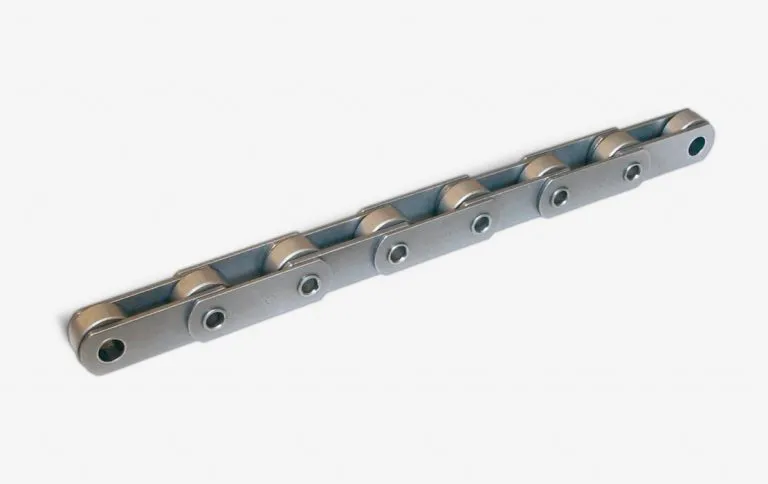

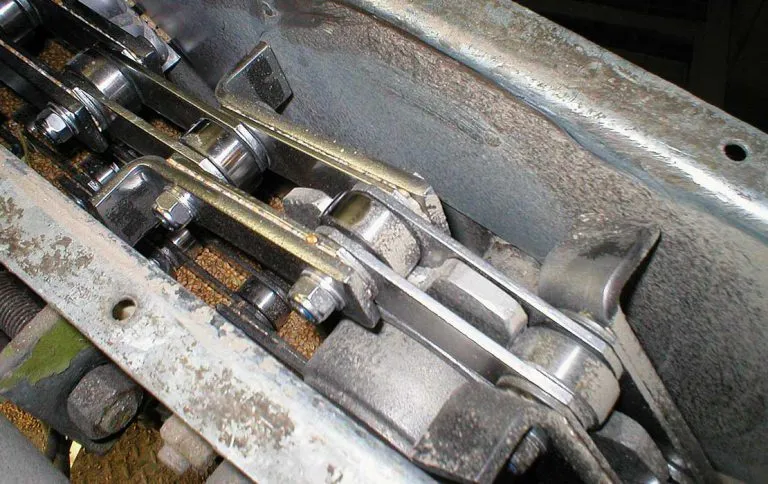

▍Features of Hollow Pin Conveyor Chains

Hollow pin conveyor chains have several features that make them useful in a variety of industrial applications. Some of the key features of hollow pin conveyor chains are:1. Ability to Attach Accessories: The hollow pins in the chain allow for the attachment of various types of accessories, such as flights, pushers, and rollers. This makes the hollow pin conveyor chain versatile and adaptable to different applications.2. Lightweight Design: The hollow pins reduce the weight of the chain, making it easier to handle and reducing the overall weight of the conveyor system. This can be especially important in applications where the chain needs to be moved or lifted manually.3. High Strength: Despite their lightweight design, hollow pin conveyor chains are typically made of high-quality steel, which provides strength and durability. This allows them to withstand heavy loads and harsh operating conditions.4. Corrosion Resistance: Hollow pin conveyor chains can be made from materials that are resistant to corrosion, such as stainless steel or plastic. This makes them suitable for use in applications where the chain is exposed to corrosive materials or environments.5. Easy Maintenance: Hollow pin conveyor chains are typically easy to maintain and repair. The pins can be easily removed and replaced, and the chain can be disassembled for cleaning or inspection.Overall, the features of hollow pin conveyor chains make them a versatile and reliable choice for a wide range of industrial applications.

▍Hollow Pin Conveyor Chains Applications

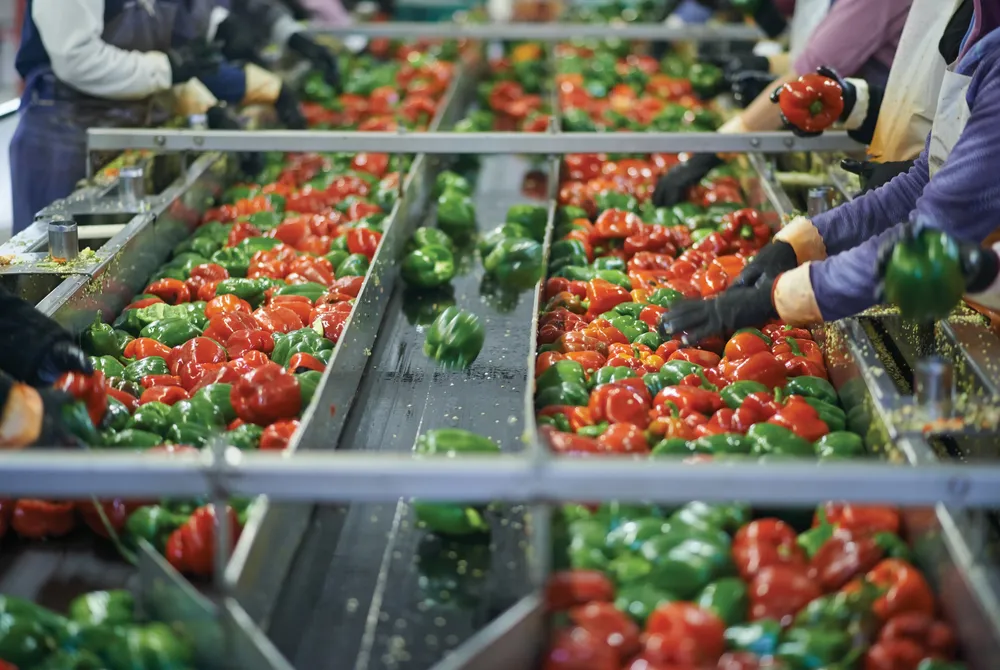

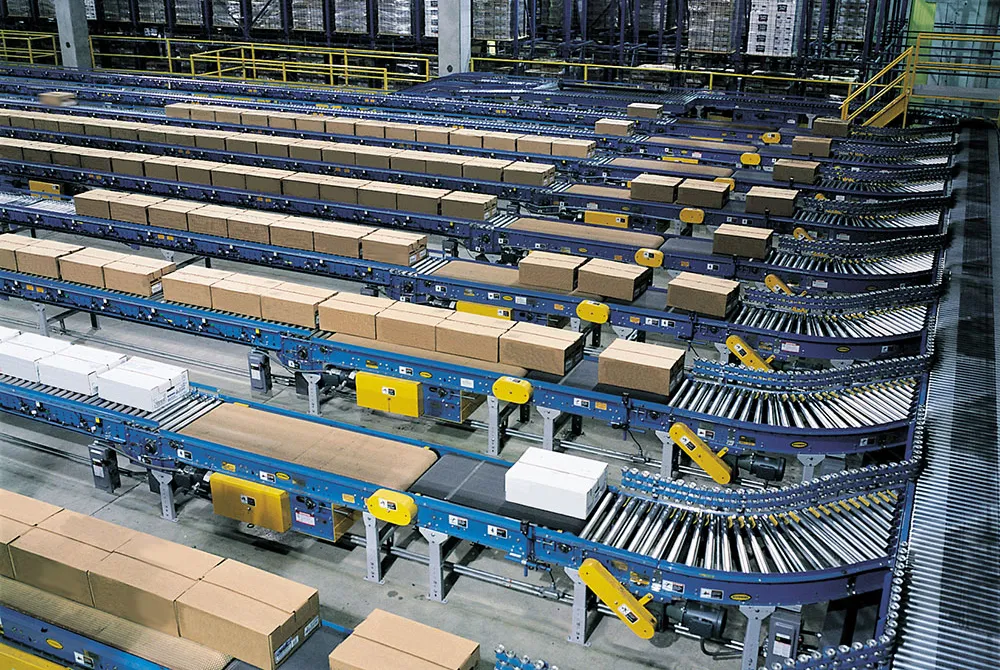

Hollow pin conveyor chains are used in a variety of industries and applications where material handling is required. Some common applications of hollow pin conveyor chains include:(1) Food Processing: Hollow pin conveyor chains are commonly used in the food processing industry for conveying food products, such as meats, fruits, and vegetables. The chains can be made of materials that are resistant to corrosion and can be easily cleaned to meet hygiene standards.(2) Packaging: Hollow pin conveyor chains are used in packaging applications to move products through the production line. They can be designed to handle heavy loads and can be fitted with attachments to hold and guide packages.(3) Material Handling: Hollow pin conveyor chains are used in material handling applications to move products from one location to another. They can be used in both automated and manual systems and can be designed to handle a variety of products, from small parts to large pallets.(4) Automotive: Hollow pin conveyor chains are used in the automotive industry for conveying parts and components through the production process. They can be designed to handle heavy loads and can be fitted with attachments to hold and guide parts.(5) Mining: Hollow pin conveyor chains are used in mining applications to move materials such as coal, ore, and gravel. They can be designed to operate in harsh environments and can be fitted with attachments to handle the specific requirements of mining operations.Overall, the versatility and durability of hollow pin conveyor chains make them suitable for a wide range of industrial applications where reliable material handling is required.

? Material Handling	? Construction
? Food Processing	? Mining
? Pharmaceutical manufacturing	? Quarrying
? Automotive manufacturing	? Agriculture
? Packaging	? Forestry

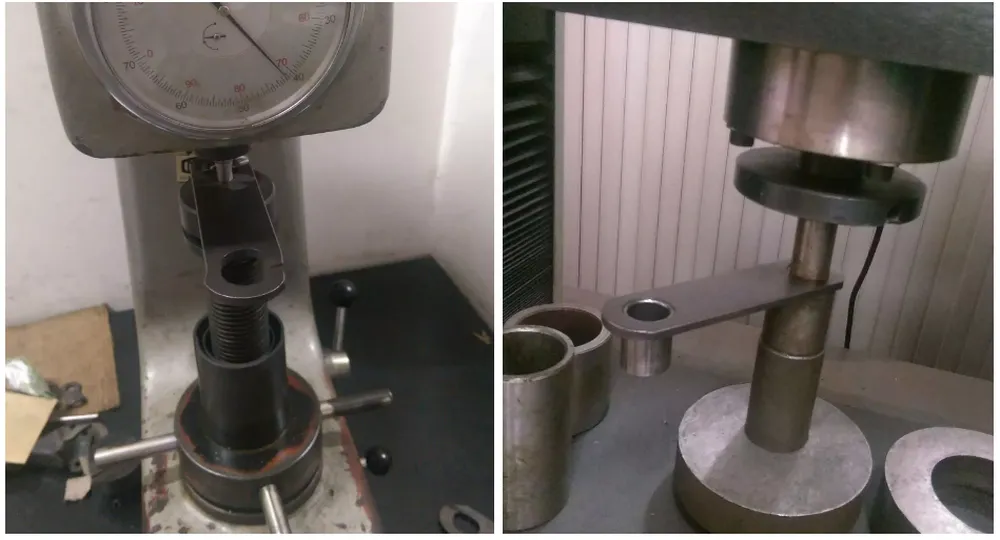

▍Hollow Pin Conveyor Chains Manufacturing Process

The manufacturing process for hollow pin conveyor chains involves several steps, including:Material Selection: The first step in the manufacturing process is to select the appropriate material for the hollow pin conveyor chain. The material used will depend on the application and the requirements of the chain, such as strength, corrosion resistance, and temperature tolerance.Wire Drawing: Once the material has been selected, the next step is to draw the wire into the desired size and shape. This involves pulling the wire through a series of dies to achieve the desired diameter and shape.Pin Production: The pins for the chain are then produced from the wire by cutting it to the desired length and forming it into the shape required for the hollow pin design. The pins are typically made with a cold heading process, which involves forging the wire into the desired shape.Plate Production: The plates for the hollow pin conveyor chain are typically produced using a stamping process, in which the material is cut and shaped using a die set. The plates are then drilled to create holes for the attachment of the pins.Assembly: The final step in the manufacturing process is to assemble the hollow pin conveyor chain. This involves inserting the pins into the holes in the plates and securing them in place with retaining clips or cotter pins. The chain is then tested for strength and durability to ensure it meets the required specifications.Heat treatment: The assembled hollow pin conveyor chain is then heat-treated to improve its strength and durability. This involves heating the chain to a specific temperature and then cooling it in a controlled manner.Surface treatment: The hollow pin conveyor chain is then surface-treated to improve its corrosion resistance and reduce wear and tear. This can involve processes such as electroplating, nickel plating, or painting.Quality control: The finished hollow pin conveyor chain is then subjected to rigorous quality control checks to ensure that it meets the required specifications and standards.Overall, the manufacturing process for hollow pin conveyor chains is a complex and precise process that requires careful attention to detail to ensure the quality and reliability of the finished product. ZC Series Hollow Pin Conveyor Chains ZC21 ZC40 ZC60 ZC150 ZC300 Chain for Food Processing and Packaging

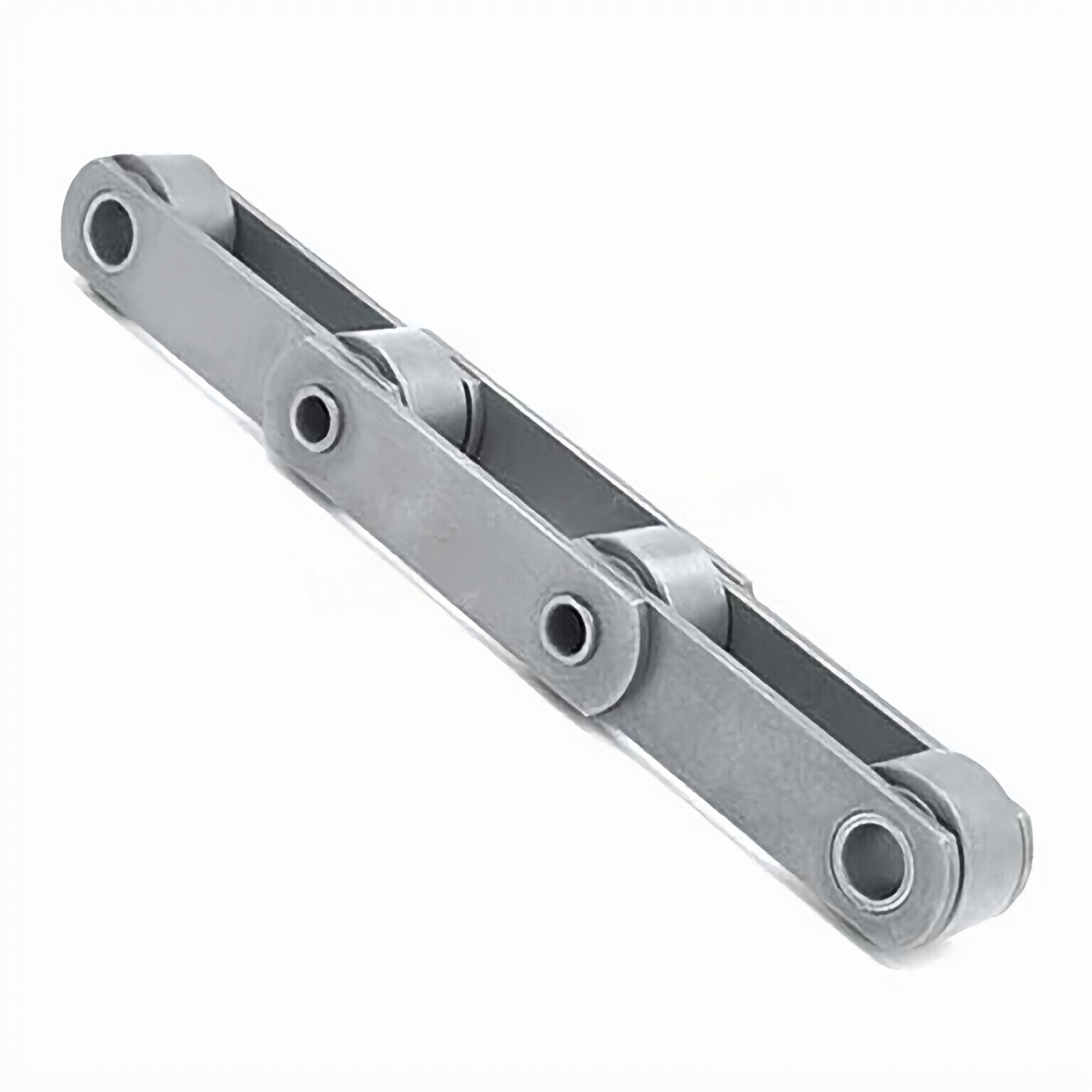

▍Other Conveyor Chains Related Products

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

▍We Also Provide?Chain Sprockets to Match Your Conveyor Chains:

▍Packaging Display of Conveyor Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.

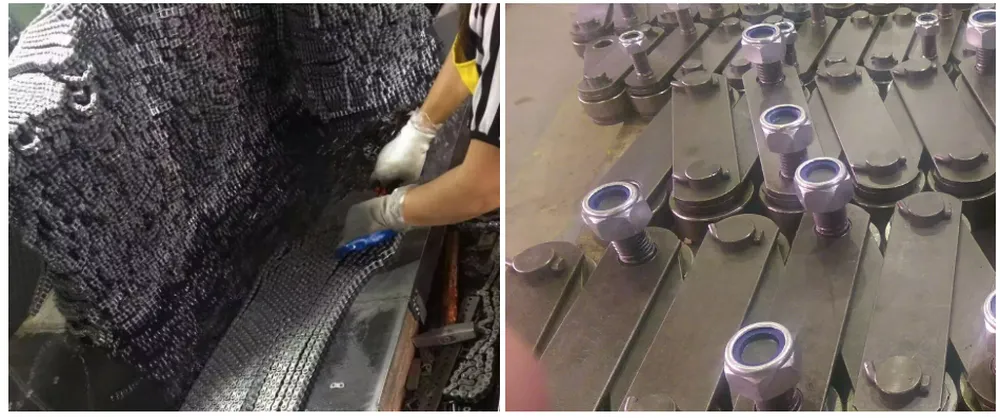

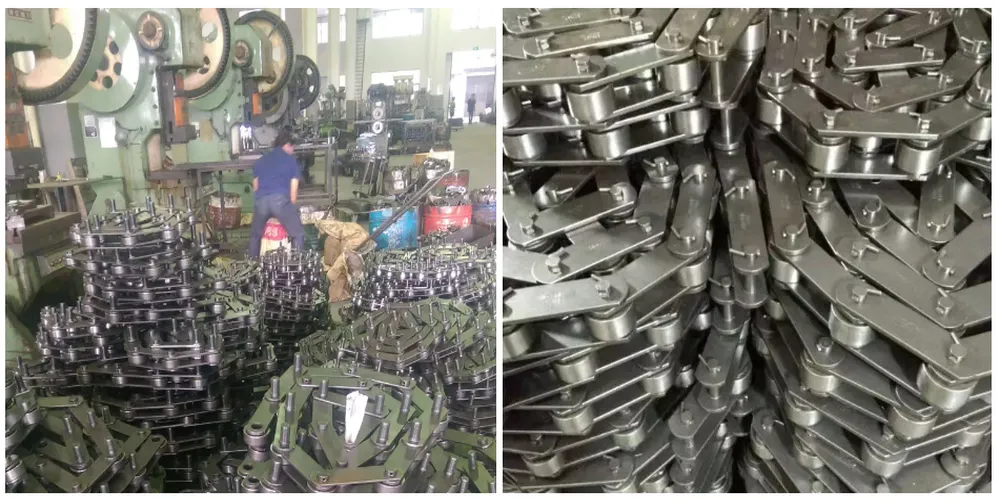

▍Hollow Pin Conveyor Chain?Manufacturers

Raydafon has been the leader in manufacturing hollow pin chains with great expertise with our years of experience in manufacturing such chains. We offer a wide variety of hollow pin conveyor chains. In these chains where the hollow pin affords a ready facility for fixing attachments to the outer plates through the hollow pin. The attachment can be bolted up tight against the hollow pin rivet or left in a free manner to pivot or can be locked by washers and cotter pin assembly. Manufactured with high-quality materials, excellent machining processes, and build to precise standard dimensions. Offering a product with sustainable long product life. ZC Series Hollow Pin Conveyor Chains ZC21 ZC40 ZC60 ZC150 ZC300 Chain for Food Processing and Packaging

▍FAQ

Q1: What is a hollow pin conveyor chain?

A1: A hollow pin conveyor chain is a type of conveyor chain that has hollow pins instead of solid ones. The hollow pins allow for easy attachment of attachments or pins, making it a versatile option for various conveyance applications.

Q2: What are the benefits of using a hollow pin conveyor chain?

A2: The benefits of using a hollow pin conveyor chain include easy attachment of attachments or pins, customization options, and reduced weight. Additionally, the hollow pins can be used to pass through lubrication or cleaning agents, making maintenance easier.

Q3: What industries commonly use hollow pin conveyor chains?

A3: Hollow pin conveyor chains are commonly used in industries such as food processing, packaging, automotive, and material handling. They are often used in applications that require the conveyance of products with irregular shapes or sizes.

Q4: What are some common attachments used with hollow pin conveyor chains?

A4: Some common attachments used with hollow pin conveyor chains include pusher dogs, scrapers, and flights. These attachments can be attached to the hollow pins to help move products along the conveyor.

Q5: How do I properly maintain a hollow pin conveyor chain?

A6: Proper maintenance of a hollow pin conveyor chain includes regular lubrication and cleaning. The hollow pins make it easy to pass through lubrication or cleaning agents to ensure smooth operation. It's also important to regularly inspect the chain for any signs of wear or damage and replace any damaged parts as needed.
