ZL07 Planetary Gearbox Reducer

ZL07 Planetary Gearbox Reducer

Overview

The ZL07 Planetary Gearbox Reducer is a type of gear system used in various industrial applications. It is designed to provide precise and efficient power transmission, with a compact structure and low noise operation.

Definition

A planetary gearbox, also known as a epicyclic gearbox or a sun and planet gearbox, is a gear system consisting of one or more outer gears, or planet gears, revolving around a central gear, or sun gear. The ZL07 Planetary Gearbox Reducer is a specific model of planetary gearbox that offers reliable and high-performance transmission.

Function

The main function of the ZL07 Planetary Gearbox Reducer is to control the speed and torque of the power transmission. It achieves this by using the interaction between the sun gear, planet gears, and the outer geared ring, or annulus. The gear reduction ratio can be adjusted based on the number of planet gears and their configuration.

Features

• High Precision Transmission: The ZL07 Planetary Gearbox Reducer ensures accurate and precise power transmission, making it suitable for applications that require precise control.
• Durable and Robust: It is built to withstand heavy-duty operations and offers long-lasting performance, even in challenging working conditions.
• Compact Structure: The compact design of the gearbox allows for easy installation in tight spaces, making it suitable for various industrial settings.
• Low Noise Operation: The ZL07 Planetary Gearbox Reducer operates with minimal noise, providing a quiet working environment.

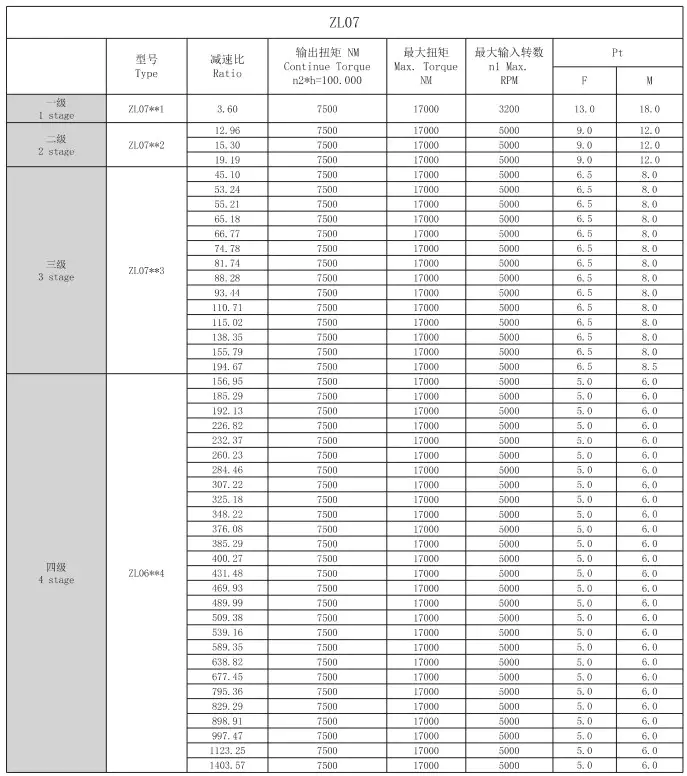

Technical Specifications

Performance Advantages

• High Efficiency and Energy Saving: The ZL07 Planetary Gearbox Reducer ensures efficient power transmission, resulting in energy savings.
• Long Lifespan: It is designed to withstand extended periods of operation without compromising performance, ensuring a longer lifespan.
• High Reliability: The gearbox is built using high-quality materials and precision manufacturing processes, guaranteeing reliable performance in demanding applications.

Applications

The ZL07 Planetary Gearbox Reducer finds applications in various industries, including:

• Construction Industry
• Crushing Equipment
• Environmental Protection Industry
• Mining Industry
• Port Equipment
• Communication Industry
• Paper Industry
• Power Equipment
• Amusement Equipment
• Chemical Mixing
• Marine Vessels
• Metal Products

Ordering Process

To place an order for the ZL07 Planetary Gearbox Reducer, please follow these steps:

1. Provide your application requirements and operating environment to ensure the gearbox is tailored to your specific needs.
2. Specify the basic parameters such as ratio, input speed, output speed, rated torque, and power.
3. Select the installation and connection methods suitable for your application.
4. Provide the specific dimensions of the installation space.
5. Specify any surface treatments or material requirements.
6. Outline any additional requirements such as protection levels, lubrication methods, vibration and noise limitations, etc.

Supply Information

When ordering the gearbox, please note the following:

• The gearbox is not supplied with lubricating oil. Please ensure proper lubrication before use.
• The gearbox surface is treated with anti-rust paint. If you require special coating, please inform us in advance.
• If stored for an extended period, apply grease to prevent any potential damage.
• Wooden crates are used for packaging to ensure safe delivery.
