#50 Stainless Steel Sprockets

Stainless Steel 50 Roller Chain SprocketsOur Stainless Steel 50 Roller Chain Sprockets are industry-leading products known for their durability, efficiency, and versatility. These are not just any sprockets, but ones forged from high-quality stainless steel, promising unbeatable performance and longevity.

Applications of Stainless Steel 50 Roller Chain Sprockets

Thanks to their corrosion resistance and cleanliness, our Stainless Steel 50 Roller Chain Sprockets find usage in a wide array of industries. Be it food processing, pharmaceuticals, or chemical manufacturing, these sprockets deliver reliable performance even in the harshest conditions.

Specifications of 50SS Sprockets

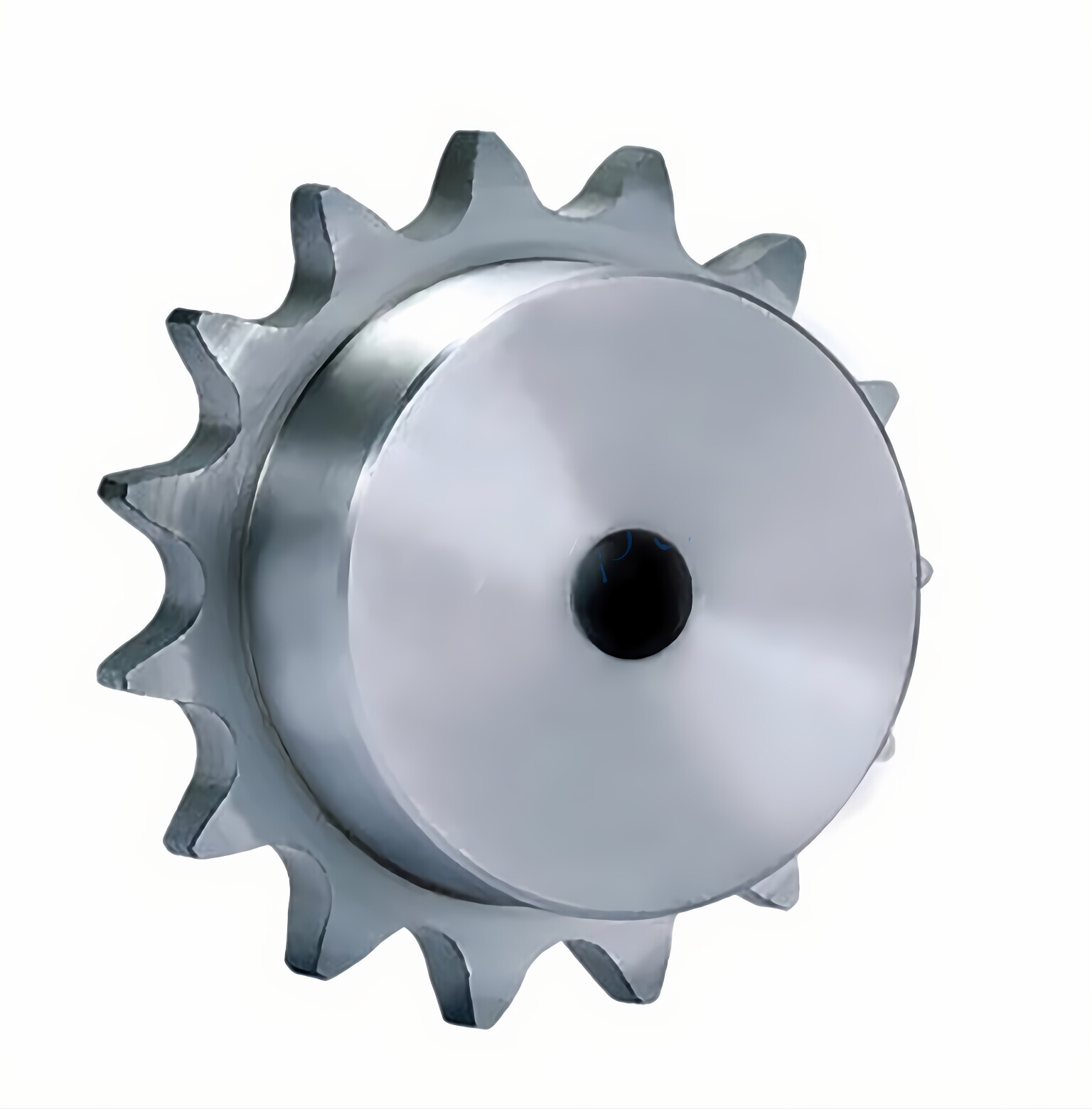

B-Hub 50SS Sprockets:

Size	Tooth Count	Outside Diameter	Type	Stock Bore	Maximum Recommended Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
50B8SS	8	1.884"	B	5/8"	5/8"	1-1/8"	1"	0.25
50B9SS	9	2.093"	B	5/8"	3/4"	1-3/8"	1"	0.36
50B10SS	10	2.300"	B	5/8"	7/8"	1-9/16"	1"	0.50
50B11SS	11	2.500"	B	5/8"	1"	1-3/4"	1"	0.60
50B12SS	12	2.710"	B	5/8"	1-1/4"	1-61/64"	1"	0.70
50B13SS	13	2.910"	B	5/8"	1-5/16"	1-7/8"	1"	0.80
50B14SS	14	3.110"	B	5/8"	1-7/16"	2-1/8"	1"	1.00
50B15SS	15	3.320"	B	5/8"	1-1/2"	2-3/8"	1"	1.30
50B16SS	16	3.520"	B	5/8"	1-3/4"	2-1/4"	1"	1.50
50B17SS	17	3.720"	B	5/8"	1-7/8"	2-11/16"	1"	1.80
50B18SS	18	3.920"	B	5/8"	1-7/8"	2-7/8"	1"	2.00
50B19SS	19	4.120"	B	5/8"	1-3/4"	2-1/2"	1"	2.23
50B20SS	20	4.320"	B	3/4"	1-3/4"	3"	1"	2.30
50B21SS	21	4.520"	B	3/4"	2"	3"	1"	2.42
50B22SS	22	4.720"	B	3/4"	2"	3"	1"	2.54
50B23SS	23	4.920"	B	3/4"	2"	3"	1"	2.67
50B24SS	24	5.120"	B	3/4"	2"	3"	1-1/4"	3.38
50B25SS	25	5.320"	B	3/4"	2"	3"	1-1/4"	3.42
50B26SS	26	5.520"	B	3/4"	2"	3"	1-1/4"	3.57
50B28SS	28	5.920"	B	3/4"	2"	3"	1-1/4"	3.88
50B30SS	30	6.320"	B	3/4"	2-1/4"	3-1/4"	1-1/4"	4.54
50B32SS	32	6.721"	B	3/4"	2-1/4"	3-1/4"	1-1/4"	4.96
50B35SS	35	7.320"	B	3/4"	2-1/4"	3-1/4"	1-1/4"	5.44
50B36SS	36	7.519"	B	3/4"	2-1/4"	3-1/4"	1-1/4"	5.64
50B40SS	40	8.320"	B	3/4"	2-1/4"	3-1/4"	1-1/4"	6.50
50B45SS	45	9.310"	B	3/4"	2-1/2"	3-3/4"	1-1/4"	8.50
50B48SS	48	9.911"	B	1"	2-1/2"	3-3/4"	1-1/4"	9.28
50B54SS	54	11.106"	B	1"	2-1/2"	3-3/4"	1-1/4"	11.00
50B60SS	60	12.300"	B	1"	2-1/2"	3-3/4"	1-1/4"	14.00

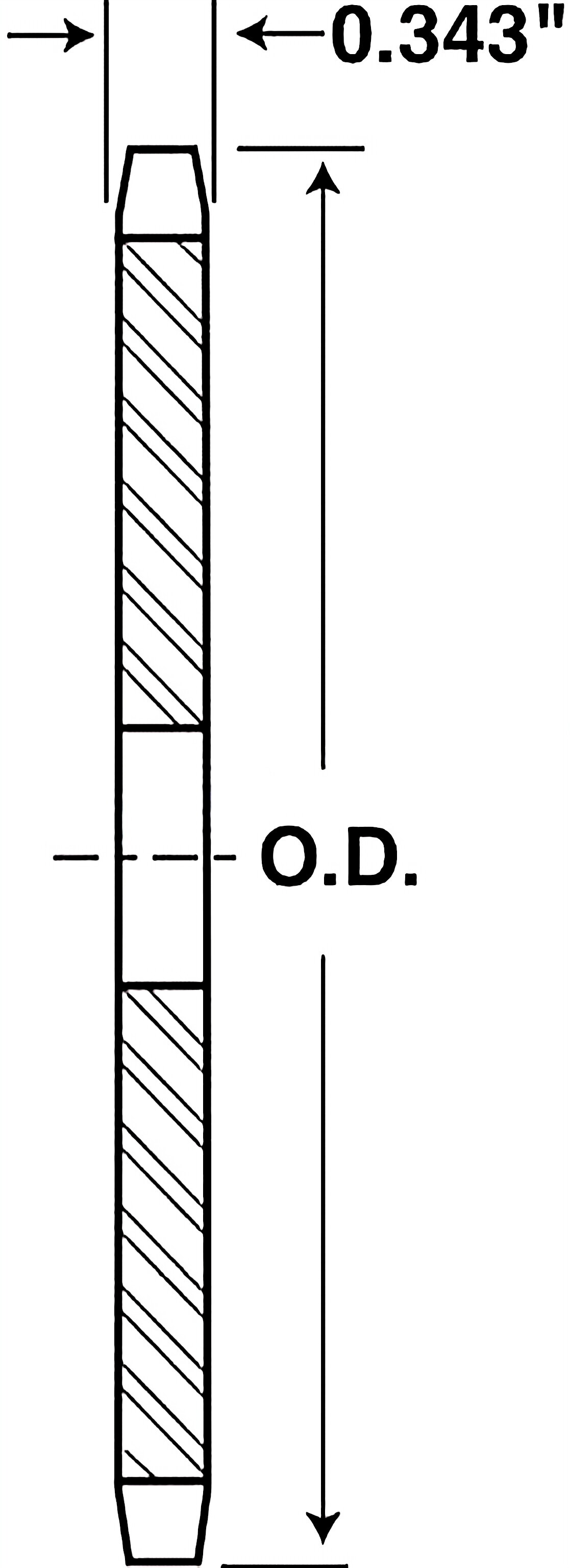

A-Plate 50SS Sprockets:



Understanding Different Stainless Steel Types

While there are many types of stainless steel, we primarily use 304 and 316 stainless steel for our sprockets. Both types offer excellent corrosion resistance and cleanability, making them ideal for manufacturing chain sprockets. 304 stainless steel is known for its versatility and weldability, while 316 stainless steel boasts superior resistance to chlorides and other corrosive environments.

Performance Advantages of 50SS Sprockets

Compared to other materials, stainless steel sprockets offer superior stability and durability. They can withstand harsh environmental conditions, providing consistent performance for extended periods. This makes them a cost-effective solution for many businesses.

Maintenance and Care

Proper maintenance is key to ensuring the longevity of your Stainless Steel 50 Roller Chain Sprockets. Regular cleaning, adequate lubrication, and periodic inspections can go a long way in extending the life of these sprockets.

• Regular Cleaning: Dirt, grime, and debris can accumulate on the sprocket, leading to increased wear and tear. Use a brush and a degreaser to clean the sprocket thoroughly. After cleaning, ensure it's completely dry to avoid rust.
• Lubrication: Proper lubrication is critical for a sprocket. Use a quality lubricant that is suitable for the specific conditions in which the sprocket operates, like high temperatures or exposure to water. Apply lubricant evenly on all teeth of the sprocket.
• Inspection for Wear and Tear: Regularly inspect the sprocket for signs of wear, such as bent or broken teeth, or excessive thinning. Early detection of wear can prevent more serious damage.
• Alignment and Tension Check: Ensure that the sprocket is correctly aligned with the chain or belt it interacts with. Improper alignment can cause uneven wear. Also, check the tension of the chain or belt; too tight or too loose can lead to issues.
• Rust Prevention: If the sprocket is made of a material prone to rust, use rust inhibitors or store the machinery in a dry, low-humidity environment to prevent rusting.
• Replacement of Damaged Parts: If you notice significant damage or wear, replace the sprocket or associated components like the chain. Using damaged parts can lead to accidents or further damage to the machinery.
• Professional Servicing: For complex machinery, consider professional servicing to ensure that the sprocket and related components are in optimal condition.
• Use According to Specifications: Avoid overloading or using the sprocket in ways that are not in line with its design specifications. This can include avoiding excessive speeds or loads that it's not designed to handle.
• Storage: When not in use, store the machinery in a clean, dry place to prevent environmental damage to the sprocket.

Roller Chains for Stainless Steel Sprockets

The relationship between stainless steel roller chain and sprocket is the embodiment of precision and resilience. These two components work hand in hand, creating a seamless power transmission system that powers industries around the globe. When it comes to reliability and longevity, this dynamic duo stands tall, bridging the gap between efficiency and durability. We, at Raydafon, provide not only stainless steel sprockets but also stainless steel roller chains for sale.

Why Choose Raydafon

Raydafon is not just a sprockets manufacturer, but a manufacturer and supplier of gears, worm gears, flanges, gear rack and pinion, spur gear, helical gear, gear shafts, bevel gear shafts, spline shafts, clutch sets, and more. We also wholesale and retail various standard industrial wheels and various special-shaped parts. We can process and customize according to samples or drawings! We have won the trust and support of customers with our excellent quality and sincere service. With our progressive production management and strict quality requirements, we aim to provide customers with excellent products and satisfactory services.Explore our range of Stainless Steel 50 Roller Chain Sprockets today and experience the difference they can make to your operations. Contact us now to make your purchase!
