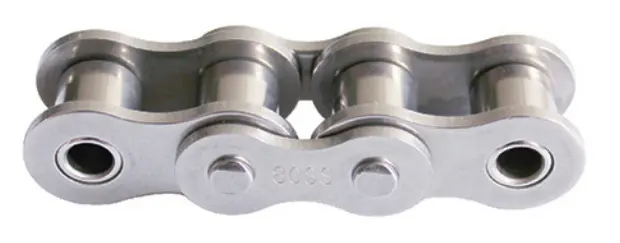

06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain

Introducing the Raydafon Group 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain—a durable and corrosion-resistant solution for industrial machinery, offering unparalleled longevity in harsh environments. Ideal for manufacturers, engineers, and maintenance professionals, this chain ensures reliable performance, reducing downtime and boosting efficiency. With its premium stainless steel construction and precision design, it surpasses standard chains, delivering peace of mind and superior value. Elevate your operations with Raydafon Group's trusted quality today!

Send Inquiry

Product Description

The 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain is a unique product that plays a substantial role in the realm of mechanical transmission systems. It is characterized by its high strength, excellent corrosion resistance, and outstanding performance even in adverse conditions. The use of this product spans various industries, from food processing to medical equipment manufacturing, due to its exceptional features. 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain

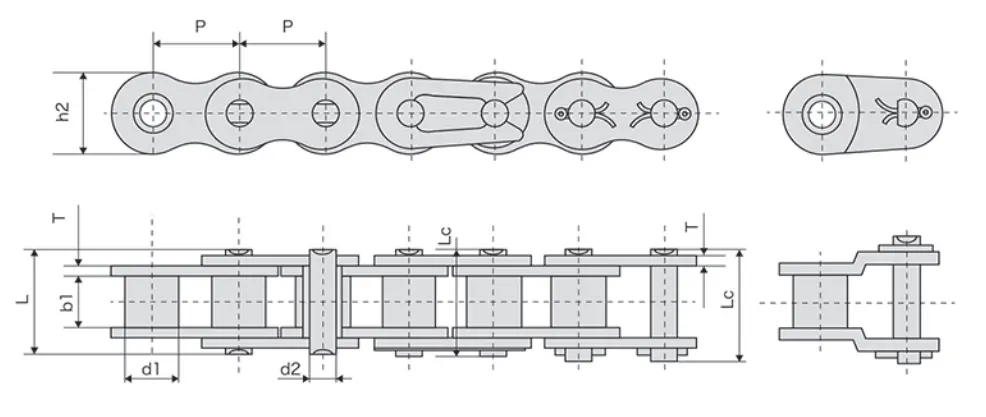

DIN/ISO

ANSI

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Inner plate depth

Plate thickness

Ultimate tensile strength

Average tensile strength

Weight per meter

d1(max)

b1(min)

d2(max)

L(max)

Lc(max)

h2(max)

T(max)

Q(min)

kg/m

06CSS-1

35SS

9.525

5.08

4.77

3.58

12.4

13.17

1.3

4.74

6.48

0.33

Structure and Composition of 06CSS-1/35SS Stainless Steel Chain

1. Chain Plate

The chain plate is the fundamental structure of the short pitch stainless steel roller chain. It comprises inner and outer chain plates, connected by a pin.

2. Roller

The roller, a major load-bearing component of the chain, consists of the roller body and roller shaft. The roller body fits with the protrusions of the inner and outer chain plates, and the roller shaft fits with the pin of the chain plate.

3. Pin

The pin is a connecting component of the short pitch stainless steel roller chain, linking the chain plate and roller together. 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain

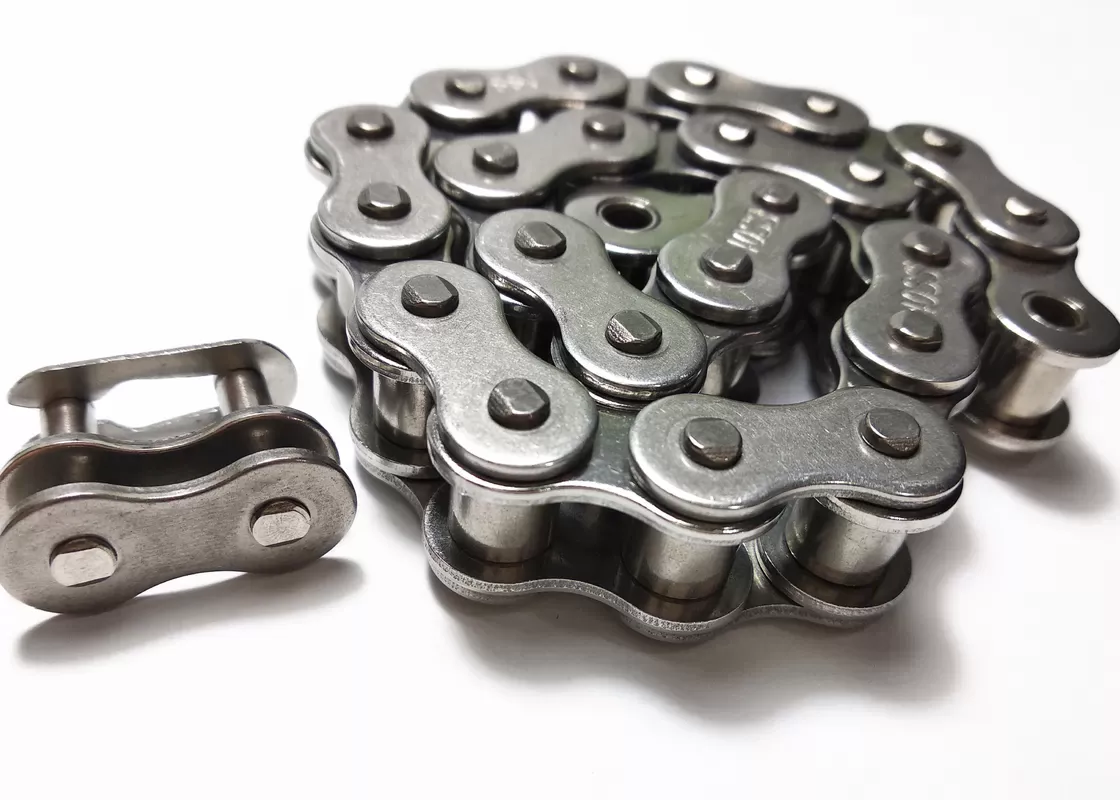

Material Characteristics of 06CSS-1/35SS Stainless Steel Chain

Our stainless steel chain is made of advanced materials. They perform very well in acidic and alkaline environments where direct contact with food is required. The chains will be exposed to water and at extremely high or low temperatures (-40 ℃ to +400 ℃) where corrosion resistance is required. When chemical resistance is critical, Reynolds stainless steel chains should be selected. It is manufactured from FDA-approved materials and pre-lubricated with USDA H1-approved lubricants. All parts are made of austenitic rust-proof steel. All components are surface finish machined to eliminate stress risk factors. Lubrication is applied to improve wear performance. The tensile strength is about 65% of standard carbon steel chain. 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain

Working Principle and Performance Characteristics

The stainless steel roller chain plays a pivotal role in mechanical transmission, demonstrating exceptional performance in power transmission and load-bearing. The chain's interaction with the sprockets facilitates the smooth operation of the system, ensuring efficiency and reducing wear and tear.

Applications of Short Pitch Stainless Steel Roller Chain

The short pitch stainless steel roller chain finds extensive application across a myriad of industries such as food processing, chemical industries, and medical equipment manufacturing. It is particularly suitable for moist and corrosive environments, ensuring efficient operation even in these challenging conditions. 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain

Maintenance and Care of Stainless Steel Industrial Chain

Proper maintenance and care of the short pitch stainless steel roller chain are crucial to prolong its service life and ensure optimal performance. This includes regular cleaning, lubrication, and inspection of the chain.

Stainless Steel Sprockets for Chains

Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. Besides stainless steel chains, we also offer high-quality stainless steel sprockets for sale.

About Raydafon

Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our roller chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.We encourage you to explore more about our 06CSS-1/35SS Simplex Short Pitch Stainless Steel Bushing Chain and contact us for any purchase inquiries.
