Product Description

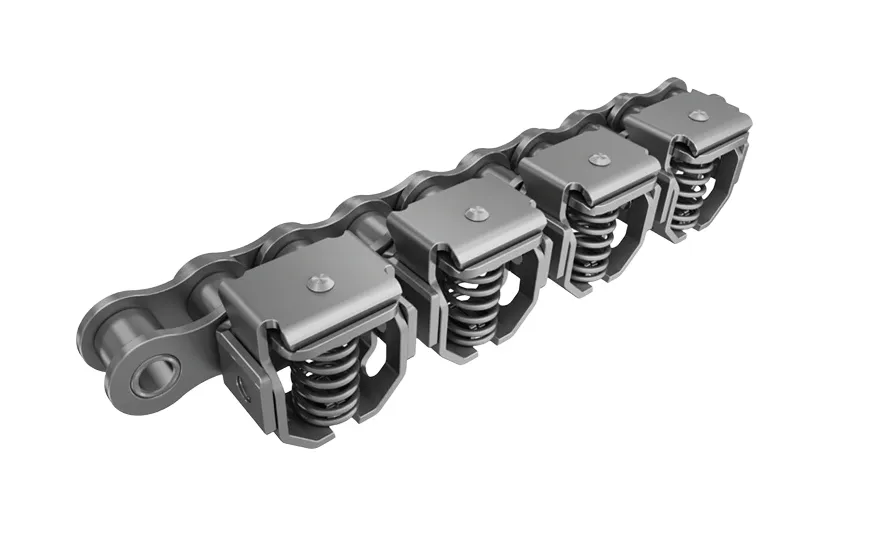

10B-GC Grip Chains 10B-GC Film Gripper Chains 10B-GC Film Clamping Chains

The 10B-GC grip chain, also known as the film gripper chain, is a type of roller chain that is commonly used in the printing and packaging industry. It is designed with special attachments or "grippers" that are used to grip and transport thin, flexible materials such as plastic film, paper, and foil. The 10B-GC grip chain is a specialized type of roller chain that is designed specifically for the printing and packaging industry, where precise and reliable material handling is critical. 10B-GC Grip Chains 10B-GC Film Gripper Chains 10B-GC Film Clamping Chains

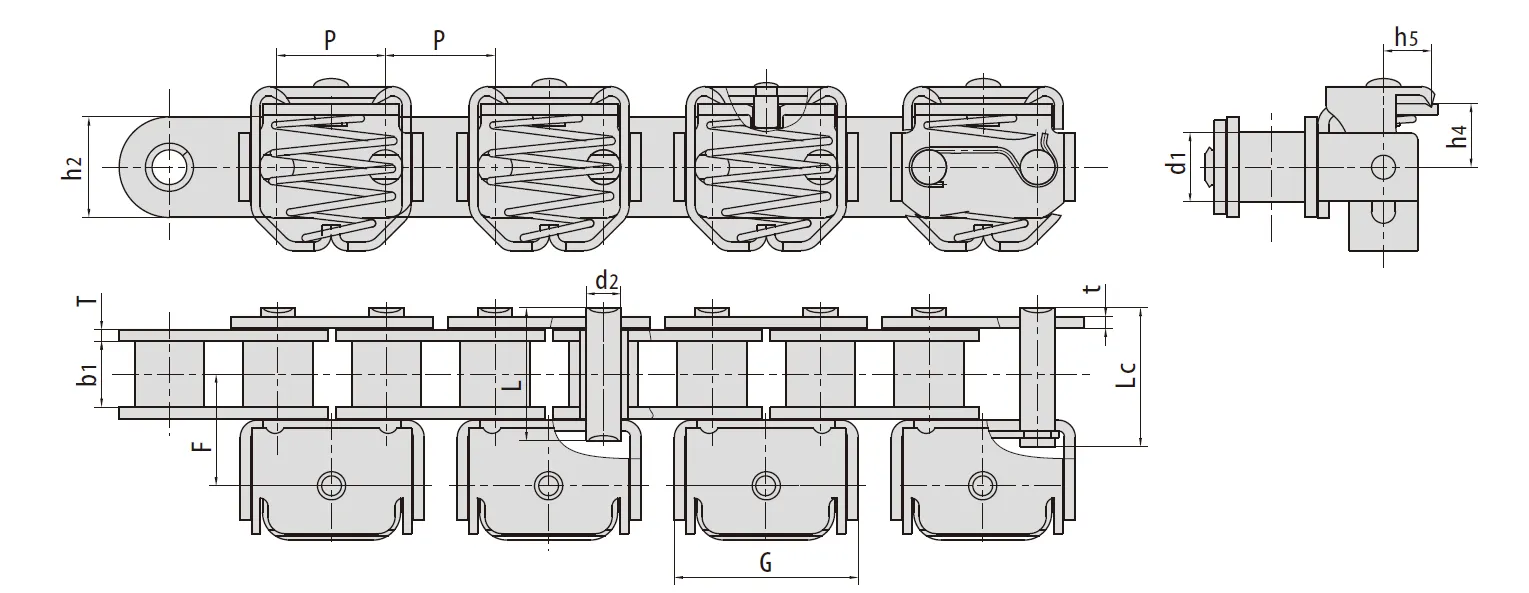

▍10B-GC Grip Chains (Film Gripper Chains) Dimensions:

Chain No.

Pitch

?Roller diameter

?Width between inner plates

?Pin diameter

?Pin length

Plate depth

Plate thickness

Attachment dimension

?Tensile strength

Average tensile strength

?Weight per meter

d1?max

b1?min

d2?max

Lmax

Lc max

h2?max

T/t

Qmin

kN/lbf

kg/m

10B-GC Chain

15.875

10.16

9.65

5.08

19.3

20.7

14.7

1.70

9.0

7.0

16.4

16.9

22.40/5036

24.64

1.60

▍10B-GC Grip Chains (Film Gripper Chains) Specifications:

1. Material: Stainless steel chain / Alloy Carbon Steel2. Surface Treatment: Zinc-Plated / Nickel-Plated / Dacromet-Plated3. Short-pitch stainless steel conveyor chain with attachments.4. Double-pitch stainless steel conveyor chain.5. Double-pitch hollow pin chain.Note: If you have drawings or samples, we can do the special conveyor chains.

Product?name?	10B-GC Grip Chains (10B-GC Film Gripper Chains)
Materials?Available?	1.?Stainless?Steel:?SS304, SS316, etc
	2.?Alloy Steel: 45Mn, 42CrMo, etc
	3. OEM, according to your request
Surface Treatment	Shot peening, Polishing, Oxygenation, Blackening, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic	Fire?Resistant,?Oil?Resistant,?Heat?Resistant
Application	Mainly used in products transmission
Design criterion	ISO DIN ANSI?& Customer's Drawing
Size	Customer's Drawing & ISO standard
Package	Wooden Case / Container and pallet, or made-to-order
Certificate	ISO9001: 2008
Advantage	First quality, Best service, Competitive price, Fast delivery
Delivery Time	20 days for samples. Forty-five days for official order.

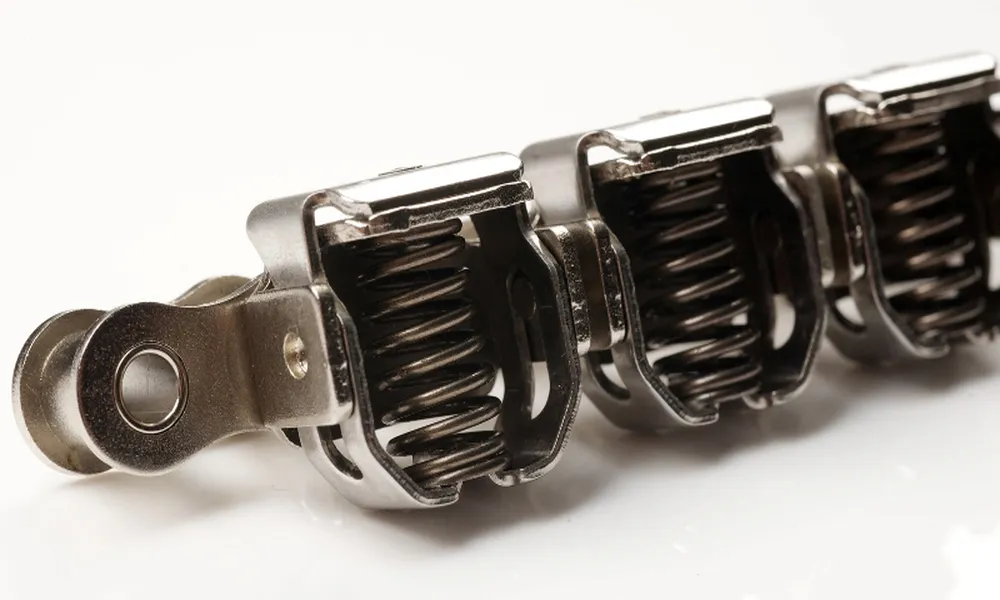

▍Benefits of 10B-GC Grip Chains (Film Gripper Chains):

The 10B-GC grip chain is a high-quality chain that is used to grip and transport film. It has a number of benefits that make it ideal for this application, including:1. High tensile strength: The 10B-GC grip chain has a high tensile strength, which allows it to grip film tightly without damaging it. This is important because film is a delicate material that can be easily damaged if it is not handled properly.2. Smooth surface: The 10B-GC grip chain has a smooth surface that prevents the film from sticking to the chain. This is important because it ensures that the film can move smoothly over the chain, without any friction or resistance.3. Small pitch: The 10B-GC grip chain has a small pitch, which allows the chain to move smoothly over the film. This is important because it prevents the chain from getting caught on the film, which could damage the film or the chain.4. Durable construction: The 10B-GC grip chain is made of durable materials that can withstand the rigors of film transportation. This is important because film is often transported in harsh environments, such as in cameras and projectors. 10B-GC Grip Chains 10B-GC Film Gripper Chains 10B-GC Film Clamping Chains

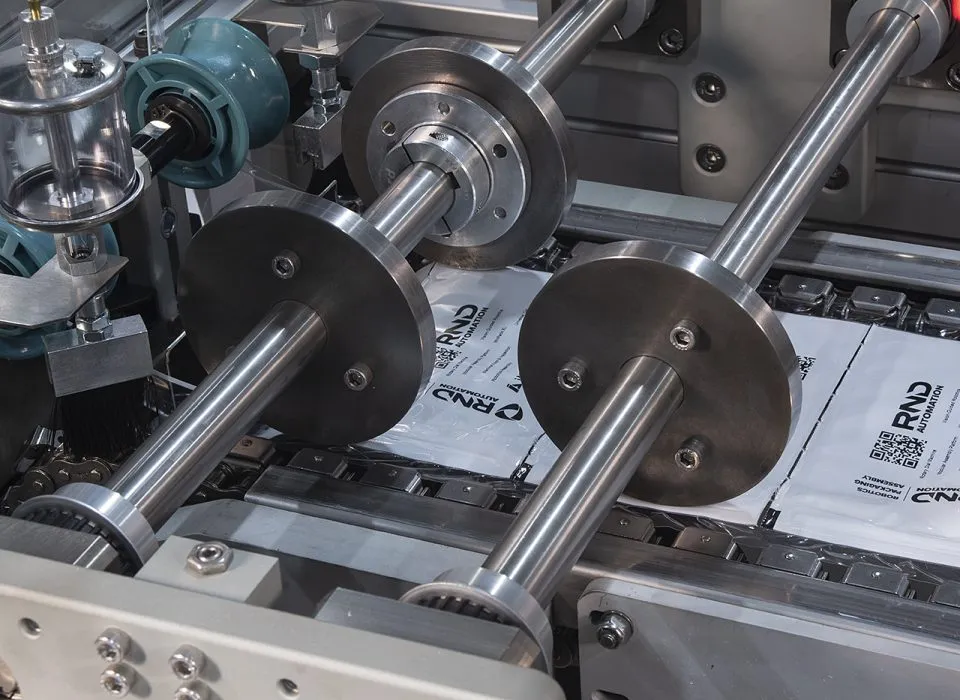

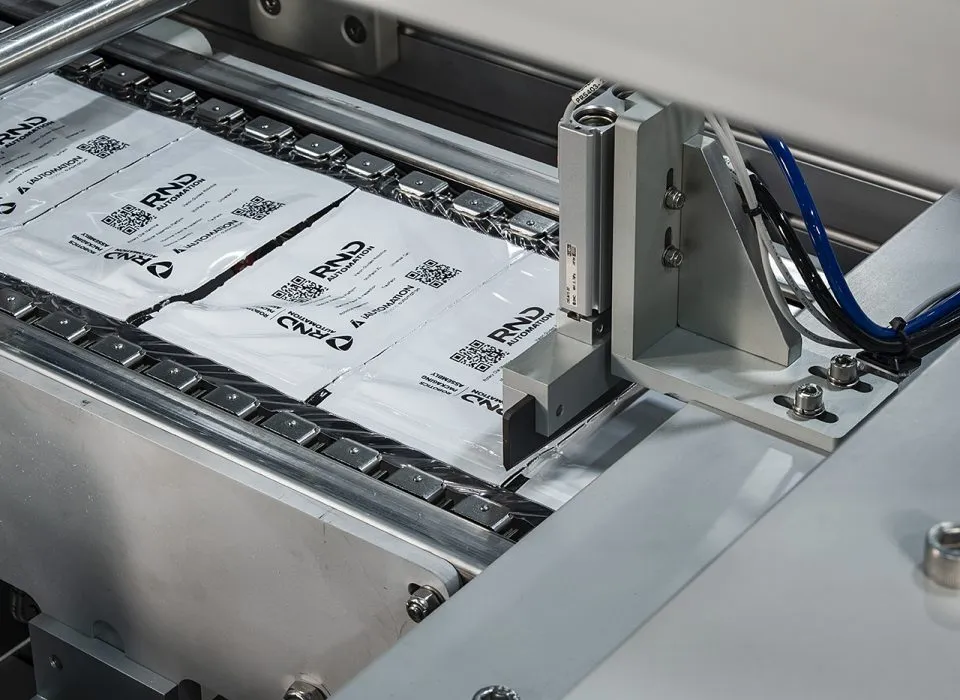

▍10B-GC Spring Loaded Gripper Chain Applications:

The 10B-GC spring loaded gripper chain, also known as the film gripper chain with spring loaded grippers, is a specialized type of roller chain that offers several applications in the printing and packaging industry. Some of these applications include:(1) Bagging machines: The 10B-GC spring loaded gripper chain is commonly used in bagging machines to transport and seal bags of products such as snacks, pet food, and grains. The spring-loaded grippers ensure that the bags are securely held in place during transport and sealing.(2) Labeling machines: The 10B-GC gripper chain can be used in labeling machines to transport bottles, cans, and other containers through the labeling process. The spring-loaded grippers ensure that the containers are held in place and properly aligned for labeling.(3) Cartoners: The 10B-GC spring loaded gripper chain can be used in cartons to transport and package products such as cereal boxes and pharmaceuticals. The spring-loaded grippers ensure that the cartons are held securely in place during transport and packaging.(4) Conveyors: The 10B-GC gripper chain can be used in conveyors to transport products through various stages of the production process. The spring-loaded grippers ensure that the products are held securely in place during transport.(5) Wrapping machines: The 10B-GC gripper chain can be used in wrapping machines to transport and wrap products such as candy bars, chewing gum, and other packaged goods. The spring-loaded grippers ensure that the products are held securely in place during transport and wrapping.

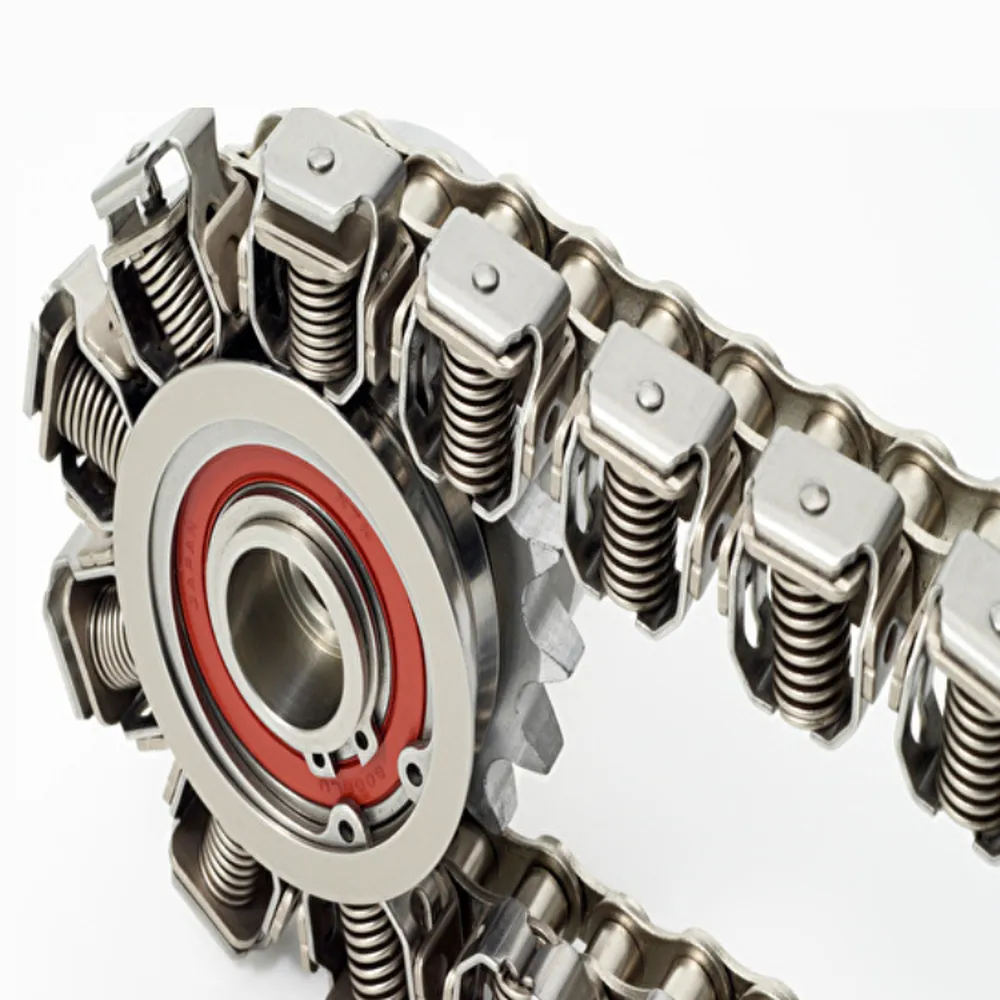

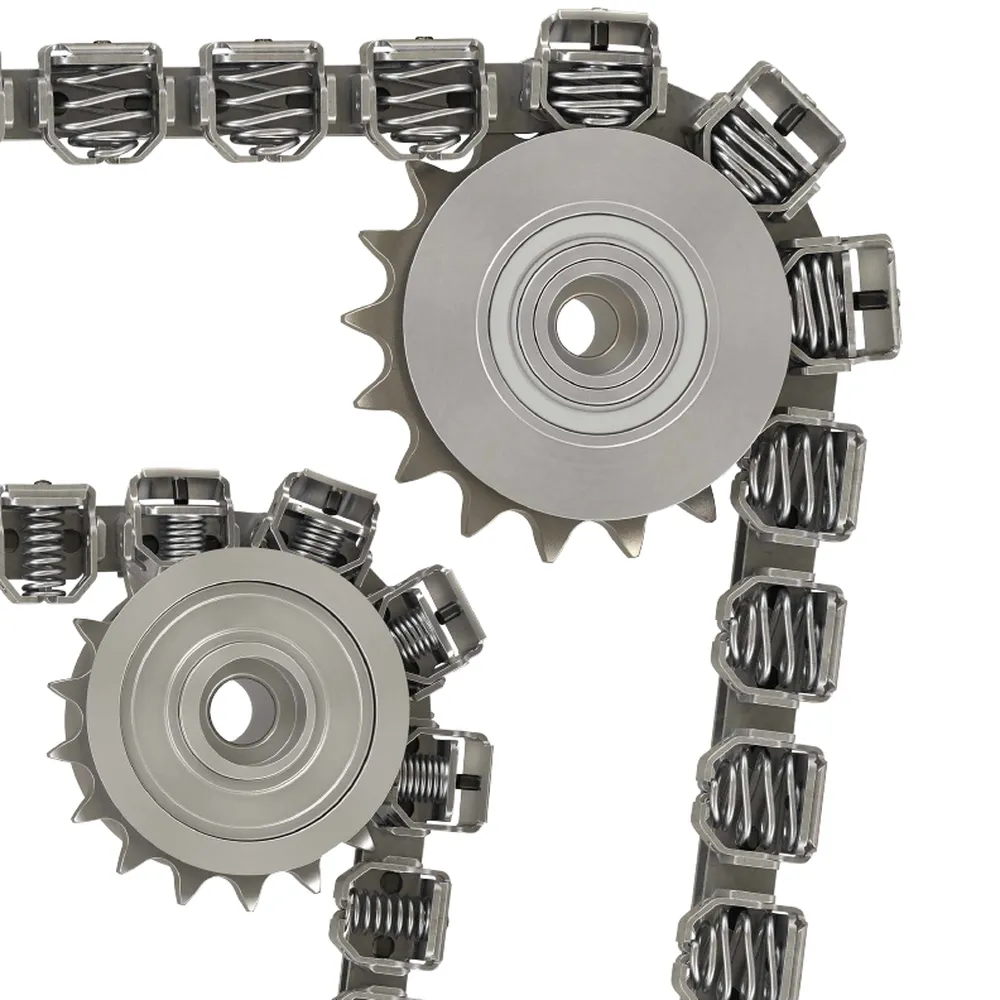

▍10B-GC Grip Chain Sprockets for 10B-GC Grip Chains

The 10B-GC grip chain and its corresponding 10B-GC grip chain sprockets are important components in the printing and packaging industry, where they are commonly used for material handling. Here are some key points about the 10B-GC grip chain sprockets and 10B-GC grip chains:Sprockets: The 10B-GC grip chain sprockets are designed to work specifically with the 10B-GC grip chain. They have teeth that match the shape and pitch of the chain, allowing for precise and reliable movement of the chain during material handling.Materials: Both the 10B-GC grip chain and 10B-GC grip chain sprockets are typically made from high-quality materials such as carbon steel or stainless steel, which offer strength and durability in harsh environments.Chain pitch: The 10B-GC grip chain has a pitch of 5/8 inch (15.875 mm), which is a standard size in the ANSI roller chain series. This pitch size is compatible with a range of sprocket sizes and configurations.Gripper attachments: The 10B-GC grip chain has special attachments or "grippers" that are used to grip and transport thin, flexible materials. These grippers are typically made of a hard plastic material and are shaped to hold onto the edges of the material being transported.Customization: Both the 10B-GC grip chain and 10B-GC grip chain sprockets can be customized to suit different applications and requirements. For example, they can be made in different sizes and materials to suit specific environmental conditions.Overall, the 10B-GC grip chain and 10B-GC grip chain sprockets are important components in the printing and packaging industry, where they offer precise and reliable material handling for a range of applications.

▍10B-GC Spring Loaded Gripper Chain Installation:

Here are the steps on how to install a 10B-GC spring loaded gripper chain:

Prepare the grip chain.?Make sure that the grip chain is the correct length for your application. You may need to cut the grip chain to size.
Install the grip chain sprockets.?The grip chain sprockets should be installed on a shaft or frame that will drive the grip chain. The sprockets should be spaced evenly along the shaft or frame.
Install the grip chain.?The grip chain should be installed on the grip chain sprockets. The grip chain should be routed so that the grippers are facing in the correct direction.
Adjust the grippers.?The grippers on the grip chain can be adjusted to grip objects of different sizes. You can adjust the grippers by turning the adjusting screws on the grippers.
Test the grip chain.?Once the grip chain is installed, you should test it to make sure that it is working properly. You can test the grip chain by gripping an object and then releasing it.

Here are some additional tips for installing a 10B-GC spring loaded gripper chain:

Use a torque wrench to tighten the grip chain sprockets. This will ensure that the sprockets are properly secured.
Use a lubricant on the grip chain. This will help to prevent the grip chain from rusting and will also make it easier to move the grip chain.
Be careful not to over-tighten the adjusting screws on the grippers. This could damage the grippers.

▍China Film Gripper Chains Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
