DIN/ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
05BSS-2 | 8 | 5 | 3 | 2.31 | 13.9 | 14.5 | 7.1 | 0.8 | 5.64 | 4.68 | 6.1 | 0.33 |
06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.4 | 24.4 | 8.2 | 1.3 | 10.24 | 10.14 | 11.22 | 0.77 |
08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 19.2 | 23.22 | 1.34 |
10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 16.59 | 26.7 | 33.72 | 1.84 |
12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 43.6 | 16 | 1.85 | 19.46 | 34.68 | 39.66 | 2.31 |
16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 69.3 | 21 | 4.15/3.1 | 31.88 | 63.6 | 79.8 | 5.42 |
20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 102 | 126.72 | 7.2 |
24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 168 | 191.52 | 13.4 |
28BSS-2 | 44.45 | 27.94 | 30.99 | 15.9 | 124.6 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 216 | 244.08 | 16.6 |
32BSS-2 | 50.8 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42 | 7.0/6.0 | 58.55 | 270 | 305.1 | 21 |
40BSS-2 | 63.5 | 39.37 | 38.1 | 22.89 | 154.5 | 161.5 | 52.96 | 8.5/8.0 | 72.29 | 378 | 427.14 | 32 |
48BSS-2 | 76.2 | 48.26 | 45.72 | 29.24 | 190.4 | 198.2 | 63.8 | 44905 | 91.21 | 600 | 678 | 50 |

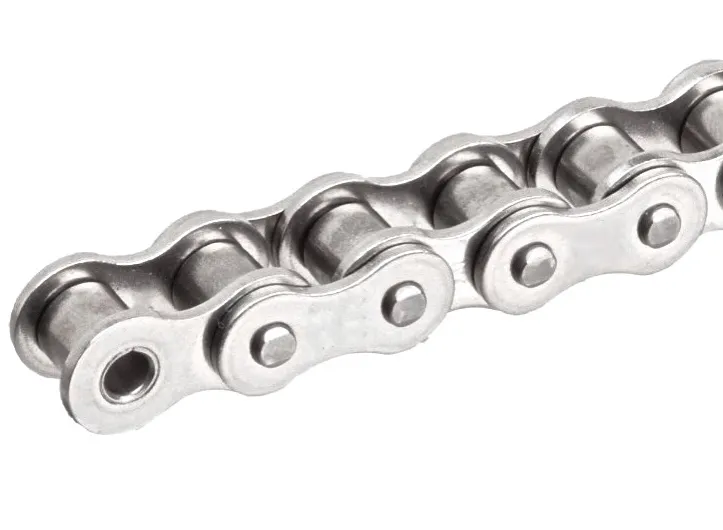

The 20BSS-2 Duplex Short Pitch Stainless Steel Roller Chain is a critical component in mechanical transmission systems. This chain is designed with a short pitch, which allows for a compact and efficient design. It is made of stainless steel, a robust and corrosion-resistant material, making it ideal for use in harsh environments such as food processing, chemical plants, and medical equipment.
The Chain Plate is the basic structure of the 20BSS-2 Duplex Short Pitch Stainless Steel Roller Chain, composed of an inner chain plate and an outer chain plate, which are connected by a pin shaft.
The Roller is the main load-bearing part of the chain. It consists of the roller body and roller shaft. The roller body cooperates with the bulge of the inner and outer chain plates, and the roller shaft cooperates with the pin shaft of the chain plate.
The Pin Shaft is the connecting part of the chain, connecting the chain plate and the roller together.
Our stainless steel chain is made of advanced materials. They perform very well in acidic and alkaline environments where direct contact with food is made. The chains will be exposed to water and at extremely high or low temperatures (-40 ?? C to +400 ?? C) where corrosion resistance is required. When chemical resistance is critical, Reynolds stainless steel chains should be selected. They are manufactured from FDA-approved materials and pre-lubricated with USDA H1-approved lubricants. The chains have the following features:
The 20BSS-2 Duplex Short Pitch Stainless Steel Roller Chain operates by transmitting power and bearing loads in mechanical systems. The chain's performance characteristics are critical when transmitting power and bearing loads.
The 20BSS-2 Duplex Short Pitch Stainless Steel Roller Chain is used in various industries such as food processing, chemical, medical equipment, and others. It's suitable for special environments like dampness and corrosive surroundings. Here are some detailed applications:
Maintaining the 20BSS-2 Duplex Short Pitch Stainless Steel Roller Chain involves the following steps:
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. We also offer high-quality stainless steel sprockets for sale.
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our roller chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.
Please feel free to explore our product range and contact us for your purchase requirements.
