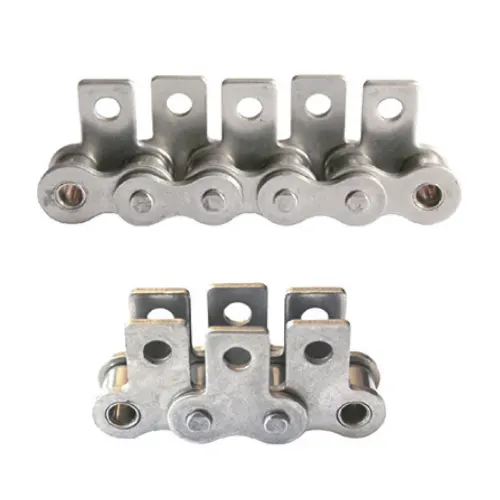

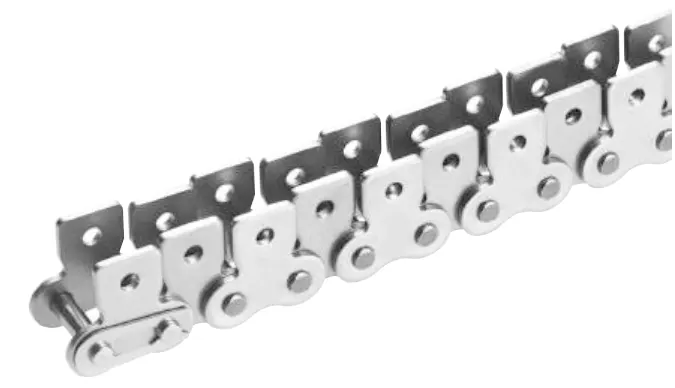

The 28ASS/140SS Stainless Steel Short Pitch Conveyor Chain with SA1/M1 SK1/M1 Attachments is a unique type of conveyor chain. It is designed to provide a robust and reliable solution for conveying systems in various industries. The chain's short pitch design enables it to effectively handle a diverse range of materials, ensuring smooth and efficient operations.
The 28ASS/140SS Stainless Steel Short Pitch Conveyor Chain boasts an impressive range of specifications, designed to meet the requirements of various applications. It demonstrates a high level of durability, strength, and resistance against corrosion, making it a preferred choice for numerous industries.

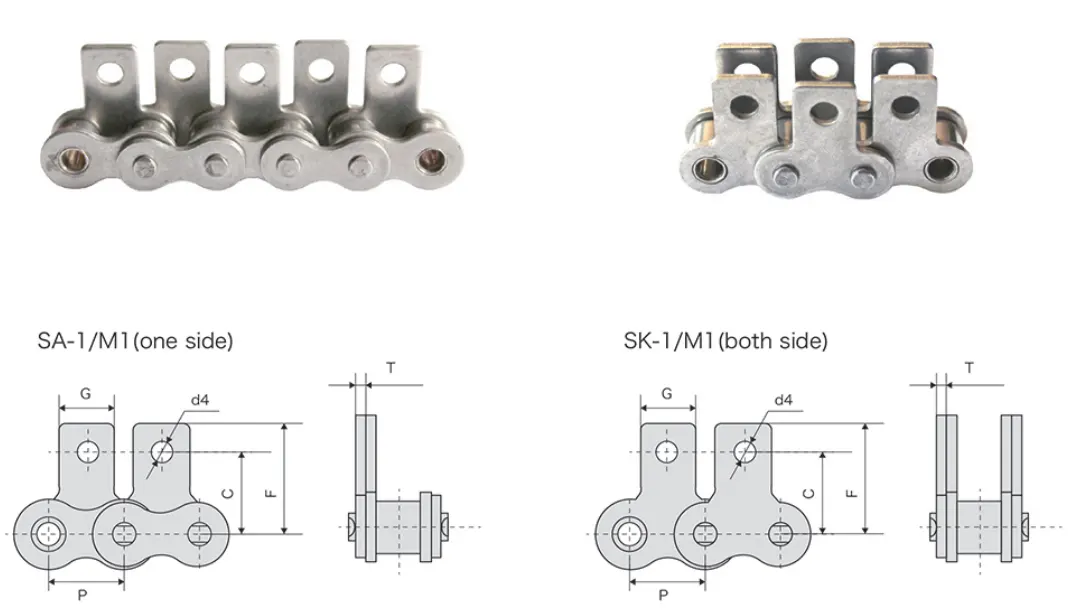

| DIN/ISO Chain No. | ANSI Chain No. | P | G | C | F | T | d4 |
| mm | mm | mm | mm | mm | mm | ||
| 06CSS | 35SS | 9.525 | 7.9 | 9.5 | 14.55 | 1.2 | 3.4 |
| 08ASS | 40SS | 12.7 | 9.5 | 12.7 | 19.05 | 1.5 | 3.4 |
| 085SS | 41SS | 12.7 | 9.5 | 11.85 | 16.55 | 1.2 | 3.6 |
| 10ASS | 50SS | 15.875 | 12.7 | 15.9 | 25.25 | 2 | 5.5 |
| 12ASS | 60SS | 19.05 | 15.9 | 18.3 | 29.33 | 2.4 | 5.5 |
| 16ASS | 80SS | 25.4 | 19.1 | 24.6 | 34.7 | 3 | 6.8 |
| 20ASS | 100SS | 31.75 | 25.4 | 31.8 | 43.3 | 4 | 9.2 |
| 24ASS | 120SS | 38.1 | 28.6 | 36.5 | 51.6 | 4.8 | 9.8 |
| 28ASS | 140SS | 44.45 | 34.9 | 44.5 | 62 | 5.6 | 11.4 |
| 32ASS | 160SS | 50.8 | 38.1 | 50.8 | 69.85 | 6.4 | 13.1 |
| 40ASS | 200SS | 63.5 | 50.8 | 63.5 | 88.9 | 8 | 16.3 |
| *06BSS | 9.525 | 8 | 9.52 | 13.5 | 1.2 | 3.5 | |
| 08BSS | 12.7 | 9.5 | 13.35 | 18.9 | 1.5 | 4.3 | |
| 10BSS | 15.875 | 14.3 | 16.5 | 22.95 | 1.6 | 5.3 | |
| 12BSS | 19.05 | 16 | 21.45 | 28.6 | 1.8 | 6.4 | |
| 16BSS | 25.4 | 19.1 | 23.15 | 34 | 3 | 6.4 | |
| 20BSS | 31.75 | 35 | 30.5 | 45.7 | 4 | 9 |
The link plate forms the main body of the chain, consisting of inner and outer link plates and pins. These elements ensure the strength and integrity of the chain, making it capable of handling heavy loads.
The roller is located on the inner pin of the link plate and plays a crucial role in transmitting power and reducing friction within the system.
The pin connects the link plates and the roller, facilitating the transfer of power to the chain wheel.
These attachments are tightly integrated with the chain to provide added functionality and flexibility, making the chain adaptable to different application requirements.
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality.
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our stainless steel chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.
We encourage you to explore the benefits of our 28ASS/140SS Stainless Steel Short Pitch Conveyor Chain with SA1/M1 SK1/M1 Attachments. Please feel free to contact us to learn more about our products or to make a purchase.
