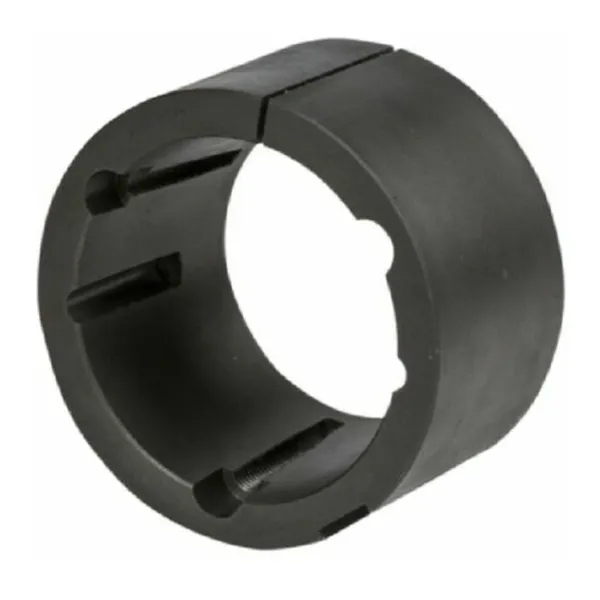

3030B Taper Lock Adapter

3030B Taper Lock Adapter

The 3030B taper lock adapter is a product designed to work in conjunction with the 3030 taper lock bushing. It is used to provide additional flexibility and compatibility when mounting various components onto a shaft. The 3030 taper lock bushing is a mechanical device that provides a secure connection between a shaft and a mounted component, such as a pulley, sprocket, or gear. It typically features a tapered bore and is designed to fit snugly onto a shaft, creating a tight and reliable connection.The 3030B taper lock adapter is specifically designed to complement the 3030 taper lock bushing. It serves as an intermediary component that allows for the connection of different shaft sizes or keyway configurations to the 3030 taper lock bushing. This adaptor for taper bush effectively expands the range of applications for the 3030 taper lock bushing, providing versatility in various industrial and mechanical setups.

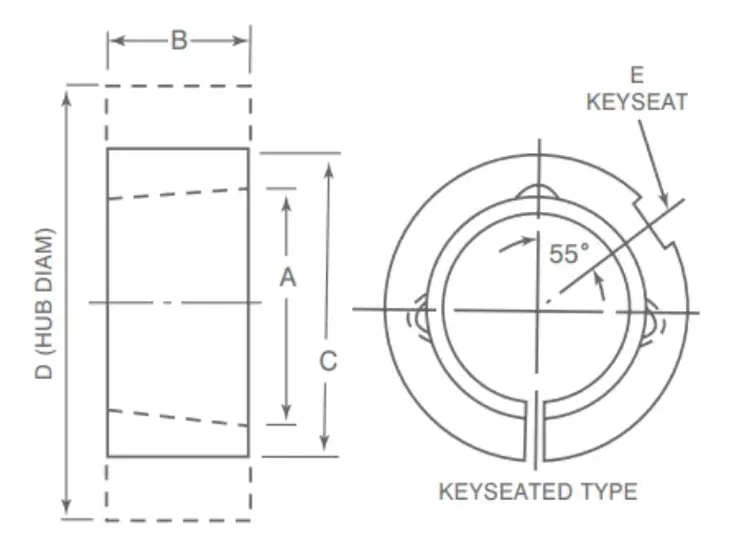

3030B Taper Lock Adapter Dimensions:

Adapter No.		3030B Taper Lock Adapter
For Bush No.		3030 Taper Lock Bushing
A		4 1/4"
B		3"
C		5 1/8"
D	Class 20 Gray Iron	7 3/8"
	Class 30 Gray Iron	6 7/8"
	Steel	6 1/4"
E Keyseat		3/4" x 3/16"
Wt		5.8

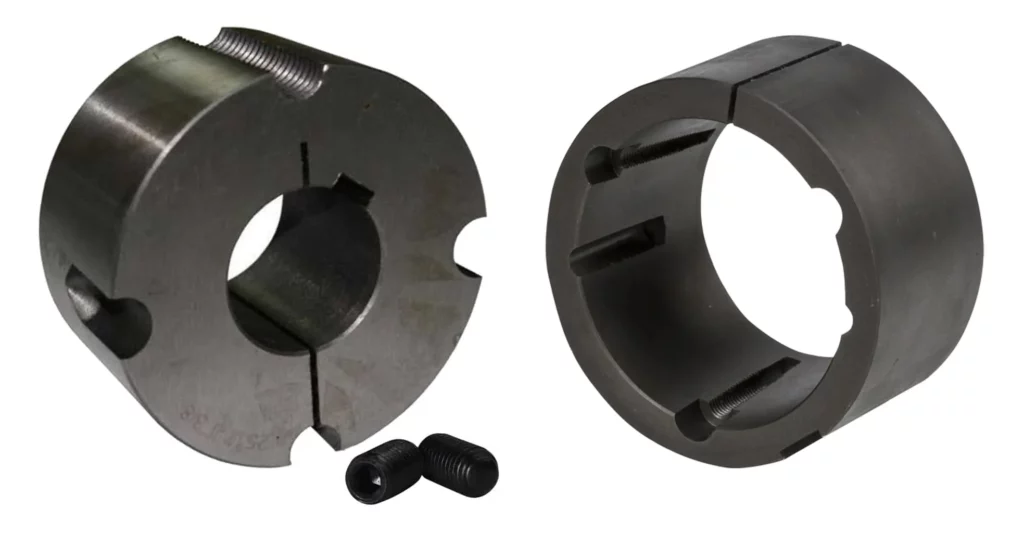

Advantages of 3030B Taper Lock Adapter:

The 3030B taper lock adapter offers several advantages in mechanical assemblies:1. Increased Versatility: The primary advantage of using the 3030B taper lock adapter is its ability to enhance the versatility of the 3030 taper lock bushing. It allows the bushing to be used with shafts of different sizes or keyway configurations, expanding the range of applications for the bushing. This versatility eliminates the need for custom-made bushings or modifications to existing equipment, saving time and cost.2. Cost Savings: Instead of purchasing multiple bushings with different specifications, the 3030B taper lock adapter enables the use of a single 3030 taper lock bushing in various setups. This can result in cost savings by reducing the number of different bushings required in inventory. It also eliminates the need for expensive modifications to shafts or components to accommodate different bushing sizes.3. Time Efficiency: The 3030B taper lock adapter simplifies the process of adapting the 3030 taper lock bushing to different shaft sizes or keyway configurations. It eliminates the need for time-consuming customizations or ordering of specialized bushings. By providing a standardized solution, the adapter allows for quick and easy installation, reducing downtime and improving overall efficiency.4. Compatibility: The 3030B taper lock adapter is specifically designed to work seamlessly with the 3030 taper lock bushing. This ensures a precise and secure connection between the bushing and the adapter, resulting in reliable and stable performance. The compatibility of the adapter with the bushing also ensures compatibility with a wide range of components that are designed to work with the 3030 taper lock bushing, such as pulleys, sprockets, or gears.5. Maintenance and Replacement: If a shaft needs to be replaced or a different shaft size is required in the future, the 3030B taper lock adapter simplifies the process. Instead of replacing the entire bushing, only the adapter needs to be replaced or reconfigured, saving time and cost in maintenance or equipment upgrades.
