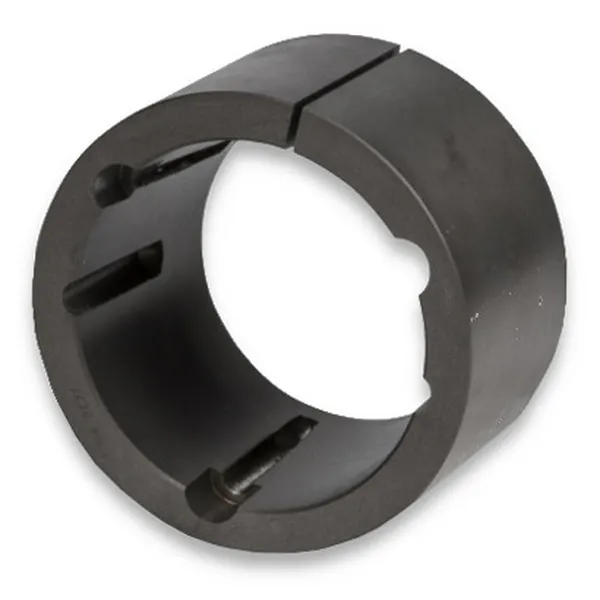

2525B Taper Lock Adapter

2525B Taper Lock Adapter

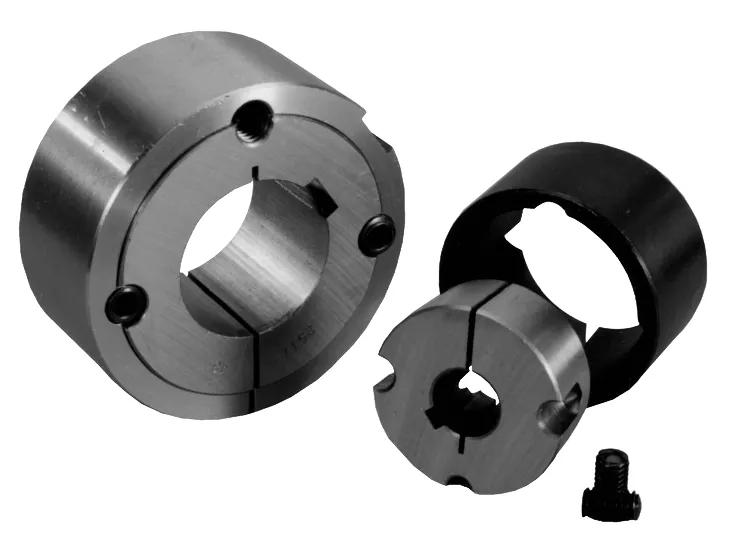

The 2525B taper lock adapter is a product designed to work in conjunction with the 2525 taper lock bushing. It provides a versatile and convenient solution for mounting components onto a shaft. The adapter is specifically engineered to fit onto the 2525 taper lock bushing, which is commonly used for securing power transmission components such as pulleys, sprockets, and gears to a shaft.By using the 2525B taper lock adapter, you can easily attach components with different bore sizes to the 2525 taper lock bushing without the need for specialized machining or modifications. This adapter serves as a bridge between the bushing and the component, allowing for a secure and reliable connection.The 2525B taper lock adapter is designed to be durable and capable of handling high torque and heavy loads. It is typically made from high-quality materials such as steel to ensure strength and longevity. The adaptor for taper bush features precision machined surfaces and a tapered design that provides a tight fit and minimizes slippage during operation.

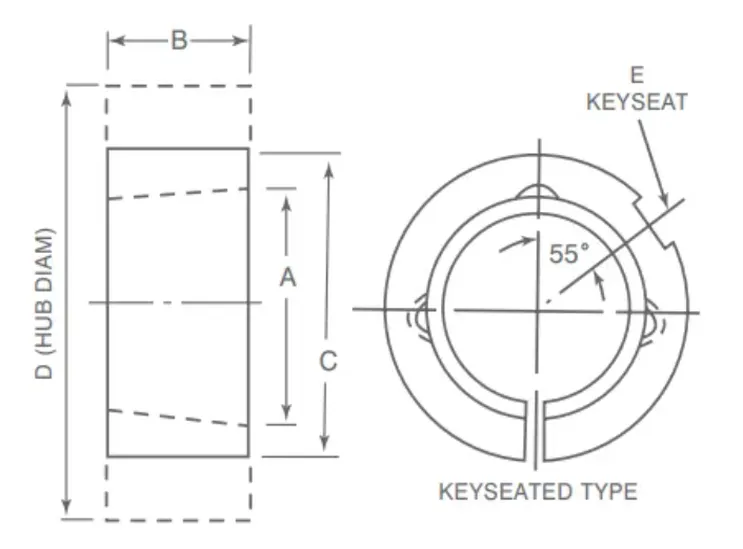

2525B Taper Lock Adapter Dimensions:

Adapter No.		2525B Taper Lock Adapter
For Bush No.		2525 Taper Lock Bushing
A		3 3/8"
B		2 1/2"
C		4 1/8"
D	Class 20 Gray Iron	5 1/2"
	Class 30 Gray Iron	5 1/4"
	Steel	5"
E Keyseat		5/8" x 1/8"
Wt		3.2

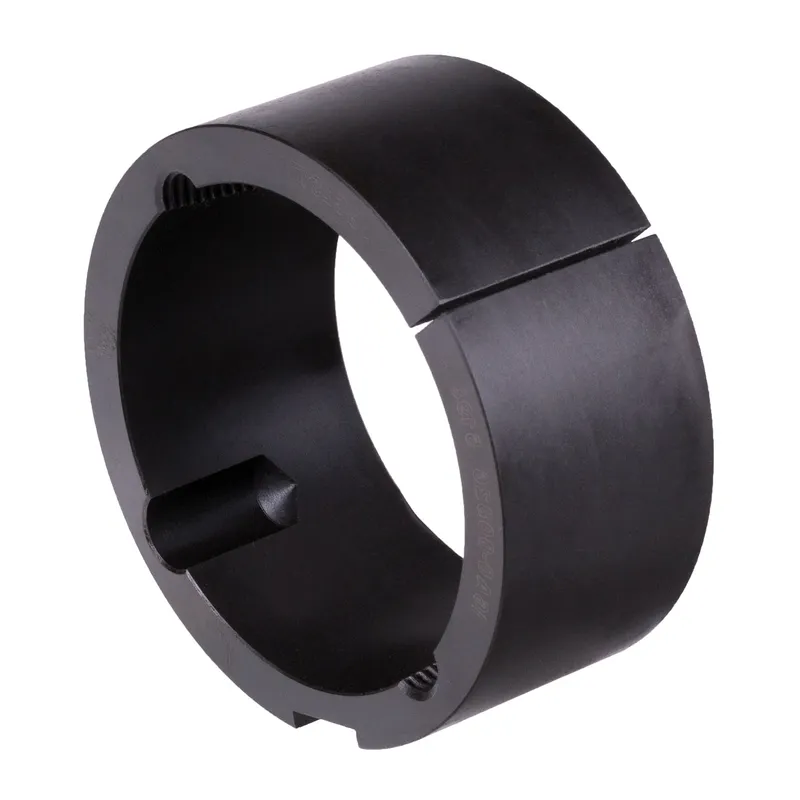

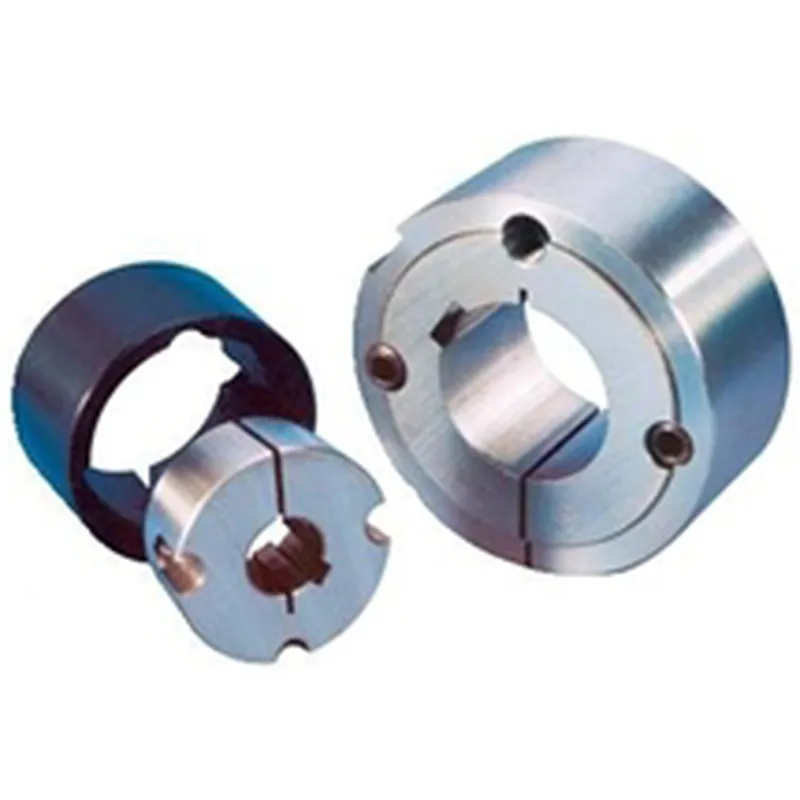

2525B Taper Lock Adapter Features:

2525B taper lock adapters are mechanical components used to secure rotating shafts to sprockets, pulleys, or other rotary devices. They offer several features that make them popular in various industrial applications. Here are some key features of 2525B taper lock bush adapters:1. Tapered Design: 2525B taper lock adapters have a tapered shape, which allows for easy and secure installation. The taper provides a self-centering mechanism that ensures concentricity between the shaft and the mounted component.2. Interchangeability: 2525B taper bore adapters are designed to be interchangeable. They are available in standard sizes and dimensions, allowing for easy replacement or interchangeability of components without the need for complex modifications.3. Easy Installation: 2525B taper bush adapters are simple to install. They usually consist of two main parts: the bush and the flange. The bush is mounted on the shaft, and the flange is attached to the component. By tightening the screws on the flange, the bush is drawn into the tapered bore, creating a secure and rigid connection.4. High Torque Transmission: 2525B taper lock bush adapters provide a strong and reliable connection between the shaft and the mounted component. The tapered design enhances the torque transmission capability, allowing for efficient power transmission and minimizing the risk of slippage or misalignment.5. Vibration Dampening: 2525B taper lock adapters offer good vibration-dampening properties. The tight fit between the bush and the tapered bore helps to reduce vibrations and absorb shocks, contributing to smoother operation and increased equipment longevity.6. Wide Range of Applications: 2525B taper bore bush adapters are versatile and find applications in various industries, including power transmission, conveyor systems, agriculture, mining, and manufacturing. They can be used to secure components such as sprockets, pulleys, gears, and couplings to rotating shafts.7. Reliability and Maintenance: 2525B taper lock bush adapters are known for their reliability and low maintenance requirements. Once properly installed, they provide a durable and secure connection, reducing the need for frequent adjustments or replacements.

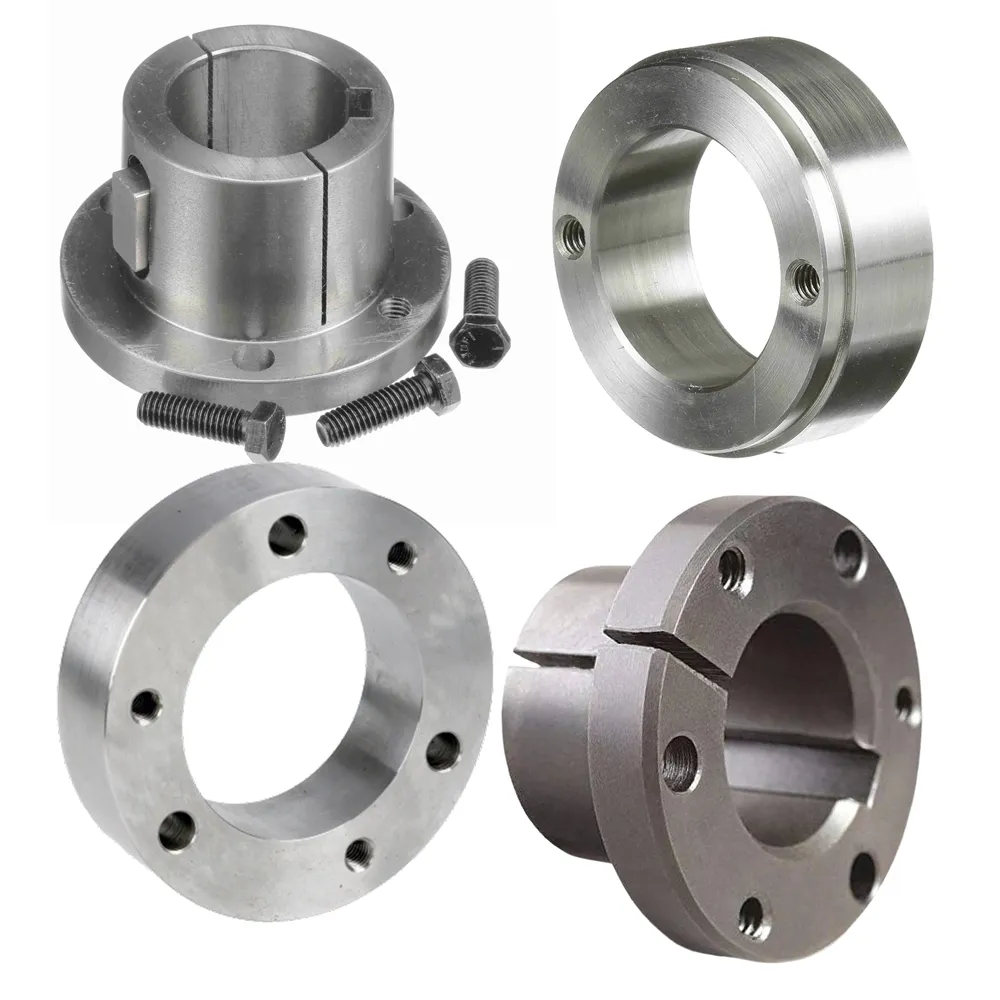

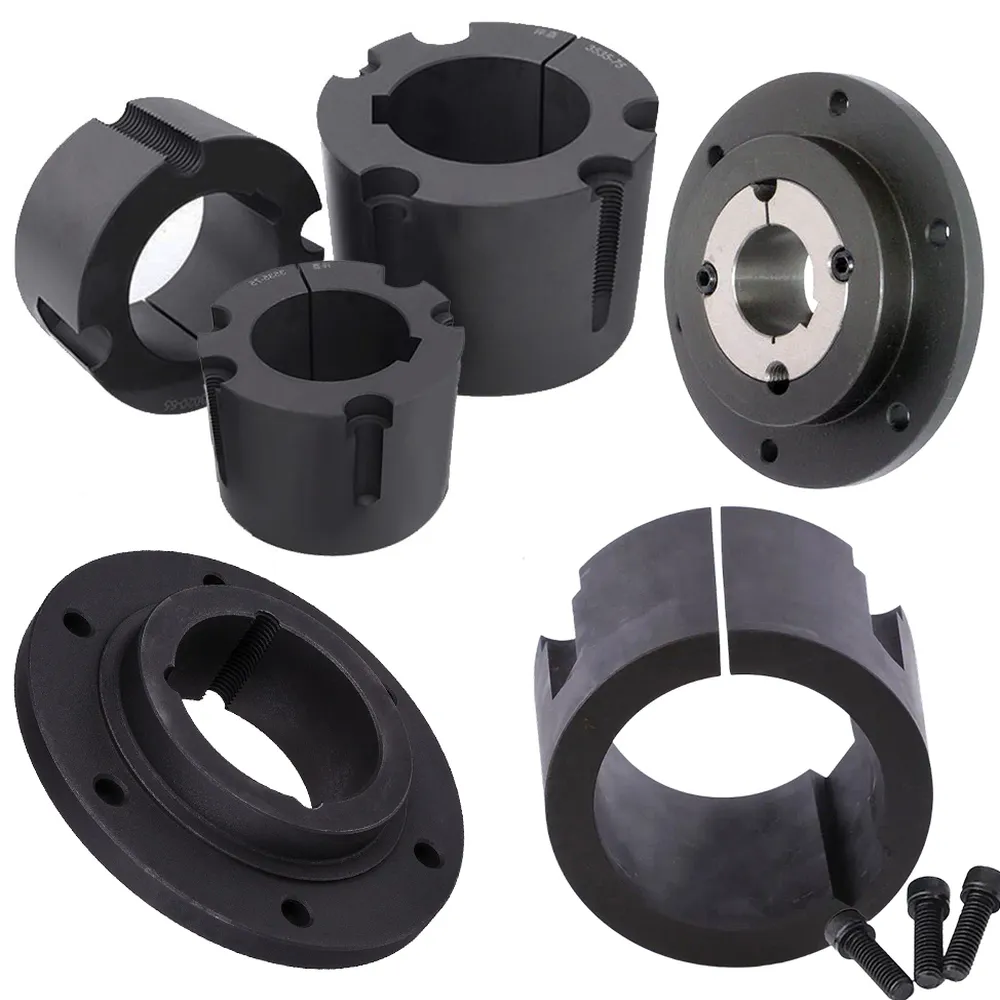

China Taper Lock Adapter Manufacturers
