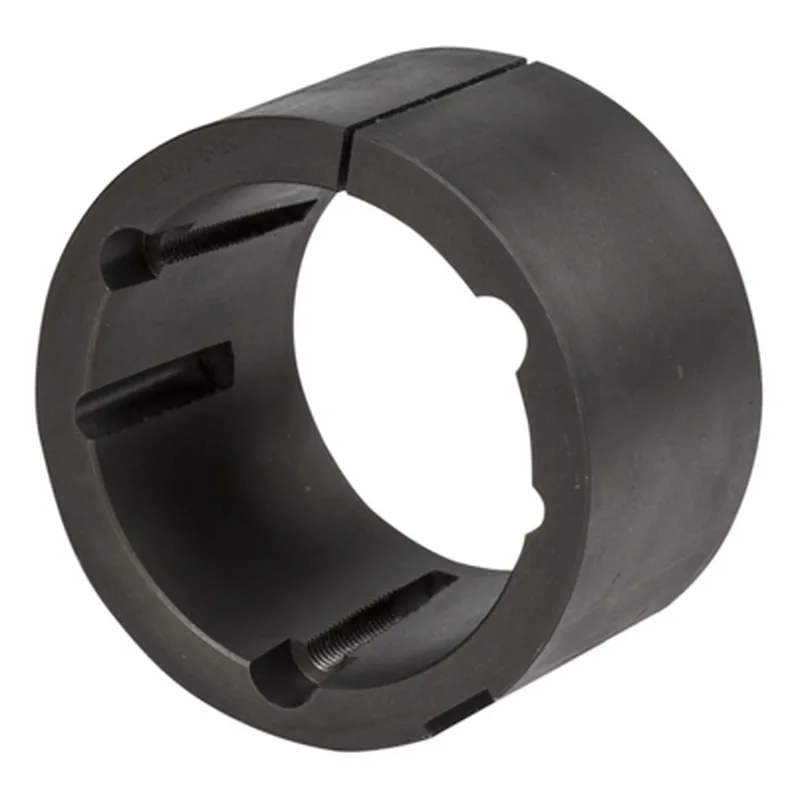

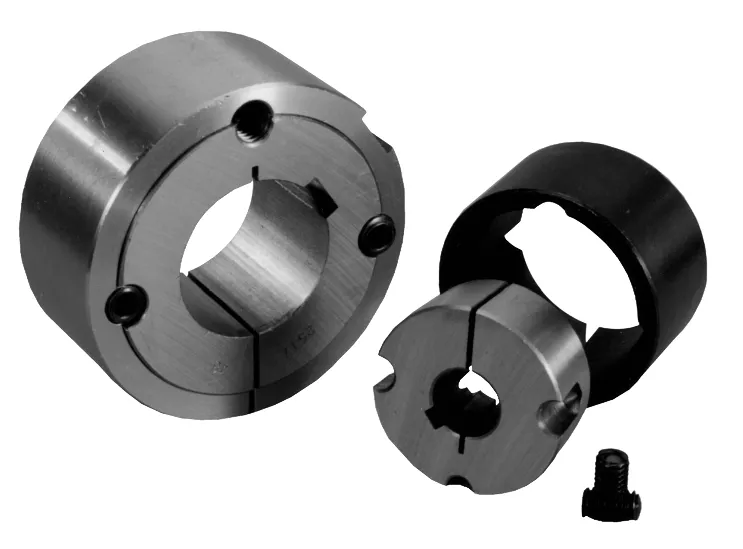

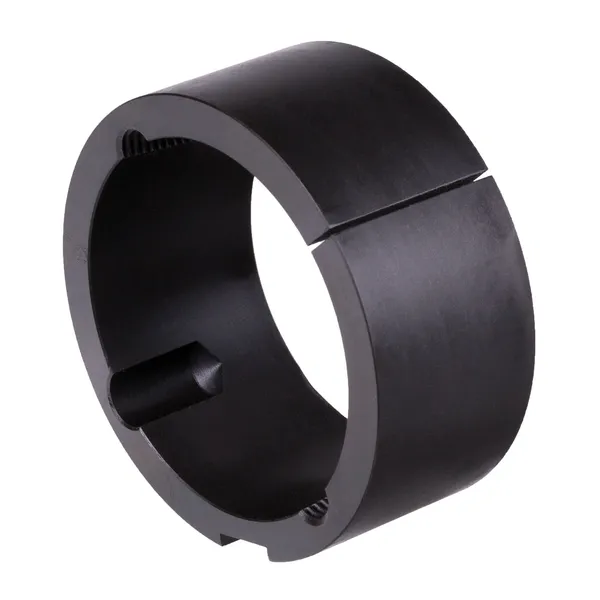

The 4040B taper lock adapter is designed to be used with the 4040 taper lock bushing. The purpose of the adapter is to provide a means of mounting components such as pulleys, sprockets, or gears onto a shaft that has a 4040 taper lock bushing installed.The 4040 taper lock bushing is a mechanical component used for securing rotating elements to a shaft. It features a tapered bore that allows it to be easily mounted onto the shaft and locked in place using a locking mechanism. The 4040B taper lock adapter is specifically designed to fit onto the 4040 taper lock bushing, providing a flat surface or a different mounting pattern for attaching various components.When using the 4040B taper lock adapter, you would first install the 4040 taper lock bushing onto the shaft by tightening the locking mechanism. Once the bushing is securely in place, you can then attach the 4040B taper lock adapter to the bushing. The adaptor for taper bush typically has pre-drilled holes or a specific mounting pattern that matches the desired component you wish to mount.By using the 4040B taper bore adapter, you can easily adapt the mounting configuration to suit your specific needs, allowing for flexibility in attaching different components to the shaft with a 4040 taper lock bushing.

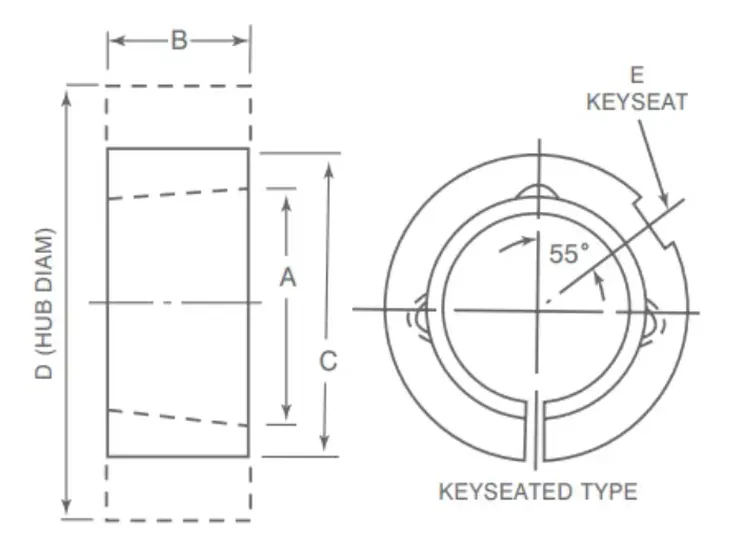

4040B Taper Lock Adapter Dimensions:

Adapter No.		4040B Taper Lock Adapter
For Bush No.		4040 Taper Lock Bushing
A		5 3/4"
B		4"
C		7 1/4"
D	Class 20 Gray Iron	11 1/8"
	Class 30 Gray Iron	10 1/8"
	Steel	9 3/8"
E Keyseat		1" x 3/16"
Wt		17.3

How to Install Taper Lock Adapter onto Taper Lock Bushing?

To install a taper lock adapter onto a taper lock bushing, you can follow the steps below:1. Ensure that you have the correct taper lock adapter that is compatible with your taper lock bushing. The adapter should have the same size and specifications as the bushing.2. Slide the taper lock bushing onto the shaft. Make sure the shaft is clean and free from any debris or obstructions. The bushing should slide easily onto the shaft.3. Position the taper lock adapter over the taper lock bushing. Align the adapter's holes or mounting pattern with the desired orientation for attaching your component (e.g., pulley, sprocket).4. Insert the screws or bolts through the holes of the taper lock adapter and into the corresponding holes of the taper lock bushing. Make sure the screws or bolts are properly aligned and threaded into the bushing.5. Tighten the screws or bolts evenly in a star pattern. Start with a lower torque setting and gradually increase the torque to the manufacturer's recommended specifications. This ensures an even and secure fit.6. Once the screws or bolts are tightened, double-check that the taper lock adapter is securely attached to the taper lock bushing. Give it a gentle tug or twist to confirm that it is properly seated and locked in place.7. Verify that the adapter is aligned correctly for your intended application. Check that it is level and properly positioned to accommodate the component you wish to mount.By following these steps, you should be able to install the taper lock adapter onto the taper lock bushing securely.

Taper Lock Adapter Vs Taper Bore Bolt-On Hubs:

Taper lock adapters and taper bore bolt-on hubs are both methods used to securely attach components to a shaft. Here are some key differences between the two:(1) Design: Taper lock adapter consists of two main components: the taper lock adapter itself and the taper lock bushing. The adapter has a tapered bore, while the bushing has a corresponding tapered outside surface. When the adapter is pushed onto the bushing, the tapers create a tight and secure fit. On the other hand, taper bore bolt-on hubs are designed with a pre-bored hub that directly fits onto the shaft. The hub has holes for bolts that pass through and secure it to the shaft.(2) Installation: Installing a taper lock adapter involves sliding the adapter onto the taper lock bushing and tightening it with a torque wrench. The tapered surfaces create a wedging action that locks the adapter in place. Taper bore bolt-on hubs, on the other hand, are installed by placing the pre-bored hub onto the shaft and securing it with bolts through the hub's bolt holes.(3) Versatility: Taper lock adapters are known for their versatility as they allow for easy adjustment and repositioning along the shaft. By loosening the adapter, it can be moved to a different position or removed entirely. This flexibility is beneficial in situations where component positioning needs to be adjusted. Taper bore bolt-on hubs, once installed, are typically fixed in position and not easily repositioned along the shaft.(4) Load capacity: Both taper lock adapters and taper bore bolt-on hubs are designed to handle high torque and axial loads. However, taper lock adapters are often preferred for applications with higher loads due to their ability to distribute the load over a larger surface area. The taper design provides a strong and secure connection that can handle heavy-duty applications.(5) Availability: Taper lock adapters are more commonly used and widely available in the market. They are a popular choice in various industries, including power transmission, conveyor systems, and mechanical engineering. Taper bore bolt-on hubs are less prevalent but are still used in specific applications where direct mounting of components is desired.When selecting between a taper lock adapter and a taper bore bolt-on hub, consider factors such as the required load capacity, adjustment flexibility, and the specific requirements of your application. It's essential to refer to the manufacturer's guidelines and specifications to ensure proper installation and compatibility with your equipment.

Taper Lock Adapters	Taper Bore Bolt-On Hubs

China Taper Lock Adapter Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
