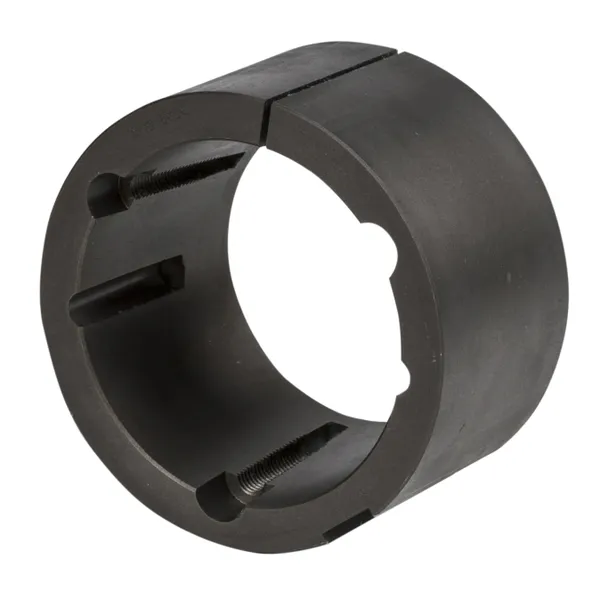

1615B Taper Lock Adapter

1615B Taper Lock Adapter

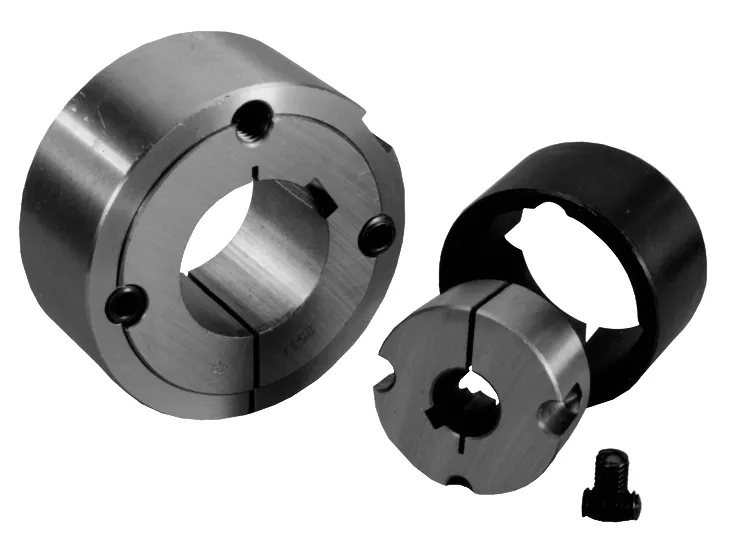

The 1615B taper lock adapter is designed to be used with the 1615 taper lock bushing. The adapter is used to convert a standard 1615 taper lock bushing into a larger bore size to accommodate a larger shaft or pulley. The taper lock system is a common method for mounting components such as pulleys, sprockets, and gears onto shafts. The system consists of a taper lock bushing and a taper lock adapter. The taper lock bushing is mounted onto the shaft, and the adapter is then mounted onto the bushing. The taper lock adapter provides a larger bore size to match the desired component.

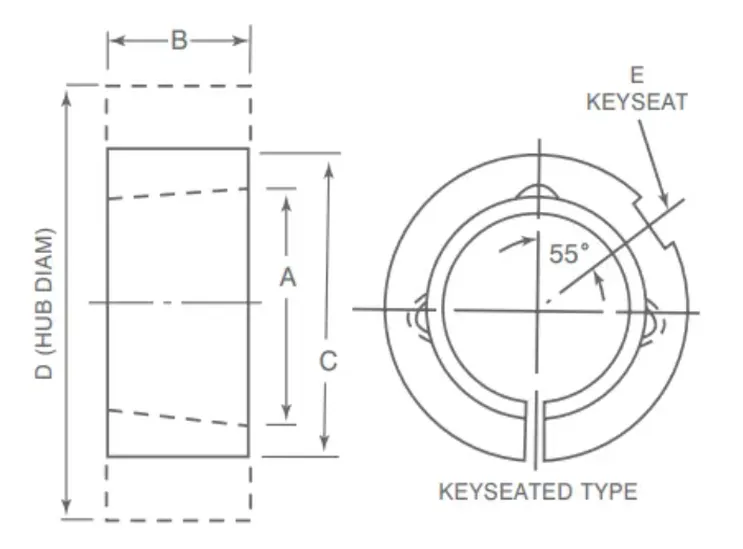

1615B Taper Lock Adapter Dimensions:

Adapter No.		1615B Taper Lock Adapter
For Bush No.		1615 Taper Lock Bushing
A		2 1/4"
B		1 1/2"
C		2 3/4"
D	Class 20 Gray Iron	4"
	Class 30 Gray Iron	3 3/4"
	Steel	3 1/2"
E Keyseat		3/8" x 1/8"
Wt		0.9

1615B Taper Lock Adapter Advantages:

The 1615B taper lock adapter is a mechanical component used to modify the size or type of a taper bush to suit different applications. Taper bushes are commonly used to secure rotating components such as pulleys, sprockets, and gears onto shafts. When the desired component or shaft does not match the size or type of the taper bush, an adaptor can be used to bridge the gap. Adaptors are typically made of steel or other durable materials and come in various sizes to accommodate different requirements. Here are some advantages of using the 1615B taper lock adapter:1. Easy installation: The 1615B taper lock adapter design allows for quick and simple installation without the need for specialized tools or extensive technical knowledge. This reduces downtime and makes it easier to assemble or disassemble the components.2. Secure connection: The 1615B taper lock adapter provides a secure and reliable connection between the shaft and the mounted component, such as a pulley, sprocket, or gear. It minimizes the risk of slippage or loosening during operation, ensuring efficient power transmission.3. Versatility: The 1615B adaptor for taper bush is designed to accommodate different shaft sizes, and component bore diameters. This versatility allows for interchangeability and flexibility in various applications, reducing the need for multiple adapters or custom-made components.4. Compact design: The compact and lightweight design of the 1615B taper bush adapter makes it suitable for use in limited-space applications. It helps to optimize the overall system design, especially when space is a constraint.4. Cost-effective: 1615B taper lock adapters are generally cost-effective compared to alternative methods of connecting components, such as welding or keyway connections. They eliminate the need for machining keyways or modifying shafts, reducing overall costs and saving time.6. Maintenance-friendly: The 1615B taper bore adapter allows for easy maintenance and replacement of components. In case of wear or damage, the adapter can be quickly removed and replaced without significant disassembly of the entire system, minimizing downtime and maintenance costs.

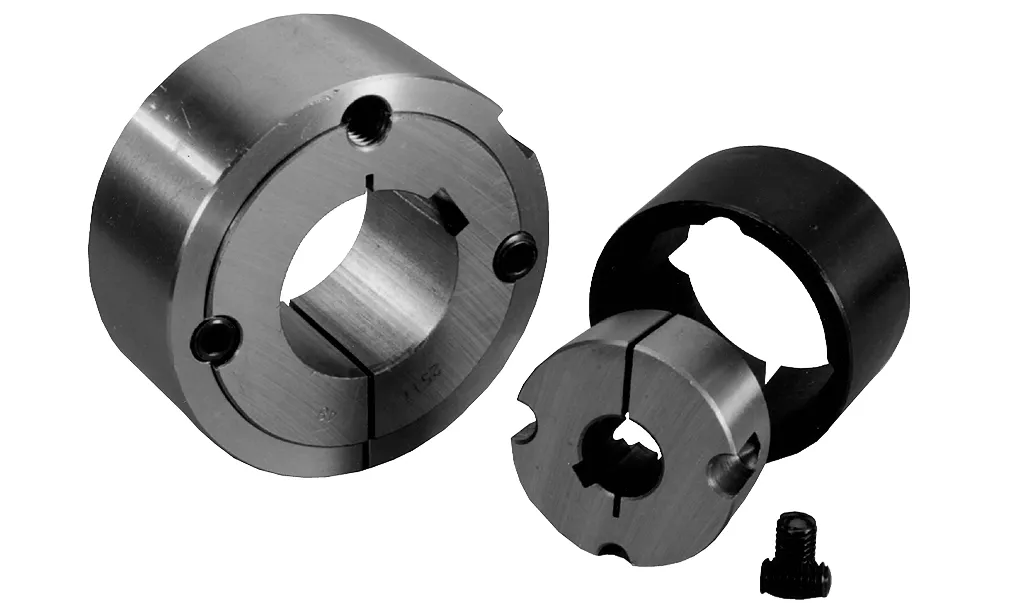

1615B Taper Lock Adapter Installation:

To install the 1615B taper lock adapter, follow these steps:1. Ensure that the shaft and bushing are clean and free from any debris.2. Slide the 1615 taper lock bushing onto the shaft, ensuring that it is properly aligned.3. Slide the 1615B taper lock adapter onto the bushing, aligning the slots on the adapter with the tabs on the bushing.4. Use a hammer and a soft mallet to tap the adapter onto the bushing. Apply firm, even pressure to ensure a tight fit.5. Continue tapping the adapter until it is fully seated on the bushing. You may need to rotate the assembly to evenly distribute the force.6. Once the adapter is fully seated, check that it is securely attached to the bushing by trying to rotate it. It should be locked in place and not rotate freely.7. Now you can mount the desired component, such as a pulley or sprocket, onto the adapter using the appropriate fasteners.It's important to note that specific installation instructions may vary depending on the manufacturer and design of the taper lock system you are using.
