1215B Taper Lock Adapter

1215B Taper Lock Adapter

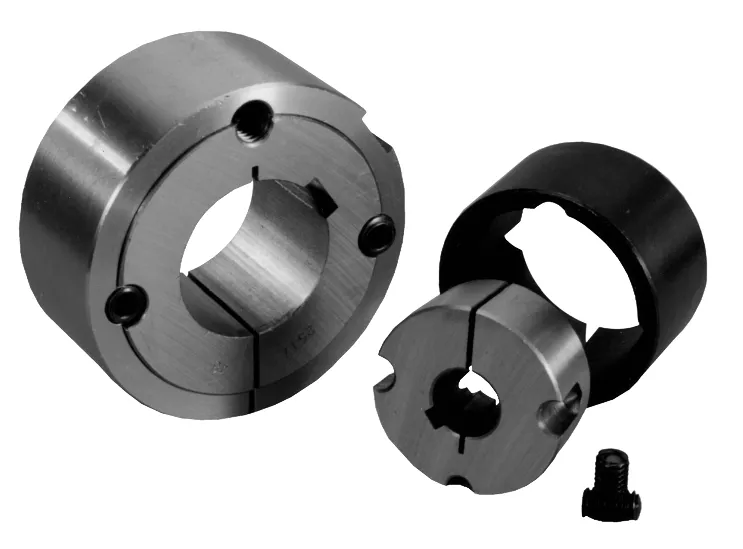

The 1215B taper lock adapter is a specialized component designed to work with the 1215 taper lock bushing. The 1215 taper lock bushing is a device used to mount components such as pulleys, sprockets, and gears onto shafts. It features a tapered bore and an external flange, which allows for a secure and concentric connection between the bushing and the shaft.The 1215B taper lock adapter is specifically engineered to fit onto the 1215 taper lock bushing. It acts as an intermediary between the bushing and the component to be mounted. The adapter typically has a matching taper on its inner surface to ensure a tight fit with the bushing, while its outer surface is designed to accommodate the specific requirements of the component.The primary advantage of using the 1215B taper lock adapter is its versatility. It enables the use of different components with the same 1215 taper lock bushing, allowing for easy interchangeability and flexibility in machinery design. This feature is particularly beneficial in situations where component modifications or replacements are required.The 1215B taper lock adapter is made from high-quality materials, such as steel, to ensure durability and resistance to wear and tear. It is precision-engineered to provide a reliable and secure connection, minimizing the risk of slippage or misalignment during operation.

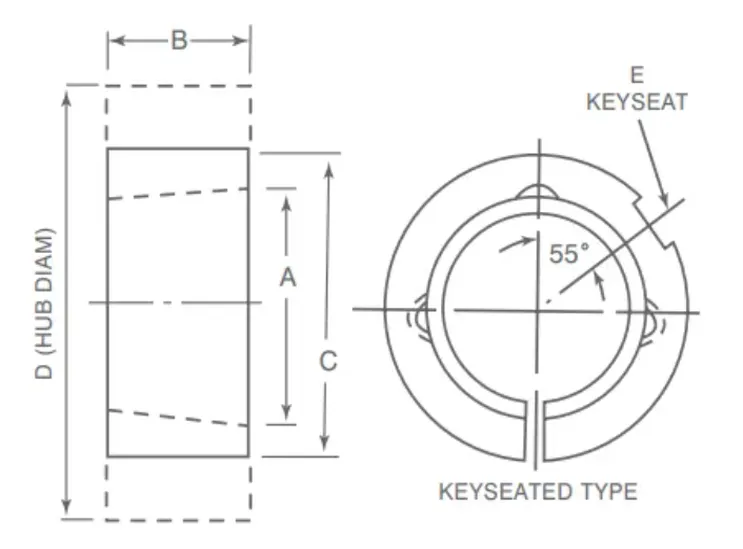

1215B Taper Lock Adapter Dimensions:

Adapter No.		1215B Taper Lock Adapter
For Bush No.		1215 Taper Lock Bushing
A		1 7/8
B		1 1/2
C		2 3/8
D	Class 20 Gray Iron	3 5/8
	Class 30 Gray Iron	3 3/8
	Steel	3 1/4
E Keyseat		1/4x1/8
Wt		0.7

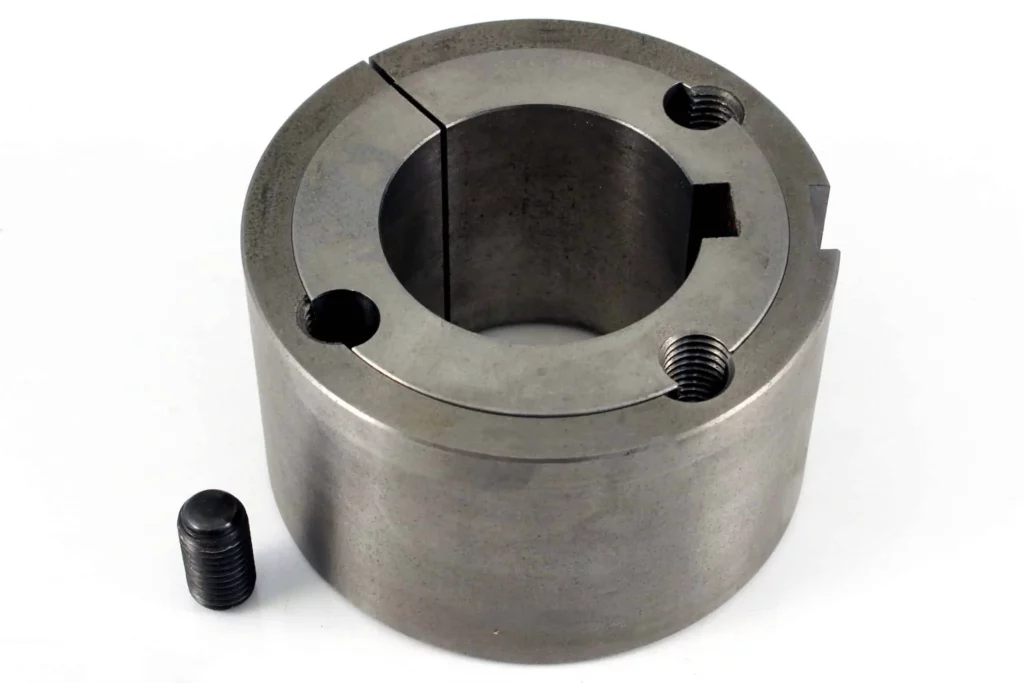

1215B Taper Lock Adapter Features:

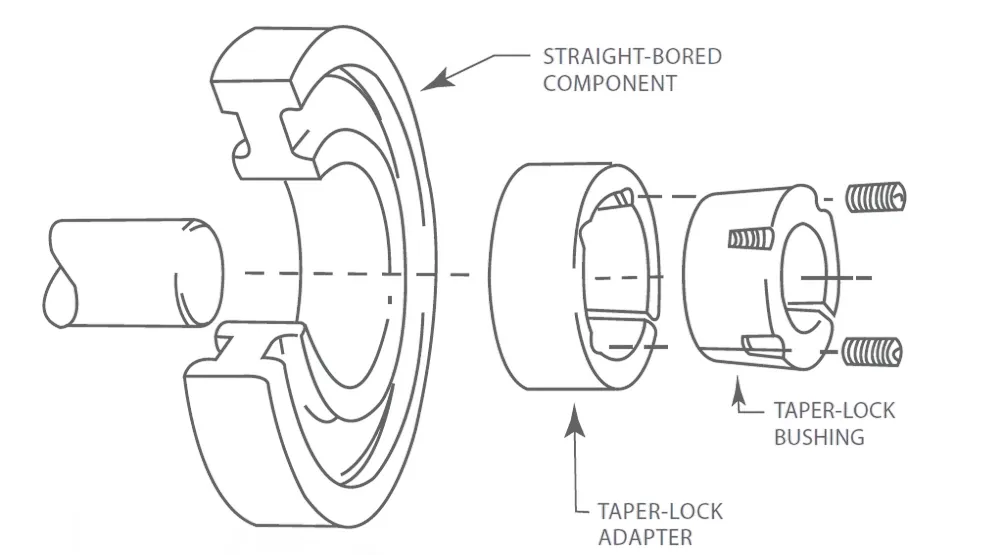

The features of the 1215B taper lock adapter are recommended for usage where it is more convenient to straight bore than to drill, tap and taper bore hubs to accommodate bushings. The taper lock adapter is a taper-bored sleeve of grey cast iron which fits into the straight bore of a hub. The bushing simply fits inside the adapter, which is tapped for the bushing screws. When tightening the locking screws, the adapter is expanded against the hub bore, pressing the bushing tightly upon the shaft. Here are some common features of the 1215B adaptor for taper bush:1. Tapered Bore: The adapter sleeve of the 1215B taper lock adapter has a tapered bore that matches the dimensions of the shaft. This taper allows for a secure and concentric fit between the adapter and the shaft.2. Locking Mechanism: The adapter sleeve is secured onto the shaft using a locknut or similar locking mechanism. This ensures that the 1215B taper lock adapter remains securely in place during operation and prevents any rotational movement or slippage.3. Easy Installation: 1215B taper lock adapters are designed for easy installation and removal. They do not require any special tools or additional machining of the shaft, resulting in a quick and efficient assembly process.4. Interchangeability: 1215B taper bush adapters are often designed to be interchangeable with other components that have the same Taper Lock design. This allows for flexibility in configuring and adapting power transmission systems.5. Wide Range of Sizes: 1215B taper lock adapters are available in a wide range of sizes to accommodate different shaft diameters and component requirements. This allows for versatility in various applications and industries.6. Compatibility: The 1215B taper bore adapter is designed to be compatible with other components that adhere to the same Taper Lock standard. This ensures compatibility and interchangeability with a variety of pulleys, sprockets, gears, and other components.

China Taper Lock Adapter Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
