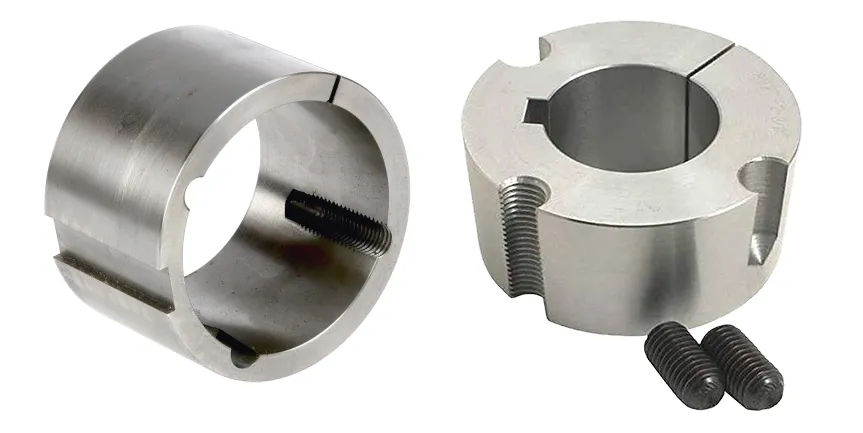

2517B Taper Lock Adapter

2517B Taper Lock Adapter

The 2517B taper lock adapter is a device designed to work in conjunction with the 2517 taper lock bushing. The taper lock system is commonly used in power transmission applications to securely mount components such as pulleys, sprockets, and sheaves onto shafts.The 2517 taper lock bushing is a split, flangeless bushing with external threads. It is typically mounted onto a shaft and provides a means of mounting a compatible component. The bushing has a tapered bore that matches the taper on the adapter, ensuring a tight and secure fit.The 2517B taper lock adapter is specifically designed to fit onto the 2517 taper lock bushing. It features an internal taper that matches the taper on the bushing, allowing for easy installation and removal. The adapter is commonly used when a different component needs to be mounted onto the shaft, or when a different size or type of bushing is required.To install the 2517B taper lock adapter, the bushing is first mounted onto the shaft. The adapter is then slid onto the bushing and tightened using the provided fasteners. The tapered surfaces of the adapter and bushing create a wedging action that locks the adapter in place, providing a secure and reliable connection.

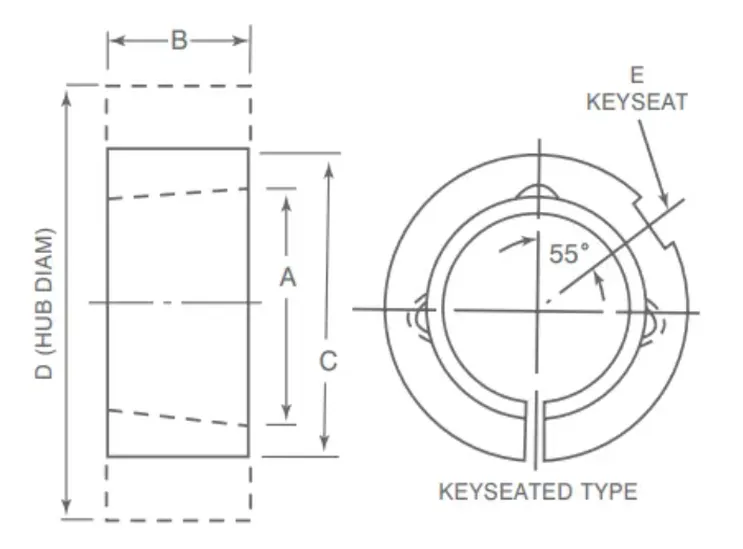

2517B Taper Lock Adapter Dimensions:

Adapter No.		2517B Taper Lock Adapter
For Bush No.		2517 Taper Lock Bushing
A		3 3/8"
B		1 3/4"
C		4 1/8"
D	Class 20 Gray Iron	5 7/8"
	Class 30 Gray Iron	5 1/2"
	Steel	5"
E Keyseat		5/8" x 1/8"
Wt		2.2

Taper Lock Adapter for Taper Lock Bushing:

A taper lock adapter and taper lock bushing are mechanical components used in power transmission systems to secure rotating elements such as pulleys, sprockets, or gears onto shafts. They provide a secure and reliable connection while allowing for easy installation and removal.Here's a brief explanation of each component:1. Taper Lock Adapter: A taper lock adapter, also known as a taper lock hub or taper lock sleeve, is a cylindrical component with a tapered bore. It is typically made of steel or cast iron. The adapter is designed to fit onto a shaft and has external splines or teeth that match with the internal splines or teeth of a corresponding Taper Lock Bushing.2. Taper Lock Bushing: A taper lock bushing, also called a taper bush, is a hollow, cylindrical component with internal splines or teeth. It is usually made of steel or ductile iron. The bushing fits inside the bore of a rotating element, such as a pulley or sprocket, and is secured to the adapter by tightening screws or bolts. The tapered design of the bushing allows it to lock tightly onto the adapter, creating a strong and reliable connection.When assembling a taper lock system, the adapter is mounted onto the shaft, and the taper lock bushing is inserted into the bore of the rotating element. The screws or bolts are then tightened, causing the tapered surfaces of the adapter and bushing to come into contact. As the screws are tightened further, the taper forces the bushing to expand radially, creating a tight grip between the bushing, adapter, and shaft. This frictional connection transmits torque between the rotating element and the shaft.One of the main advantages of taper lock adapters and bushings is their ease of installation and removal. They allow for quick and efficient mounting and dismounting of rotating elements without the need for keyways or other complex machining operations. Additionally, they provide a secure connection that minimizes slippage and ensures reliable power transmission.Taper lock adapters and taper lock bushings are commonly used in various industries, including manufacturing, agriculture, mining, and material handling, where power transmission systems requiring frequent maintenance or component replacement are prevalent.
