307-90/112-MP Motor Base

Product Details

Monoplate-MP	Motor-Baugrosser	A	B	C	E1	E2	E3	G	H	J	K	L	M	N	??	P	R	SW	S	weight
	Installation size																			kg
270-63/90-MP	63-71-80-90	270	195	33	100	125	140	190	25	25	50	50	10.5	31.5	132	98	25	19	3	3.1
307-90/112-MP	90-100-112	307	213	33	140	160	190	255	32.5	25	50	50	10.5	25.5	162	108	25	19	3	4.1
340-100/132-2-MP	100-112-132	340	290	40	160	190	216	2S6	35	30	62	47.5	12.5	37.5	215	I65	30	22	4	7.9
430-100/132-2-MP	100-112-132	430	290	40	160	190	216	286	35	30	62	47.5	12.5	37.5	215	165	30	22	4	8.9
430-160/180-2-MP	160-180	430	370	40		254	279	379	50	30	62	62	12.5	41.5	287	248	30	22	4	12
490-160/180-MP	160-180	490	370	40		254	279	379	50	30	62	62	12.5	41.5	287	248	30	22	4	12.7
490-180/200-MP	180-200	490	410	40		279	318	420	50	30	60	52	17	40.5	329	285	.30	22	4	14.6
585-200/225-MP	200-225	585	450	50		318	356	468	56	30	60	52	17	49	352	300	30	22	5	2.3.7
600-250-MP	250	600	470	65			406	515	54.5	30	60	60	22	50.5	369	320	35	27	5	28.1
735-280-MP	280	735	570	65			457	585	64	30	70	70	22	55	460	420	35	27	5	38.2
800-315-MP	315	800	760	80			508	653	72.5	30	80	80	28		560	520	35	27	5



307-90/112-MP Motor Base

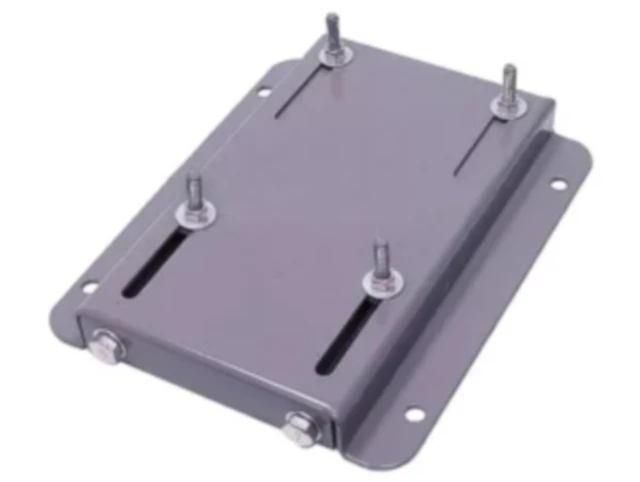

MP Motor Base is a metal base used to install and fix the motor. It is usually made of high-quality steel or aluminum alloy, has good load-bearing capacity and stability, and can provide a stable operating platform for the motor. The design of the MP Motor Base takes into account a variety of factors, including motor power, speed, installation method, etc. Its structure is generally divided into a base, mounting plate, anchor bolts, and other parts, which can be customized according to actual needs.

Product Introduction

MP Motor Base, produced by Raydafon, is a metal base that can provide a stable operating platform for the motor. It is widely used in various fields such as industrial automation, mechanical equipment, pump stations, etc. Choosing the appropriate MP Motor Base can ensure the normal operation of the motor and improve the stability and service life of the equipment.

Product Features

• High strength and stability, can support heavy motors
• Easy to install and adjust to fit different motor sizes
• Long service life and reliability
• Wide range of applications
• Optimized heat dissipation performance
• Compact design to save space

Application Scenarios

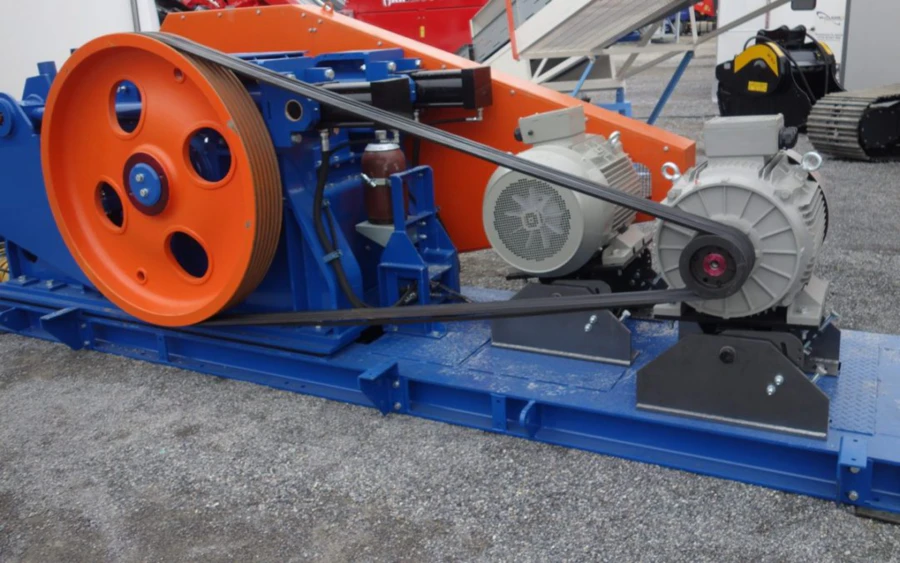

MP Motor Base is widely used in various fields such as industrial automation, mechanical equipment, pump stations, etc. Here is an example of MP Motor Base being used in a pump station:

Installation and Maintenance Guide

When installing MP Motor Base, make sure to follow these steps:

1. Prepare the mounting surface and make sure it is level and clean
2. Place the MP Motor Base on the mounting surface and adjust it to fit the motor size
3. Fasten the MP Motor Base to the mounting surface using anchor bolts
4. Install the motor onto the MP Motor Base and securely fasten it

To maintain MP Motor Base, regular cleaning and inspection is recommended. Check for any signs of wear and tear, and replace any damaged parts as needed.

Company and Product Promotion

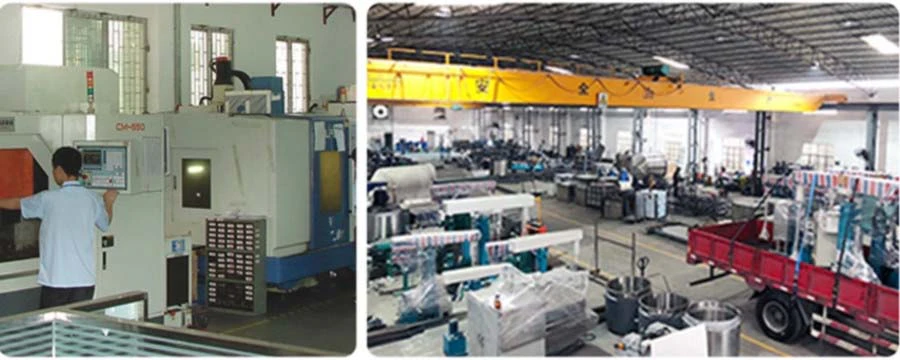

Raydafon is a leading player in the Motor Base market in China, offering a wide range of products such as MP Motor Base, SMA Motor Base, Sliding Motor Bases, European Standard Motor Bases, Adjustable Motor Base, etc. Our products are manufactured using state-of-the-art CNC production and automatic assembly equipment. We take pride in providing high-quality products, competitive pricing, and excellent customer service. We welcome customers to provide drawings or samples for customization.
