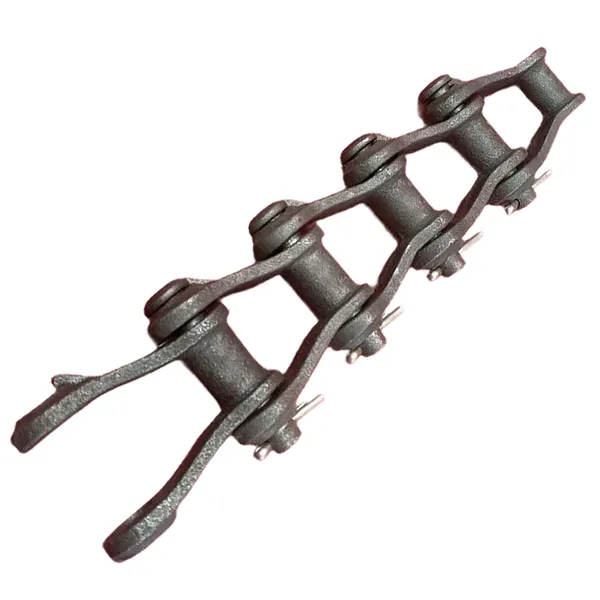

488 Pintle Chain

Chain No.	488 Pintle Chain
Pitch In Inches	2.609
Weight Per Foot LBS	2.90
Average Ultimate Strength	11000
Maximum Working Load LBS.	2130

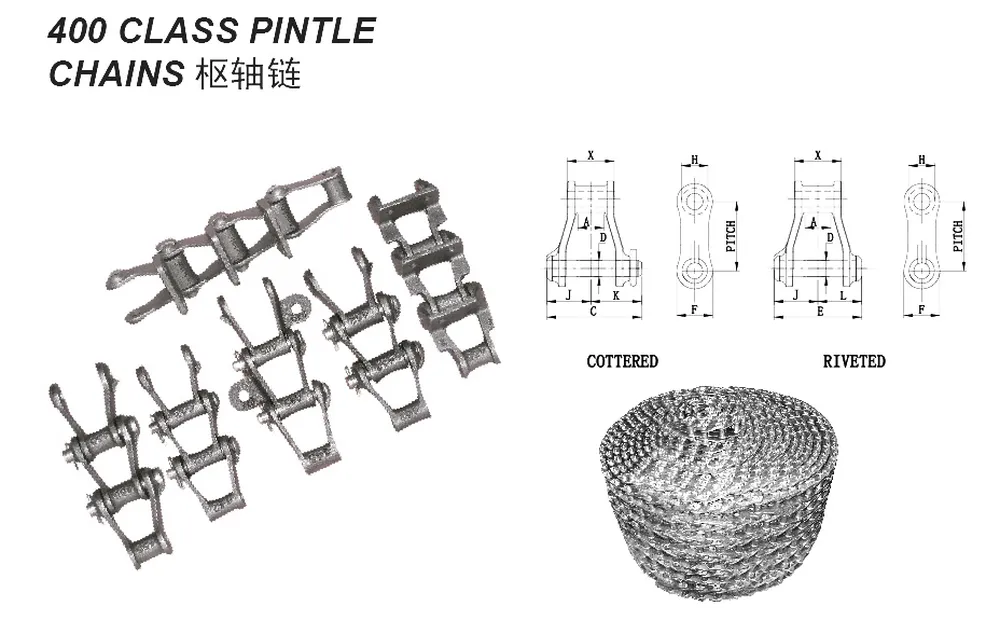

A	0.94
C	2.94
D	0.44
E	2.75
F	0.94
H	0.88
X	1.62
Available Attachments	F2, G19, K1, K2

488 Pintle Chain Attachments:

There are a variety of 488 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the 488 F2 attachment, the 488 G19 attachment, the 488 K1 attachment, and the 488 K2 attachment.

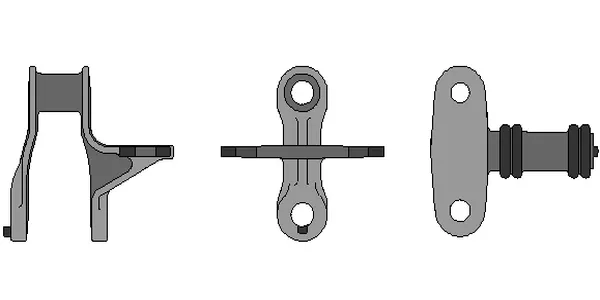

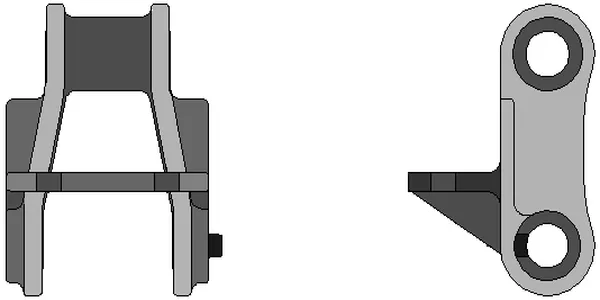

488 Pintle Chain F2 Attachment	488 Pintle Chain G19 Attachment

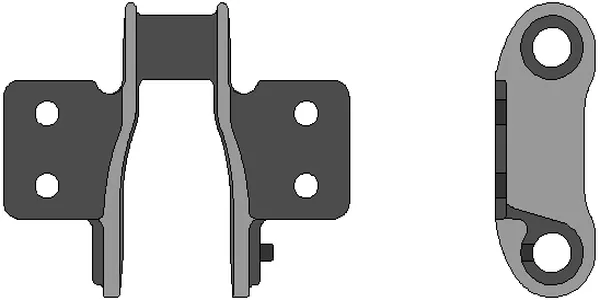

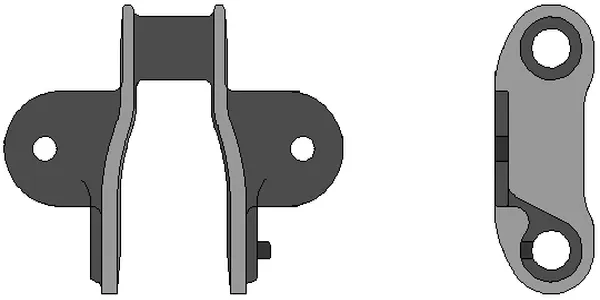

488 Pintle Chain K1 Attachment	488 Pintle Chain K2 Attachment

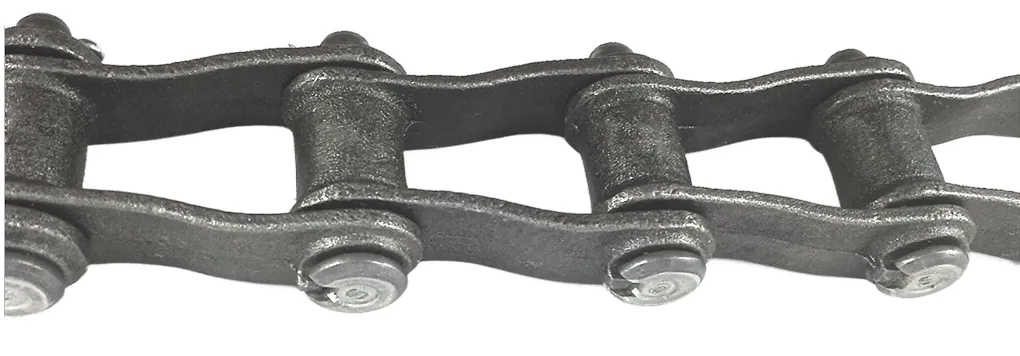

Benefits of 488 Pintle Chain:

The 488 pintle chain is a type of chain that is used in a variety of agricultural applications, including manure spreaders. It is a lightweight, economical, and durable chain that is capable of handling average loads at slow or intermediate speeds.

Here are some of the benefits of using the 488 pintle chain:

• Strength:?The 488 pintle chain is strong enough to handle the weight of the manure and the force of the spreading mechanism.
• Durability: The 488 pintle chain is durable enough to withstand the harsh conditions that manure spreaders are often subjected to.
• Economy:?The 488 pintle chain is an economical choice for manure spreaders.
• Availability:?The 488 pintle chain is widely available, making it easy to find and replace.
• Smooth operation:?The pintle chain has a closed bearing construction which makes it run smoothly, even when conveying moderately gritty and abrasive materials.
• Long service life:?The 488 pintle chain is made of?high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain.

Overall, the 488 pintle chain is a good choice for manure spreaders because it is strong, durable, economical, and widely available. It is also a good choice for other applications where a strong and durable chain is needed, such as in elevators, conveyors, and wastewater treatment systems.

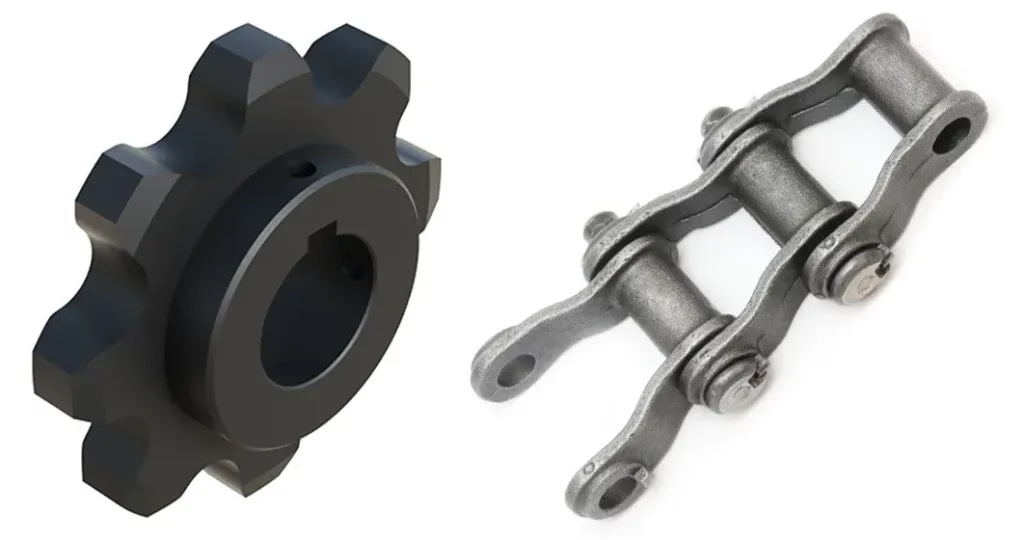

488 Pintle Chain Sprockets for 488 Pintle Chains:

The 488 pintle chain sprockets for 488 pintle chains. The 488 pintle chain has a pitch of 2.609 inches, and the sprockets that are designed for this chain also have a pitch of 2.609 inches. This ensures that the teeth of the sprockets will mesh properly with the links of the chain.

However, there are a few things to keep in mind when using 488 pintle chain sprockets for 488 pintle chains. First, the sprockets and chains must be made of the same material. This is because different materials have different coefficients of friction, and using a sprocket and chain made of different materials can cause the chain to slip.

Second, the sprockets and chains must be the same size. This means that the chain sprockets and chains must have the same number of teeth and the same pitch. If the sprockets and chains are not the same size, the chain may not fit properly on the sprockets, or it may cause the chain to wear prematurely.

Finally, the sprockets and chains must be installed correctly. The sprockets must be aligned properly, and the chain must be properly tensioned. If the sprockets and chains are not installed correctly, the chain may wear prematurely or even break.

If you are using 488 pintle chain sprockets for 488 pintle chains, it is important to follow the manufacturer's instructions carefully. This will help to ensure that the sprockets and chains are used properly and that they last for a long time.

Here are some of the factors to consider when choosing 488 pintle chain sprockets:

• The material of the sprockets
• The size of the sprockets
• The number of teeth on the sprockets
• The type of sprockets (solid, perforated, or slotted)
• The finish of the sprockets
