DIN/ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | t/T(max) | Pt | Q(min) | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
05BSS-2 | 8 | 5 | 3 | 2.31 | 13.9 | 14.5 | 7.1 | 0.8 | 5.64 | 4.68 | 6.1 | 0.33 |
06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.4 | 24.4 | 8.2 | 1.3 | 10.24 | 10.14 | 11.22 | 0.77 |
08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 19.2 | 23.22 | 1.34 |
10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 16.59 | 26.7 | 33.72 | 1.84 |
12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 43.6 | 16 | 1.85 | 19.46 | 34.68 | 39.66 | 2.31 |
16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 69.3 | 21 | 4.15/3.1 | 31.88 | 63.6 | 79.8 | 5.42 |
20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 102 | 126.72 | 7.2 |
24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 168 | 191.52 | 13.4 |
28BSS-2 | 44.45 | 27.94 | 30.99 | 15.9 | 124.6 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 216 | 244.08 | 16.6 |
32BSS-2 | 50.8 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42 | 7.0/6.0 | 58.55 | 270 | 305.1 | 21 |
40BSS-2 | 63.5 | 39.37 | 38.1 | 22.89 | 154.5 | 161.5 | 52.96 | 8.5/8.0 | 72.29 | 378 | 427.14 | 32 |
48BSS-2 | 76.2 | 48.26 | 45.72 | 29.24 | 190.4 | 198.2 | 63.8 | 44905 | 91.21 | 600 | 678 | 50 |

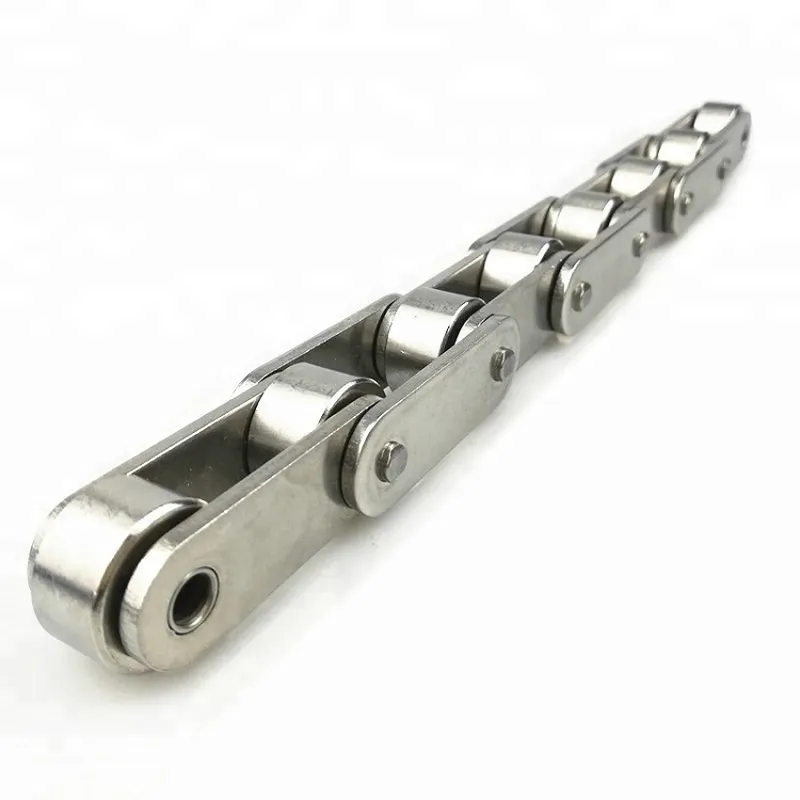

The 48BSS-2 Duplex Short Pitch Stainless Steel Roller Chain is a mechanical device used in various industrial applications for the transmission of power. Its unique stainless steel composition makes it an ideal choice for environments where corrosion resistance is essential. Its use in mechanical drive systems is integral due to its durability, efficiency, and ability to withstand harsh conditions.
The basic structure of the roller chain is composed of three main components:
Link plates are the fundamental structure of the short pitch stainless steel roller chain, comprising inner and outer link plates connected via a pin.
Rollers are the primary bearing components of the chain, consisting of a body and a shaft. The roller body cooperates with the protruding platform of the inner and outer link plates, and the roller shaft cooperates with the pin of the link plate.
Pins are the connecting elements of the short pitch stainless steel roller chain, linking the link plates and rollers together.
Our stainless steel chain is made of advanced materials. They perform very well in acidic and alkaline environments where direct contact with food is required. The chain is also exposed to water and can withstand extremely high or low temperatures (-40 ?? C to +400 ?? C) where corrosion resistance is required. When chemical resistance is critical, Reynolds stainless steel chains should be selected. It is manufactured from FDA-approved materials and pre-lubricated with USDA H1-approved lubricants. The key features of our chain include:
The stainless steel roller chain works by transferring power through the interaction of the chain and sprocket. The chain wraps around the sprocket, and as the sprocket turns, the chain is driven, which in turn drives the machinery connected to the chain. The roller chain is designed to handle both tension and compression loads, making it a versatile solution for a range of mechanical devices.
The 48BSS-2 Duplex Short Pitch Stainless Steel Chain is widely used in various industries, such as food processing, chemical industries, and medical equipment. It is especially suitable for use in damp and corrosive environments due to its stainless steel composition. The following are some of the specific applications:
Proper maintenance and care for the stainless steel chain can greatly extend its service life. This includes regular cleaning to remove any accumulated debris, lubrication to reduce friction and wear, and periodic inspections to identify any potential issues early on.
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. We also offer high-quality stainless steel sprockets for sale.
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our roller chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions. We encourage customers to explore our 48BSS-2 Duplex Short Pitch Stainless Steel Roller Chain and contact us for purchase.
