500 Bucket Elevator Chain

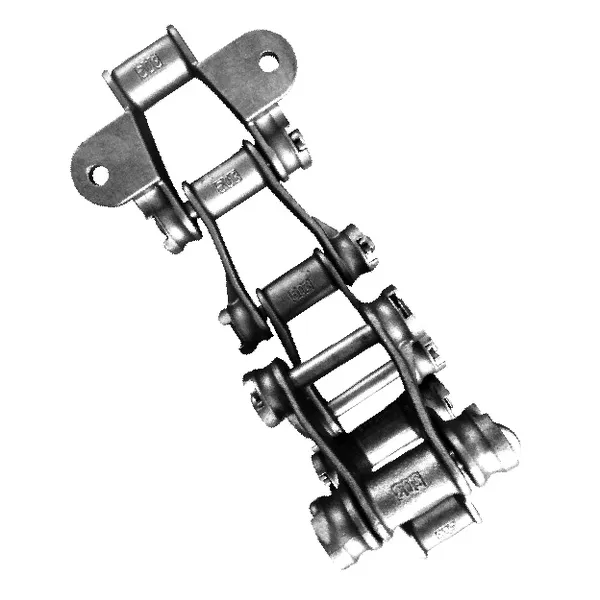

500 Bucket Elevator Chain

The 500 bucket elevator chain is a heavy-duty chain system designed specifically for bucket elevators, which are widely used in various industries to vertically transport bulk materials such as grains, seeds, fertilizers, minerals, and other granular or powdered materials. This chain is engineered to withstand the demanding conditions and high loads associated with bucket elevator applications.The 500 bucket elevator chain consists of a series of interconnected metal links with attachments called buckets. These buckets are designed to scoop up the material at the bottom of the elevator and carry it vertically to the top, where it is discharged. The chain is driven by a motorized sprocket at the top or bottom of the elevator, depending on the design.The 500 bucket elevator chain is known for its robust construction and reliable performance in handling heavy loads and abrasive materials. It is designed to withstand the demanding conditions of industrial applications, including high temperatures, dusty environments, and continuous operation.When selecting a 500 bucket elevator chain, factors such as material characteristics, capacity requirements, and operating conditions should be considered. Various configurations and options are available to suit specific needs, including different bucket shapes and sizes, chain materials, and surface treatments for enhanced wear resistance.

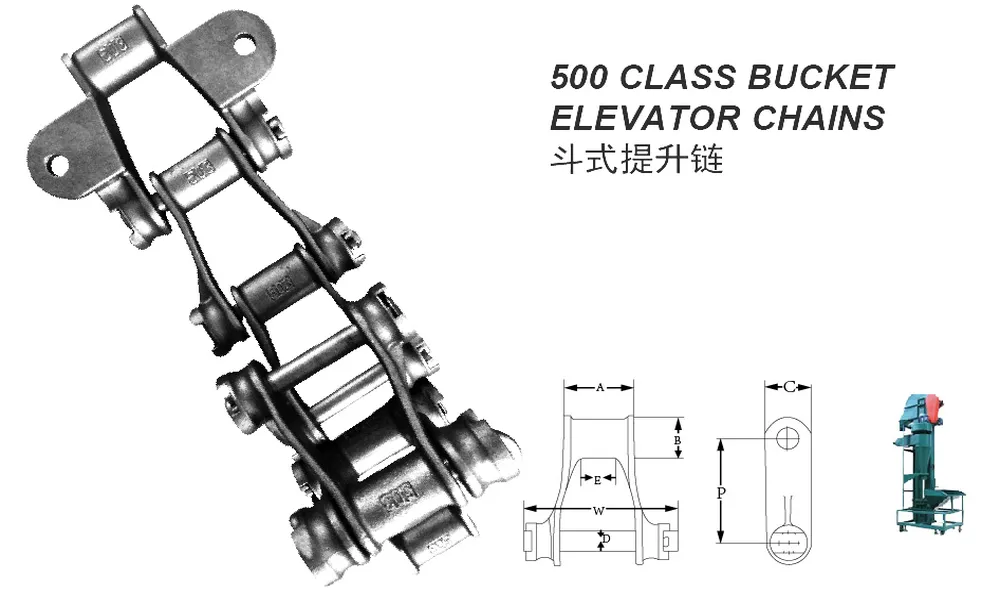

500 Bucket Elevator Chain Dimensions:

500 Bucket Elevator Chain Dimensions in Inches:

Chain No.	500 Bucket Elevator Chain
Pitch In Inches	6.04
Weight	6.0
Allowable Chain Pull	4160
Breaking Load	25000
Links Per Coil	20
A	2.75
B	1.13
C	1.50
D	0.63
E	1.50
W	5.50

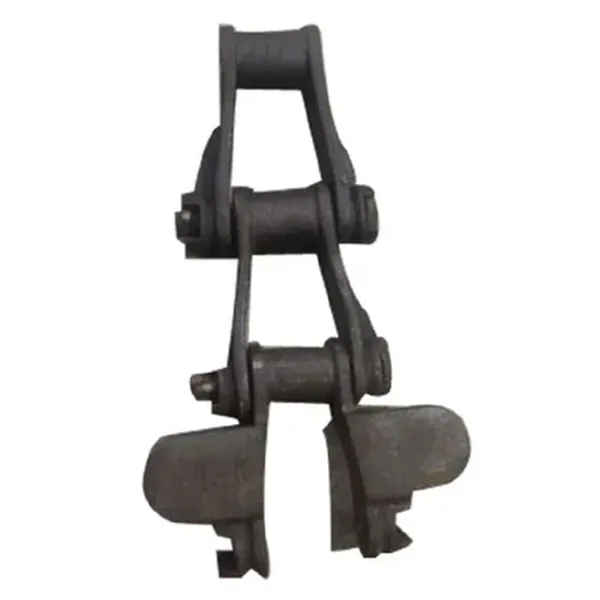

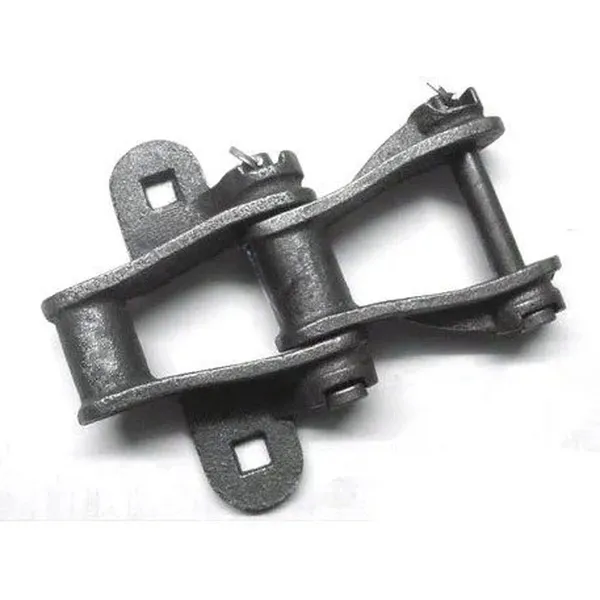

Features of 500 Bucket Elevator Chain:

The 500 bucket elevator chain offers a reliable and robust solution for vertical material handling needs in industries such as agriculture, mining, cement production, food processing, and more. Its high strength, wear resistance, and fatigue strength make it suitable for heavy-duty applications, where dependable and efficient vertical conveying is essential, here are some common features and characteristics of 500 bucket elevator chain:1. High Strength: The 500 bucket elevator chain is constructed using high-quality alloy steels with precise heat treatment processes, ensuring exceptional strength and durability. It is designed to handle heavy loads and resist wear even under harsh operating conditions.2. Precision Engineering: The 500 bucket elevator chain is manufactured with precision engineering techniques to ensure optimal performance and reliable operation. Each component is carefully designed to fit and function seamlessly within the bucket elevator system.3. Enhanced Wear Resistance: The 500 bucket elevator chain is designed to withstand abrasive materials and minimize wear. The chain's components, such as pins, bushings, and rollers, are hardened and surface-treated to increase their resistance to friction and extend their service life.4. Superior Fatigue Strength: Bucket elevators often involve continuous and repetitive vertical movement, subjecting the chain to cyclic loading. The 500 bucket elevator chain is engineered to have excellent fatigue strength, enabling it to endure the rigorous demands of long-term operation.5. Customizable Configurations: The 500 bucket elevator chain is available in various configurations to accommodate different bucket elevator designs and applications. It can be customized based on specific requirements, such as pitch, attachment types, and overall length, to ensure optimal performance and compatibility.6. Easy Maintenance: The 500 bucket elevator chain design allows for easy maintenance and replacement of individual components when necessary. This simplifies the upkeep process and minimizes downtime, contributing to efficient operation and reduced costs.

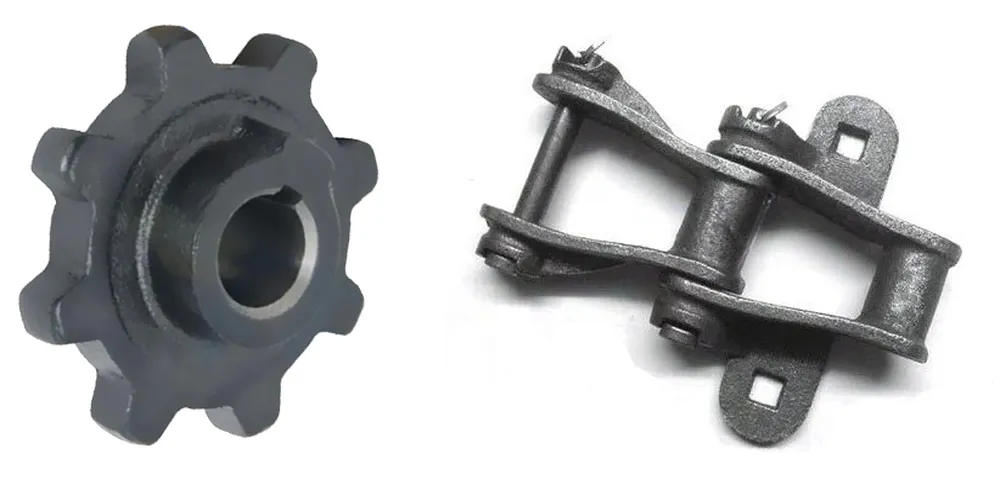

Bucket Elevator Chain Sprockets for 500 Bucket Elevator Chain

When it comes to bucket elevator chains, the sprockets play a crucial role in ensuring smooth and efficient operation. Here are some key considerations for bucket elevator chain sprockets:(1) Tooth Profile: The sprocket teeth are designed to engage with the buckets on the elevator chain. The tooth profile is typically carefully engineered to provide optimal grip and minimize slippage, ensuring effective transfer of materials.(2) Material: Bucket elevator chain sprockets are commonly made from durable materials such as alloy steel or cast iron. The material should have high strength and wear resistance to withstand the loads and abrasion encountered in bucket elevator applications.(3) Hardening and Surface Treatment: To enhance the sprocket's wear resistance, the teeth and contact surfaces may undergo heat treatment processes such as induction hardening or carburization. This increases the sprocket's surface hardness, reducing wear and extending its lifespan.(4) Tooth Configuration and Pitch: The sprocket's tooth configuration, including the number of teeth and their spacing, is designed to match the specific bucket elevator chain. It ensures proper engagement and smooth movement of the chain, preventing jamming or skipping.(5) Hub Design and Mounting: The hub of the sprocket is the central part that connects to the drive mechanism. It should be designed for secure attachment, alignment, and easy installation on the shaft or gearbox.(6) Alignment and Tensioning: Bucket elevator chain sprockets may feature features such as flanges or guides to help maintain proper alignment of the chain as it moves around the sprocket. Additionally, tensioning mechanisms may be incorporated to adjust the chain tension and ensure proper operation.(7) Compatibility and Customization: It is essential to ensure that the sprocket is compatible with the specific bucket elevator chain being used. Manufacturers typically provide sprockets designed to work with their specific chains, but customization options may be available to match unique requirements.

China Bucket Elevator Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
