520 Standard Motorcycle Chain

520 Standard Motorcycle Chain

The 520 Standard Motorcycle Chain is a versatile and durable chain that is perfect for a wide range of motorcycles, from street bikes to dirt bikes to cruisers. It is made with high-quality materials and construction, and it is designed to withstand the rigors of everyday riding.

The 520 Standard Motorcycle Chain has a pitch of 5/8 inches, which is the most common pitch used for motorcycle chains. It also has a width of 20 inches, which is a good all-around size for most motorcycles.

The 520 Standard Motorcycle Chain is available in a variety of lengths, so you can choose the one that is right for your motorcycle. It is also available in a variety of colors, so you can match it to your motorcycle's paint scheme.

520 Standard Motorcycle Chain Sizes Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
520	15.875	Curled	6.35	5.08	17.50	10.14	2.03	1.96	26.5	0.91

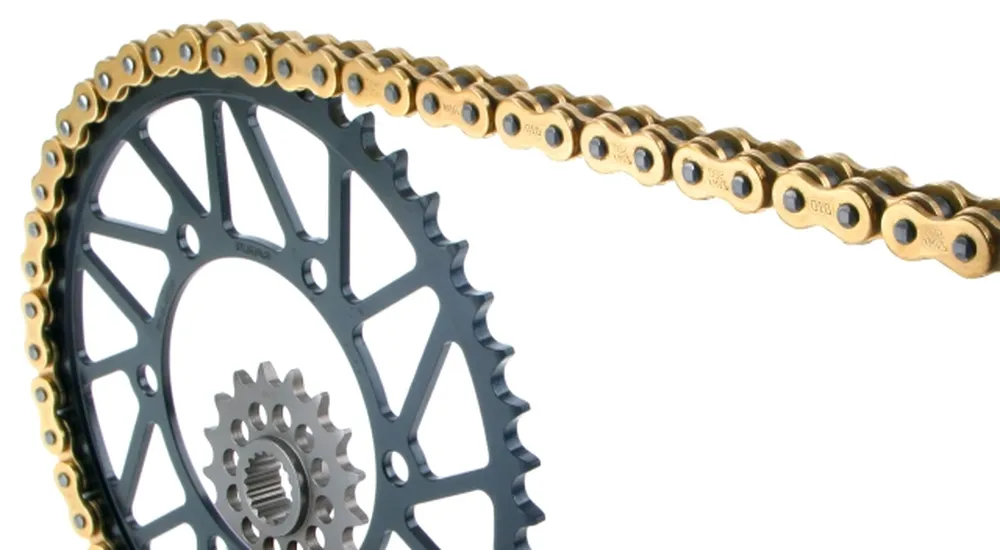

Benefits of Using a 520 Standard Motorcycle Chain:

The 520 standard motorcycle chain is a popular choice among riders due to its various benefits. Here are some advantages of using a 520 standard motorcycle chain:1. Weight Reduction: The 520 motorcycle chain is lighter compared to heavier-duty chains like the 525 or 530 motorcycle chains. The reduced weight results in less rotational mass, which can improve the overall performance of the motorcycle. It can contribute to quicker acceleration, better handling, and improved fuel efficiency.2. Increased Power Transfer: The narrower design of the 520 motorcycle chain allows for more efficient power transfer from the engine to the rear wheel. The reduced width means less friction and resistance, enabling a greater percentage of power to reach the wheel. This can result in improved acceleration and overall performance.3. Enhanced Handling: The lighter weight and reduced rotational mass of the 520 motorcycle chain can contribute to better handling characteristics. The reduced weight can make the motorcycle feel more responsive and nimble, allowing riders to navigate corners and turns with greater ease.4. Compatibility: The 520 motorcycle chain is a standard size that fits a wide range of motorcycles. Many manufacturers produce sprockets and other components specifically designed for the 520 chain, making it readily available and easy to find replacement parts.5. Cost-Effectiveness: The 520 motorcycle chain is typically less expensive compared to heavier-duty chains. This can be beneficial for riders on a budget or those who do not require the absolute maximum strength and durability offered by heavier chains. The lower cost can make maintenance and replacement more affordable.6. Maintenance and Durability: While the 520 motorcycle chain may not be as robust as heavier-duty chains, it still provides good durability and reliability when properly maintained. Regular cleaning, lubrication, and tension adjustment can help ensure optimal performance and longevity.

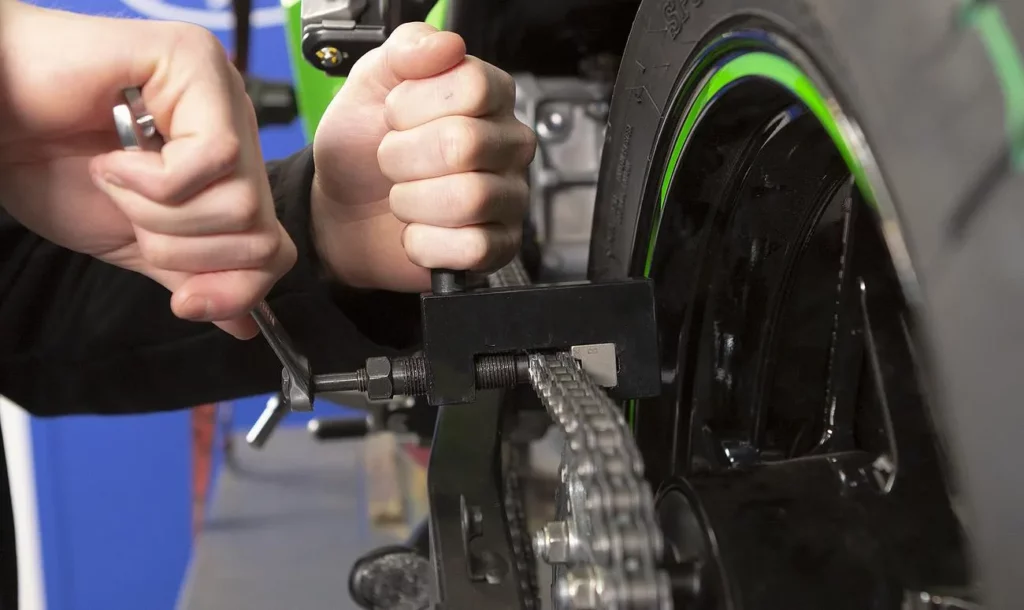

How to Break a 520 Motorcycle Chain?

Breaking a 520 motorcycle chain typically refers to the process of removing the chain from the motorcycle's sprockets in order to replace it or perform maintenance. Here's a step-by-step guide on how to break a 520 motorcycle chain using a chain breaker tool:1. Gather the necessary tools: You'll need a chain breaker tool, which is a specialized tool designed to remove and install motorcycle chains. Additionally, you may need a pair of pliers or a wrench to loosen and remove the chain's master link (if present).2. Prepare the motorcycle: Place the motorcycle on a stable surface and ensure it is in neutral with the engine turned off. This will make it easier to work with the chain.3. Loosen the rear wheel: If your motorcycle has an adjustable rear wheel, use the appropriate tools to loosen the axle nut and adjusters. This will create slack in the chain, making it easier to remove.4. Locate the master link: The master link is a special link on the chain that allows for easy installation and removal. It usually looks different from the other links and may have a clip or a rivet.5. Remove the clip or rivet: If your chain has a master link with a clip, use pliers or a wrench to remove the clip. If it has a rivet, you'll need to use a chain breaker tool to push the pin out of the link.6. Position the chain breaker tool: Place the chain breaker tool on the chain, aligning the tool's pin with the pin in the chain link you want to remove.7. Break the chain: Tighten the chain breaker tool's screw or handle to apply pressure on the chain pin. This will push the pin out of the link, separating the chain.8. Remove the chain: Once the pin is fully pushed out, remove the chain from the motorcycle by pulling it off the sprockets.9. Install a new chain or perform maintenance: If you're replacing the chain, follow the manufacturer's instructions to install the new chain on the sprockets. If you're performing maintenance, clean the chain thoroughly, lubricate it, and inspect it for any signs of wear or damage.

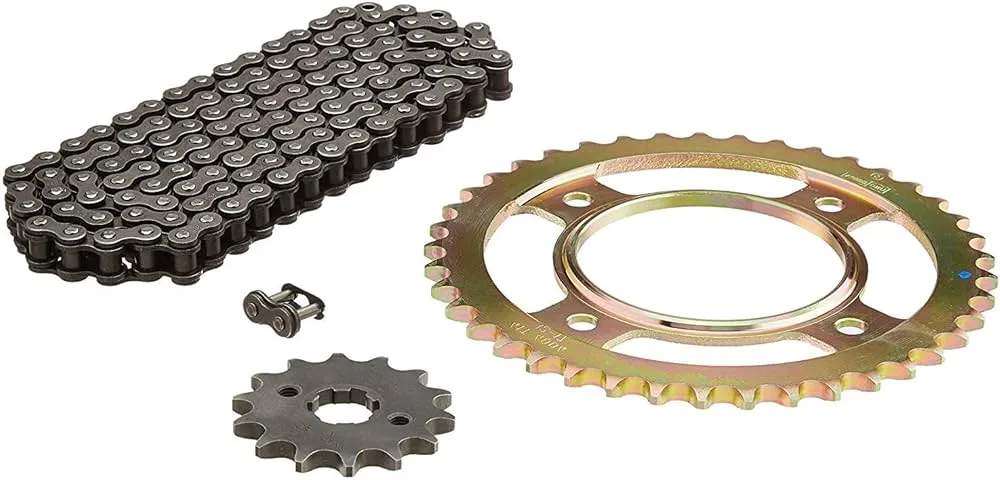

Motorcycle Chain Sprockets for 520 Motorcycle Chain:

Motorcycle chain sprockets and the 520 motorcycle chain are interconnected components that work together to transfer power from the engine to the rear wheel. Here's how they relate to each other:Motorcycle Chain Sprockets: Sprockets are toothed wheels that are mounted on the motorcycle's engine output shaft (front sprocket) and rear wheel axle (rear sprocket). The teeth on the motorcycle chain sprockets engage with the links of the motorcycle chain, causing the sprockets to rotate when the chain is in motion. The front sprocket is usually smaller in size, while the rear sprocket is larger.520 Motorcycle Chain: The 520 motorcycle chain refers to a specific chain size that is commonly used in motorcycles. The "520" designation represents the pitch and width of the chain. The pitch refers to the distance between the chain's rollers, while the width represents the space that the chain occupies on the sprocket teeth.Chain Compatibility: It's important to ensure compatibility between the motorcycle chain and the sprockets. The chain and sprockets should have the same pitch size to ensure proper engagement and smooth power transfer. In the case of a 520 chain, both the front and rear sprockets should be designed to accommodate a 520 chain.Sprocket Teeth Count: The tooth count on the front and rear sprockets affects the motorcycle's performance characteristics. A smaller front sprocket or a larger rear sprocket will generally result in quicker acceleration but lower top speed. Conversely, a larger front sprocket or a smaller rear sprocket will provide higher top speed but slower acceleration. The specific tooth count combination depends on the motorcycle's intended use and rider preferences.Chain Maintenance and Replacement: Over time, motorcycle chains and sprockets wear out due to normal use and exposure to elements. Regular chain maintenance, including cleaning, lubrication, and proper tension adjustment, is essential to prolong their lifespan. Eventually, the chain or sprockets may need replacement when they become excessively worn or damaged.When replacing the motorcycle chain, it's generally recommended to replace both the front and rear sprockets as well. This is because the chain, sprockets, and teeth wear together as a system, and using a new chain with worn sprockets can lead to premature chain wear or poor performance. It's important to choose sprockets that are compatible with the 520 chain size and have the correct tooth count for your desired riding characteristics.

China Motorcycle Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain,?500 Class bucket elevator chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
