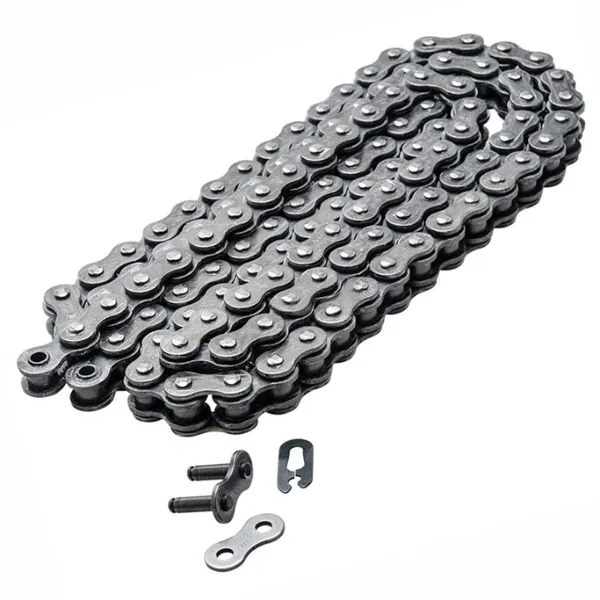

525H Reinforced Motorcycle Chain

525H Reinforced Motorcycle Chain

The 525H reinforced motorcycle chain is a heavy-duty chain that is designed to withstand the rigors of high-performance motorcycles and racing applications. It has a pitch of 15.875 mm and a width of 7.94 mm, and it is made with stronger materials and construction than standard motorcycle chains. This makes it more resistant to wear and tear, and it can handle higher loads and speeds.

The "H" in 525H stands for heavy-duty, and it indicates that the chain is thicker and stronger than a standard 525 motorcycle chain. It also has a higher tensile strength, which means that it can withstand more force without breaking.

525H reinforced motorcycle chains are typically used on high-performance motorcycles, such as sportbikes and racing bikes. They are also used on some heavy-duty cruisers and touring bikes.

525H Reinforced Motorcycle Chain Size Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
525H	15.875	Curled	7.94	5.08	20.90	10.16	2.40	2.35	30.5	1.09

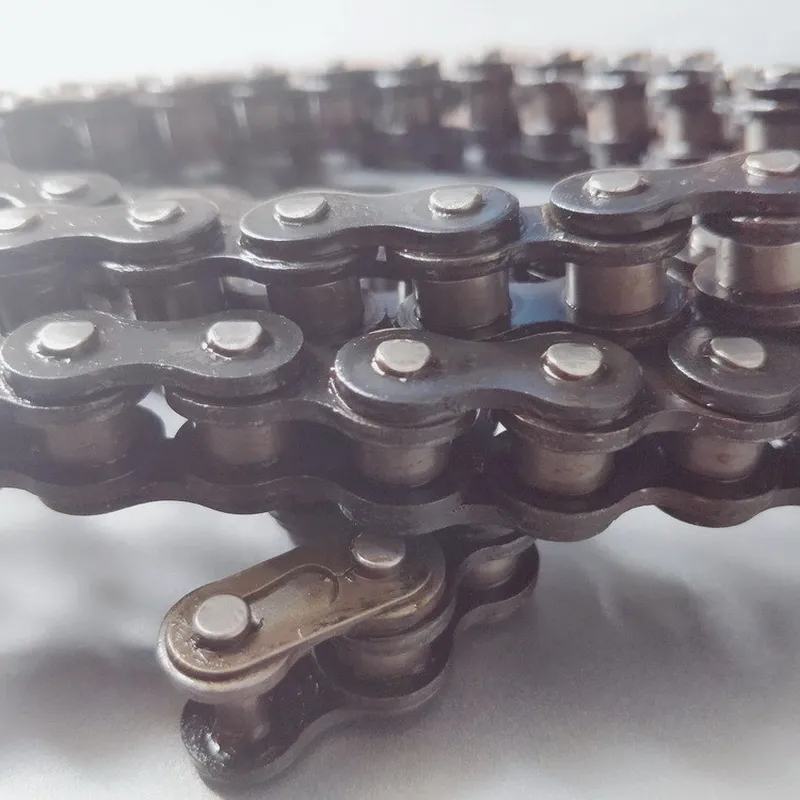

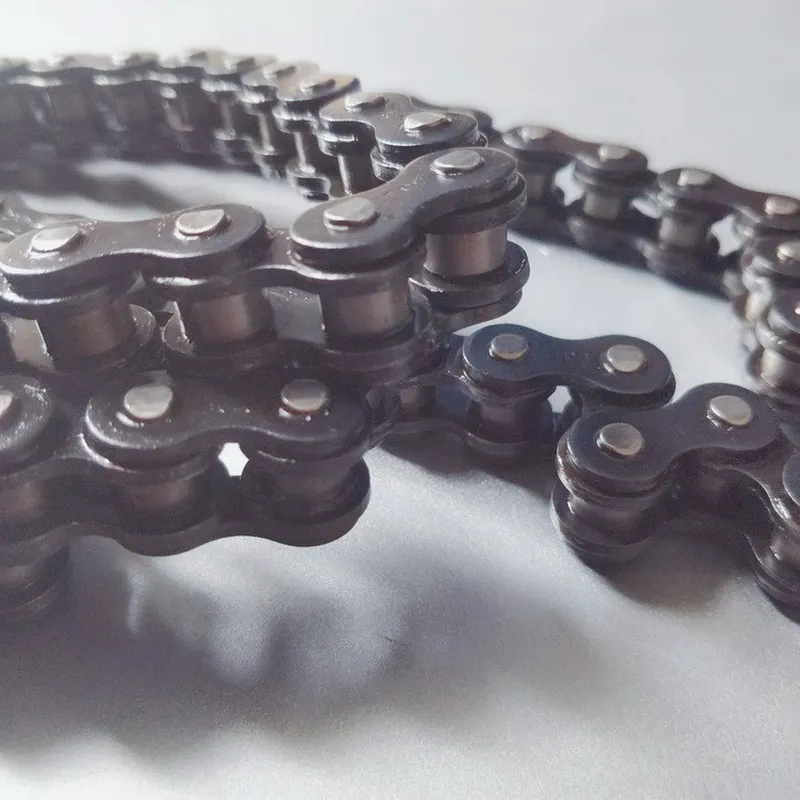

525H Reinforced Motorcycle Chain Design Features:

525H reinforced motorcycle chains are designed to withstand the high torque and power output of modern motorcycles. They feature a number of design features that make them stronger and more durable than standard chains, including:

1. Hardened alloy steel construction: 525H reinforced motorcycle chains are made from hardened alloy steel that is much stronger than the mild steel used in standard chains. This makes them more resistant to wear and tear, and less likely to break under load.2. Heat treatment: 525H reinforced motorcycle chains are heat treated to give them even greater strength and durability. This process also helps to reduce friction and wear, which extends the life of the chain.3. X-ring seals: 525H reinforced motorcycle chains use X-ring seals to keep lubricant in and dirt and moisture out. This helps to reduce friction and wear, and extend the life of the chain.4. Reinforced side plates: 525H reinforced motorcycle chains have reinforced side plates that are thicker and stronger than standard side plates. This makes them more resistant to wear and tear, and less likely to break under load.

In addition to these features, 525H reinforced motorcycle chains are also available in a variety of different finishes, including zinc-plated, nickel-plated, and black oxide. This allows you to choose the finish that best matches your motorcycle.

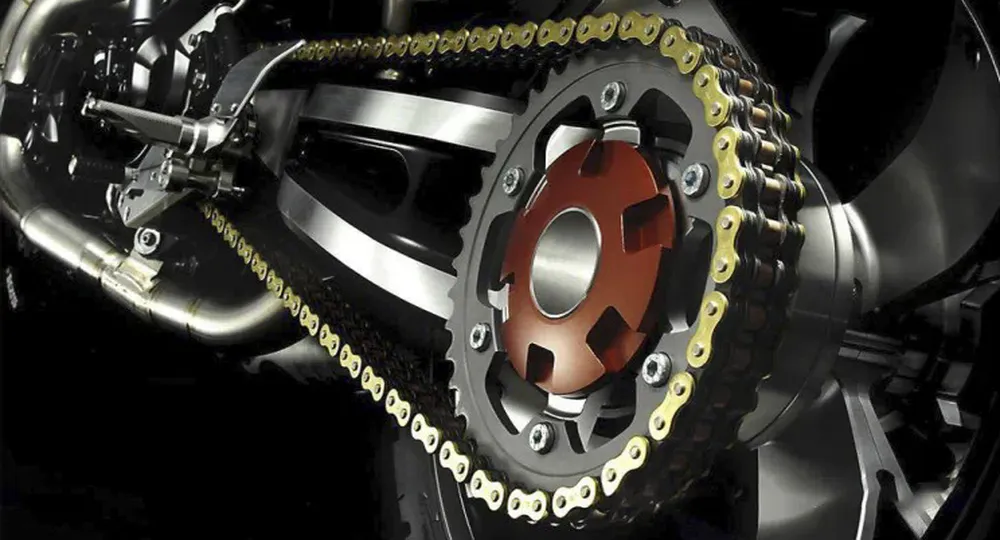

Benefits of 525H Reinforced Motorcycle Chain:

The 525H reinforced motorcycle chain is a popular choice for many riders, and there are several benefits to using one. Here are a few of the key advantages:

• Increased strength and durability:?The 525H motorcycle chain is reinforced with additional material, making it stronger and more durable than other chains. This is especially important for high-performance motorcycles and riders who put a lot of stress on their chains.
• Reduced wear and tear:?The increased strength and durability of the 525H motorcycle chain also means that it will wear and tear less quickly than other chains. This can save you money on replacement costs in the long run.
• Smoother operation:?The 525H motorcycle chain is designed to run smoothly and quietly, which can help to improve the overall riding experience.
• Longer lifespan:?The 525H motorcycle chain has a longer lifespan than other chains, so you won't have to replace it as often. This can save you time and money in the long run.

Overall, the 525H reinforced motorcycle chain is a great option for riders who are looking for a strong, durable, and long-lasting chain. It is especially well-suited for high-performance motorcycles and riders who put a lot of stress on their chains.

In addition to the benefits listed above, the 525H reinforced motorcycle chain is also relatively affordable and easy to find. It is compatible with a wide range of motorcycles, so it is a versatile option for many riders.

If you are looking for a new motorcycle chain, the 525H reinforced chain is a great choice to consider. It offers a number of benefits over other chains, including increased strength and durability, reduced wear and tear, smoother operation, and a longer lifespan.

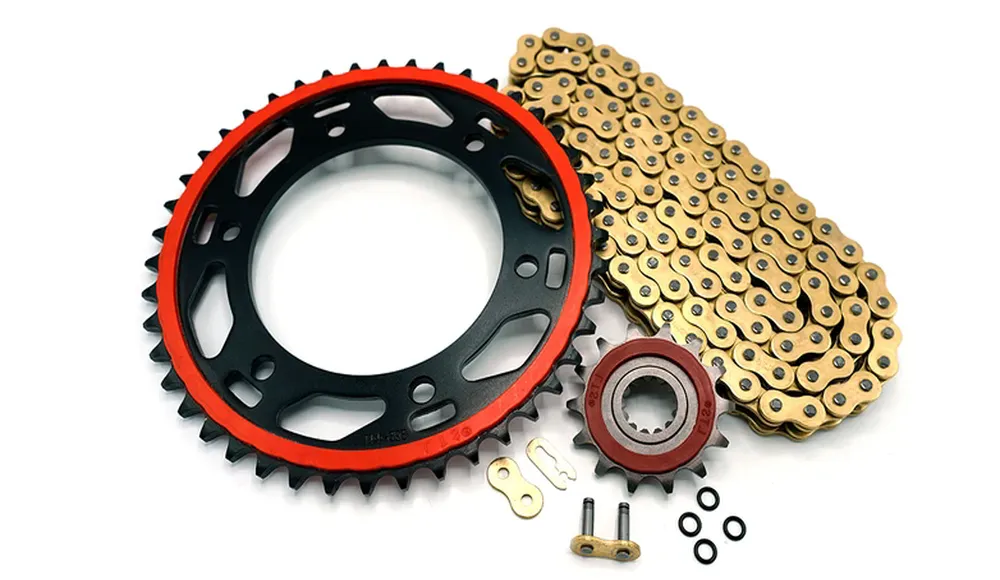

Motorcycle Chain Sprockets for 525H Motorcycle Chains:

Motorcycle chain sprockets and 525H motorcycle chains are key components of the motorcycle's drivetrain system. Motorcycle chain sprockets are toothed wheels or gears that are mounted on the motorcycle's wheel hub, typically at the rear wheel. They work in conjunction with the motorcycle chain to transfer power from the engine to the rear wheel, propelling the motorcycle forward. The sprockets have teeth that engage with the links of the chain, causing the sprocket and the wheel to rotate together.Motorcycle chain sprockets are available in various sizes and tooth configurations. The two primary types of sprockets are the front sprocket (also known as the countershaft sprocket) and the rear sprocket. The front sprocket is connected to the motorcycle's transmission output shaft, while the rear sprocket is mounted on the wheel hub.The tooth count and size of the motorcycle chain sprockets directly affect the motorcycle's final drive ratio, which impacts the motorcycle's acceleration and top speed. Changing the sprocket sizes can alter the performance characteristics of the motorcycle, such as increasing low-end torque or improving top speed.The 525H motorcycle chain is a specific type of motorcycle chain that belongs to the 525 chain series. The "525" refers to the pitch of the chain, which is the distance between the centers of two consecutive chain pins. In this case, the pitch is 5/8 inch or approximately 15.875 mm. The "H" in 525H represents the chain's strength rating or tensile strength. The H-rated chains are designed to handle higher power outputs and torque loads compared to standard chains. They are commonly used in motorcycles with medium to large engine displacements and higher performance capabilities.Motorcycle chains are made up of a series of interconnected links that engage with the teeth of the sprockets. The 525H chain has specific dimensions and construction to withstand the demands of high-performance motorcycles. It is built to be durable reliable, and provide smooth power transfer between the sprockets.It's important to note that when replacing a motorcycle chain, it is recommended to replace both the front and rear sprockets as well. This ensures proper fitment and optimal performance, as worn sprockets can prematurely wear out a new chain or vice versa.When working with motorcycle chain sprockets and chains, it's crucial to follow the manufacturer's recommendations and maintenance procedures. Regular cleaning, lubrication, and tension adjustments will help prolong the lifespan of these components and ensure the safe and efficient operation of the motorcycle.
