567 Bucket Elevator Chain

567 Bucket Elevator Chain

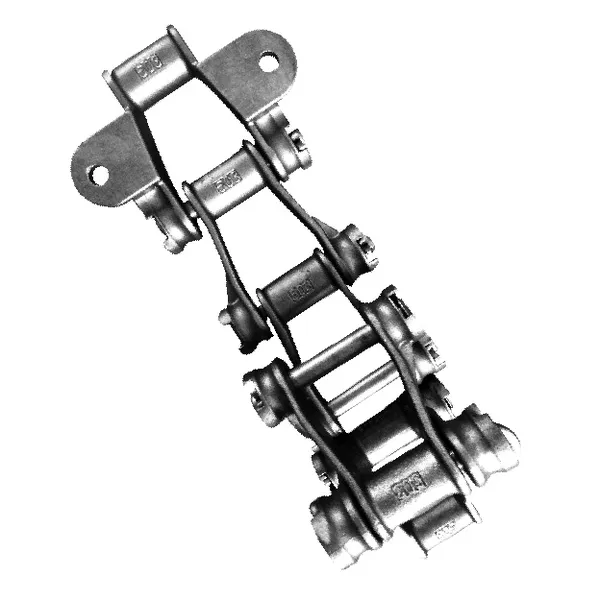

The 567 bucket elevator chain is a type of chain specifically designed for bucket elevators, which are commonly used in various industries for vertical transportation of bulk materials. This chain is known for its durability, strength, and reliable performance in demanding applications.The 567 bucket elevator chain is engineered to withstand the rigorous conditions encountered in bucket elevator systems. It features a robust construction with high-quality materials to ensure longevity and minimize downtime. The bucket elevator chain is typically made of alloy steel, which provides excellent tensile strength and resistance to wear and fatigue.This type of 567 bucket elevator chain consists of a series of interconnected links that form a continuous loop. The links are designed to engage with buckets, which are attached at regular intervals along the chain. As the chain moves, the buckets carry the material being transported vertically.The 567 bucket elevator chain is designed with precision to ensure smooth operation and minimize the risk of jamming or material spillage. It is available in various sizes and configurations to accommodate different elevator designs and capacities. The bucket elevator chain can be customized to meet specific application requirements, such as high-temperature environments or corrosive conditions.

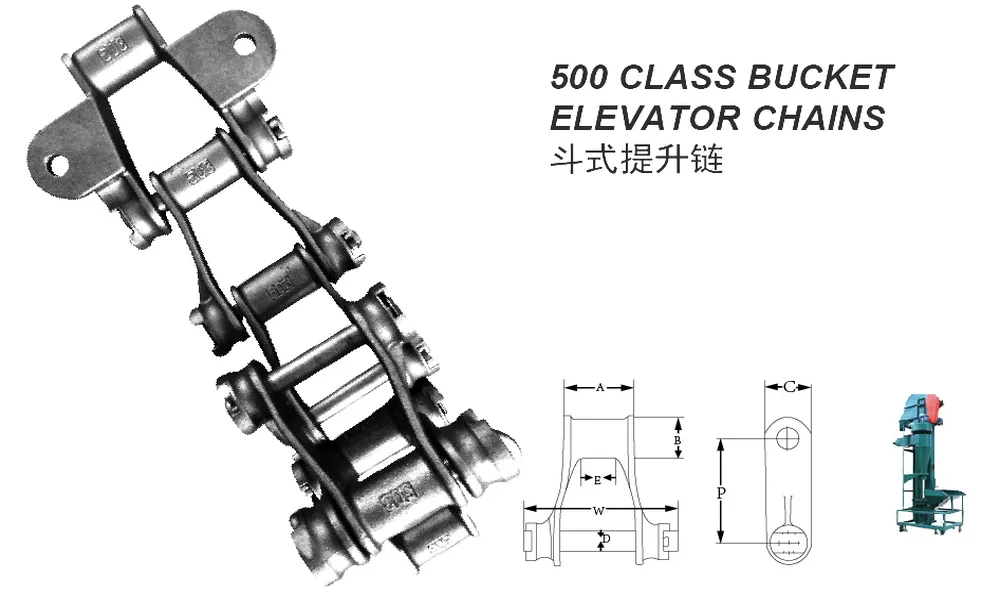

567 Bucket Elevator Chain Dimensions:

Chain No.	567 Bucket Elevator Chain
Pitch In Inches	2.32
Weight	3.5
Allowable Chain Pull	1470
Breaking Load	12500
Links Per Coil	52
A	1.56
B	0.97
C	1.06
D	0.38
E	0.75
W	3.13

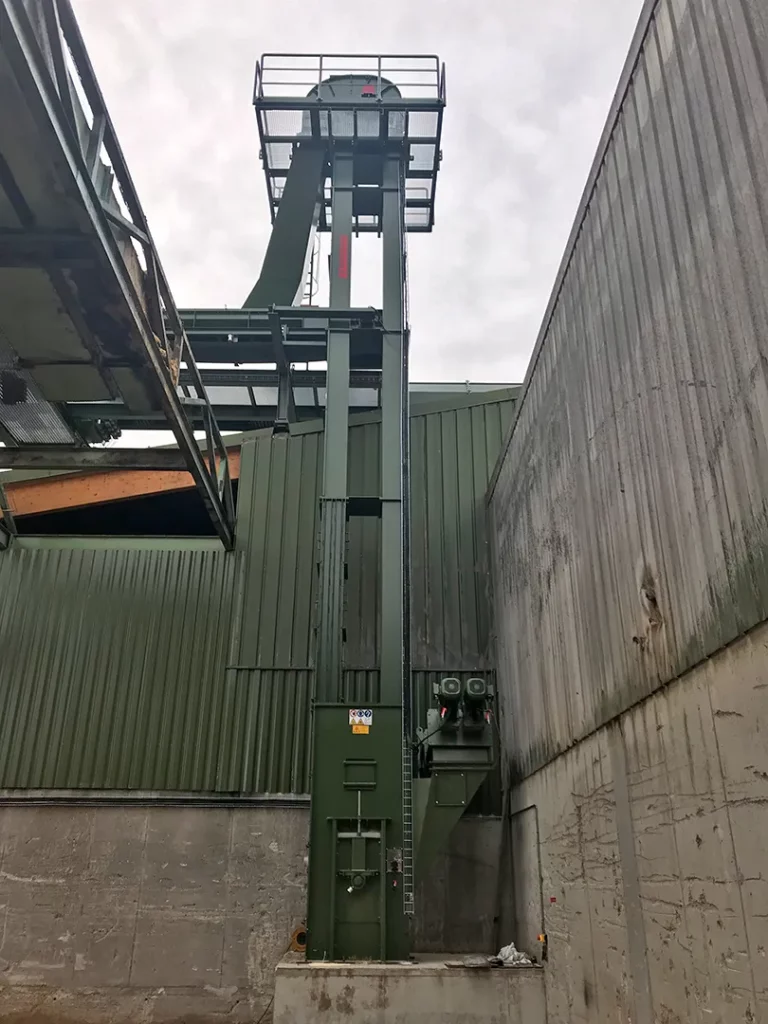

567 Bucket Elevator Chain Advantages:

The 567 bucket elevator chain offers several advantages in bucket elevator applications. Here are some key benefits:1. Durability: The 567 bucket elevator chain is built to withstand demanding conditions and has excellent durability. It is constructed using high-quality alloy steel, which provides high tensile strength and resistance to wear and fatigue. This ensures a long service life and minimizes the need for frequent chain replacements.2. Reliable Performance: This 567 bucket elevator chain is engineered with precision to deliver reliable performance. Its design minimizes the risk of jamming or material spillage, ensuring the smooth and efficient operation of the bucket elevator. The consistent and reliable performance of the chain helps to optimize the overall productivity of the system.3. Versatility: The 567 bucket elevator chain is available in various sizes and configurations to suit different elevator designs and capacities. It can be customized to meet specific application requirements, such as high-temperature environments or corrosive conditions. This versatility allows it to be used in a wide range of industries and applications.4. Easy Maintenance: Proper maintenance is crucial for the longevity and performance of any chain system. The 567 bucket elevator chain is designed for easy maintenance, with features that facilitate inspection and lubrication. Regular maintenance helps to prevent excessive wear, ensures optimal performance, and maximizes the chain's lifespan.5. Cost-Effective: The durability and reliability of the 567 bucket elevator chain contribute to its cost-effectiveness. Its long service life and minimal need for replacements or repairs result in reduced downtime and maintenance costs. Additionally, its efficient performance helps to improve overall productivity and operational efficiency, further enhancing cost-effectiveness.

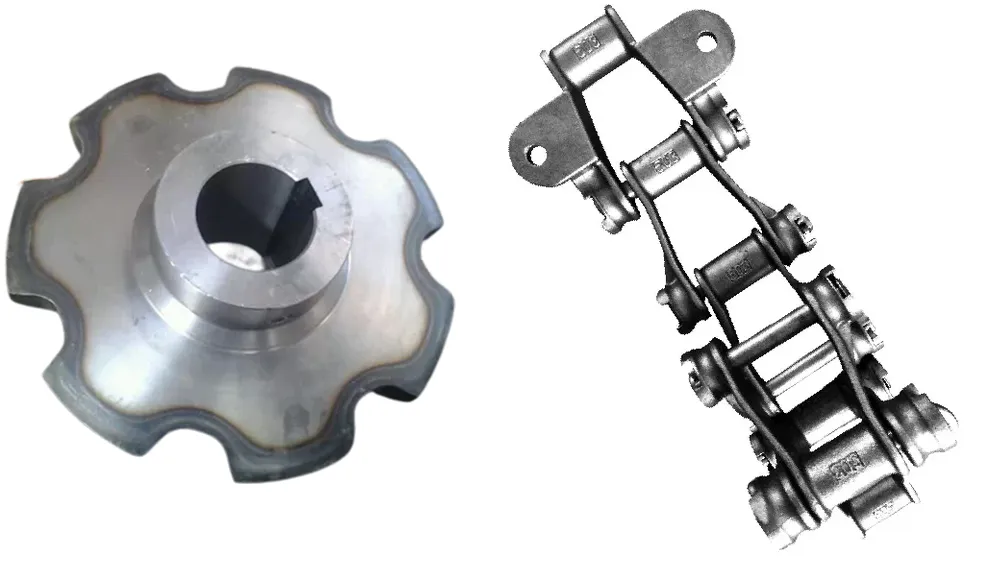

Bucket Elevator Chain Sprockets for 567 Bucket Elevator Chain

When using the 567 bucket elevator chain, it is essential to choose compatible sprockets for optimal performance and longevity. The sprockets play a crucial role in the smooth operation of the chain and the efficiency of the bucket elevator system. Here are some considerations for selecting sprockets for the 567 Bucket Elevator Chain:Tooth Profile: The sprocket's tooth profile should match the design of the 567 bucket elevator chain. Typically, the chain and sprocket system use a specific tooth profile, such as a standard roller chain tooth profile or a specialized profile designed for bucket elevator applications. Ensuring compatibility between the chain and sprocket tooth profiles is important for proper engagement and smooth operation.Pitch Diameter: The pitch diameter of the sprocket refers to the diameter of the imaginary circle that intersects the center of the sprocket's teeth. It is crucial to select sprockets with the appropriate pitch diameter to match the pitch of the 567 bucket elevator chain. This ensures proper engagement and prevents excessive wear or binding of the chain.Number of Teeth: The number of teeth on the sprocket affects the speed ratio and overall performance of the bucket elevator system. It is important to choose sprockets with an appropriate number of teeth to achieve the desired speed and capacity of material transportation. The number of teeth should be selected based on factors such as elevator design, capacity requirements, and operational conditions.Material and Coating: Sprockets for the 567 bucket elevator chain should be made from high-quality materials that offer good strength, wear resistance, and durability. Common materials used for sprockets include steel alloys or heat-treated steels. Additionally, some sprockets may have specialized coatings or surface treatments to further enhance their wear resistance, corrosion resistance, or reduce friction.Proper Lubrication: Adequate lubrication is essential for the smooth operation and longevity of the chain and sprocket system. It is important to follow the manufacturer's recommendations for lubrication intervals and use the appropriate lubricant for the specific application. Proper lubrication helps to reduce friction, wear, and noise, ensuring optimal performance and extending the life of the sprockets and chain.When selecting sprockets for the 567 bucket elevator chain, it is advisable to consult the manufacturer or supplier of the chain for specific recommendations. They can provide guidance on selecting the right sprockets based on the chain's specifications, elevator design, and application requirements.

China Bucket Elevator Chain Manufacturers

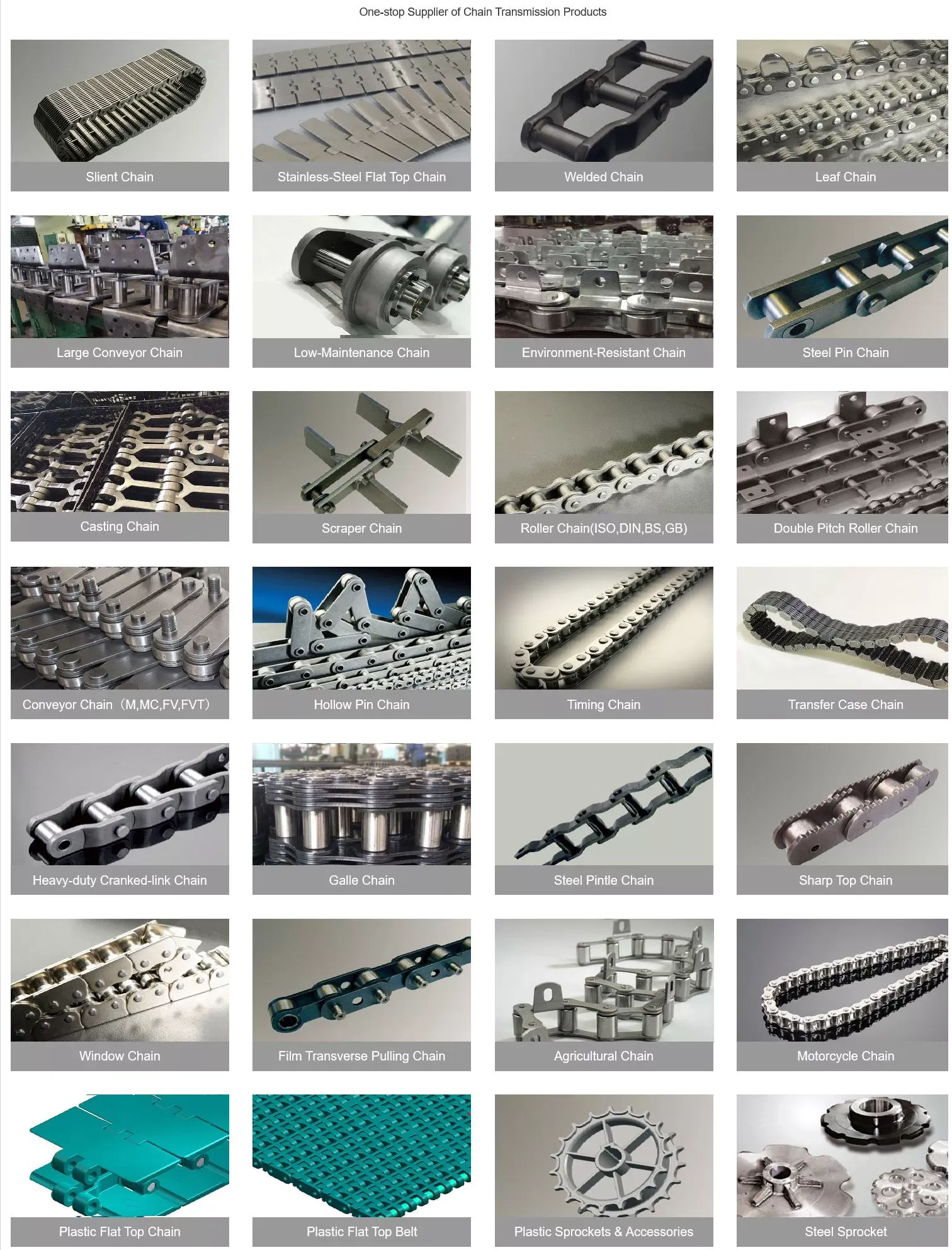

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains,?agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain, drop forged chain, malleable iron chain,?“H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain,?"H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
