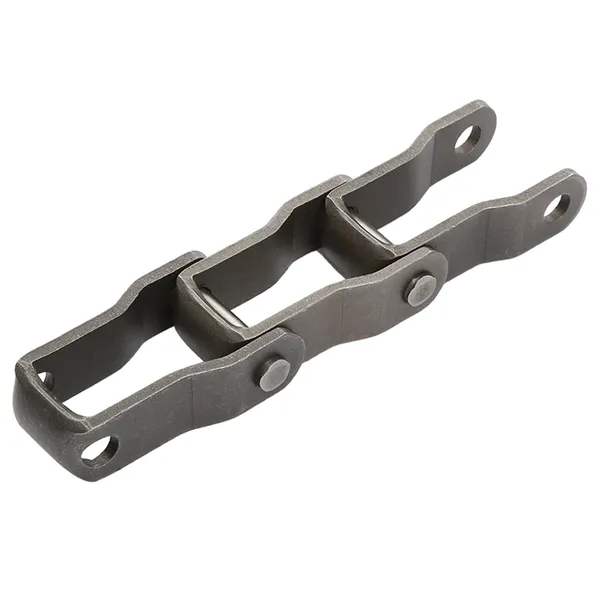

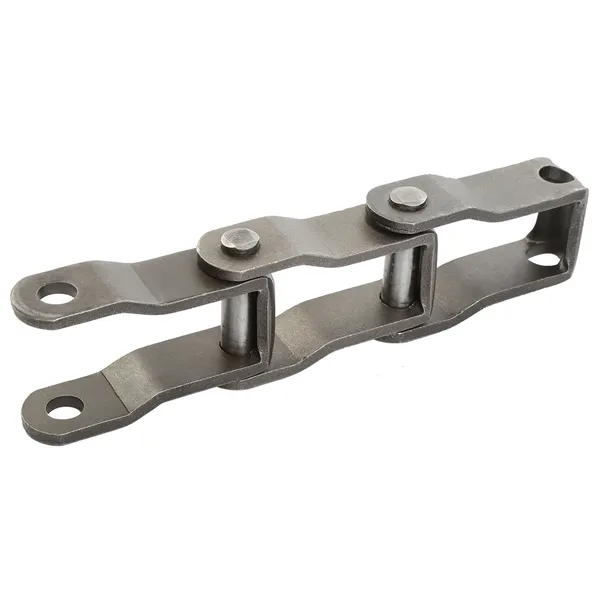

667X Steel Pintle Chain

667X Steel Pintle Chain and Sprocket for Manure Spreader

Our 667X pintle chain has been used in industrial and agricultural applications for decades. The highly effective and high-strength design is accountable for moving various materials from one point to another. Some of the most common 667X chain users are spreaders, conveyors, and even elevators. Our high 667X chain is constructed from high-quality raw carbon steel to American standards for interchangeability with other brands (excluding the KP series). What sets our 667X pintle chain apart from the standard is our use of precision heat-treated components, quad-staked rivets, and open barrel design.

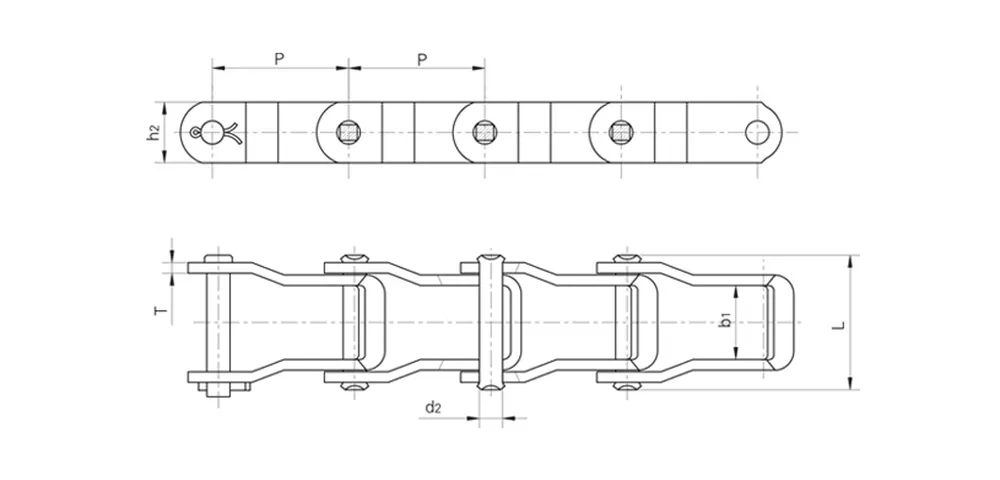

▍667X Pintle Chain (667X Chain) Dimensions:

Chain No:	667X Chain (667X Pintle Chain)
Pitch (P):	2.250"
Inner Width (b1):	1.047"
Overall Width (L):	1.976"
Pin Diameter (d2):	0.437"
Link Plate Height (h2):	0.937"
Link Plate Thickness (T):	0.169"
Average Tensile Strength:	22,100 lbs
Max Working Load:	3,000 lbs
No. Of Pitches/Links Per 10 Feet:	53
No. Of Connecting Pins Included:	1
Chain Material:	Carbon/Alloy Steel

▍667X Pintle Chain (667X Chain) Benefits:

The 667X pintle chain is a high-strength, heavy-duty chain that offers a number of benefits, including:1. High tensile strength:?The 667X pintle chain has a tensile strength of 23,000 lbs., which makes it very strong and durable. This makes it a good choice for applications where high loads are present.2. Heat-treated and quad-staked construction:?The 667X pintle chain is heat-treated and quad-staked, which makes it very resistant to wear and tear. This means that the chain will last longer and require less maintenance than other types of chains.3. Open barrel design:?The 667X pintle chain has an open barrel design, which allows for better airflow and helps to prevent the chain from becoming clogged with dirt and debris. This makes the chain more efficient and easier to maintain.4. Excellent shock load capacity:?The 667X pintle chain has excellent shock load capacity, which makes it a good choice for applications where there are sudden changes in load.5. Wide range of applications:?The 667X pintle chain can be used in a wide range of applications, including material spreading, hay handling, wood processing, conveyors, elevators, and more.6. Easy to install and maintain:?The 667X pintle chain is easy to install and maintain, which makes it a good choice for businesses that want to save time and money on maintenance.If you are looking for a high-quality, heavy-duty chain for your industrial or agricultural application, the 667X pintle chain is a good option to consider.

▍667X Pintle Chain (667X Chain) Accessories:?

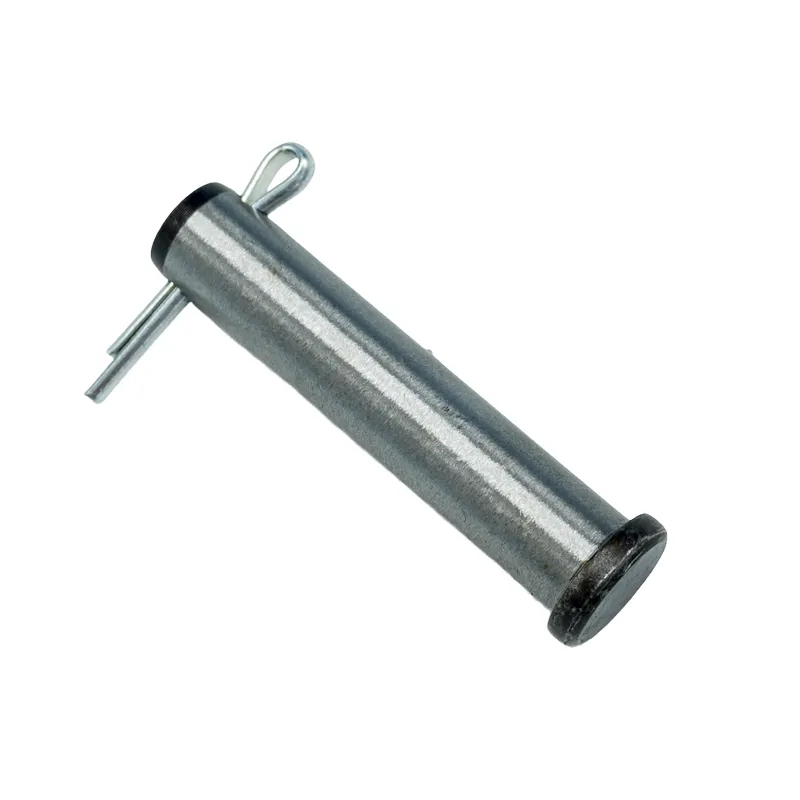

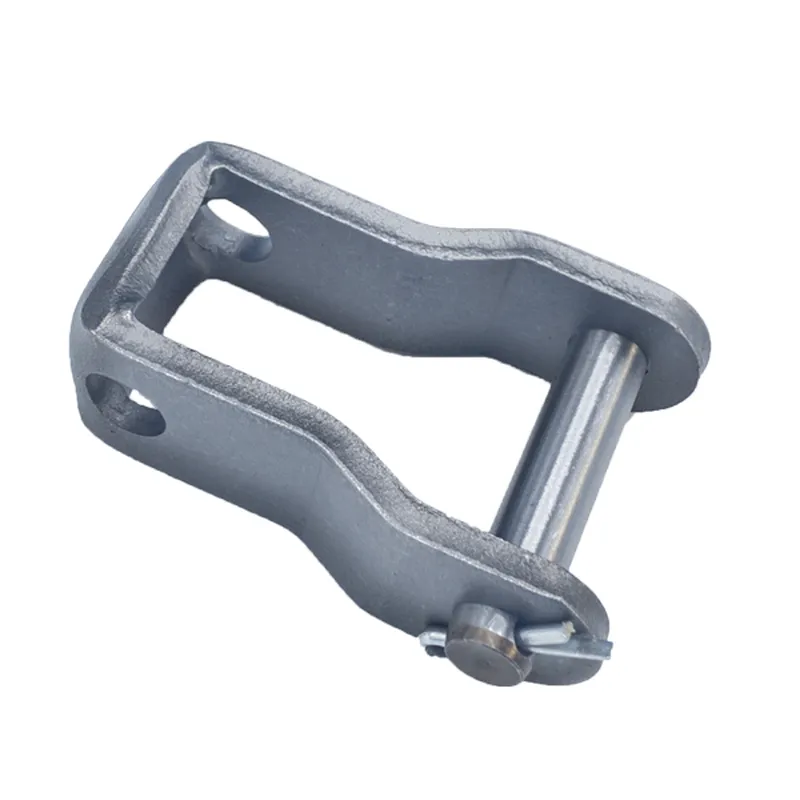

667X Chain Link	667X Chain Pin

▍667X Pintle Chain (667X Chain) Attachments:

667X pintle chain attachments can be supplied at specific spacings/intervals. We even offer 667X chain attachments in repeating patterns or custom-made attachments (1,000pc minimum order quantity).

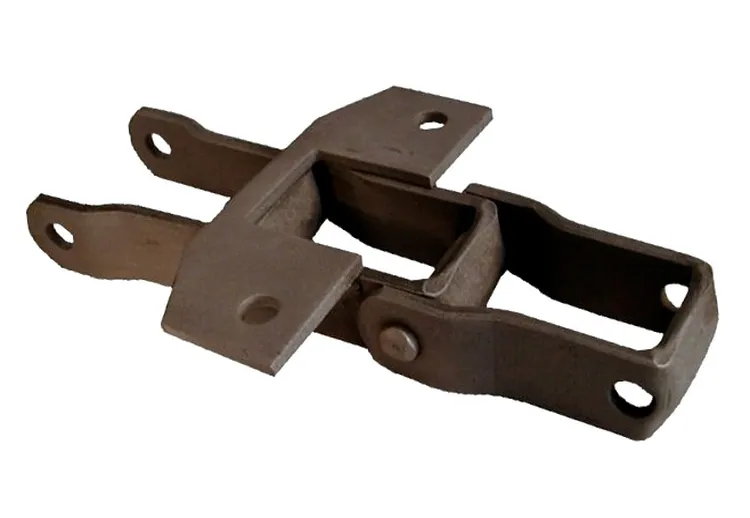

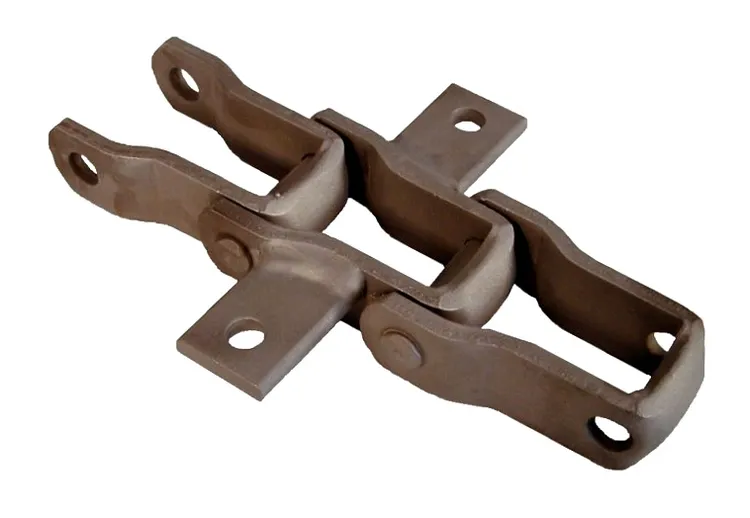

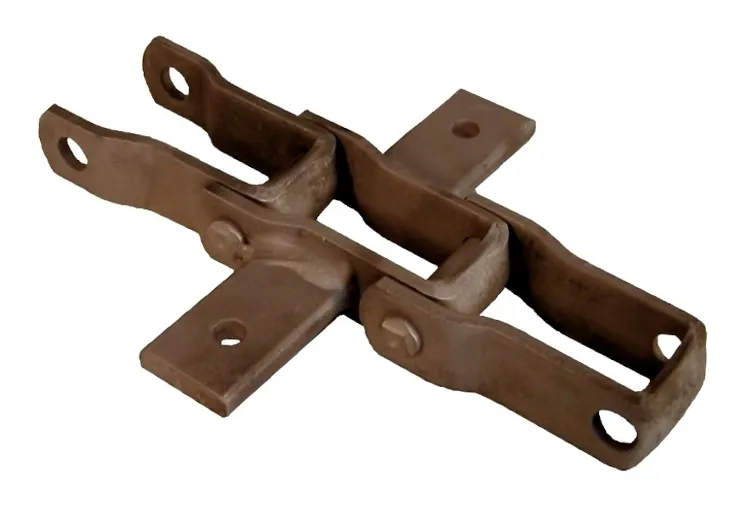

667X Chain KSB Attachment	667X Chain KS Attachment	667X Chain K1 Attachment

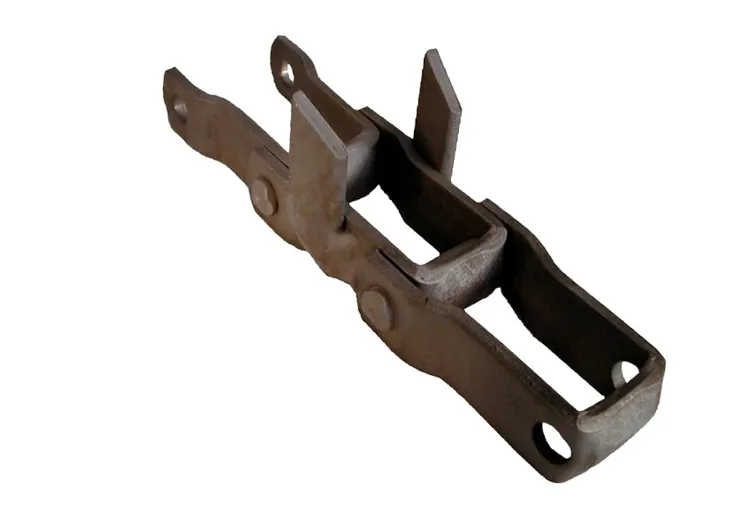

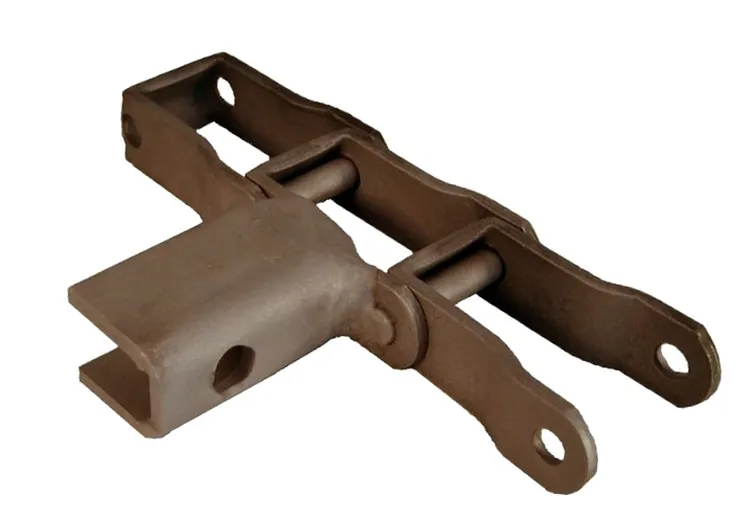

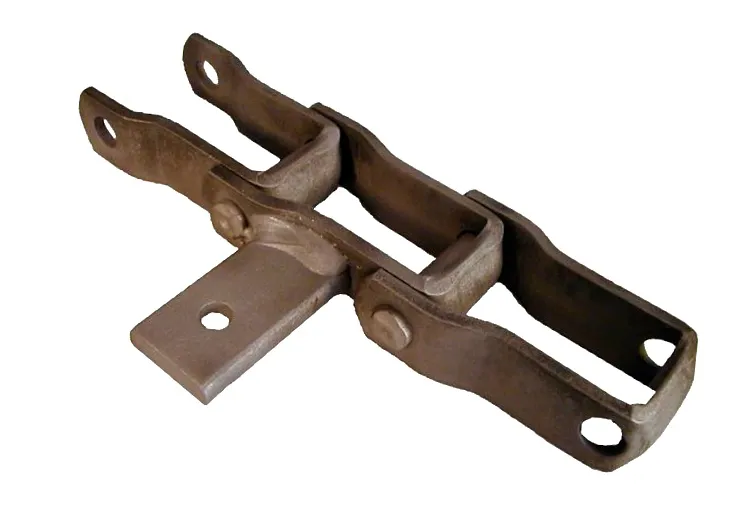

667X Chain HB4 Attachment	667X Chain G50 Attachment	667X Chain AS Attachment

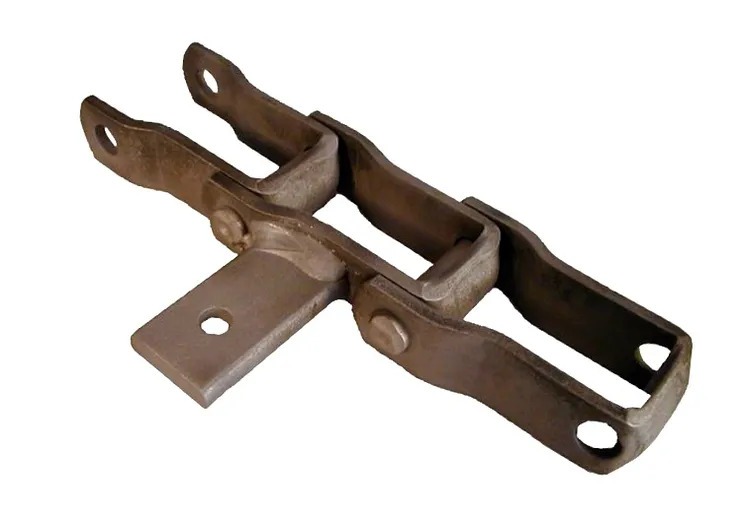

667X Chain AES Attachment

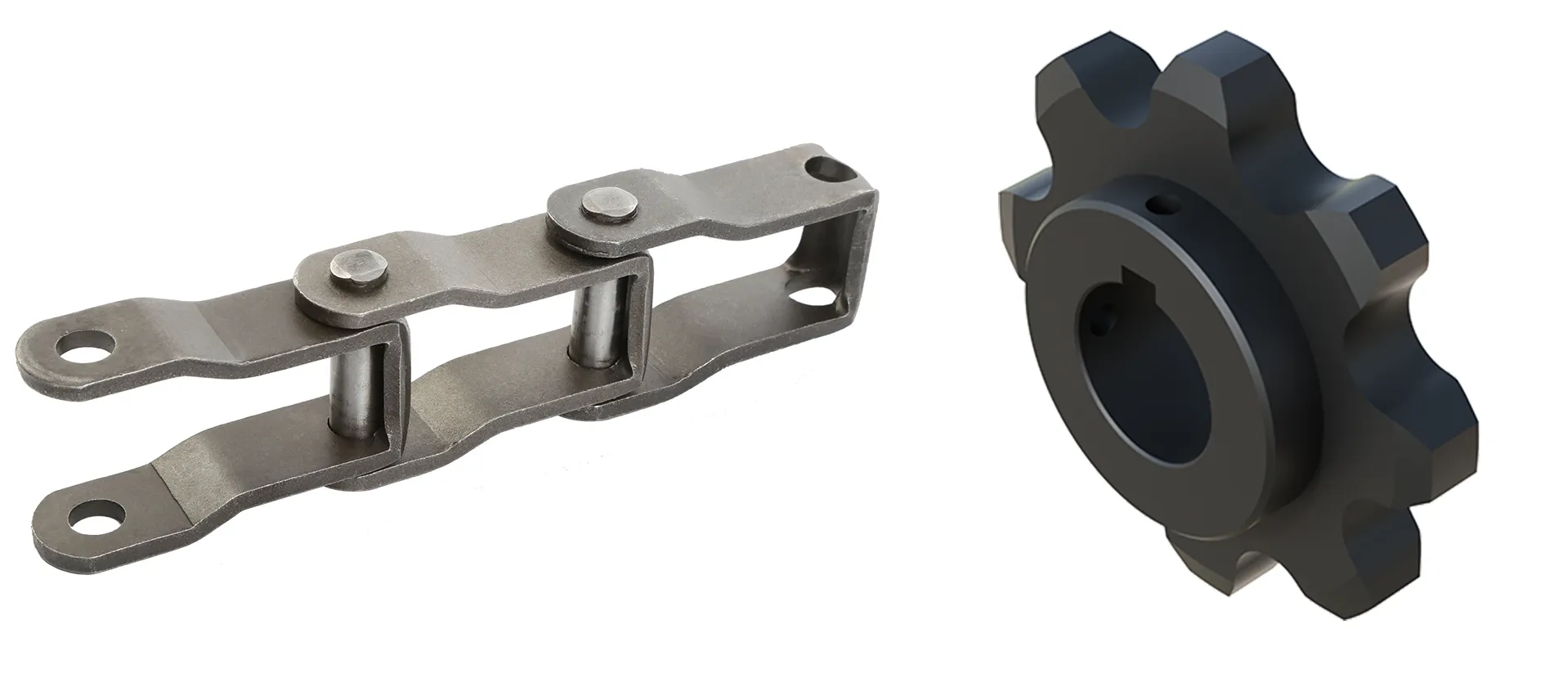

▍667X Pintle Chain Sprockets for 667X Pintle Chain

667X pintle chain sprockets and 667X pintle chain are components used in conveying and power transmission applications. The 667X pintle chain is a type of roller chain that features extended pins, or "pintles," that allow the chain to engage with corresponding sprockets. The 667X pintle chain is commonly used in agricultural equipment, such as manure spreaders and grain elevators, as well as in industrial applications, such as conveyors and asphalt plants.The 667X pintle chain sprockets are designed to mesh with the 667X pintle chain by engaging with the pintles. The sprockets are typically made of durable materials such as steel or cast iron and are available in a range of tooth counts and bore sizes to accommodate different chain configurations.When selecting 667X pintle chain sprockets and chain, it is important to ensure that the chain pitch matches the sprocket pitch. The pitch refers to the distance between the centers of adjacent chain pins or sprocket teeth.Overall, the 667X pintle chain and sprockets are reliable and durable components that are well-suited for heavy-duty applications that require high-strength and consistent performance.

▍Choose the Right 667X Pintle Chain Sprockets for 667X Pintle Chain

Here are some factors to consider when choosing the right 667X pintle chain sprockets for 667X pintle chain:

• Pitch:?The pitch of a chain is the distance between the centers of two consecutive pins. The pitch of a 667X pintle chain is 2.25 inches. Make sure the sprockets you choose have the same pitch as the chain.
• Number of teeth:?The number of teeth on a sprocket determines the speed of the chain. A sprocket with more teeth will move the chain more slowly, while a sprocket with fewer teeth will move the chain more quickly.
• Material:?Sprockets are typically made of steel or cast iron. Steel sprockets are more durable, but they are also more expensive. Cast iron sprockets are less expensive, but they are not as durable.
• Hub type: Sprockets come in three types of hubs: A, B, and C. A-type sprockets have no hub and are typically used for welding applications. B-type sprockets have a hub on one side and are used for applications where the clearance width is narrow. C-type sprockets have a hub on both sides and are used for applications where the torque produced by the drive is high.
• Hardening:?Sprockets can be flame hardened to increase their durability. Flame hardening is a process that heats the surface of the sprocket to a high temperature and then cools it rapidly. This process creates a hard surface that is resistant to wear and tear.

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains,?S55 roller chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
