6TB Gripbelt Sheaves with Split Taper Bushings

6TB series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75" to 38.35" in diameter. Depending on the pulley size, they are made to use with P1, P2, Q1, or Q2 taper bushings, which we also stock. Most of our 6TB pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

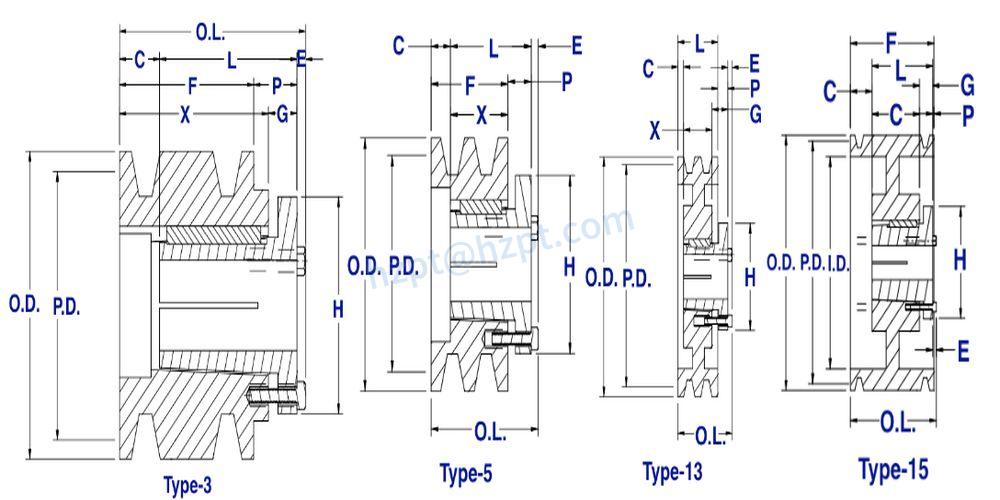

6TB Style Pulley Size Chart

Size	Bushing Type	Pitch Diameter (4L/A)	Pitch Diameter (5L/B)	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Pulley Weight (LBS)
6TB34	P2	3.0"	3.4"	3.75"	3	6-1/16"	2-15/16"	1-1/16"	2-7/8"	3"	4-3/4"	5/8"	2-5/16"	1/4"	6.1
6TB36	P2	3.2"	3.6"	3.95"	3	6-1/16"	2-15/16"	1-1/16"	2-7/8"	3"	4-3/4"	5/8"	2-5/16"	1/4"	7.3
6TB38	P2	3.4"	3.8"	4.15"	5	5-5/8"	2-15/16"	5/8"	2-7/16"	3"	4-3/4"	--	2-5/16"	1/4"	7.0
6TB40	P2	3.6"	4.0"	4.35"	5	5-5/8"	2-15/16"	5/8"	2-7/16"	3"	4-3/4"	--	2-5/16"	1/4"	8.1
6TB42	P2	3.8"	4.2"	4.55"	5	5-5/8"	2-15/16"	5/8"	2-7/16"	3"	4-3/4"	--	2-5/16"	1/4"	9.3
6TB44	P2	4.0"	4.4"	4.75"	13	5"	2-15/16"	0	1-13/16"	3"	4-3/4"	5/8"	2-5/16"	1/4"	9.9
6TB46	P2	4.2"	4.6"	4.95"	13	5"	2-15/16"	0	1-13/16"	3"	4-3/4"	5/8"	2-5/16"	1/4"	11.0
6TB48	P2	4.4"	4.8"	5.15"	13	5"	2-15/16"	0	1-13/16"	3"	4-3/4"	5/8"	2-5/16"	1/4"	11.8
6TB50	P2	4.6"	5.0"	5.35"	13	5"	2-15/16"	0	1-13/16"	3"	4-3/4"	5/8"	2-5/16"	1/4"	12.9
6TB52	P2	4.8"	5.2"	5.55"	13	5"	2-15/16"	0	1-13/16"	3"	4-3/4"	5/8"	2-5/16"	1/4"	14.8
6TB54	Q1	5.0"	5.4"	5.75"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	11.8
6TB56	Q1	5.2"	5.6"	5.95"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	17.3
6TB58	Q1	5.4"	5.8"	6.15"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	14.5
6TB60	Q1	5.6"	6.0"	6.35"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	15.4
6TB62	Q1	5.8"	6.2"	6.55"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	16.4
6TB64	Q1	6.0"	6.4"	6.75"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	18.6
6TB66	Q1	6.2"	6.6"	6.95"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	18.5
6TB68	Q1	6.4"	6.8"	7.15"	13	5-1/32"	2-1/2"	0	2-1/4"	4-1/8"	4-3/4"	3/4"	1-3/4"	9/32"	20.8
6TB70	Q2	6.6"	7.0"	7.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	22.8
6TB74	Q2	7.0"	7.4"	7.75"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	26.5
6TB80	Q2	7.6"	8.0"	8.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	24.1
6TB86	Q2	8.2"	8.6"	8.95"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	27.1
6TB90	Q2	8.6"	9.0"	9.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	30.6
6TB94	Q2	9.0"	9.4"	9.75"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	32.8
6TB110	Q2	10.6"	11.0"	11.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	36.6
6TB124	Q2	12.0"	12.4"	12.75"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	39.8
6TB136	Q2	13.2"	13.6"	13.95"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	44.9
6TB154	Q2	15.0"	15.4"	15.75"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	49.9
6TB160	Q2	15.6"	16.0"	16.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	54.0
6TB184	Q2	18.0"	18.4"	18.75"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	62.0
6TB200	Q2	19.5"	20.0"	20.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	74.0
6TB250	Q2	24.5"	25.0"	25.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	89.5
6TB300	Q2	29.5"	30.0"	30.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	128.0
6TB380	Q2	37.5"	38.0"	38.35"	13	4-25/32"	3-1/2"	1/4"	1"	4-1/8"	4-3/4"	3/4"	2-3/4"	9/32"	179.0

Types of V-Belt Pulley:

1) European standard:    a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC,2BKH; up to 10 groovesb) Adjustable speed V-belt pulleys and variable speed pulleysc) Flat belt pulleys and conveyor belt pulleys2) American standard:a) Sheaves for taper bushings: 3V, 5V, 8Vb) Sheaves for QD bushings: 3V, 5V, 8Vc) Sheaves for split taper bushings: 3V, 5V, 8Vd) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK,  BKH,2BK, 2BKH, 3BKe) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K, and MParts can be made according to drawings and samples. OEM service is welcomed3) Bore: pilot bore, finished bore, taper bore, bore for QD bushing4) Surface finish: paint, phosphating, zinc plated5) Material: cast iron, ductile iron, nylon, aluminum6) Made according to drawings and samples, OEM inquiries welcomed

Competitive Advantage:

With more than 20 years of advanced technology and experience, we will give strong support for the v belt pulley you need. We will quickly understand your need for the product and provide a quick response and good service. Many cases of our products will show you that it is worth your trust.Under the complete quality control system, our products go through the precise product line and strict testing. We have excellent working flow and standards to ensure stability and products reliable enough for use.Considering our scale economy, raw material superiority, and client sincerity, our price is competitive. They are good value and more cost-effective than you imagine.We sincerely hope to establish long and friendly business relations with clients from all over the world. Our goal is not just to provide a product but also a complete solution, including product design, tooling, fabrication, and service, for our customers to achieve their utmost satisfaction.

Applications of 6TB Style Pulley

Products are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, some small horsepower motorcycle power transmission, agricultural machinery power transmission, Air compressor, reducer, reducer, generator, etc.

Agriculture	Electric Machinery	Marine
