88C Steel Pintle Chain

88C Steel Pintle Chain

The 88C pintle chain is a high-strength, heat-treated chain that is used in a variety of applications, including agricultural equipment, conveyors, and wastewater treatment facilities. It is known for its durability and resistance to wear, and it can withstand heavy loads and shock. The 88C pintle chain has a pitch of 2.609 inches, which means that there are 2.609 inches between the centers of adjacent links. The 88C chain is also 2.543 inches wide and 0.252 inches thick. The pins in the chain are 0.5 inches in diameter, and they are quad staked for added strength.The 88C pintle chain is available in a variety of lengths, typically 10 feet or longer. It can be purchased with or without connecting links. If you are looking for a high-strength, heat-treated chain that is durable and resistant to wear, then the 88C pintle chain is a good choice. It is a versatile chain that can be used in a variety of applications.

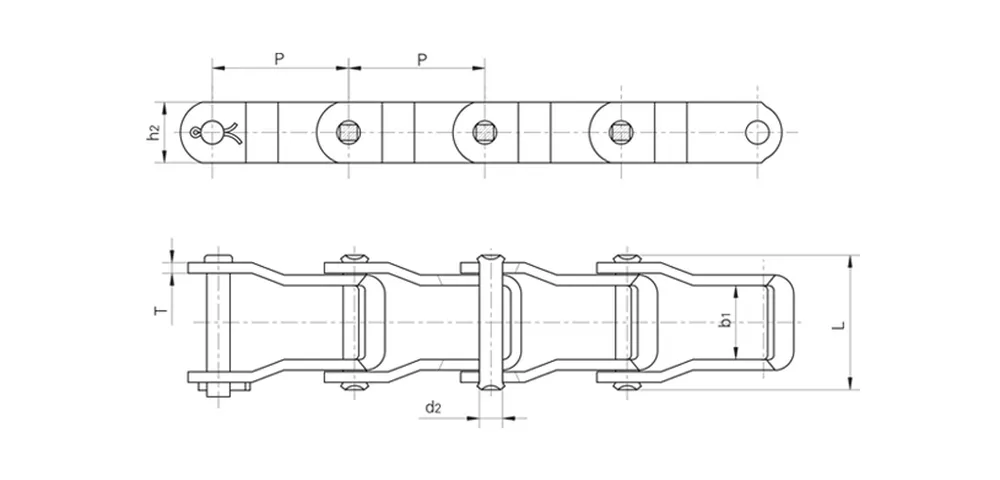

▍88C Pintle Chain (88C Chain) Dimensions:

Chain No:	88C Chain (88C Pintle Chain)
Pitch (P):	2.609"
Inner Width (b1):	1.236""
Overall Width (L):	2.543"
Pin Diameter (d2):	0.500"
Link Plate Height (h2):	1.138"
Link Plate Thickness (T):	0.252"
Average Tensile Strength:	38,800 lbs
Max Working Load:	6,000 lbs
No. Of Pitches/Links Per 10 Feet:	46
No. Of Connecting Pins Included:	1
Chain Material:	Carbon/Alloy Steel

▍88C Pintle Chain (88C Chain) Specifications:

Chain Material:?Alloy steel & Stainless steelChain Surface Treatment:?Shot peening & Blackening & BluingChain Size: 662, 667H, 667X, 667XH, 667K, 667J, 88K, 88C

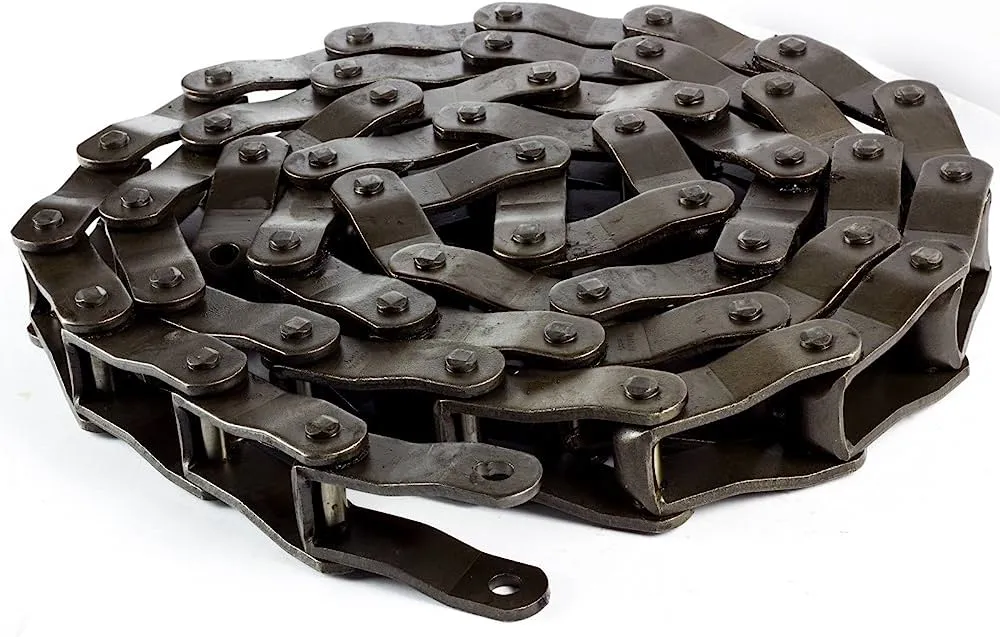

▍Characteristics of 88C Pintle Chain (88C Chain):

The 88C pintle chain is a high-strength chain that is used in a variety of applications, including agricultural, forestry, and conveying. It has a number of advantages over other types of chains, including:

• High tensile strength:?The 88C pintle chain has a tensile strength of up to 38,000 pounds, making it one of the strongest pintle chains available. This makes it ideal for applications where high loads are present, such as in agricultural equipment.
• Durability:?The 88C pintle chain is made from high-quality steel and is heat-treated to improve its strength and durability. This makes it a long-lasting chain that can withstand the rigors of harsh environments.
• Smooth operation:?The 88C pintle chain has a smooth barrel design that helps to reduce friction and wear. This results in a smoother, quieter operation that is less likely to cause damage to the chain or sprockets.
• Easy maintenance:?The 88C pintle chain is easy to maintain. The pins are staked in place, which makes them less likely to come loose. The chain can also be easily cleaned and lubricated, which helps to extend its lifespan.

Overall, the 88C pintle chain is a high-quality, high-strength chain that is ideal for a variety of demanding applications. It is durable, smooth-running, and easy to maintain, making it a cost-effective choice for businesses that need a reliable chain.Here are some additional advantages of the 88C pintle chain:

• Open barrel design:?The open barrel design helps to prevent dirt and debris from building up in the chain, which can reduce friction and wear.
• Quad staked pins:?The quad staked pins provide added strength and durability, making the chain less likely to break.
• Heat treatment:?The heat treatment process improves the strength and hardness of the chain, making it more resistant to wear and tear.
• Shot peening:?The shot peening process creates a compressive stress layer on the surface of the chain, which helps to prevent fatigue failure.

The 88C pintle chain is a versatile chain that can be used in a variety of applications. It is a good choice for applications where high strength, durability, and smooth operation are important.

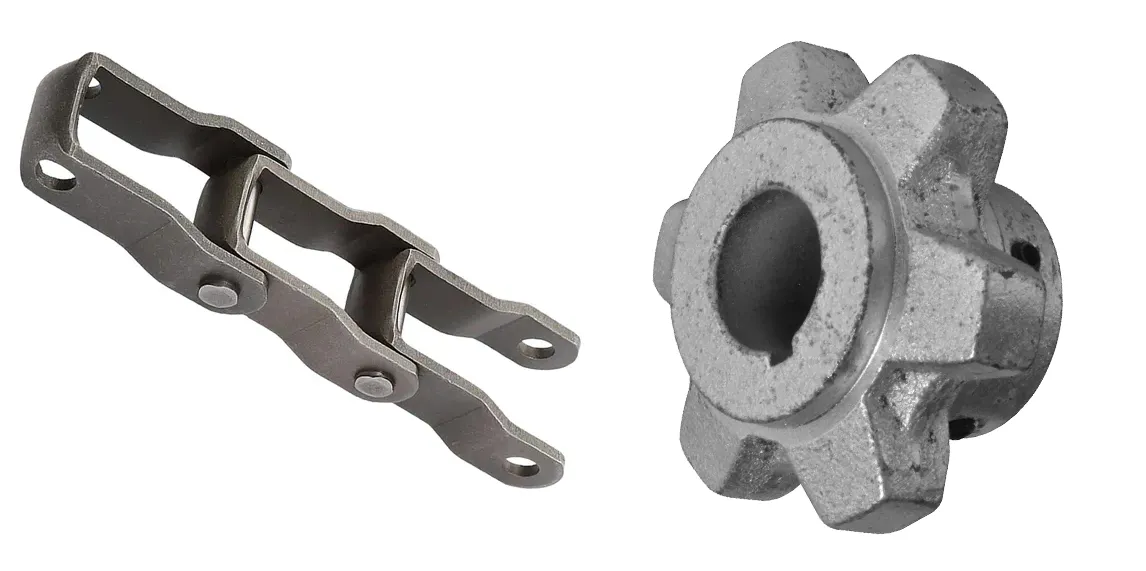

▍88C Pintle Chain Sprockets for 88C Pintle Chain

88C pintle chain is a type of chain that is used in a variety of applications, including agricultural equipment, conveyors, and material handling equipment. It is characterized by its large pitch (2.609 inches), which allows it to transmit more power than smaller chains. 88C pintle chain is also very durable, thanks to its heat-treated pins and open barrel design.88C pintle chain sprockets are specifically designed to work with 88C pintle chain. They are available in a variety of sizes, materials, and finishes to meet the specific needs of different applications.Here are some of the benefits of using 88C pintle chains and 88C chain sprockets:

• High strength and durability
• Large pitch for high-power transmission
• Open barrel design for improved wear resistance
• A wide range of sizes and materials are available

Here are some of the applications where 88C pintle chains and 88C pintle chain sprockets are commonly used:

• Agricultural equipment
• Conveyors
• Material handling equipment
• Wastewater treatment facilities
• Wood processing
• Mining
• Construction

If you have any questions about the 88C pintle chain and sprockets, please feel free to contact me. I would be happy to help you find the right solution for your application.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, PIV chains,?X458 conveyor chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
