Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings

Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings

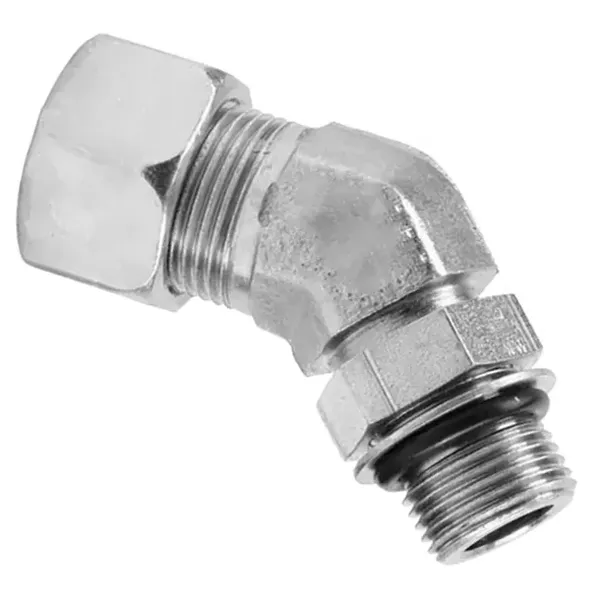

Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings are a type of hydraulic fitting that is used to connect two hydraulic hoses or tubes at a 45-degree angle. They have an adjustable lock nut that allows the fitting to be tightened to the correct torque, even if the hose or tube is slightly out of alignment. This makes them ideal for use in applications where vibration or movement is a concern.

Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings are made of a variety of materials, including stainless steel, brass, and steel. They are available in a variety of sizes to fit different hose and tube diameters.

Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings are commonly used in a variety of industries, including construction, agriculture, and manufacturing. They are also used in a variety of applications, including hydraulic power systems, hydraulic control systems, and hydraulic lubrication systems.

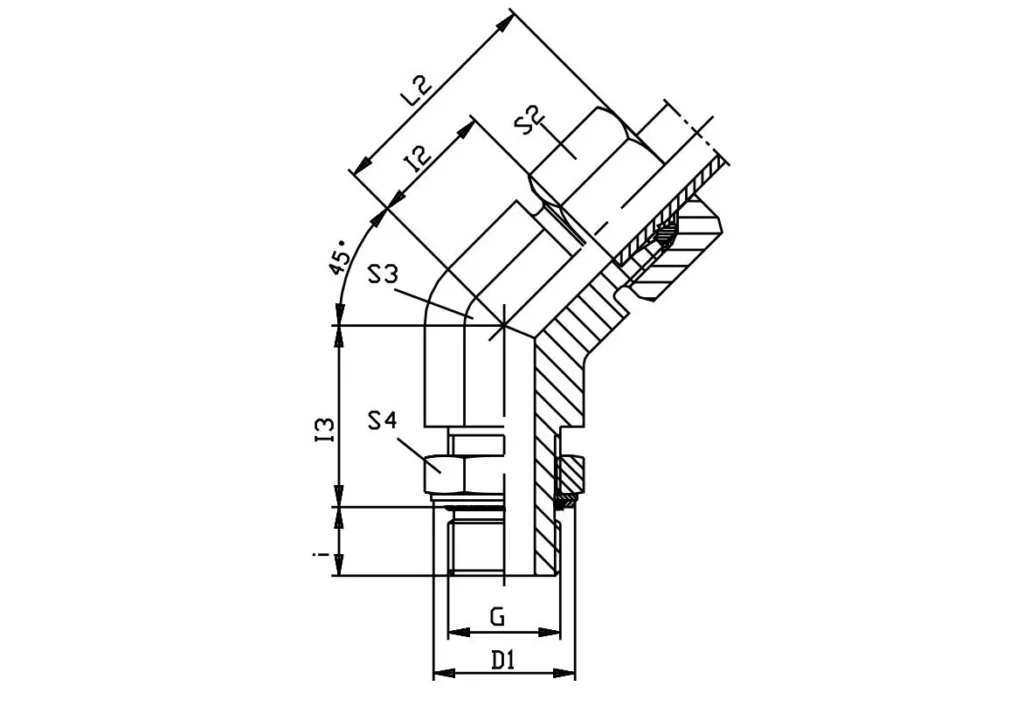

Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fitting Size Chart:

VEE-UNFPart NO.	Series Working Pressure(bar/psi)	Tube O.d	Gmale thread	L2	l2	l3	i	D1	S2	S3	S4
VEE06L7/16UNF	L light 315 bar 4560psi	6	7/16-20	29	14	19	10	17	14	14	14
VEE08L7/16UNF		8	7/16-20	31	16	19	10	18	17	14	14
VEE10L7/16UNF		10	9/16-18	32	17	24	10	20	19	19	17
VEE12L9/16UNF		12	9/16-18	34	19	25	11	26	22	19	17
VEE12L3/4UNF		12	3/4-16	34	19	25	13	26	22	19	22
VEE15L3/4UNF		15	3/4-16	36	21	28	13	29	27	22	22
VEE15L7/8UNF		15	7/8-14	36	21	28	15	29	27	22	27
VEE18L7/8UNF		18	7/8-14	40	24	32	15	29	32	27	27
VEE18L11/16UN		18	1 1/16-12	40	24	32	17	29	32	30	32
VEE22L11/16UN	160 bar 2320psi	22	1 1/16-12	44	28	35	17	37	36	30	32
VEE28L15/16UN		28	1 5/16-12	47	31	42	17	44	41	36	41
VEE35L15/8UN		35	1 5/8-12	59	38	46	17	55	50	50	50
VEE42L17/8UN		42	1 7/8-12	61	38	47	17	55	60	50	55
VEE06S7/16UNF	S heavy 400 bar 5800psi	6	7/16-20	30	15	20	12	17	17	14	14
VEE08S9/16UNF		8	9/16-18	32	17	25	12	18	19	19	17
VEE10S9/16UNF		10	9/16-18	34	18	26	12	20	22	19	17
VEE12S3/4UNF		12	3/4-16	38	22	30	14	26	24	22	22
VEE16S7/8UNF		16	7/8-14	43	25	34	16	29	30	27	27
VEE20S11/16UN		20	1 1/16-12	49	28	37	19	37	36	30	32
VEE25S11/16UN		25	1 1/16-12	54	30	50	19	44	46	36	32
VEE30S15/8UN	250bar3625psi	30	1 5/8-12	62	36	50	19	55	50	50	50
VEE38S17/8UN		38	1 7/8-12	65	34	51	19	55	60	50	55

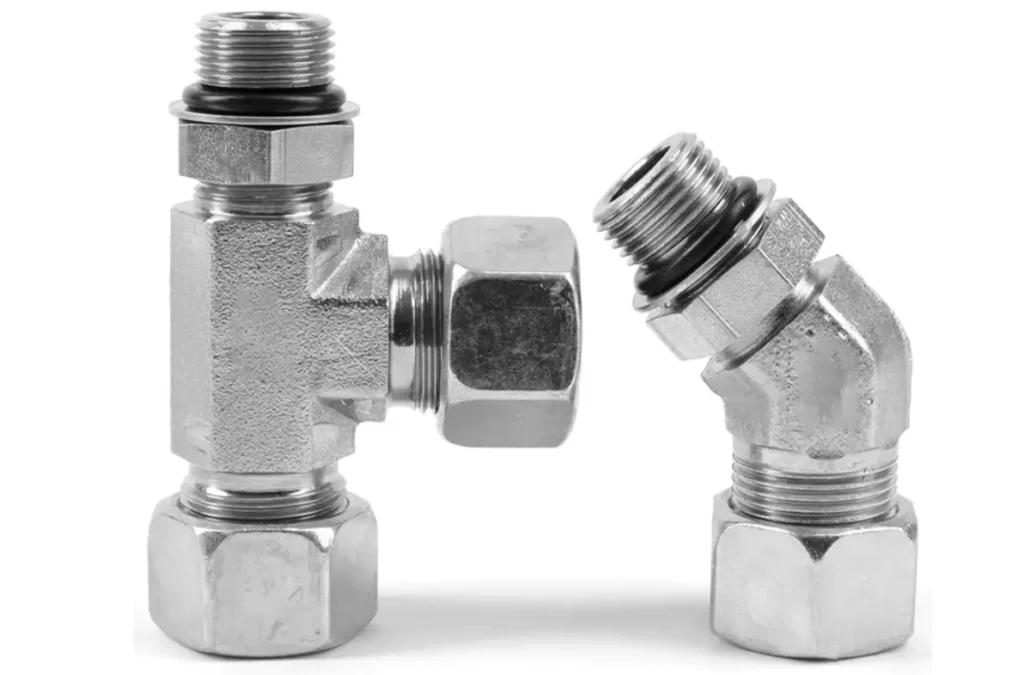

How Does Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fitting Work?

The Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings works by providing a secure and adjustable connection between hydraulic hoses or tubes in a 45° elbow configuration. Here's a step-by-step overview of how it functions:1. Connection Preparation: Prior to installing the Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings, the hydraulic hose or tube needs to be prepared. This typically involves cutting the hose or tube to the desired length and ensuring that the end is clean and free from debris or damage.2. Threaded Connection: The Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings have VEE-UNF threads on both ends. One end of the fitting is threaded internally, while the other end has external threads. These threads are designed to match with the corresponding threads on the hydraulic hose or tube.3. Thread Engagement: The Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings are screwed onto the hydraulic hose or tube by engaging the threads. The internal threads of the fitting are screwed onto the external threads of the hose or tube. This creates a connection point between the fitting and the hydraulic line.4. Adjustable Lock Nut: Once the Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings are threaded onto the hose or tube, an adjustable lock nut is present on the fitting. The lock nut can be tightened by hand or with a wrench to secure the connection. It provides an additional level of protection against loosening caused by vibrations or pressure fluctuations in the hydraulic system.5. Positioning and Alignment: The adjustable feature of the lock nut allows for fine-tuning the fitting's position and alignment. This is particularly useful when connecting hoses or tubes at a 45° angle, as it helps ensure proper routing and fit within the hydraulic system.6. Sealing: The threads of the Adjustable Lock Nut 45° Elbow-VEE-UNF Hydraulic Fittings, along with the lock nut, create a tight seal between the fitting and the hydraulic hose or tube. This seal is essential to prevent leaks and maintain the hydraulic system's integrity.
