Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings

Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings

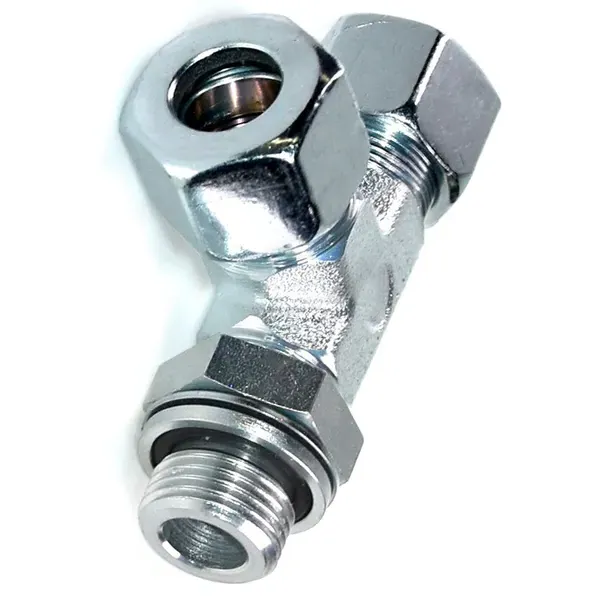

The Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings is a type of hydraulic fitting that incorporates an adjustable lock nut and a tee configuration. It is designed to provide a secure and leak-proof connection in hydraulic systems while allowing for easy adjustment and versatility.The lock nut feature of the Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings enables it to be tightened securely, preventing any unwanted loosening or leakage during operation. This ensures the reliability and durability of the hydraulic system, particularly in applications where vibration or movement may be present.The tee configuration of the Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings allows for a branching connection, where fluid flow can be divided or directed into two separate lines. This is useful in hydraulic systems that require the distribution of fluid to multiple components or subsystems.The Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings offer flexibility and convenience in hydraulic system design and maintenance. By allowing for adjustment, they enable fine-tuning of the fitting's position or alignment, ensuring optimal performance and ease of installation.These hydraulic fittings are commonly used in various industries such as manufacturing, construction, agriculture, and transportation, where hydraulic systems are utilized. They are compatible with different types of hydraulic hoses and pipes, providing versatility in system integration.

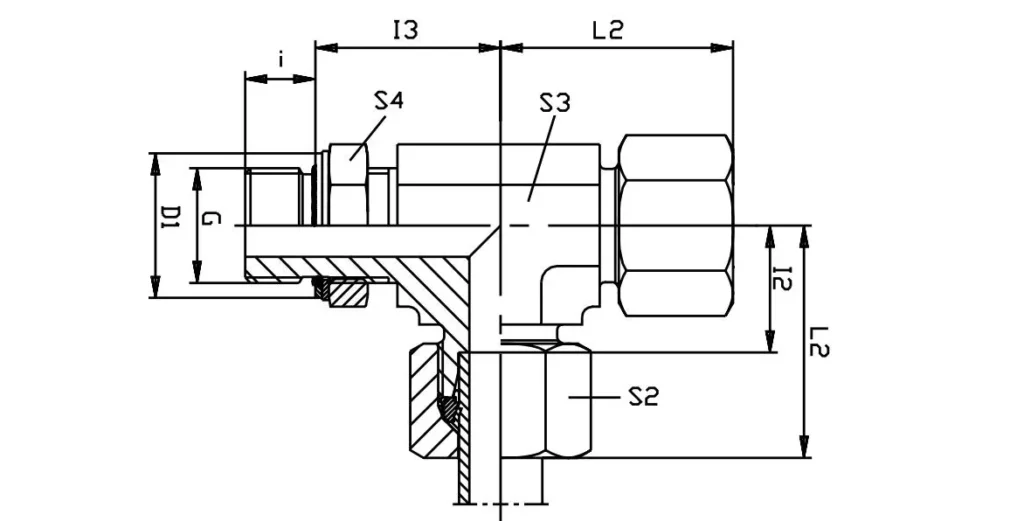

Adjustable Lock NutRun Tee-LEE-R Hydraulic Fitting Size Chart:

LEE-RPart NO.	Series Working Pressure(bar/psi)	Tube O.d	Gmale thread	L2	l2	l3	i	D1	S2	S3	S4
LEE06LR	L light 315 bar 4560psi	6	G 1/8A	29	14	20	7	15	14	14	14
LEE08LR		8	G 1/4A	31	16	22	10	18	17	14	17
LEE10LR		10	G 1/4A	32	17	25	9	20	19	19	19
LEE12LR		12	G 3/8A	34	19	26	9	23	22	19	22
LEE15LR		15	G 1/2A	36	21	30	11	25	27	22	24
LEE18LR	250bar 3625psi	18	G 1/2A	40	24	33	11	28	32	27	27
LEE22LR	160 bar 2320psi	22	G 3/4A	44	28	35	14	33	36	30	32
LEE28LR		28	G1A	47	31	38	14	41	41	36	41
LEE35LR		35	G1 1/4 A	59	38	48	14	51	50	50	50
LEE42LR		42	G1 1/2 A	61	38	49	16	56	60	50	55
LEE06SR	S heavy 315 bar 4650psi	6	G 1/4A	30	15	22	10	18	17	14	17
LEE08SR		8	G 1/4A	32	17	26	10	20	19	19	19
LEE10SR		10	G 3/8A	34	18	27	11	23	22	19	22
LEE12SR		12	G 3/8A	38	22	31	12	25	24	22	24
LEE16SR	250bar3625psi	16	G 1/2A	43	25	35	14	28	30	27	27
LEE20SR		20	G 3/4A	49	28	39	16	33	36	30	32
LEE25SR	160 bar2320 psi	25	G 1A	54	30	44	16	41	46	36	41
LEE30SR		30	G 1 1/4A	62	36	51	17	51	50	50	50
LEE38SR		38	G1 1/2A	65	34	54	19	56	60	50	55

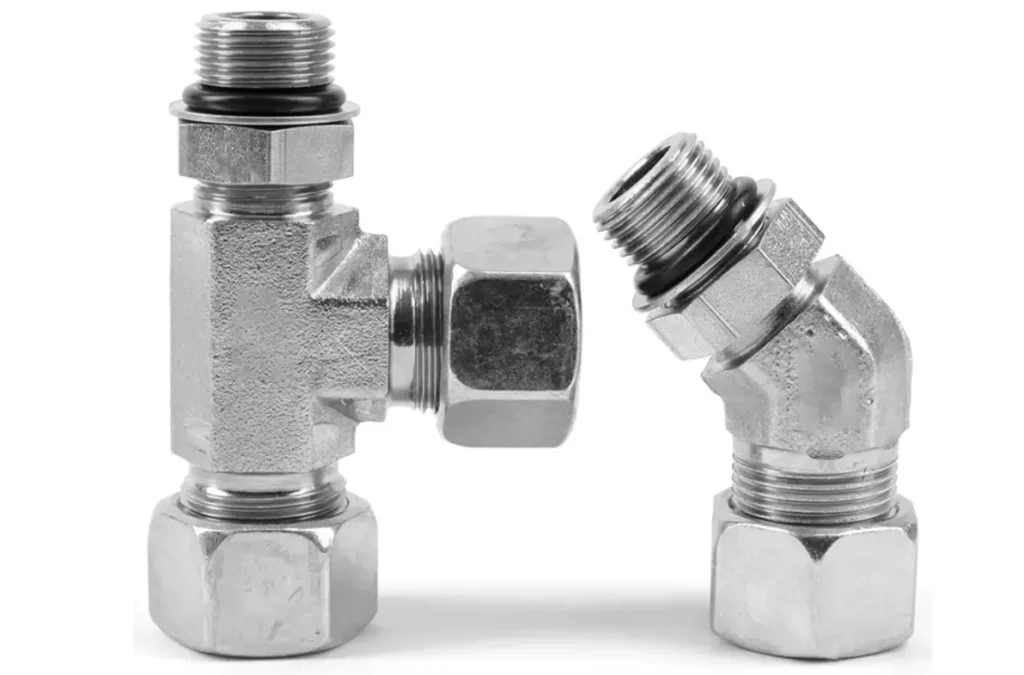

Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings Advantages:

The Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings offer several advantages in hydraulic system applications. Here are some of the key benefits:1. Secure and Leak-Proof Connection: The Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings feature ensures a tight and secure connection, minimizing the risk of loosening or leakage. This is particularly important in hydraulic systems that operate under high pressure or experience vibrations, as it helps maintain system integrity and prevents fluid loss.2. Versatility and Flexibility: The tee configuration of the Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings allows for branching connections, enabling fluid flow to be divided or directed into multiple lines. This offers versatility in system design, allowing for the integration of various components or subsystems. It also facilitates system expansion or modification without requiring major changes to the existing setup.3. Easy Adjustability: The Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings feature allows for easy fine-tuning and adjustment of the fitting's position or alignment. This is valuable during installation or maintenance, as it enables precise positioning of the fitting to optimize performance and ensure proper alignment with other components.4. Compatibility: Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings are designed to be compatible with different types of hydraulic hoses and pipes. This compatibility enhances their versatility and makes them suitable for integration into a wide range of hydraulic systems.5. Durability and Reliability: These Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings are typically constructed from high-quality materials, such as stainless steel, brass, or other corrosion-resistant alloys. This ensures their durability and resistance to wear, even in demanding operating conditions. The secure lock nut feature also contributes to the fitting's reliability by preventing loosening or failure during operation.6. Time and Cost Savings: The ease of installation and adjustment offered by Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings can result in time and cost savings. They simplify the assembly process, reduce the need for additional components or adapters, and facilitate quick system modifications or repairs, minimizing downtime.7. Wide Range of Applications: These Adjustable Lock NutRun Tee-LEE-R Hydraulic Fittings find applications in various industries, including manufacturing, construction, agriculture, automotive, and more. Their adaptability and compatibility make them suitable for diverse hydraulic systems, ranging from simple to complex setups.
