Adjustable Male Elbows-SAE Flared Tube Fittings

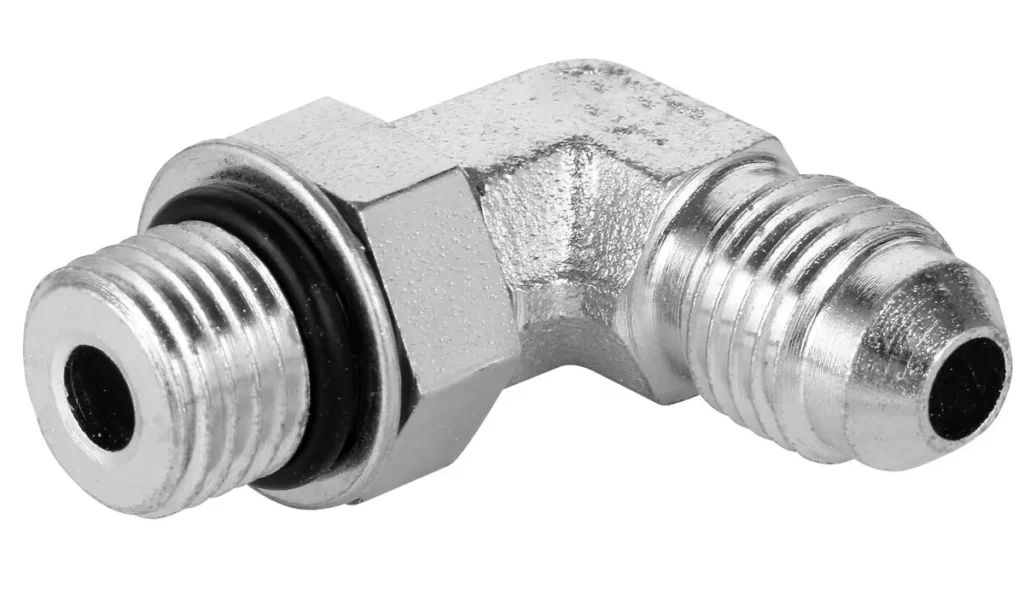

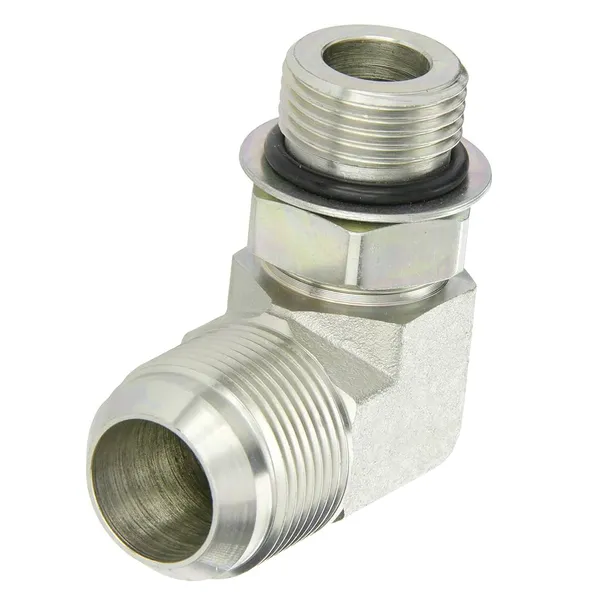

Flared Adjustable Male Elbows

Flared adjustable male elbows are fittings used in plumbing and piping systems to connect two pipes or tubes at a desired angle. They are designed to provide flexibility in adjusting the direction of the flow or the orientation of the pipes.Here are some key features and details about flared adjustable male elbows:1. Design: Flared adjustable male elbows typically have a 90-degree elbow shape. They consist of a male threaded end on one side and a female threaded end on the other side. The male end is designed to fit into a female threaded connection, while the female end allows for the attachment of another male-threaded pipe or fitting.2. Flared Connection: The term "flared" refers to the shape of the male threaded end. It has a wider diameter at the opening, which allows for easier insertion and secure connection with the female threaded fitting. The flared end provides a larger sealing surface, enhancing the joint's strength and leak resistance.3. Adjustable Angle: The adjustable feature of these elbows allows you to change the angle of the connection to suit your specific needs. By rotating the elbow, you can position the pipes or tubes at different angles, ranging from 0 to 90 degrees. This adjustability is useful when you require precise alignment or need to navigate around obstacles in a piping system.4. Material: Flared adjustable male elbows are commonly made from various materials such as brass, stainless steel, or PVC (polyvinyl chloride). The choice of material depends on the specific application, compatibility with the fluids or gases being transported, and the environmental conditions.5. Applications: These fittings are used in a wide range of plumbing and piping systems, including residential, commercial, and industrial applications. They are commonly found in water supply systems, irrigation systems, HVAC (heating, ventilation, and air conditioning) systems, and other fluid or gas handling systems.

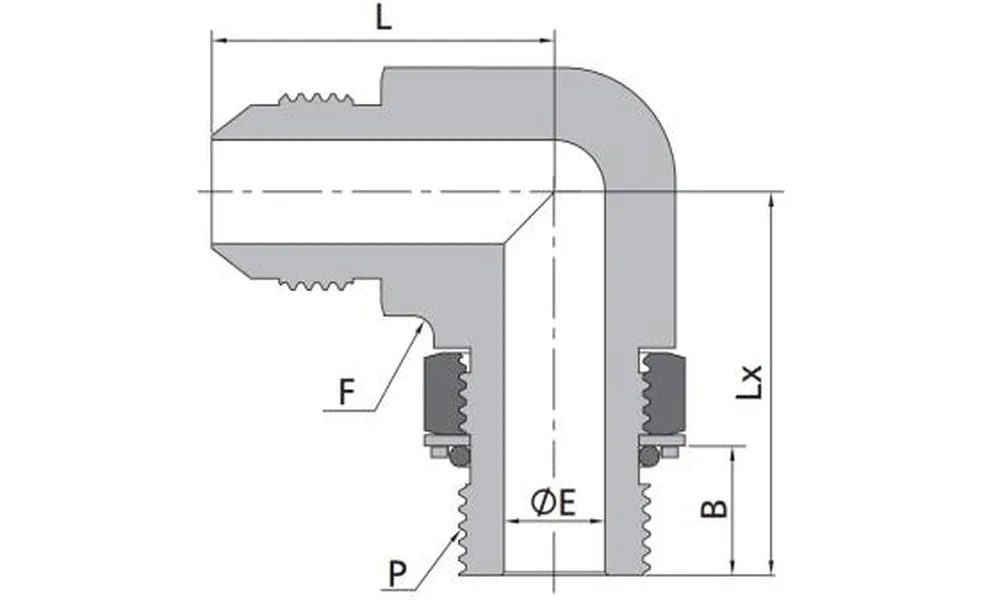

Flared Adjustable Male Elbows Size Chart:

T-Tube O.D		P-SAE	Basic OrderinTghrea NumberSize	Dimension, in. (mm)
In.	mm			d       L	E	F (Flat)	Lx	B
1/8	3	5/16-24	-AME-AN2-ST5	0.77(19.6)	0.06(1.6)	0.44(11.1)	0.94(23.9)	0.33 (8.4)
3/16	4	3/8-24	-AME-AN3-ST6	0.83(21.1)	0.13(3.2)	0.44(11.1)	0.94(23.9)	0.33 (8.4)
1/4	6	7/16-20	-AME-AN4-ST7	0.89(22.6)	0.17(4.4)	0.50(12.7)	1.03(26.2)	0.39 (9.8)
5/16	8	1/2-20	-AME-AN5-ST8	0.95(24.1)	0.24(6.0)	0.56(14.3)	1.13(28.7)	0.39 (9.8)
3/8	10	9/16-18	-AME-AN6-ST9	1.06(26.9)	0.30(7.5)	0.63(15.9)	1.25(31.8)	0.43(11.0)
1/2	12	3/4-16	-AME-AN8-ST12	1.25(31.8)	0.39(9.9)	0.81(20.6)	1.45(36.8)	0.49 (12.5)
5/8	16	7/8-14	-AME-AN10-ST14	1.45(36.8)	0.48(12.3)	0.94(23.8)	1.70(43.2)	0.56 (14.2)
3/4	18	1 1/16-12	-AME-AN12-ST17	1.66(42.2)	0.61(15.5)	1.25(31.8)	1.94(49.3)	0.65 (16.5)
7/8	22	1 3/16-12	-AME-AN14ST19	1.80(45.7)	0.72(18.3)	1.25(31.8)	2.00(50.8)	0.65 (16.5)
1	25	1 5/16-12	-AME-AN16-ST21	1.81(46.0)	0.85(21.5)	1.37(34.9)	2.05(52.1)	0.65 (16.5)
1 1/4	32	1 5/8-12	-AME-AN20ST26	2.06(52.3)	1.08(27.5)	1.69(42.9)	2.25(57.2)	0.65 (16.5)
1 1/2	38	1 7/8-12	-AME-AN24-ST30	2.33(59.2)	1.30(33.0)	2.00(50.8)	2.39(60.7)	0.65 (16.5)
2	50	2 1/2-12	-AME-AN32-ST40	3.06(77.7)	1.77(45.0)	2.50(63.5)	2.89(73.4)	0.65 (16.5)

Advantages of Using Flared Adjustable Male Elbows:

Using flared adjustable male elbows in plumbing and piping systems offers several advantages:(1) Flexibility: Flared adjustable male elbows provide flexibility in adjusting the angle or orientation of the pipes or tubes. This adaptability is useful when dealing with complex piping layouts, tight spaces, or when precise alignment is required. You can easily rotate the elbow to achieve the desired angle, simplifying the installation process.(2) Easy Installation: These flared tube fittings are relatively easy to install compared to rigid elbows or welded joints. The threaded connections allow for simple and secure attachment without the need for specialized tools or equipment. This can save time and effort during installation or when modifications are necessary.(3) Leak Resistance: The flared design of these flared adjustable male elbows enhances the sealing capabilities. The larger sealing surface provided by the flared end improves the joint's resistance to leaks. When properly installed and sealed with thread sealant or tape, flared adjustable male elbows can help maintain a tight and reliable connection over time.(4) Versatility: Flared adjustable male elbows can be used with various pipe materials, such as PVC, copper, or steel, depending on the specific application. This versatility makes them compatible with a wide range of plumbing and piping systems, allowing for seamless integration into different projects.(5) Cost-Effective: Compared to more complex or specialized fittings, flared adjustable male elbows are often more cost-effective. They offer flexibility and adjustability at a relatively affordable price point. Additionally, their ease of installation can help reduce labor costs, especially when making changes or modifications to existing piping systems.(6) Maintenance and Repair: The adjustability of these elbows makes maintenance and repair tasks more convenient. If access is limited or modifications are needed, the ability to adjust the angle of the connection without removing the entire fitting can save time and effort. This can be particularly beneficial in situations where pipes or equipment need to be serviced or replaced.
