Agricultural Ditching Machinery Tractor Chain Trencher

Revolutionize your farming with Raydafon Group's Agricultural Ditching Machinery Tractor Chain Trencher—a durable, efficient tool for farmers and construction crews. Built with high-quality materials, it tackles tough terrain effortlessly, creating precise ditches with ease. Experience unmatched reliability and performance, saving time and boosting productivity on any work site. Choose innovation—choose Raydafon Group!

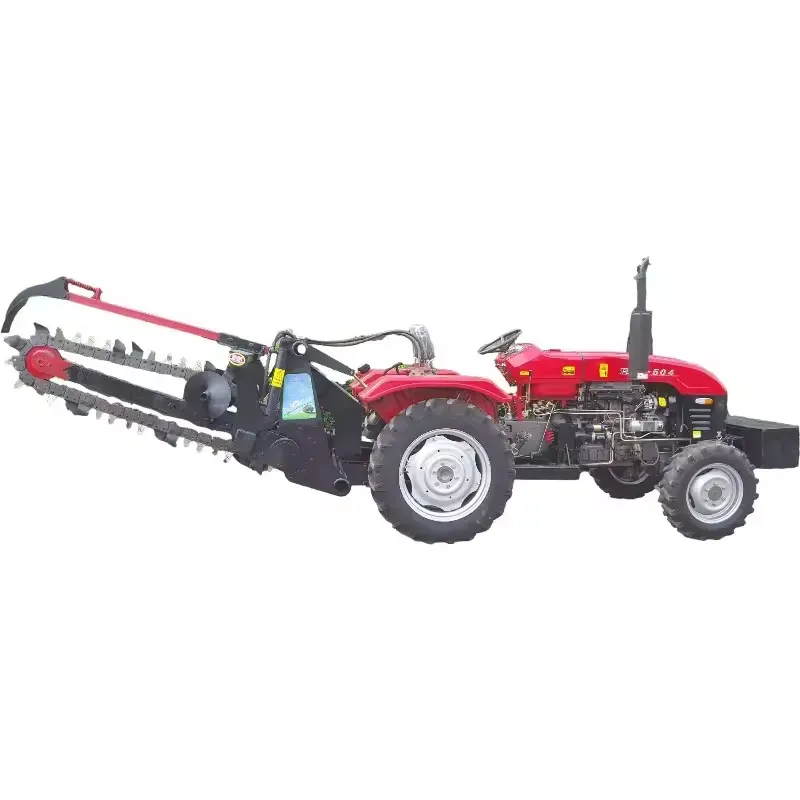

Introducing our Agricultural ditching machinery tractor chain trencher, a high productivity tool for all your farming needs. This robust single chain trencher is perfect for agricultural trenching operations, boasting a 1-year warranty and a weight of 800kg. Specially designed with farms in mind, this trencher comes with a 1-year core components warranty, with the core component being the durable gearbox. This new 2024 product is perfect for those looking for a single chain trencher that promises high productivity.

Advantages of the Tractor Chain Trencher

Our single chain trencher comes with a myriad of advantages, making it a top choice for your farming operations:
  1. High Productivity: Optimized for high-output operations, reducing time and labor costs.
  2. Robust Build: Made with 65Mn spring steel or carbide blade for longevity and effectiveness.
  3. Efficient Trenching: Offers trenching width of 15-20cm and depth of 1.5m, perfect for diverse applications.
  4. Powerful Operation: Can be matched with a power of 50-80hp for seamless operation.
  5. Easy Linkage: Features a three-point mounted design for easy attachment to the tractor.
  6. Guaranteed Quality: Comes with a 1-year warranty for peace of mind and reliable after-sale service.

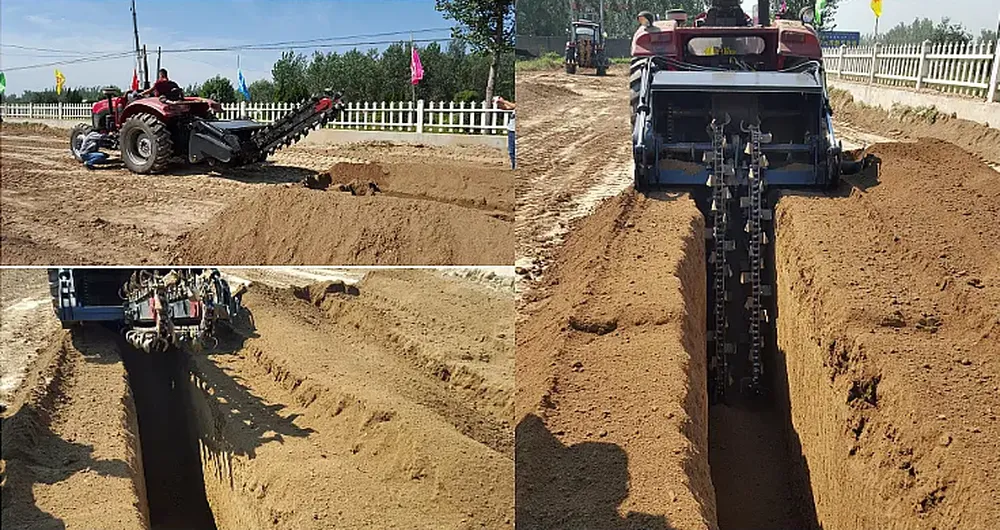

Applications of the Tractor Chain Trencher

Apart from agricultural trenching, this versatile trencher can be utilized in various other ways:Agricultural Ditching Machinery Tractor Chain Trencher
  1. Irrigation Systems: Perfect for digging trenches for irrigation pipes in farms.
  2. Landscaping: Can be used for creating landscape features like drainage ditches and garden beds.
  3. Construction: Ideal for digging trenches for laying cables, conduits, and pipes.
  4. Road Works: Can be used in road construction for creating drainage ditches and laying cables.
  5. Forestry: Useful for creating firebreak trenches in forested areas.
  6. Fencing: Can dig trenches for fence posts in farms and ranches.
Agricultural Ditching Machinery Tractor Chain Trencher

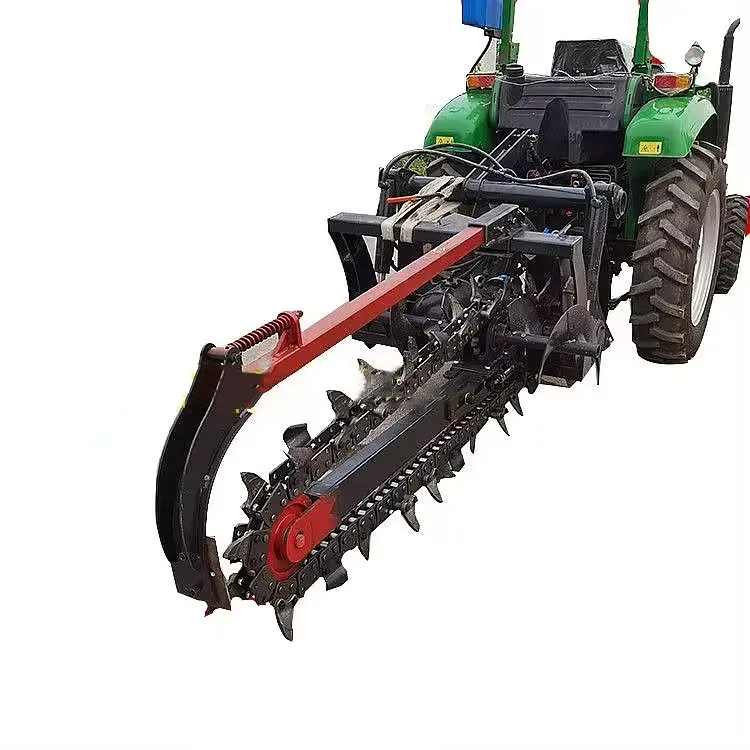

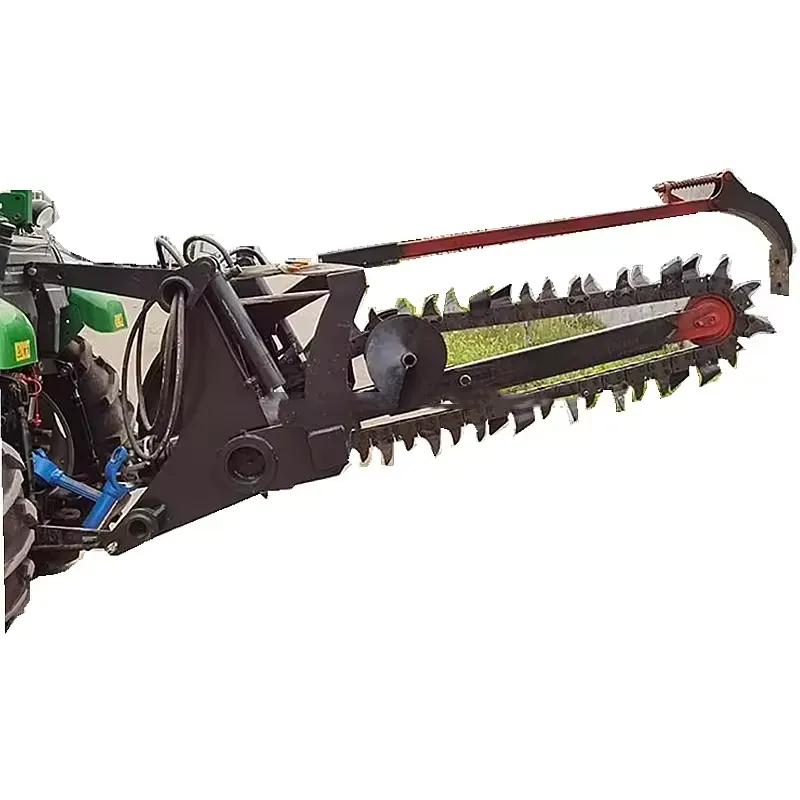

Key Components of the Tractor 3 Point Mounted Chain Trencher

Understanding the key components of the tractor 3-point mounted chain trencher is essential for efficient operation and maintenance. Here they are:
    1. Three-Point Hitch: Enables attachment to the tractor.
    2. Power Take-Off (PTO) Shaft: Transfers power from the tractor to the trencher.
    3. Chain with Digging Teeth: Cuts through the soil to create trenches.
    4. Boom: Determines the depth of the trench and supports the chain.
Agricultural Ditching Machinery Tractor Chain Trencher
    1. Drive System: Translates power from the PTO shaft to the chain.
    2. Soil Ejection System: Removes excavated soil from the trench path.
Agricultural Ditching Machinery Tractor Chain Trencher

Working Mechanism of Tractor 3 Point Mounted Chain Trencher

Here??s a step-by-step breakdown of how the tractor 3-point mounted chain trencher operates:
  1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch and powered by the PTO shaft.
  2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism, which cuts into the soil.
  3. Depth Control: The depth of the trench is controlled by the boom length and adjustment mechanism.

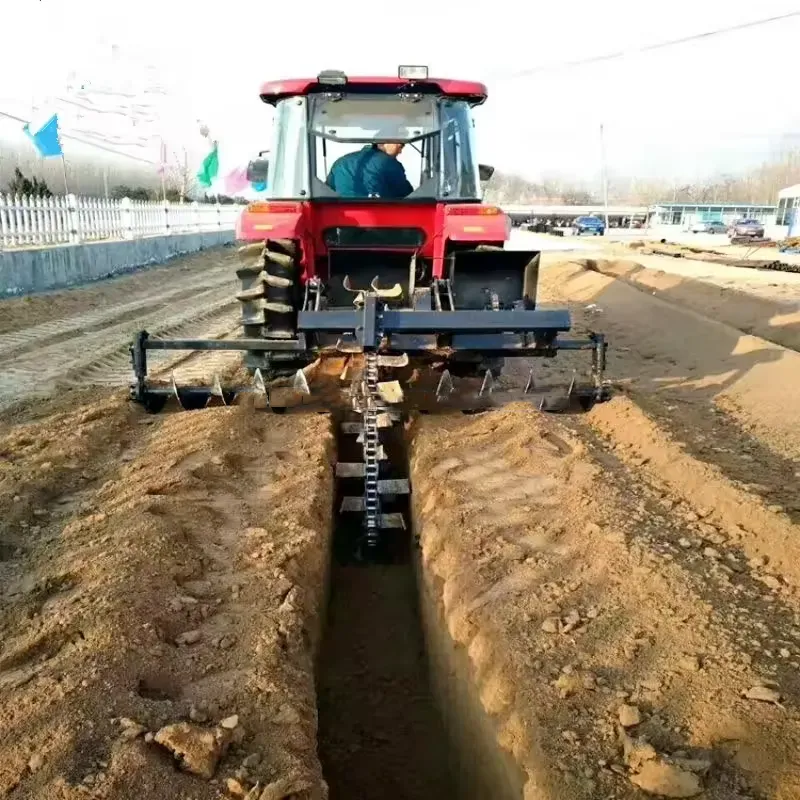

  4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil.
Agricultural Ditching Machinery Tractor Chain Trencher

Installing the 3 Point Mounted Chain Trencher to Tractor

Here's how to attach a chain trencher to a tractor using the three-point hitch system:
  1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher.
  2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms are near the trencher's mounting points.
  3. Attaching the Trencher: Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher. Connect the top link between the tractor and the trencher.
  4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor and slide the PTO shaft onto the tractor's PTO stub.
  5. Final Checks: Conduct a final inspection to ensure everything is correctly attached and secure.

Common Troubleshooting for the Tractor Chain Trencher

Here are some common troubleshooting tips for dealing with typical trencher problems:
  1. Trencher Won't Start or Operate: Check the PTO shaft connection and hydraulic fluid levels.
  2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM.
  3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth and ensure the trench depth is correctly set.
  4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth, which can cause imbalance.
  5. Excessive Wear on Chain or Teeth: Consider using teeth and chains designed for specific soil types and adjust the chain tension according to the manufacturer's specifications.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. We offer a wide range of products, all of which are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.Agricultural Ditching Machinery Tractor Chain TrencherRaydafon stands out in the industry due to our professionalism, international certifications, customized services, state-of-the-art production facilities, and exceptional after-sales services. Our team of experts is committed to providing you with the best agricultural machinery to bring efficiency and quality to your farming operations.[embed]https://youtu.be/f6nv2ByPjb8[/embed]Author: Yjx
