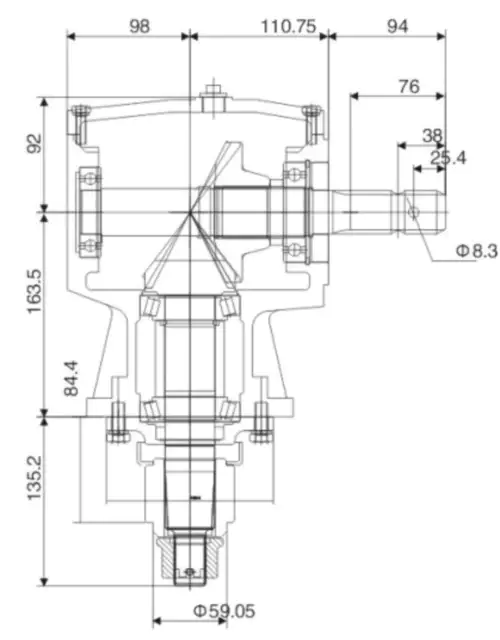

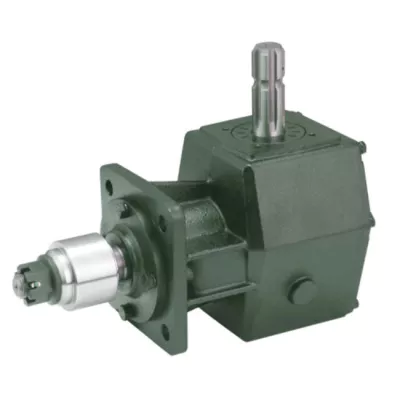

Agricultural Lawn Mower Gearbox RDF-X30

Agricultural Lawn Mower Gearbox RDF-X30

ITEM	RDF--01-609	RDF--01-723	RDF--01-611
Ratio	1:1.47	1:1.69	1:1.93
Teeth	15/22	13/22	15/29
Module	5.08	5.0	4.0
Power(HP)	35	35	30
Rated Input	540rpm	540rpm	540rpm
Input/Output Description	1 3/8 Z6 Optic axis Cone base aequilate spline shaft
Weight(N.W)	26.5KG

 This series gearbox is self-developed. With its characteristics of high universality, simple structure, good performance, etc, it is widely used in garden machines and other agricultural machines. For overseas market, mainly to Europe & America.Quality description:- Raydafon has already established ISO/TS16949:2009 and ISO9001:2008 Quality System and passed OHSA18001 2007 Occupation Health Safety Management System.- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques.- Strictly quality control by German CMM.- Advanced technics, strong self-development power, ability to produce new type gearbox according to customer's design drawings.

PTO Shafts for Agricultural Gearboxes

A PTO shaft is an integral part of an agriculture gearbox; failure to maintain it properly can severely damage the PTO mechanism. PTO shafts are crucial for maintaining the performance of the agricultural implementation, as they are responsible for connecting the transmission to the implementation. To avoid problems with vibration, a good PTO shaft should resist torsion and shear stress. We offer a variety of durable PTO shafts to meet all your requirements. Contact us now!

Customized service of agricultural gearbox

Our lawn mower gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request1. Large output torque2. Safe, reliable, economical, and durable3. Stable transmission, quiet operation4. High carrying ability5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.7. Form of installation: The position to be installed is not limited.8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.11. Parallel axis-bevel wheel speed-down motor.
