Automobile Production Line Chains FVT63F3-PZ-100

Discover Raydafon Guoup's Automobile Production Line Chains FVT63F3-PZ-100, engineered for precision and durability in automotive manufacturing. With advanced materials and innovative design, it ensures seamless production and reduces downtime. Perfect for automotive engineers and factories, this chain solves reliability issues, enhancing efficiency and confidence in your operations. Its unique heat-resistant construction outperforms competitors, offering unmatched performance. Experience the difference that elevates your production line to new heights of reliability and productivity.

Introduction

Swing Bar Chain: This chain incorporates an external roller and an oil injection hole design, ensuring stable operation and extended lifespan.

Drying Room Line Chain: Designed specifically for enduring high temperatures up to 250°C, it guarantees the reliable functioning of the production line.

Painting Line Chain: Selected for its high-quality materials and precision engineering, this chain is suited for particular environmental conditions.

Traveling Machine Chain: Features a specially designed high-strength roller chain and an eccentric chain with a large pitch for the efficient functioning of various production lines.

Anti-Skid Chain: Its anti-skid design effectively prevents vehicles from sliding, ensuring the production line's safe operation.

Pusher Chain: Engineered for optimal performance, this chain is extensively used in painting, welding, drying, and other processes to facilitate the smooth movement of vehicles along the track.

Rainline Chain: Constructed from premium stainless steel with precision engineering, it is capable of sustained operation in wet conditions.

Assembly Line Chain: Tailored to the production line's specifications, it includes various toothed and long-pitch conveyor chains, boasting a tensile strength exceeding 450kN.

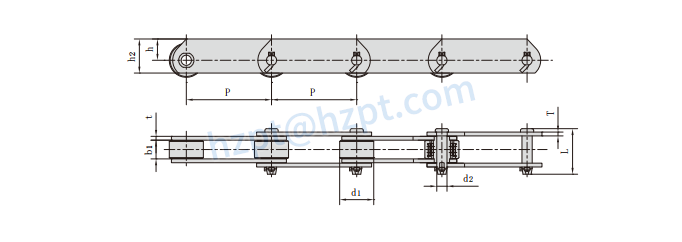

Dimension

Chain No.

Pitch

Rollerdiameter

Widthbetweeninner plates

Pindiameter

Pinlength

Platedepth

Platethickness

Tensilestrength

Averagetensilestrength

Weightpermeter

d1m ax

b1mn

d2m ax

Lm ax

hm ax

h2m ax

t/T

Q.mnkN/bf

kg/m

FVT63F3-PZ-100

100.0

40.0

22.0

12.0

53.5

25.0

40.0

4.5

63.0/14162

68.6

5.1

Applications

Chassis assembly

Engine assembly

Transmission assembly

Body assembly

Application of Engineering Chains

Engineering chains?are specialized components designed for a wide array of applications across various industries. These chains are integral to the operation of machinery and equipment, facilitating the movement, transmission, and conveyance of materials under a range of conditions. The applications of engineering chains are diverse, underscoring their importance in enhancing efficiency, reliability, and productivity in numerous sectors. Here are some of the primary applications of engineering chains:

Manufacturing and Assembly Lines

Engineering chains are extensively used in manufacturing and assembly lines for automobiles, electronics, appliances, and more. They are crucial for the smooth operation of conveyor systems that transport parts and products through different stages of production and assembly.

Agriculture

In the agricultural sector, engineering chains are used in machinery such as combines, planters, and harvesters. They enable the efficient operation of equipment that performs tasks like planting, harvesting, and processing crops.

Mining and Quarrying

Engineering chains play a vital role in the mining industry, used in equipment for extracting, transporting, and processing raw materials. They are designed to withstand harsh conditions, including heavy loads, abrasive materials, and extreme environments.

Food Processing

In food processing, engineering chains are used in conveyance systems that transport ingredients, handle packaging, and facilitate the processing of food products. They are designed to meet hygiene standards and withstand the specific conditions of food processing environments.

Automobile Manufacturing Industry

In the realm of the automobile manufacturing industry, the term "chain" specifically denotes the types employed across various stages of the car production line. These stages include, but are not limited to, stamping, welding, painting, and the final assembly processes. The chains are instrumental in the conveyance of a wide array of items, ranging from molds and vehicle body components to entire vehicles, facilitating the smooth transition of parts through each phase of production.

Expanded Features:

The chains designed for use in automobile production boast several key attributes:

Safety and Reliability: Engineered to ensure the utmost safety and dependability throughout their operation, these chains are a cornerstone of a secure manufacturing environment.
Eco-Friendliness: With a focus on sustainability, these chains are developed to minimize environmental impact, aligning with green manufacturing principles.
Continuity and Stability: They offer uninterrupted and stable operation, crucial for maintaining the flow of production without unexpected halts.
Low Maintenance: Designed to require minimal upkeep, these chains ensure that production lines run smoothly with reduced downtime for maintenance.
Customization: Recognizing the diverse needs of the automobile manufacturing sector, these chains are customizable. Manufacturers are equipped to tailor both the design and production of these chains to meet the specific requirements of their users, ensuring optimal integration into existing systems.

Main Products Expanded:

Automobile Swing Bar Chain: This variant is optimized for tasks requiring precision and flexibility, such as moving parts along complex paths.

Automobile Drying Line Chain: Specially designed for high-temperature environments, this chain withstands the conditions of drying processes.

Automobile Painting Line Chain: With materials and construction that resist the harsh chemicals and conditions of painting booths, this chain ensures that components move smoothly through the painting process.

Automobile Assembly Line Chain: This chain is tailored for the assembly process, accommodating the varied tasks and equipment involved in putting the final vehicle together.

Automobile Rain Line Chain: Engineered for use in water-intensive testing or processing stages, this chain is built to resist corrosion and ensure reliability despite constant exposure to moisture.
