Bronze Bearing Idler Sprockets

Bronze bearing idler sprockets are extremely durable. Bronze is used because it is self lubricating , economical, and easy to press into sprockets. Our bronze bearing sprockets are manufactured using high-quality bronze with high-strength heat-treated sprockets.sprocket is categorized as a needle bearing idler sprocket due to the needle bearing that is inserted into the sprocket. Additionally this idler sprocket was engineered to be extremely durable and high performance, along with being manufactured out of a high quality steel and components to create an idler sprocket with great performance and a long working life.

• Durable & High Performance Sprocket
• Uses High Quality Needle Bearing
• Fully Meets All ANSI Standards
• Has Hardened Teeth

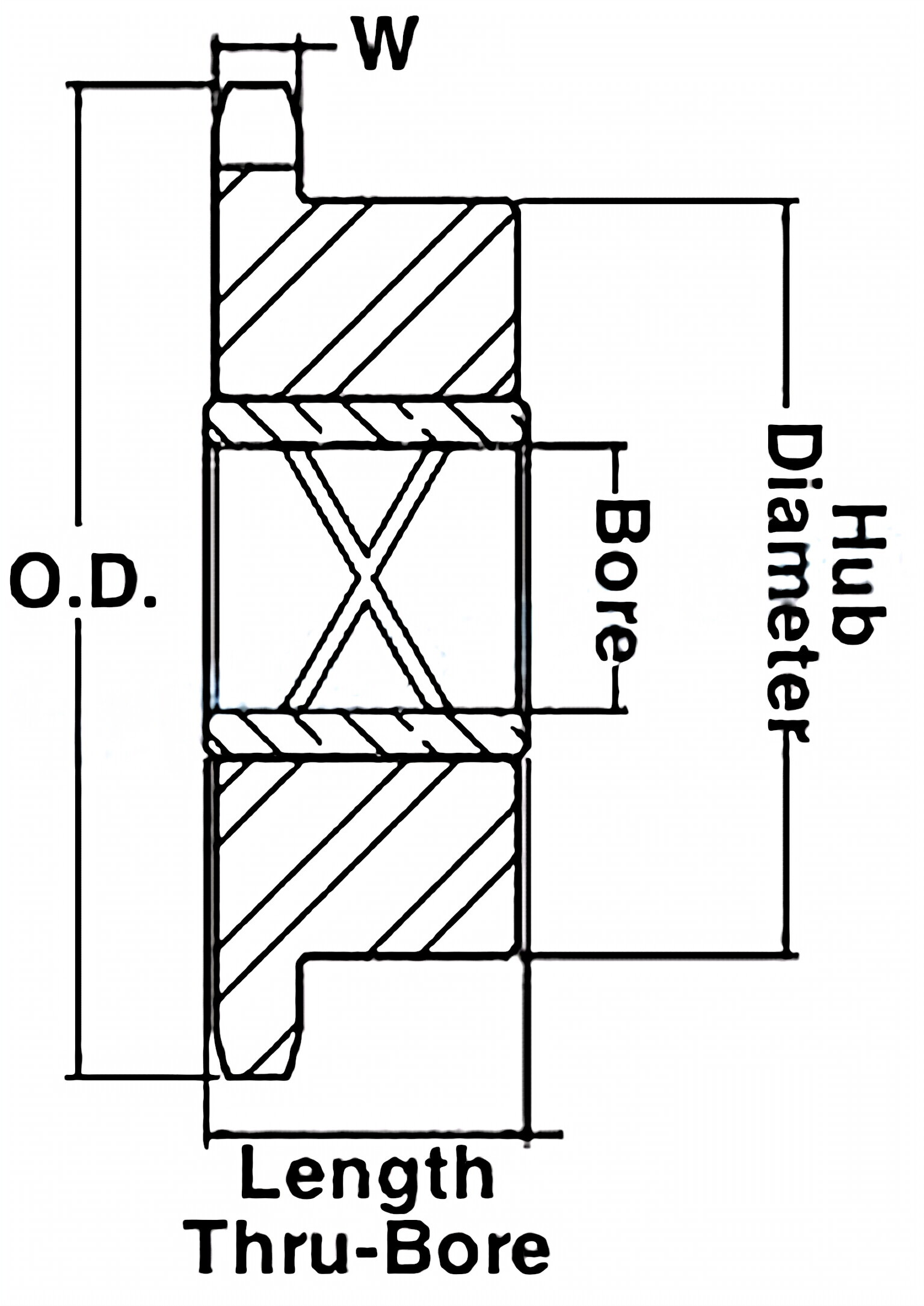

Sprocket Size	Number Of Teeth	Bearing Type	Chain Size	Outside Diameter	Bore Size	Length Thru Bore	Dimension (T)	Hub Diameter	Weight
35BR15	15	Bronze Bearing	#35	1.99"	1/2"	0.94"	0.168"	1.35"	0.30 LBS
35BR21	21	Bronze Bearing	#35	2.71"	7/8"	1.06"	0.168"	2.00"	0.75 LBS
40BR13	13	Bronze Bearing	#40	2.33"	1/2"	0.94"	0.284"	1.56"	0.50 LBS
40BR19	19	Bronze Bearing	#40	3.29"	7/8"	1.06"	0.284"	2.50"	1.25 LBS
41BR13	13	Bronze Bearing	#41	2.33"	1/2"	0.94"	0.227"	1.56"	0.50 LBS
41BR19	19	Bronze Bearing	#41	3.29"	7/8"	1.06"	0.227"	2.50"	1.00 LBS
50BR13	13	Bronze Bearing	#50	2.91"	1/2"	0.94"	0.343"	1.87"	0.90 LBS
50BR17	17	Bronze Bearing	#50	3.72"	7/8"	1.06"	0.343"	2.62"	1.50 LBS
